Product Description

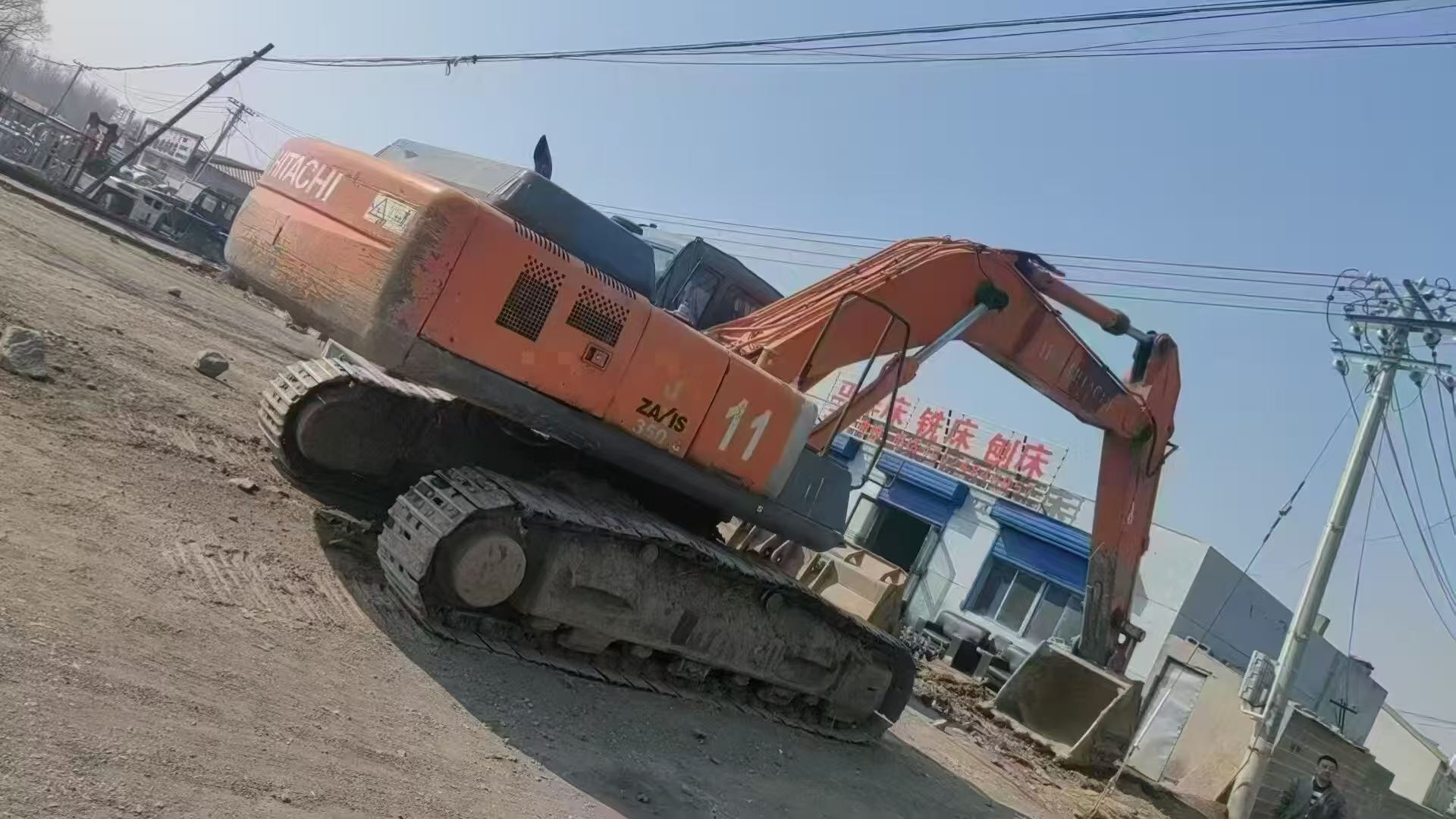

Discover the reliability and efficiency of the 2012 Hitachi ZX330-3G, available for purchase in Hunan, China. This robust excavator is designed to tackle a wide range of construction and excavation tasks, offering both power and precision. With over 110,000 operational hours, this machine has proven its durability and performance in various challenging environments. Ideal for contractors and construction companies looking for a dependable piece of equipment, the ZX330-3G features advanced hydraulic systems and a comfortable operator's cabin, ensuring optimal productivity and ease of use. Invest in a machine that combines long-lasting quality with cost-effectiveness, perfect for your heavy-duty projects.
- Year: 2012
- Brand: Hitachi
- Model: ZX330-3G
- Location: Hunan, China
- Operational Hours: 110,000+
| Specifications | Value |
|---|---|
| No. | 1100120 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 3190 |
| Bucket capacity (m³) | 1.38 |
| Boom length (mm) | 6.4 |
| Rod length (mm) | 3.2 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU Isuzu AA-6HK1XQA |
| Rated power (kw/rpm) | 184/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, turbocharged, with intercooler |
| Ground specific pressure (Kpa) | 65 |
| Rotation speed (rpm) | 11.8 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 237 |
| Rod digging force (kN) | 172 |
| Travel speed (km/h) | 3.2/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 288 + 30.2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 140 x 95 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 115 |
| Boom cylinders - Number × diameter × stroke (mm) | 146 x 100 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 32 |
| Total transport length (mm) | 10970 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3230 |
| Full cab height (mm) | 3140 |
| Counterweight ground clearance (mm) | 1160 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3320 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3730 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7360 |
| Maximum excavation height (mm) | 10250 |
| Maximum unloading height (mm) | 7150 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10890 |
| Maximum effective digging depth (mm) | 7200 |
