Product Description

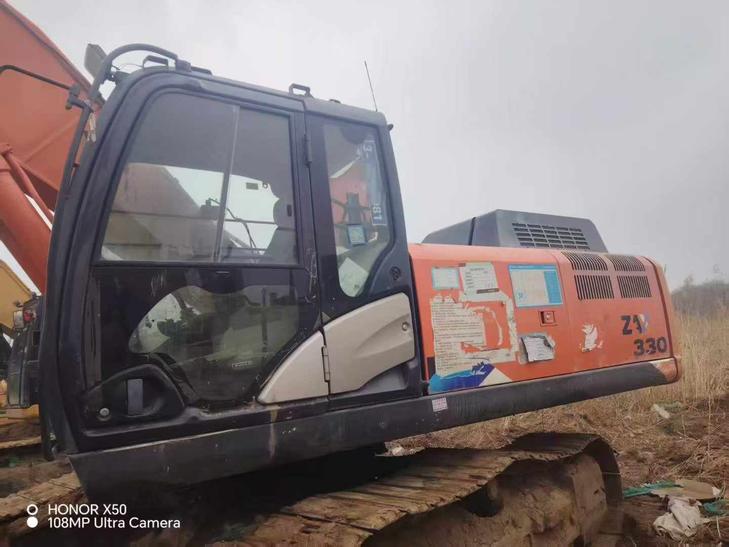

Built in 2017, this Hitachi ZX330-5A excavator delivers the reliable performance busy contractors need when expanding fleet capacity. Operating at 33 tons with a 32,700 kg working weight, this machine handles demanding excavation tasks with a bucket capacity ranging from 1.45 to 1.62 m³. Power comes from an Isuzu GH-6HK1XKSA-01 engine producing 190 kW at 1900 rpm, featuring water-cooled, turbocharged, and intercooled technology for consistent output across extended shifts.
Productivity specifications include:
- Maximum digging reach of 11,100 mm with 7,380 mm depth capability
- Bucket digging force of 246 kN and rod force of 185 kN
- Dual variable axial piston pumps delivering 2 × 288 L/min flow
- 10.7 rpm rotation speed with 70% climbing ability
- 630L fuel capacity for extended operation between refills
Currently located in Hangzhou, Zhejiang, this ZX330-5A integrates seamlessly into existing fleets as a primary workhorse or backup unit. Transport dimensions of 11,220 mm × 3,190 mm × 3,270 mm allow standard logistics handling. Ready for immediate deployment on your next project.
| Specifications | Value |
|---|---|
| No. | 1040663 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 32700 |
| Bucket capacity (m³) | 1.45-1.62 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6HK1XKSA-01 |
| Rated power (kw/rpm) | 190/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Maximum torque (N.m) | 1037/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.790 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 66 |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 246 |
| Rod digging force (kN) | 185 |
| Maximum tractive force (kN) | 298 |
| Travel speed (km/h) | 3.2-5.0 |
| Turning torque (Nm) | 120 |
| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 288 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 30.2 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 340 |
| Total transport length (mm) | 11220 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3270 |
| Full cab height (mm) | 3160 |
| Counterweight ground clearance (mm) | 1160 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4610 |
| Back end turning radius (mm) | 3590 |
| Onboard width (mm) | 2990 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3730 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10360 |
| Maximum unloading height (mm) | 7240 |
| Maximum vertical digging depth (mm) | 6420 |
| Maximum excavation radius of stop surface (mm) | 10890 |
