Product Description

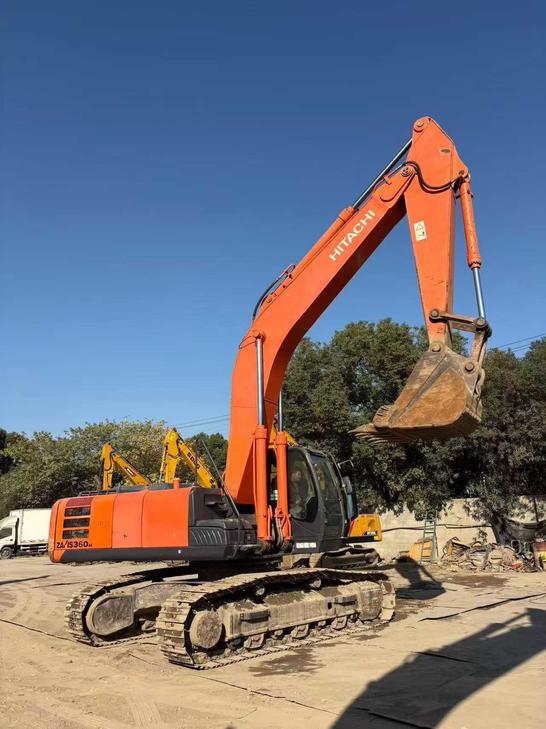

Proven reliability meets exceptional performance in this 2016 Hitachi ZX330-5G excavator, now available from our Shanghai facility. Operating at 33 tons with a robust Isuzu AA-6HK1X engine delivering 184kW at 2000rpm, this machine combines Hitachi's legendary build quality with real-world productivity. The 1.38m³ bucket capacity and 11,100mm maximum digging radius make short work of demanding excavation projects, while the 246kN bucket digging force ensures consistent performance across varied soil conditions.
Hitachi excavators dominate the used equipment market for good reason. Parts availability remains excellent worldwide, protecting your investment and minimizing downtime. The ZX330-5G's dual variable axial piston pumps and water-cooled system deliver the durability professionals demand, backed by a manufacturer with unmatched resale value retention. With 630L fuel capacity and comprehensive hydraulic specifications including 34.3MPa working pressure, this excavator offers the operational efficiency that keeps projects on schedule and budgets intact.
- 33-ton working weight with 7,380mm maximum dig depth
- Isuzu AA-6HK1X engine: 184kW power output
- Superior parts network ensures minimal downti
| Specifications | Value |
|---|---|
| No. | 1031839 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 32400 |
| Bucket capacity (m³) | 1.38 |
| Rod length (mm) | 3200 |
| Country of origin | Hefei (Capital of Anhui Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AA-6HK1X |
| Rated power (kw/rpm) | 184/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Displacement (L) | 7.79 |
| Working form | 4 stroke, water cooled, direct injection |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 246 |
| Rod digging force (kN) | 222 |
| Maximum tractive force (kN) | 298 |
| Travel speed (km/h) | 0-4.9/0-3.1 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 279 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 32.8 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 36 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 340 |
| Total transport length (mm) | 11220 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3270 |
| Full cab height (mm) | 3160 |
| Counterweight ground clearance (mm) | 1160 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4460 |
| Back end turning radius (mm) | 3690 |
| Onboard width (mm) | 2990 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum unloading height (mm) | 7240 |
| Maximum vertical digging depth (mm) | 6420 |
| Maximum excavation radius of stop surface (mm) | 10880 |
| Maximum effective digging depth (mm) | 7210 |
