Product Description

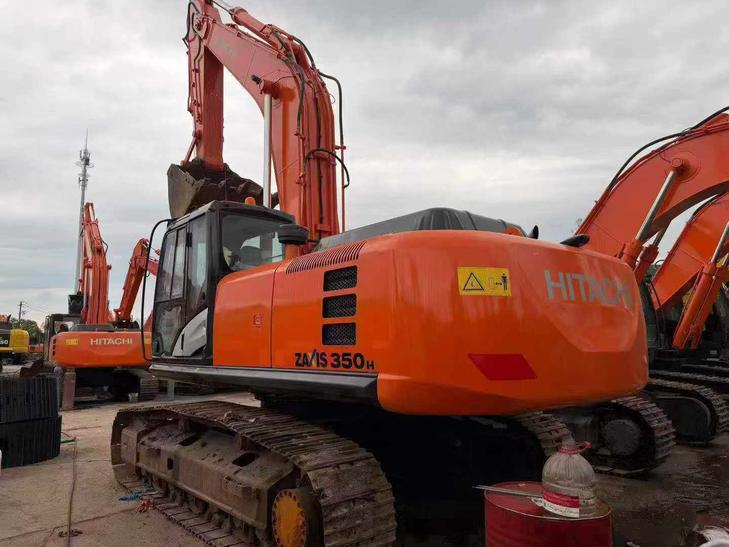

2020 Hitachi ZX350H-5G hydraulic excavator available from Zhejiang, China. This 35-ton class machine represents Hitachi's proven Dash-5G generation, combining reliable performance with fuel efficiency for demanding earthmoving and construction applications.
The ZX350H-5G features Hitachi's HIOS III hydraulic system, delivering responsive control and optimized power distribution across the working range. Built on a robust undercarriage with reinforced components, this excavator is engineered for extended service life in heavy-duty operations.
- Operating weight: approximately 35,000 kg
- Engine: Isuzu 6-cylinder turbocharged diesel
- Hydraulic system: HIOS III with multiple working modes
- Cab: climate-controlled operator station with enhanced visibility
- Current location: Zhejiang Province, China
Well-maintained unit suitable for infrastructure projects, site development, and general excavation work. Inspection welcomed prior to purchase.
| Specifications | Value |
|---|---|
| No. | 1082909 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 34000 |
| Bucket capacity (m³) | 1.4-1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 2670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6HK1X |
| Rated power (kw/rpm) | 190/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Maximum torque (N.m) | 1037/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.790 |
| Working form | 4 stroke, water cooled, direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 65 |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 214-246 |
| Rod digging force (kN) | 213-222 |
| Travel speed (km/h) | 5.0/3.2 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 288 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Control Hydraulic Circuit (Mpa) | 38.0 |
| Main pump type | 2 variable axial piston pumps, 1 gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 140 x 95 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 170 x 115 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 145 x 100 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 35 |
| Total transport length (mm) | 11350 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3160 |
| Full cab height (mm) | 1675 |
| Counterweight ground clearance (mm) | 1160 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4610 |
| Back end turning radius (mm) | 3590 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3730 |
| Maximum digging radius (mm) | 10570 |
| Maximum digging depth (mm) | 6840 |
| Maximum excavation height (mm) | 9990 |
| Maximum unloading height (mm) | 6940 |
| Maximum vertical digging depth (mm) | 5510 |
| Maximum excavation radius of stop surface (mm) | 10360 |
