Product Description

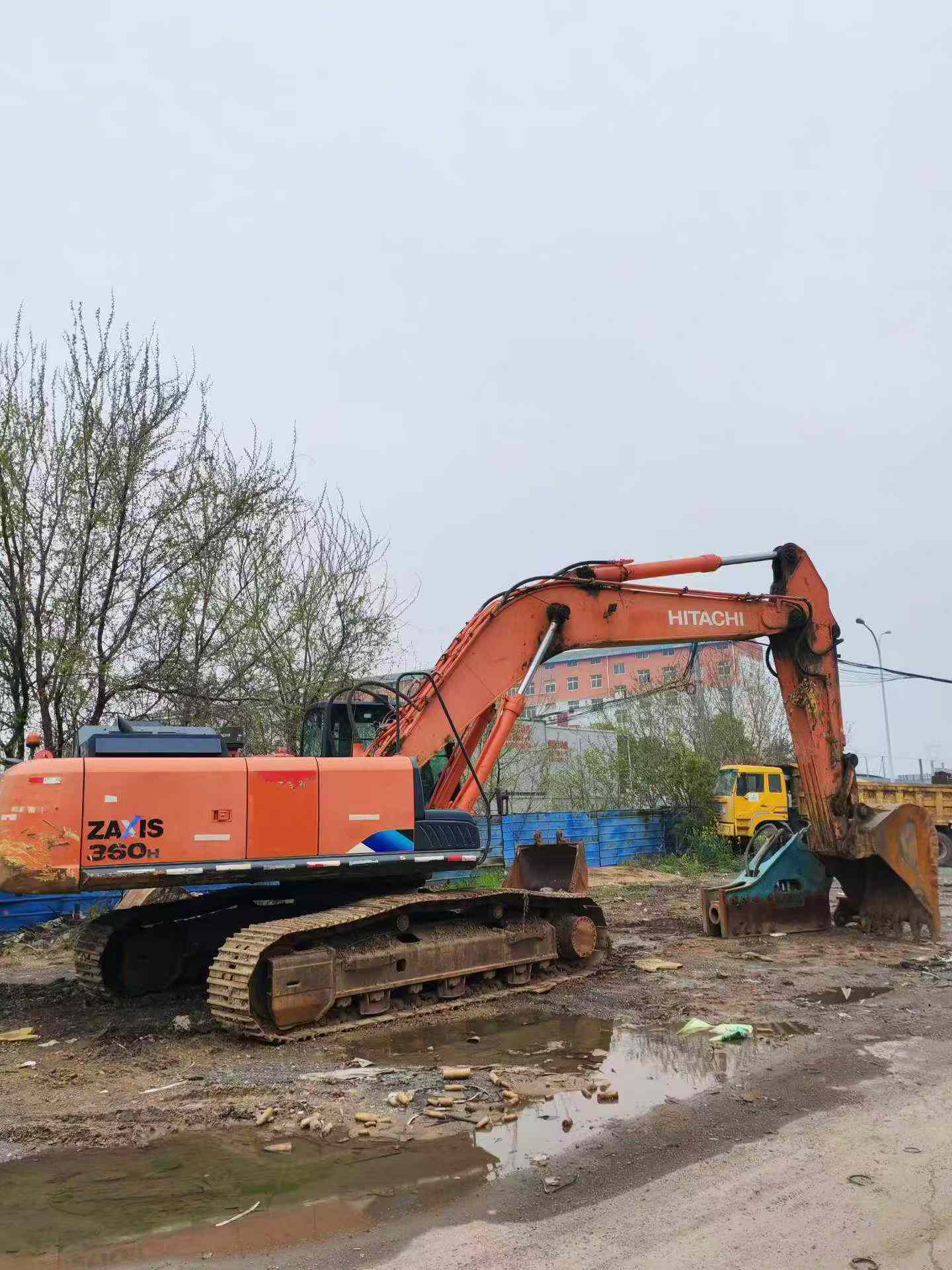

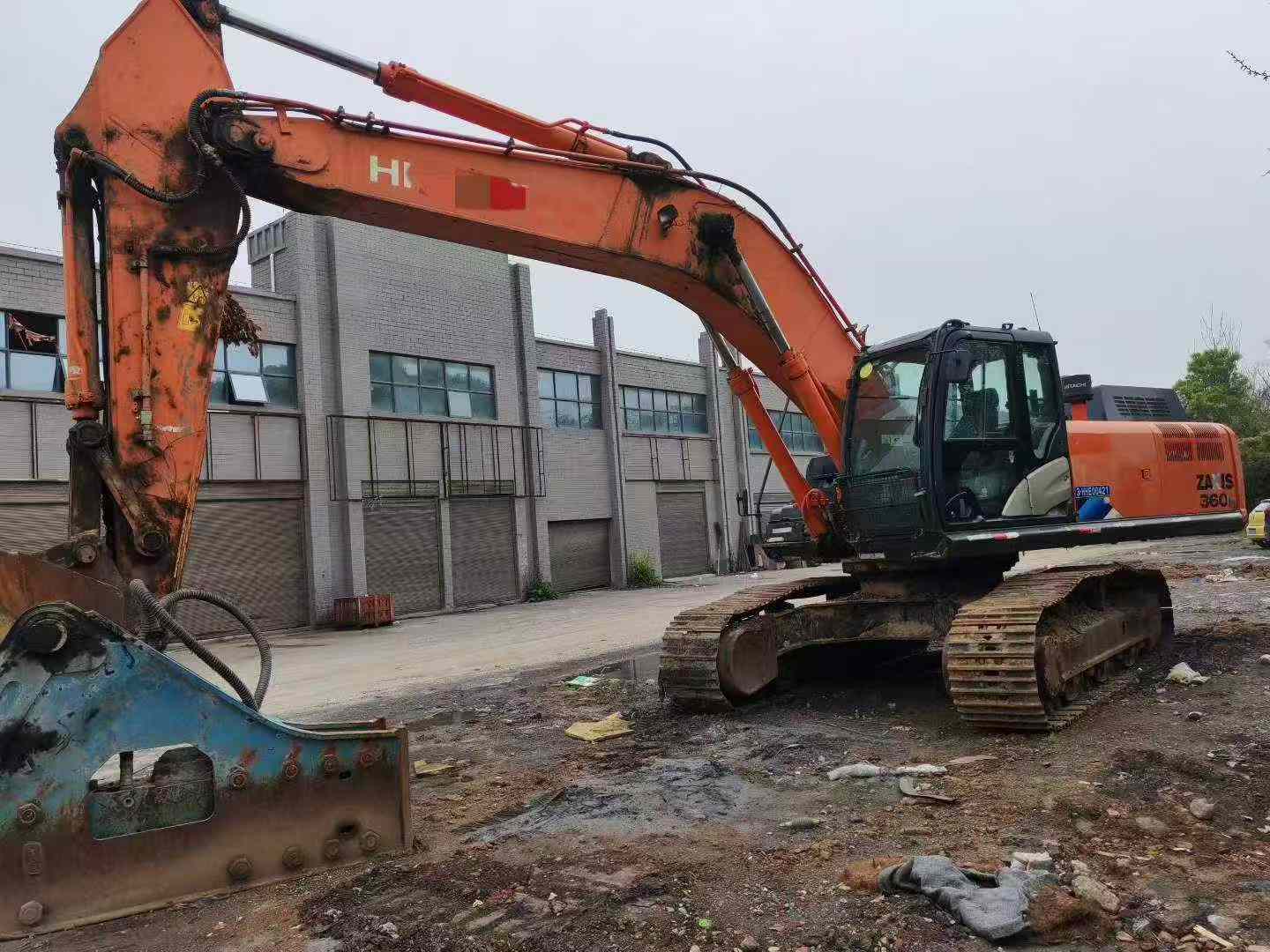

Built for high-output earthmoving and heavy excavation, this 2017 Hitachi ZX360H-5A delivers 36-ton performance with precision hydraulics and proven reliability. Powered by a 190kW Isuzu 6-cylinder engine with electronic control and intercooling, this machine generates 246kN bucket digging force and 185kN arm force—ideal for deep trenching, foundation work, and mass excavation projects requiring consistent power delivery.
Equipped with a 2.0m³ backhoe bucket, 6400mm boom, and 3200mm arm, it reaches 11,100mm maximum digging radius and 7,380mm depth. Dual variable axial piston pumps supply 2×288 L/min flow to the working circuit, ensuring responsive cycle times during loading and grading operations. Water-cooled hydraulics and a 340L system capacity maintain performance in extended shifts.
Currently located in Hangzhou, Zhejiang, this excavator is site-ready for:
- Foundation excavation and utility installation
- Road construction and land development
- Demolition support and material handling
- Quarry and mining applications
Operating weight of 34,200kg provides stability on slopes up to 70%. Transport dimensions: 11,220mm length, 3,190mm width. Immediate deployment capab
| Specifications | Value |
|---|---|
| No. | 1046840 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 34200-34300 |
| Bucket capacity (m³) | 2.0 |

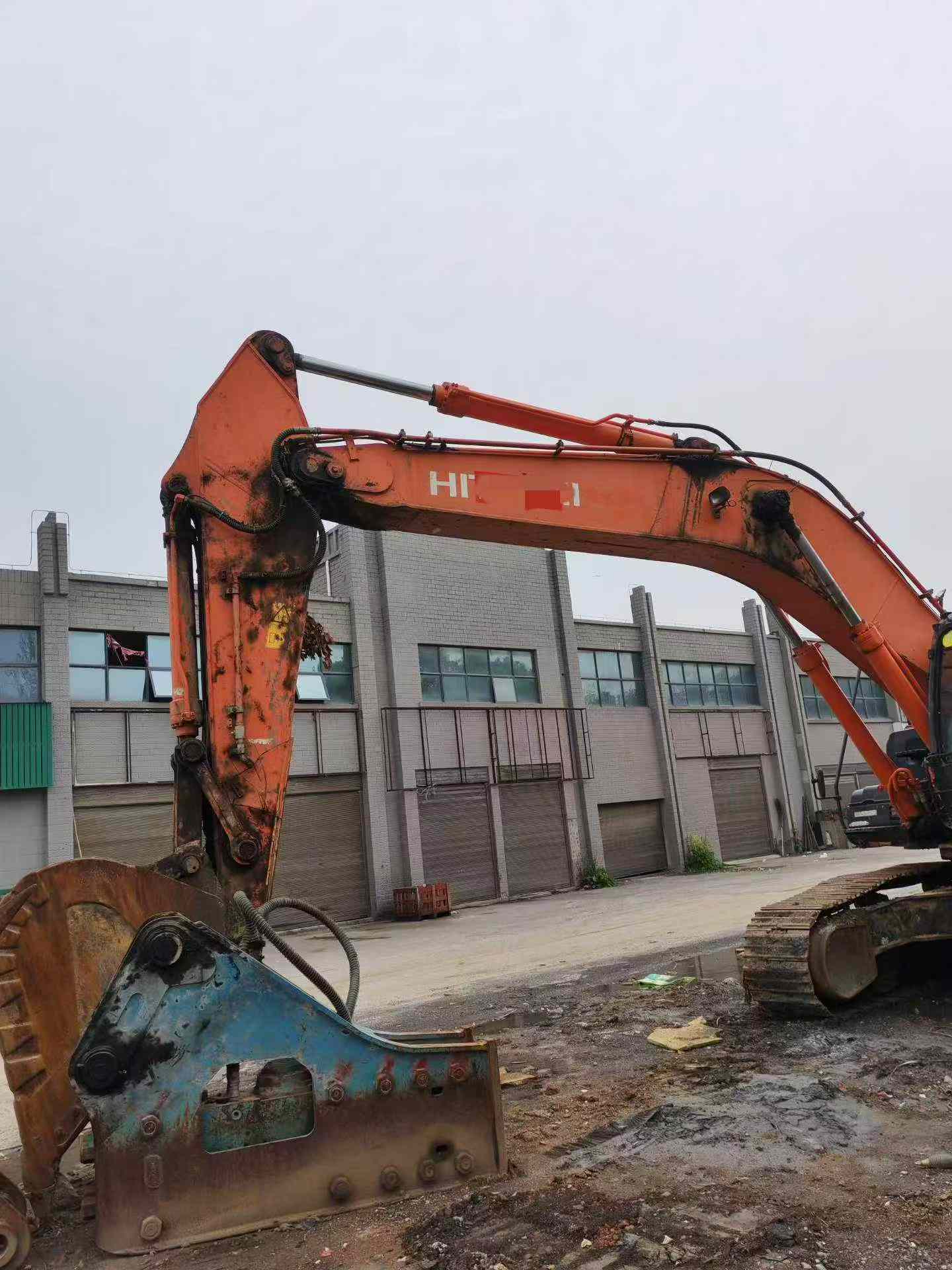

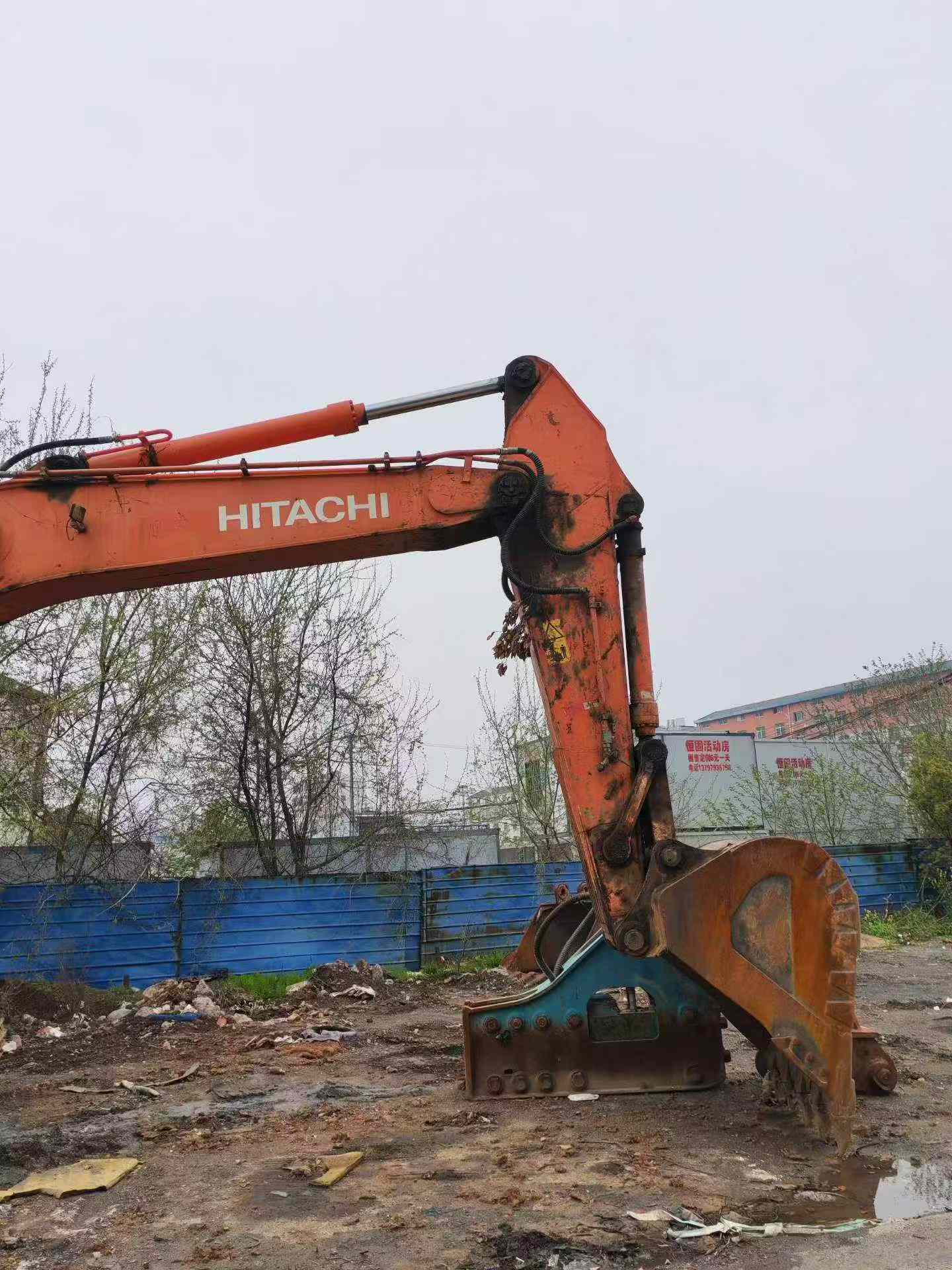

| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6HK1XKSA-01 |
| Rated power (kw/rpm) | 190/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Maximum torque (N.m) | 1037/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.790 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 69 |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 246 |
| Rod digging force (kN) | 185 |
| Travel speed (km/h) | 5.0/3.2 |
| Turning torque (Nm) | 120 |
| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 288 + 30.2 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Control Hydraulic Circuit (Mpa) | 38.0 |

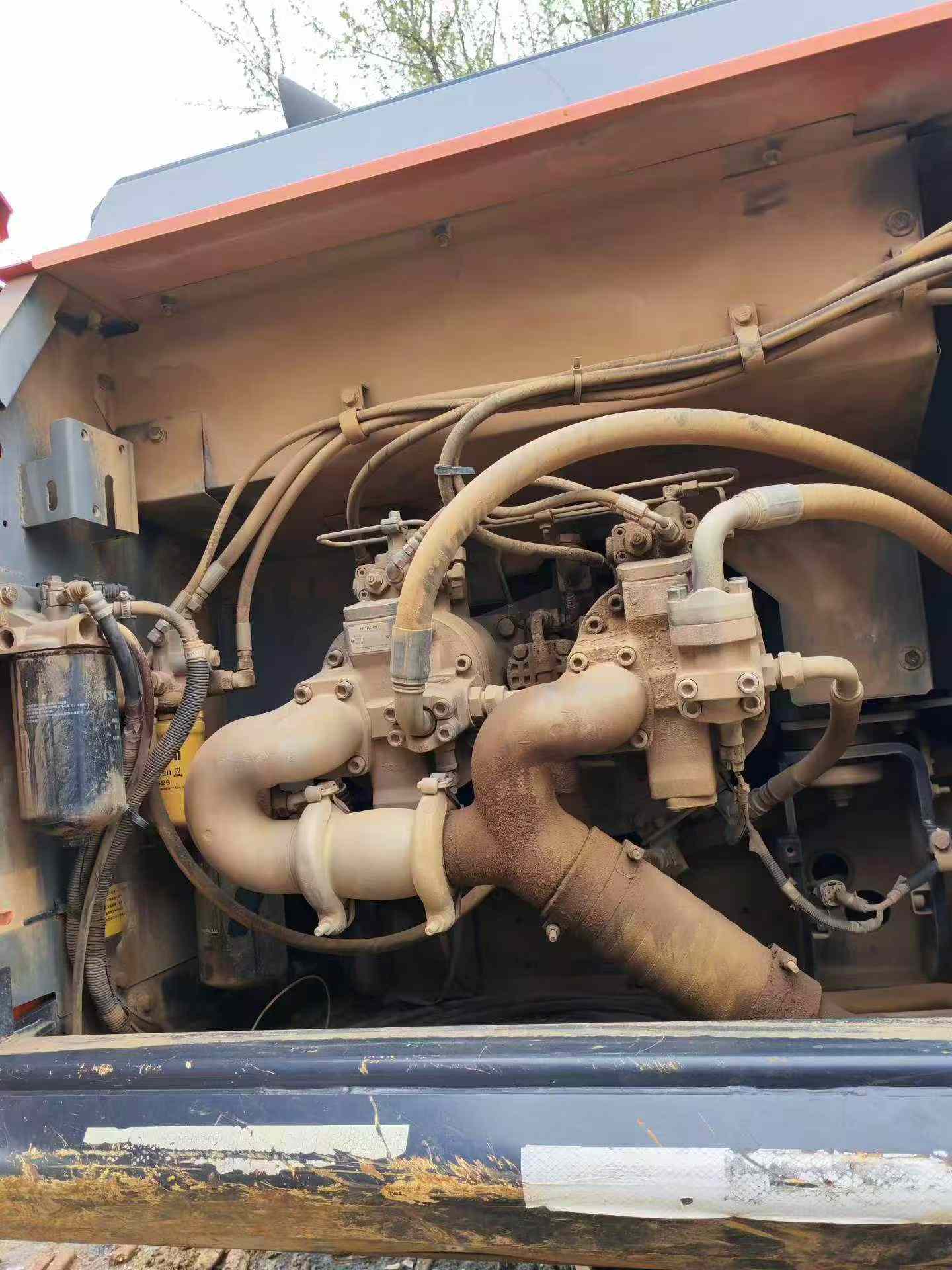

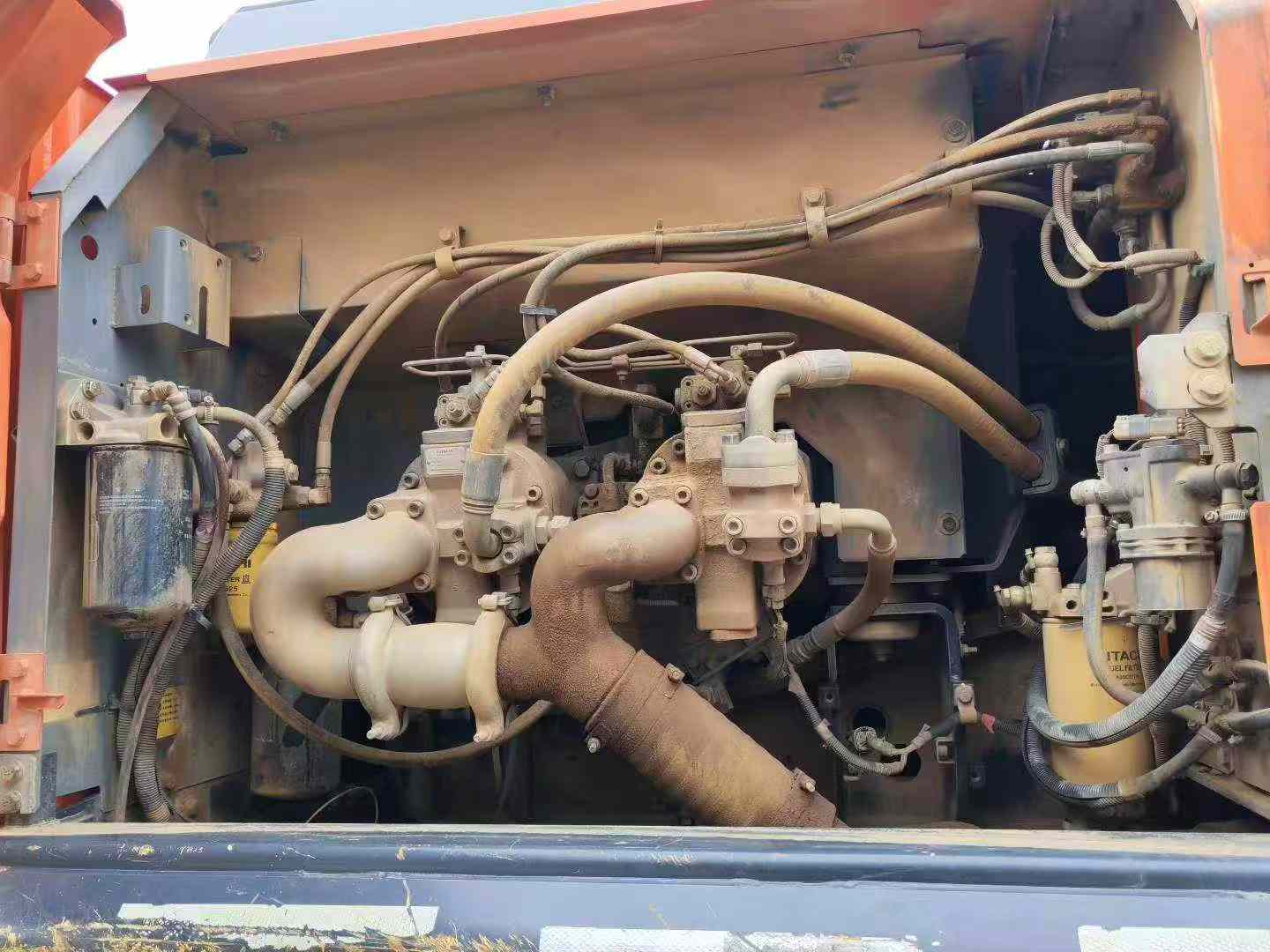

| Main pump type | 2 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 140 x 95 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 170 x 115 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 145 x 100 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 340 |
| Total transport length (mm) | 11,220 |
| Total transport width (mm) | 3,190 |
| Total transport height (mm) | 3,270 |
| Full cab height (mm) | 3,160 |
| Counterweight ground clearance (mm) | 1,160 |
| Minimum ground clearance (mm) | 500 |

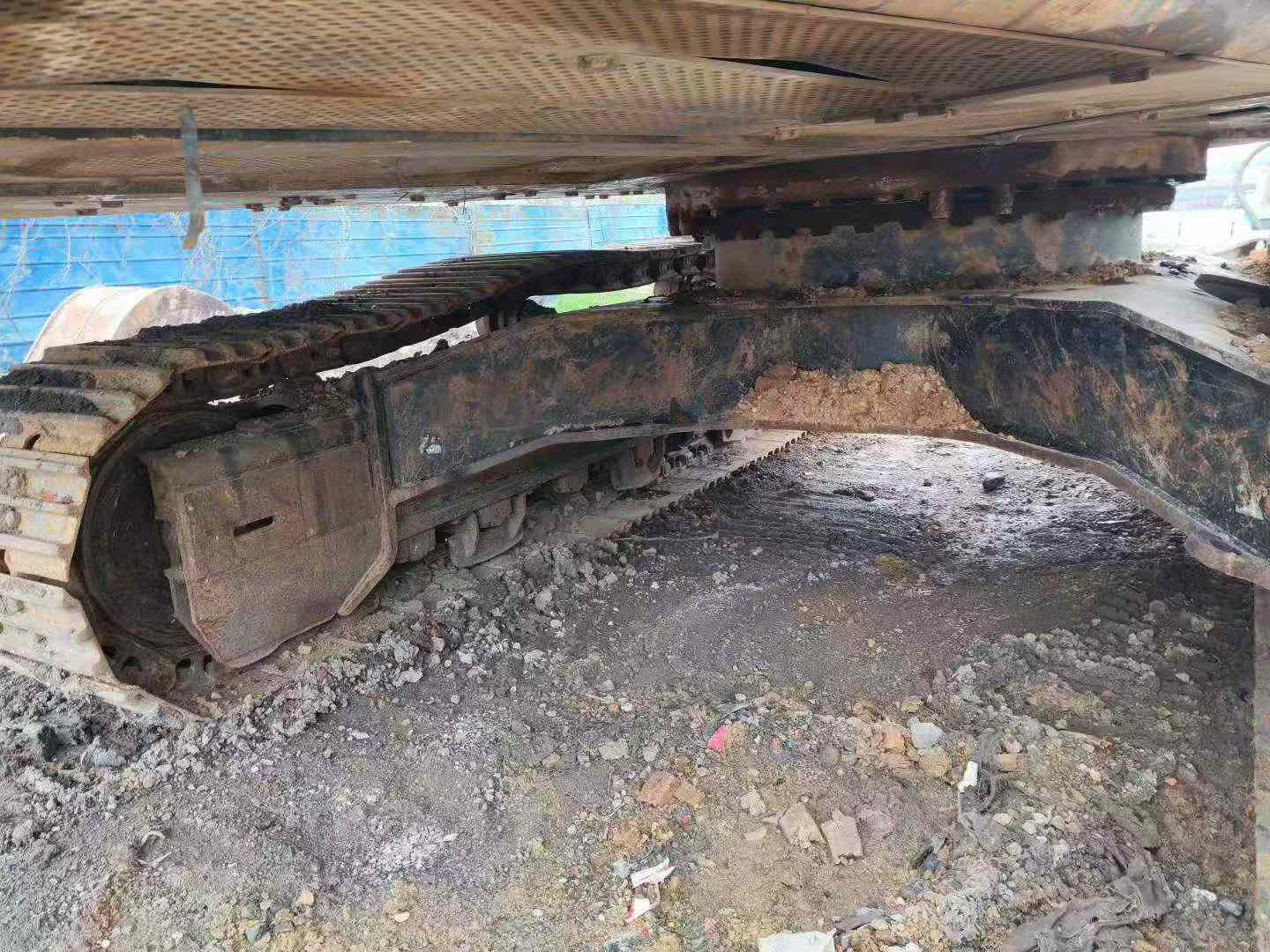

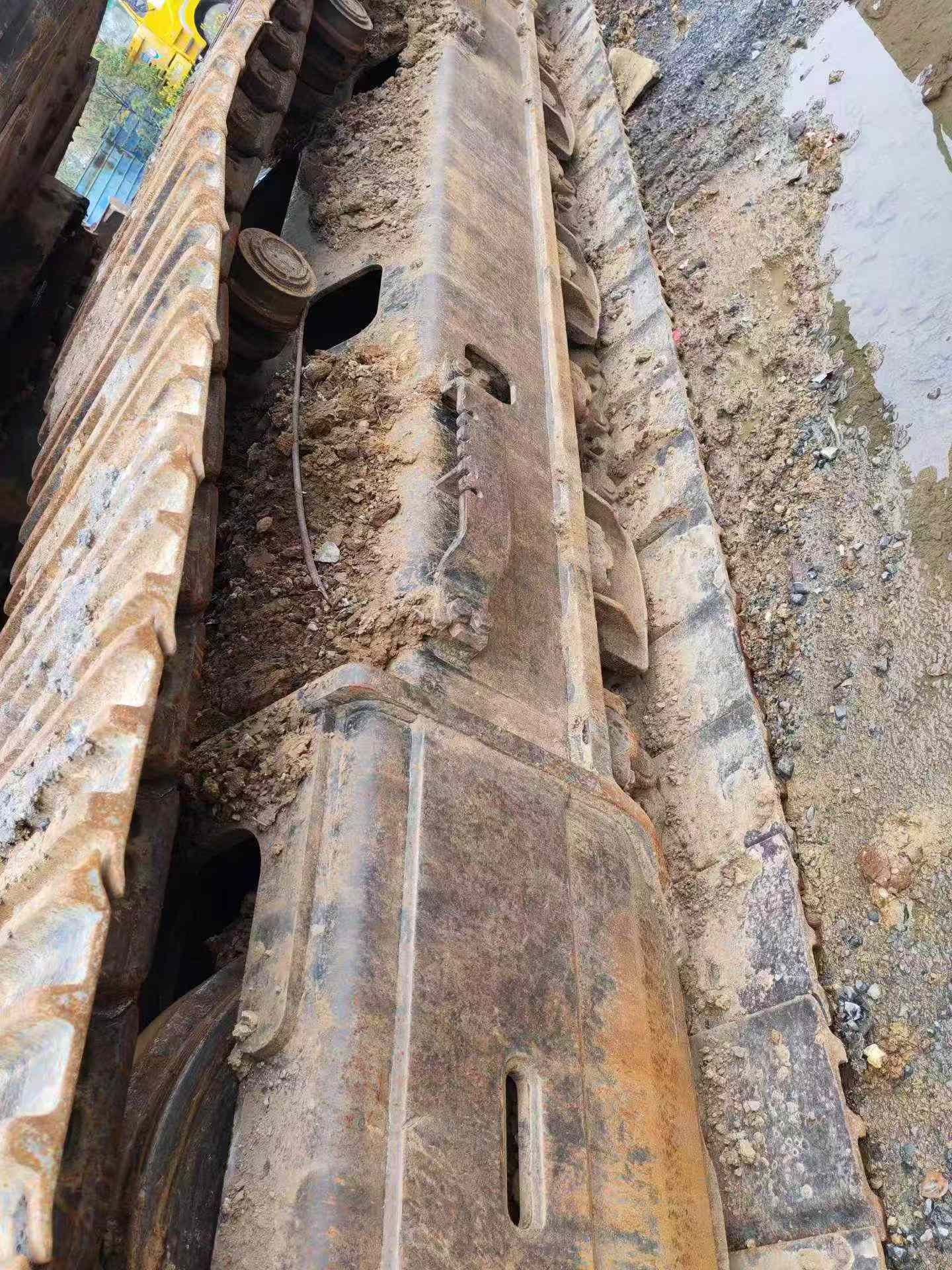

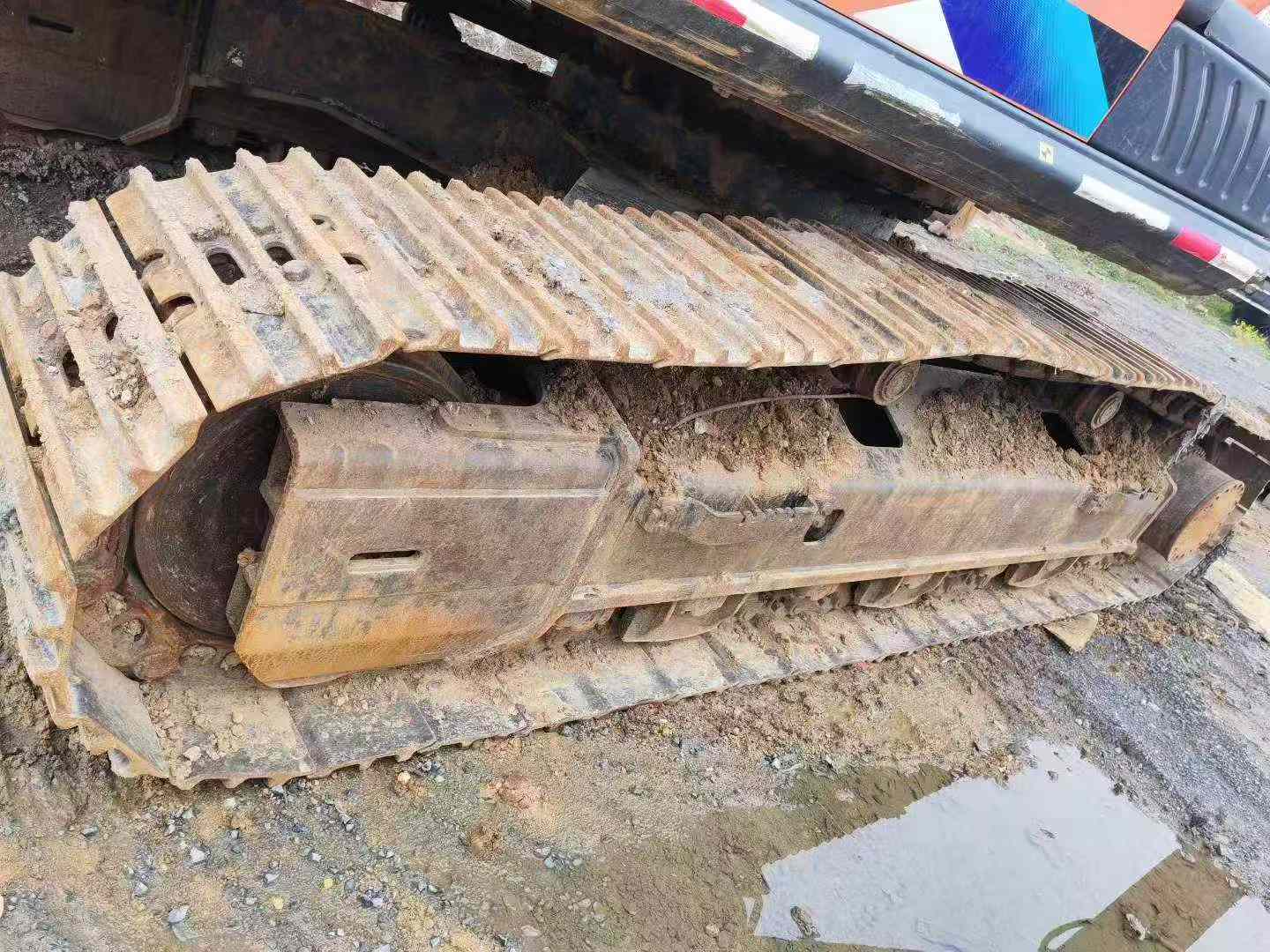

| Total track length (mm) | 4,650 |
| Track gauge (mm) | 2,590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3,190 |
| Track ground length (mm) | 3,730 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 11,100 |
| Maximum digging depth (mm) | 7,380 |
| Maximum excavation height (mm) | 10,360 |
| Maximum unloading height (mm) | 7,240 |
| Maximum vertical digging depth (mm) | 6,420 |
| Maximum excavation radius of stop surface (mm) | 10,890 |
