Product Description

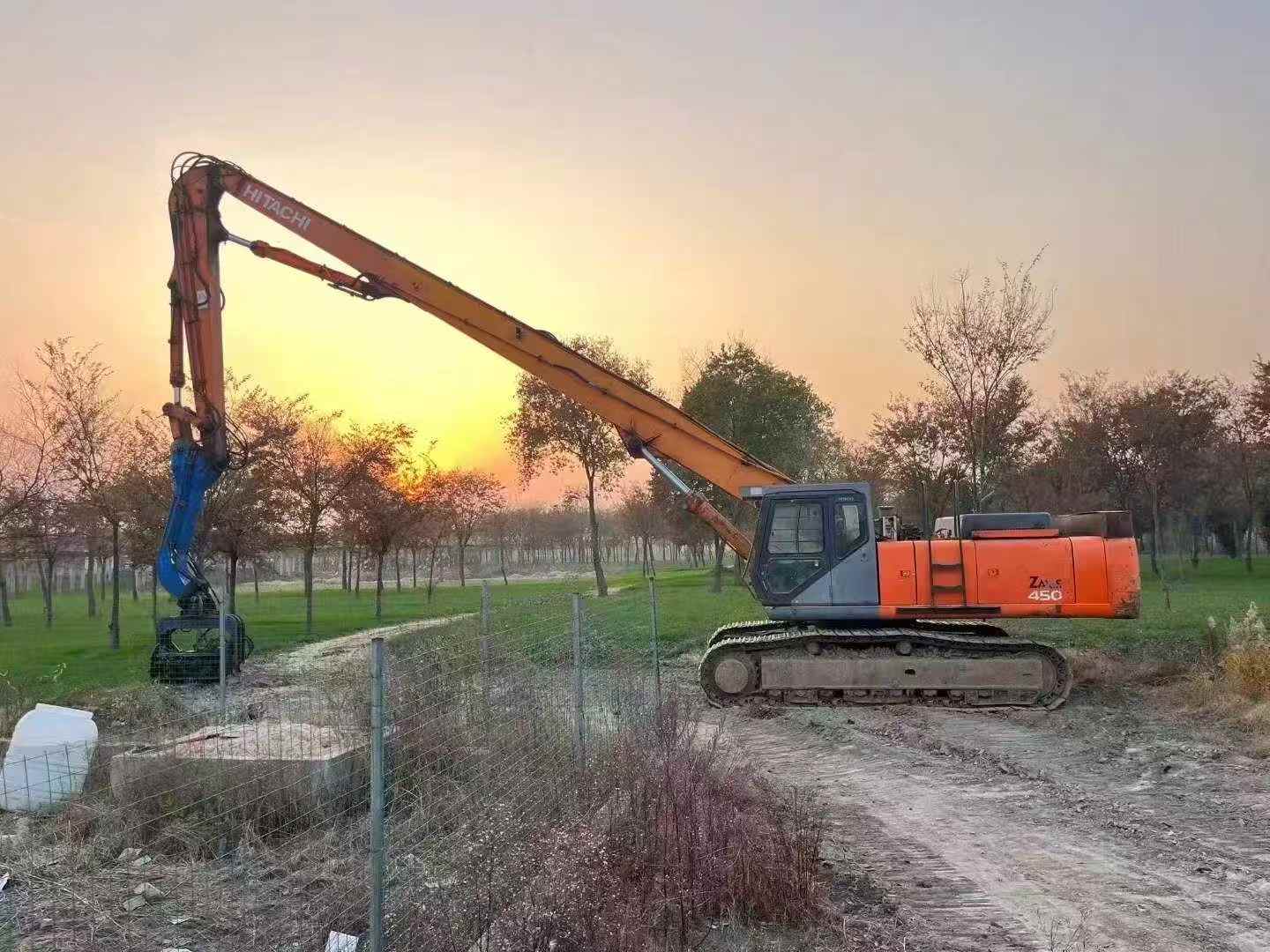

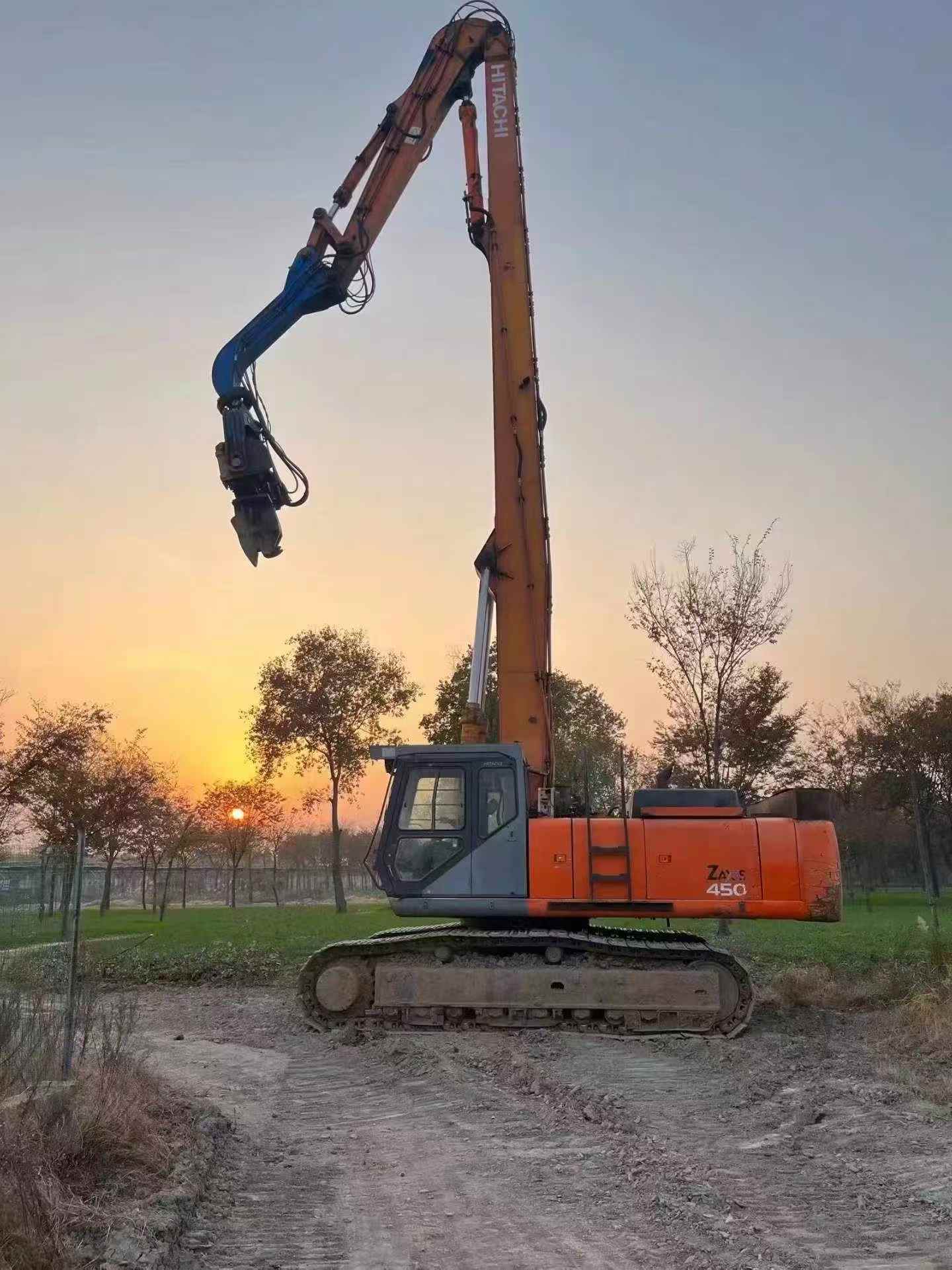

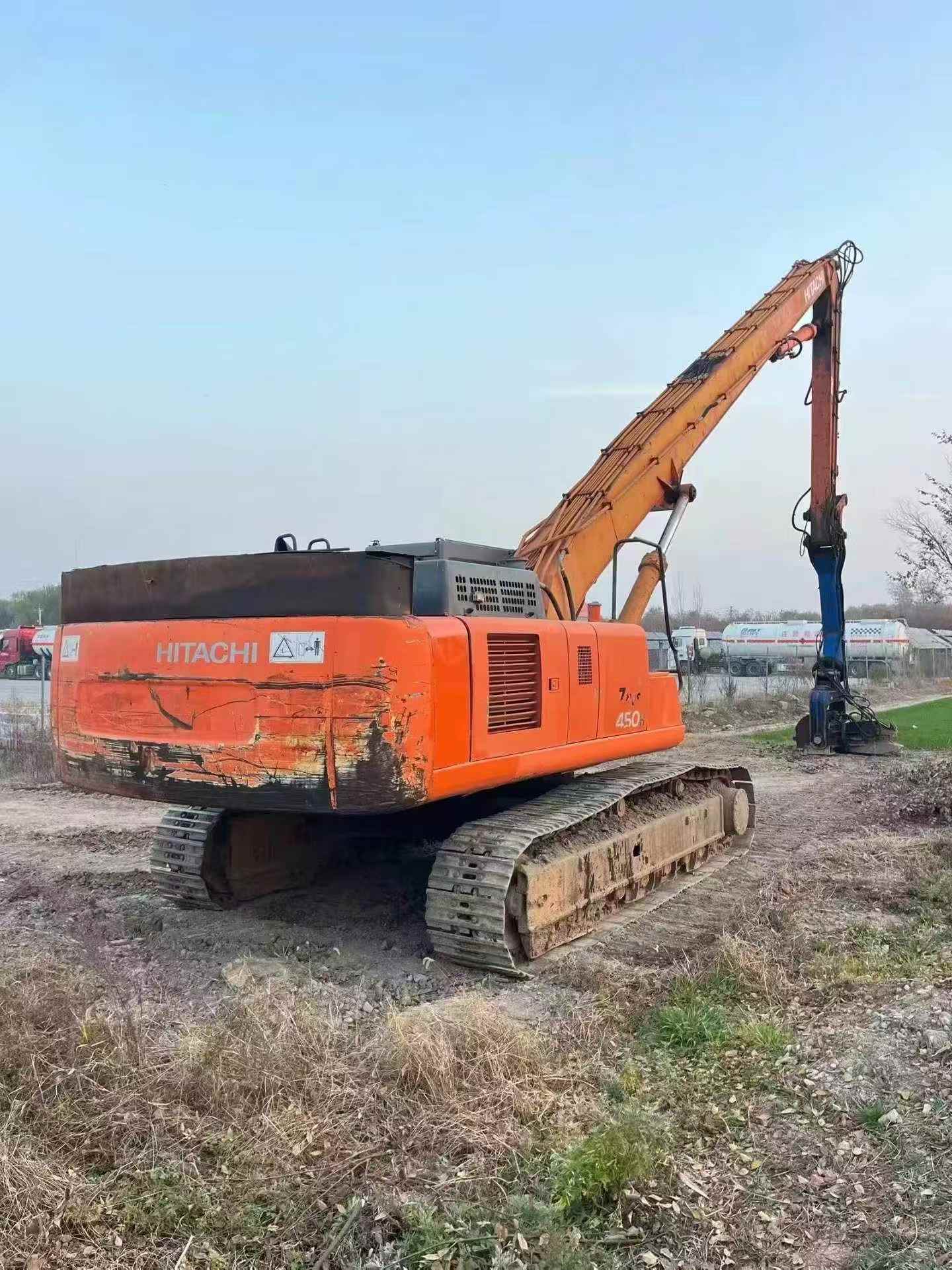

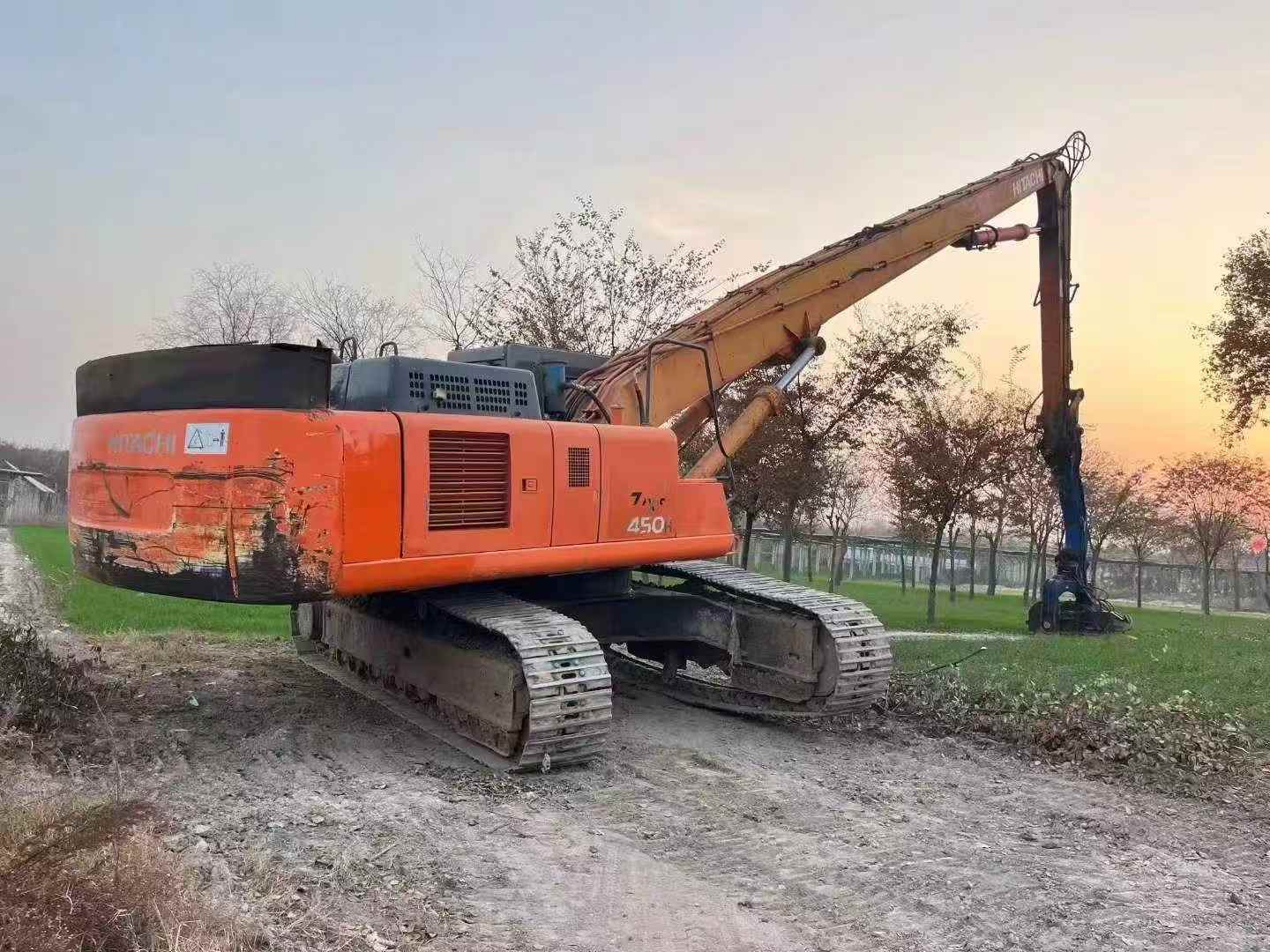

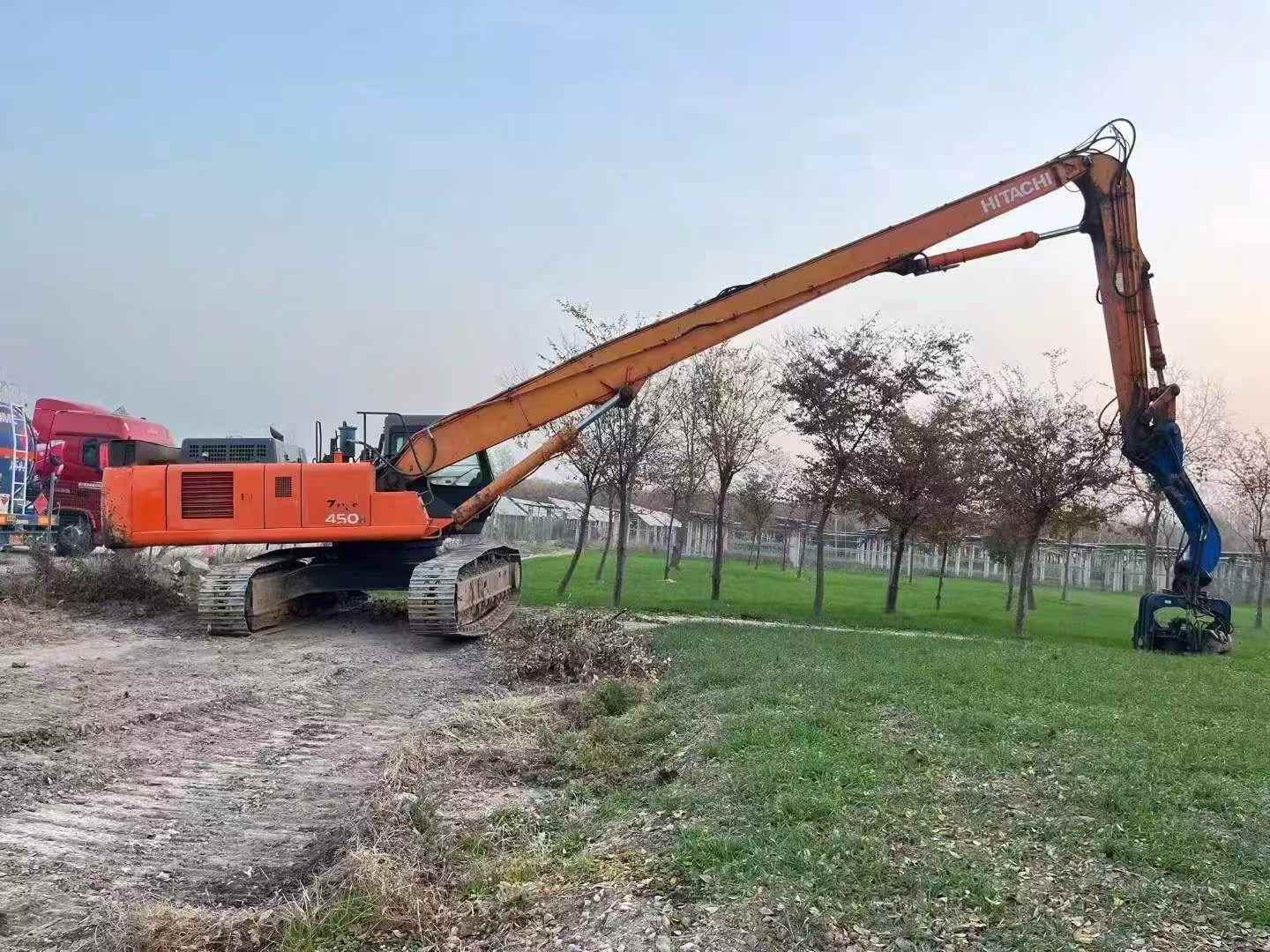

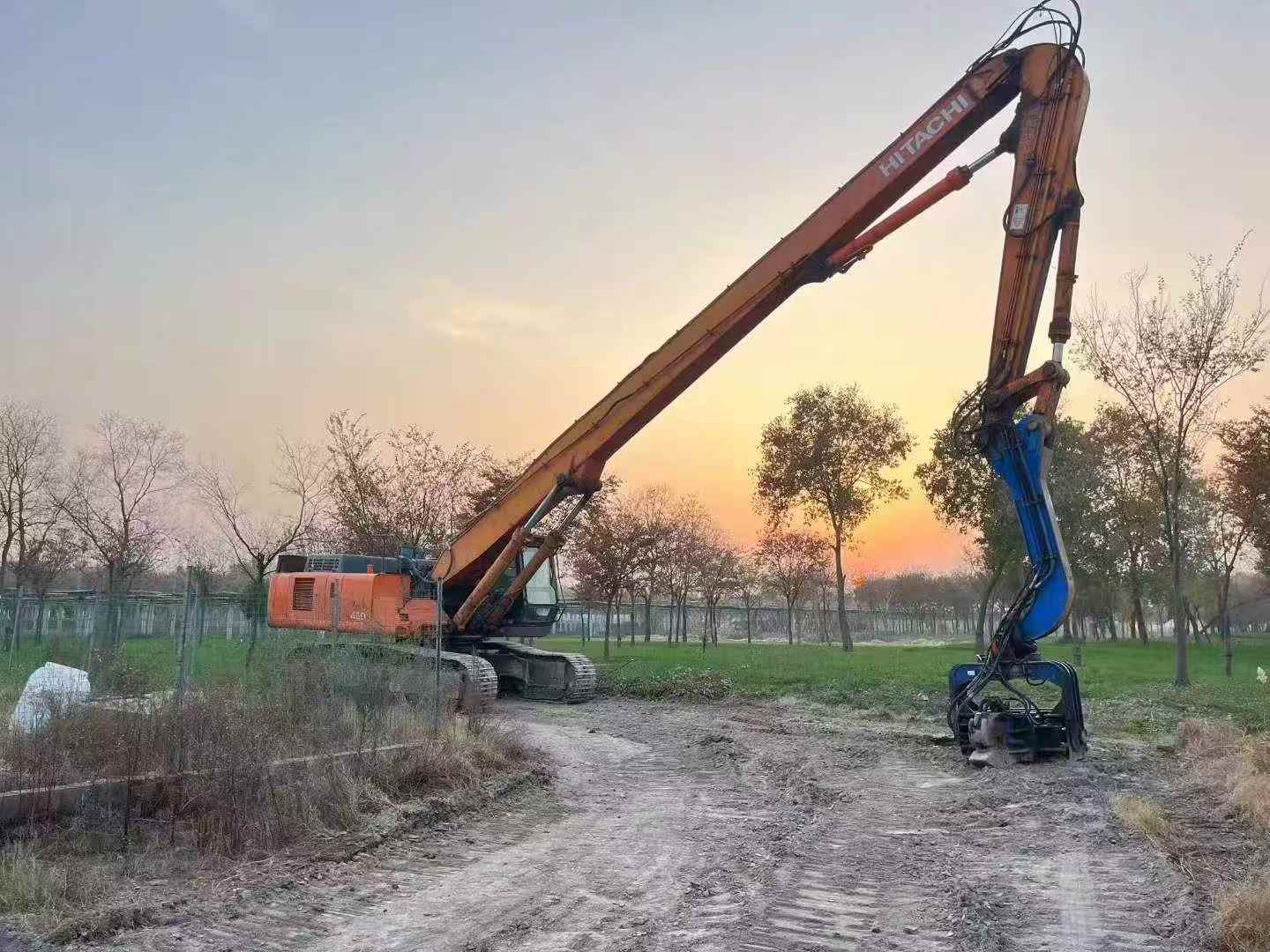

2020 Hitachi ZX450 hydraulic excavator configured as a piling machine, located in Jiangsu Province, China. This unit is equipped with a specialized vibratory hammer system featuring a 350-class hammer head, purpose-built for foundation and piling operations. The machine features an extended 18-meter boom assembly capable of driving piles to depths of 18 meters, making it suitable for deep foundation projects and infrastructure work.

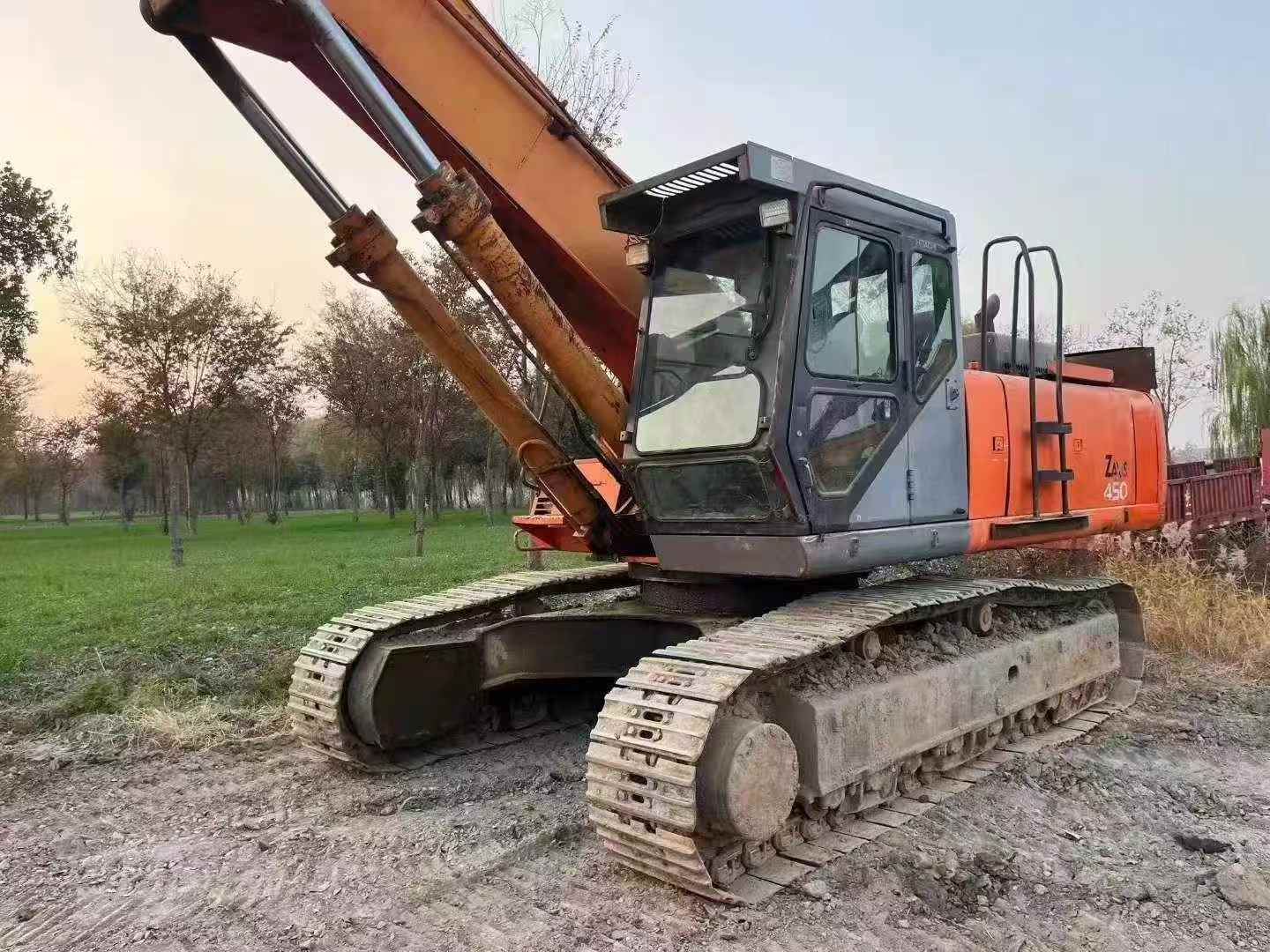

Key features include upgraded hydraulic cylinders for enhanced driving force and operational stability. The equipment is reported to be in good mechanical condition with well-maintained systems. This configuration is ideal for contractors specializing in foundation work, bridge construction, or large-scale civil engineering projects requiring deep piling capabilities.
- Year: 2020
- Model: Hitachi ZX450
- Configuration: Vibratory piling system
- Boom reach: 18 meters

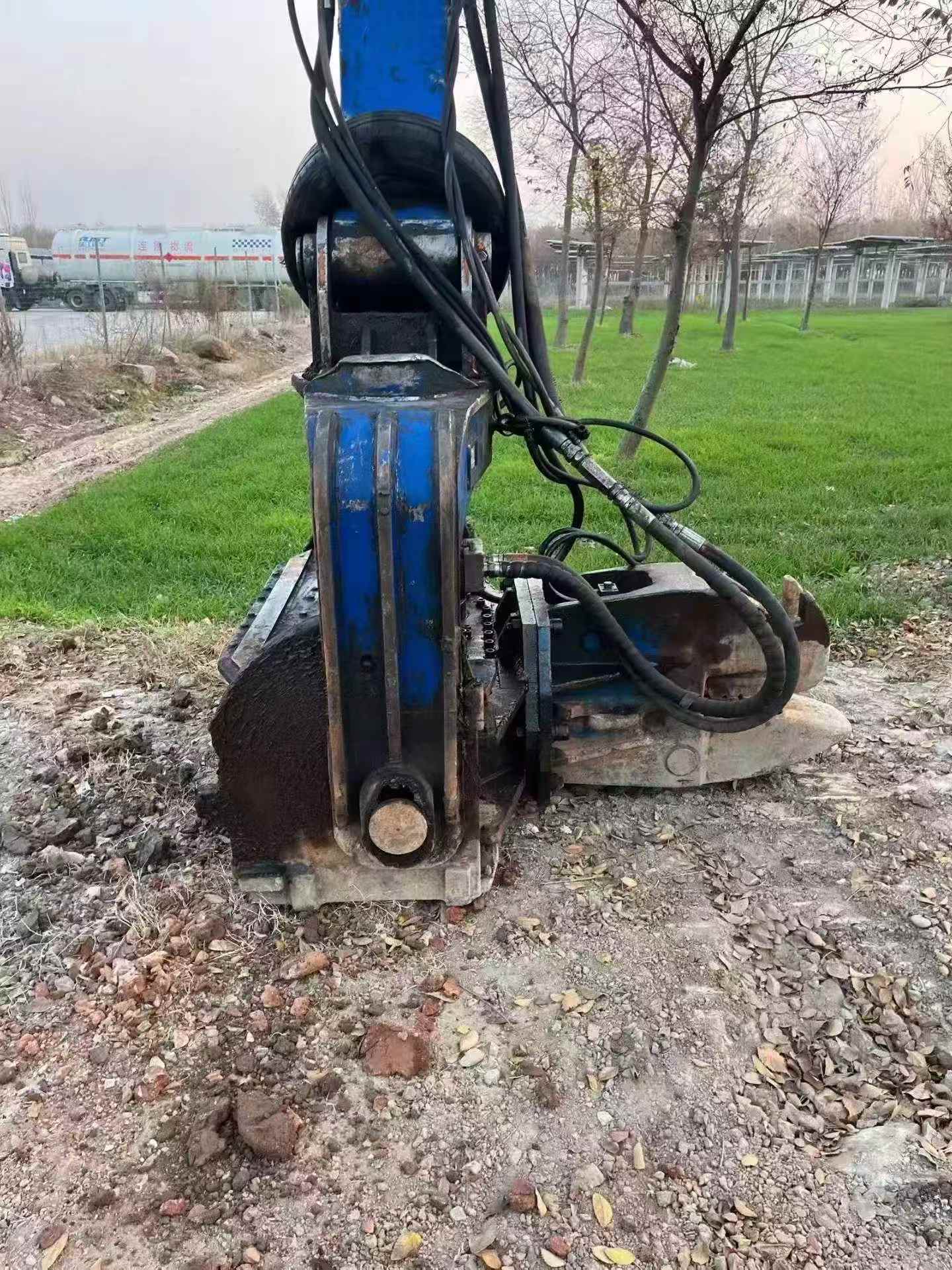

- Hammer: 350-class
- Location: Jiangsu, China
- Condition: Good, ready for inspection
| Specifications | Value |
|---|---|
| No. | 1084809 |
| Tonnage (tons) | 45 |
| Working weight (kg) | 42500 |
| Bucket capacity (m³) | 1.9/1.2/2.7 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

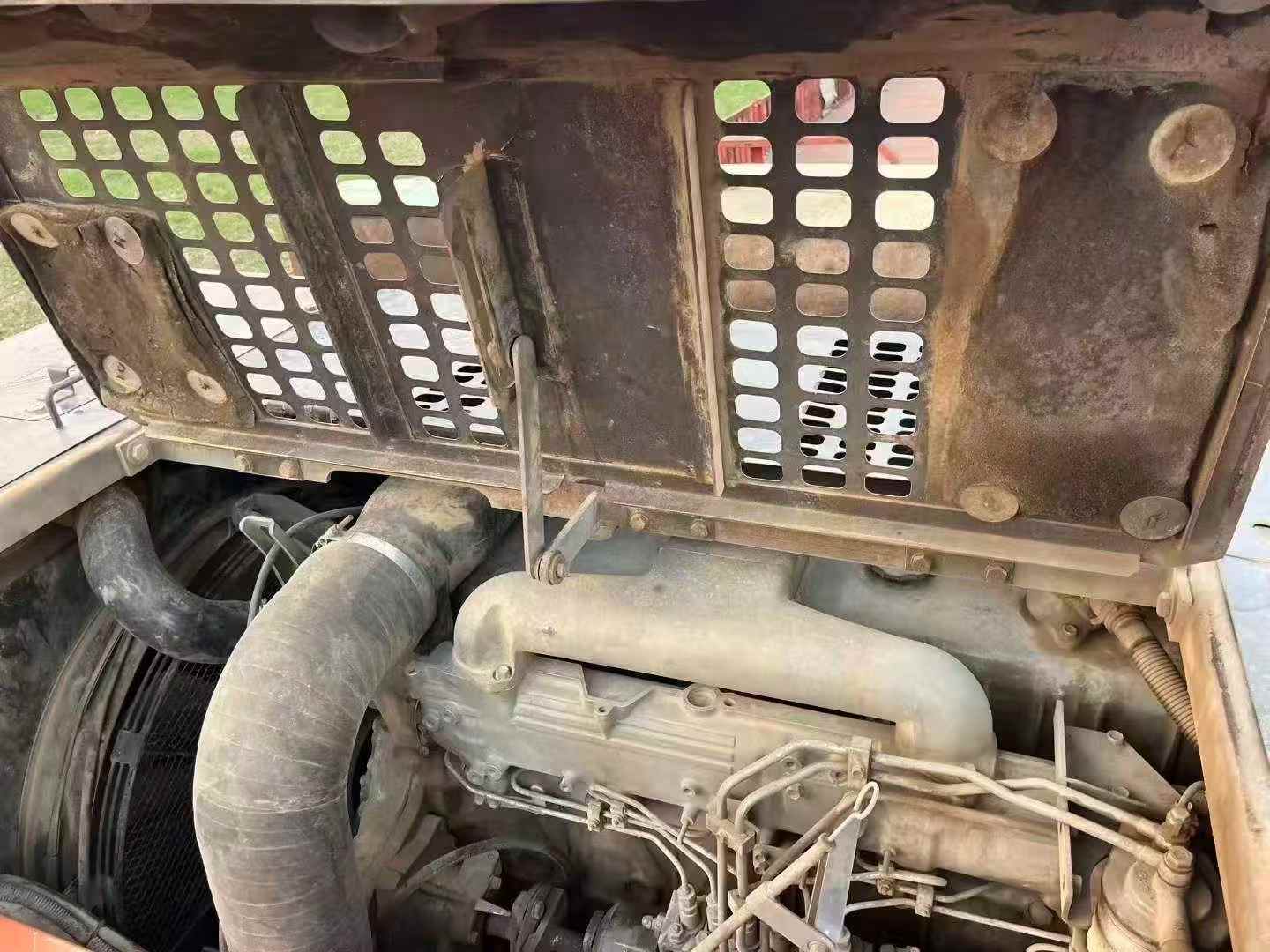

| Engine type | Isuzu AA-6WG1TQA |
| Rated power (kw/rpm) | 234.1/1800 |
| Displacement (L) | 15.7 |
| Ground specific pressure (Kpa) | 79 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 650 |
| Engine Oil changes (L) | 55 |
| Coolant (L) | 61 |
| Hydraulic System (L) | 510 |
| Total transport length (mm) | 11850 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3260 |
| Full cab height (mm) | 3260 |
| Counterweight ground clearance (mm) | 1230 |
| Minimum ground clearance (mm) | 496 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4050 |
| Maximum digging depth (mm) | 6020 |
| Maximum excavation height (mm) | 10620 |
| Maximum unloading height (mm) | 7100 |
| Maximum vertical digging depth (mm) | 4810 |
| Maximum excavation radius of stop surface (mm) | 10340 |
