Product Description

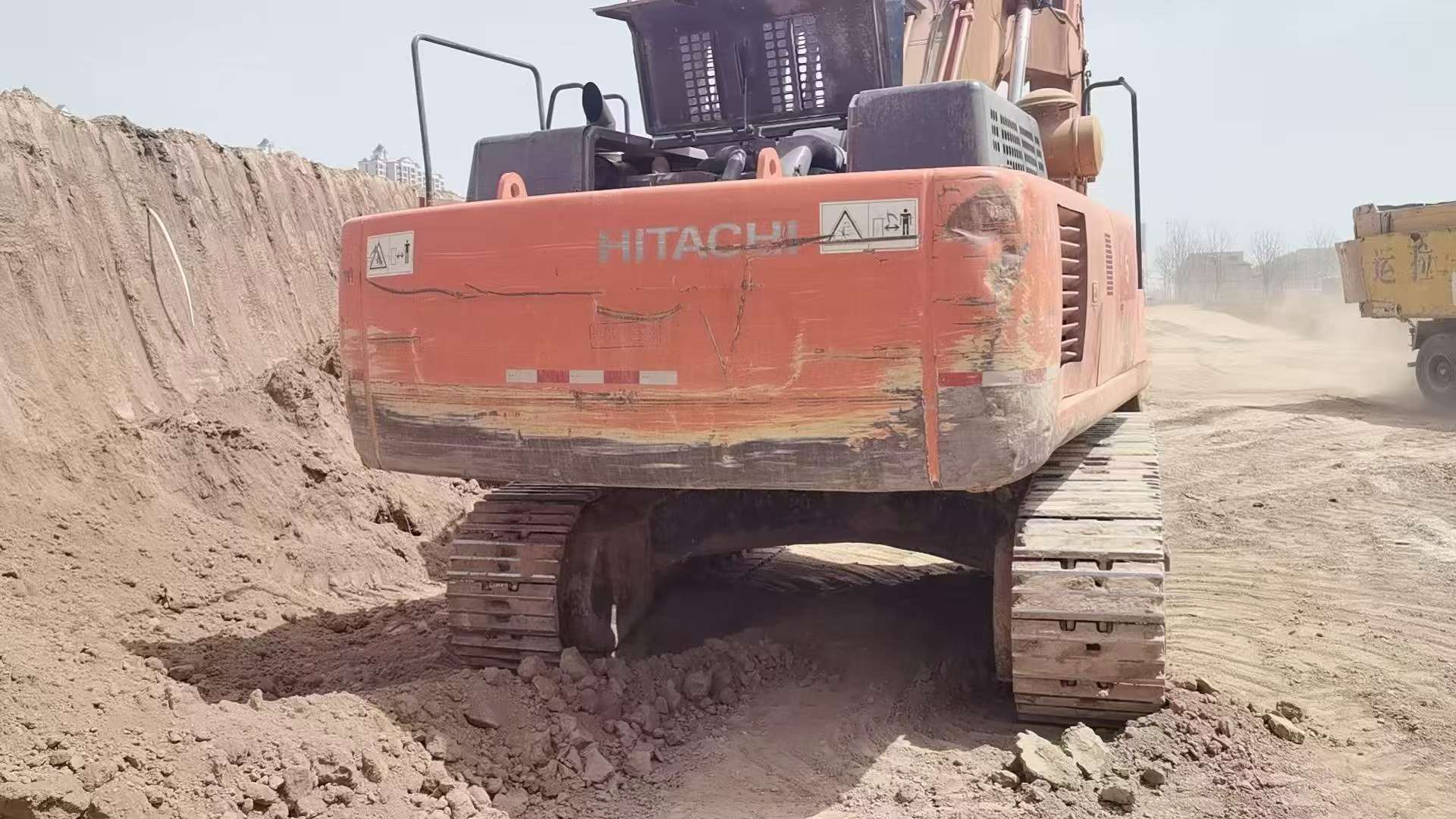

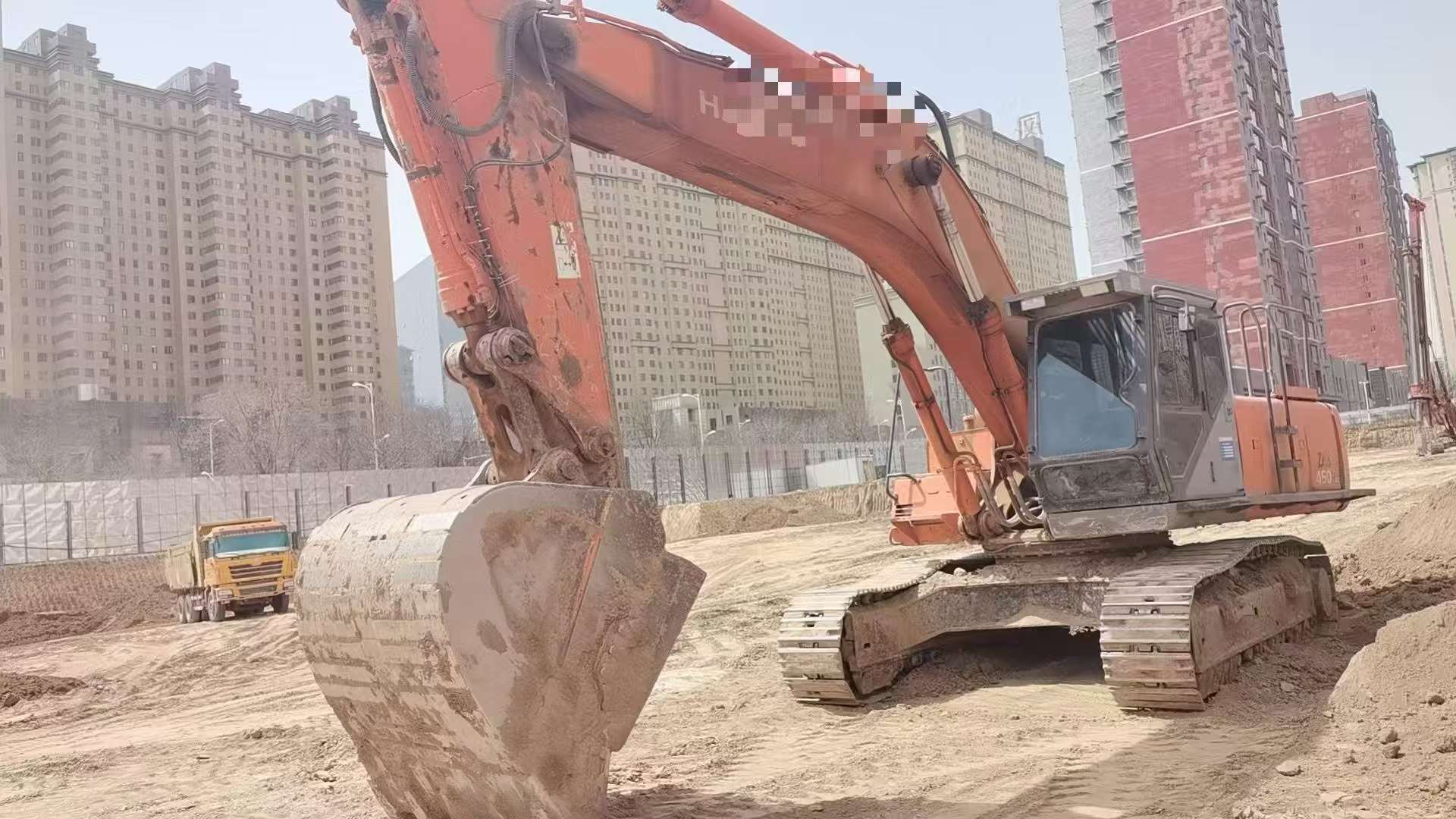

Built in 2012 at Hefei's advanced manufacturing facility, this Hitachi ZX450H hydraulic excavator delivers 45-ton performance with proven operator-centric engineering. Powered by an ISUZU AH-6WG1TQA engine producing 235 kW at 1800 rpm, this machine combines robust digging force with refined control systems designed for extended shift work.

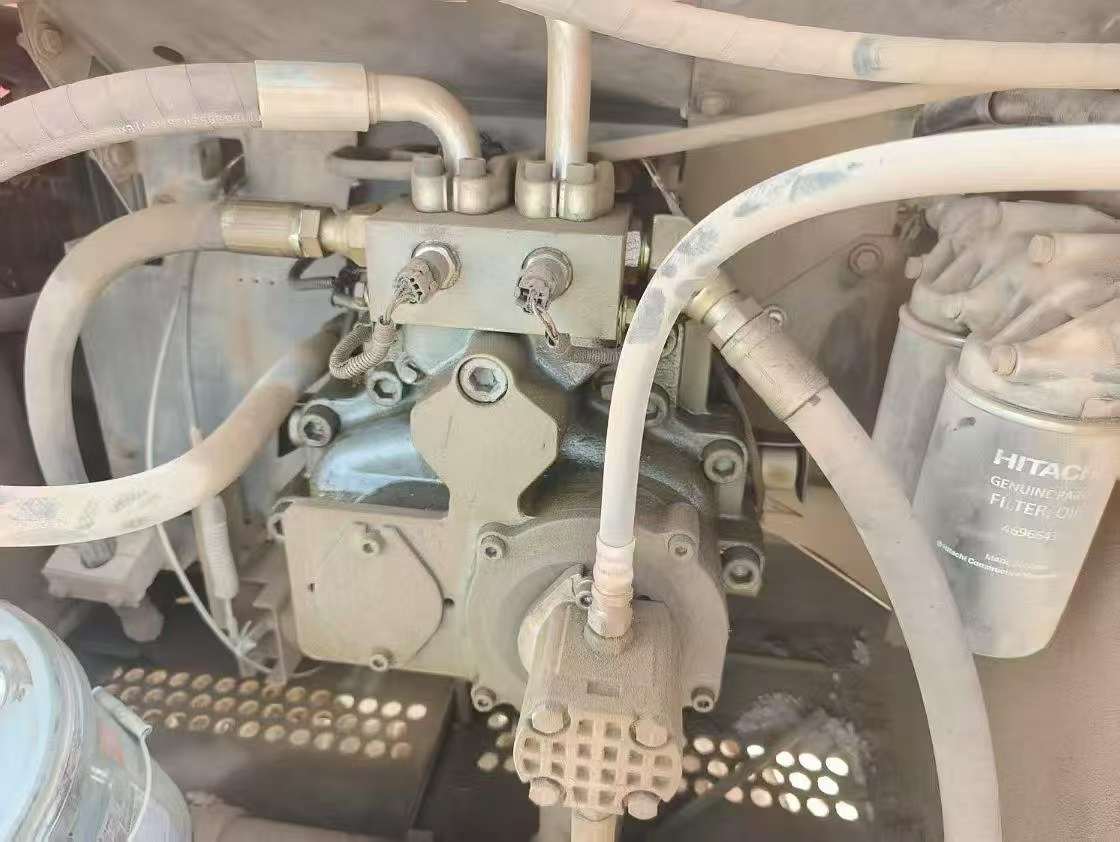

Operators benefit from superior visibility across the 12,050 mm maximum digging radius, supported by a spacious cab positioned 3,250 mm above ground. Dual variable swashplate plunger pumps supply 2×288 l/min hydraulic flow, enabling precise movements during demanding excavation tasks. The 1.9 m³ rock bucket configuration generates 269 kN digging force, while H-type boom and reinforced arm geometry maintain stability across uneven terrain.
- Working weight: 44,100 kg with optimized 81 kPa ground pressure
- Travel speeds: 3.4/5.0 km/h with variable axial piston motors
- Maximum digging depth: 7,890 mm for foundation and trenching work
- Hydraulic system: 30.4 MPa working circuit with reliable water-cooled operation
- Current location: Zhejiang Province, ready for inspection
Comprehensive hydraulic capacity includes 650 L fuel and dual 28
| Specifications | Value |
|---|---|
| No. | 1049340 |
| Tonnage (tons) | 45 |
| Working weight (kg) | 44100 |
| Bucket capacity (m³) | 1.9(Rock bucket) |
| Boom length (mm) | 7.0H |
| Rod length (mm) | 3.4H type (5 stiffeners) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

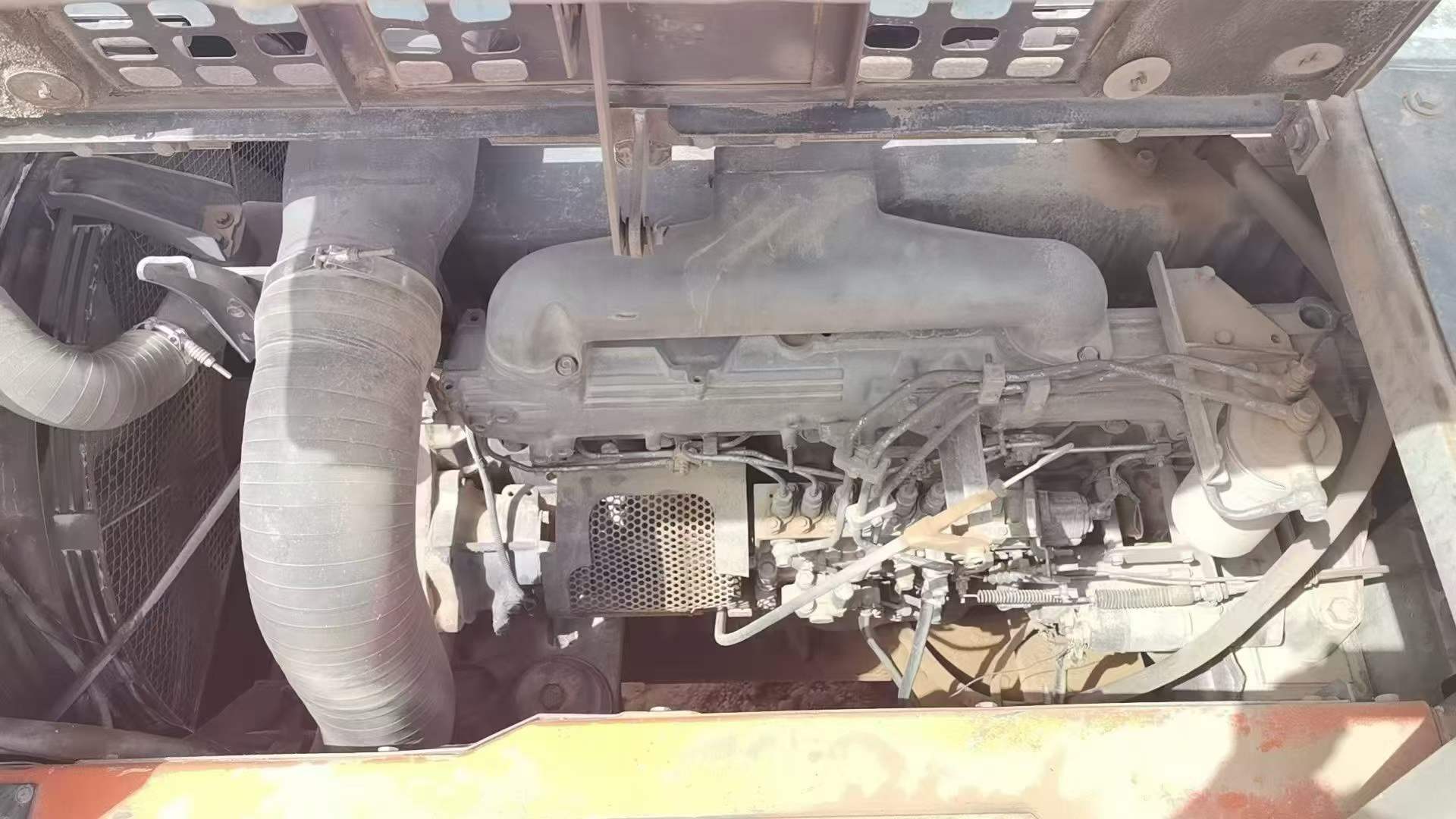

| Engine type | ISUZU AH-6WG1TQA |
| Rated power (kw/rpm) | 235/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 81 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 269 |
| Rod digging force (kN) | 202 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 30.4 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 288 + 30.2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable swashplate plunger pump ×2 |
| Working Hydraulic Circuit (Mpa) | 30.4 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 170 x 115 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 190 x 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 170 x 115 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 280/610 |
| Engine Oil changes (L) | 55 |
| Coolant (L) | 6170 |
| Total transport length (mm) | 11850 |
| Total transport width (mm) | 3670 |
| Total transport height (mm) | 3450 |
| Full cab height (mm) | 3250 |
| Counterweight ground clearance (mm) | 1230 |
| Minimum ground clearance (mm) | 496 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5050 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4050 |
| Maximum digging radius (mm) | 12050 |
| Maximum digging depth (mm) | 7890 |
| Maximum excavation height (mm) | 10950 |
| Maximum unloading height (mm) | 7540 |
| Maximum vertical digging depth (mm) | 6780 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 11850 |
