Product Description

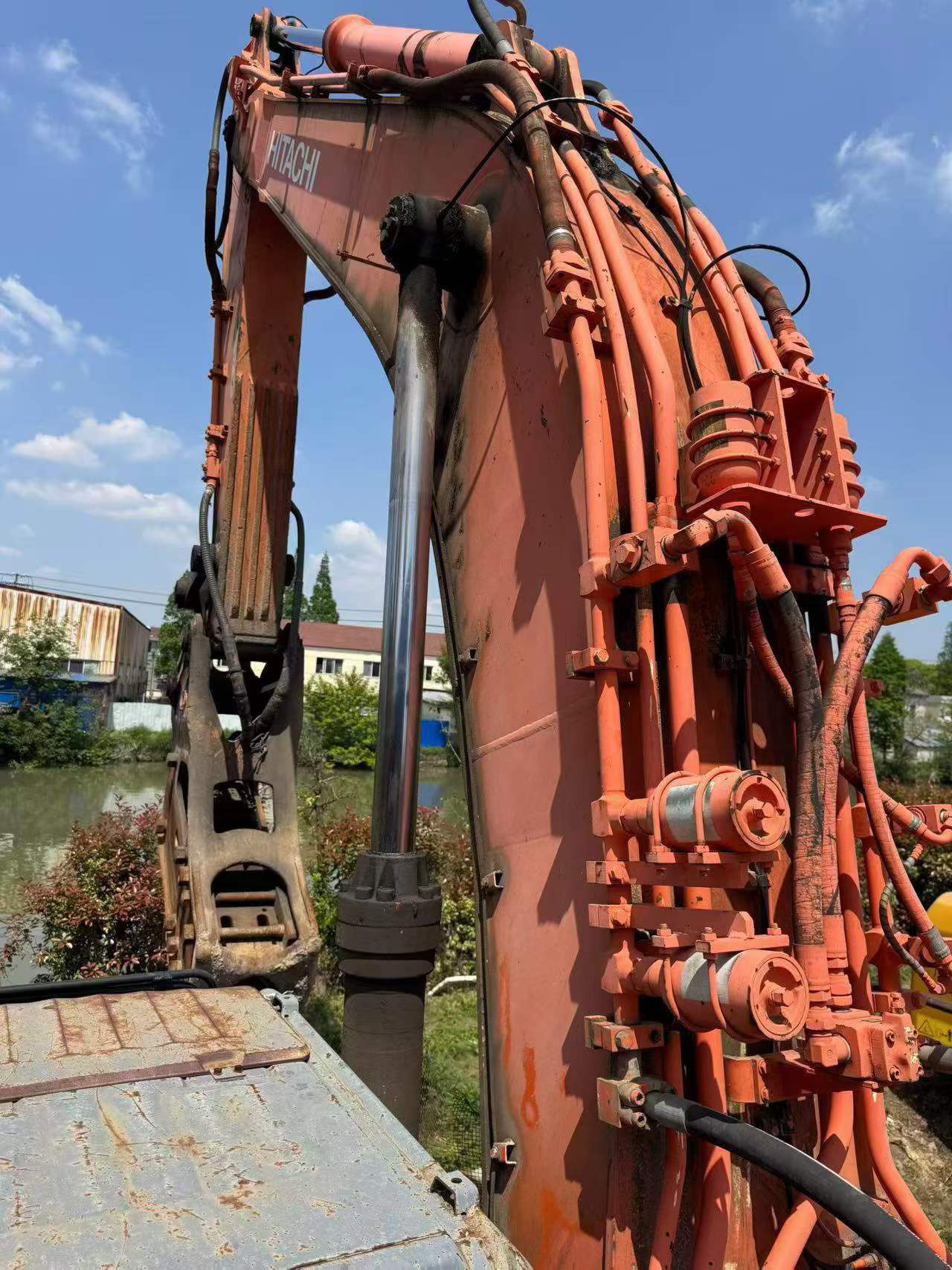

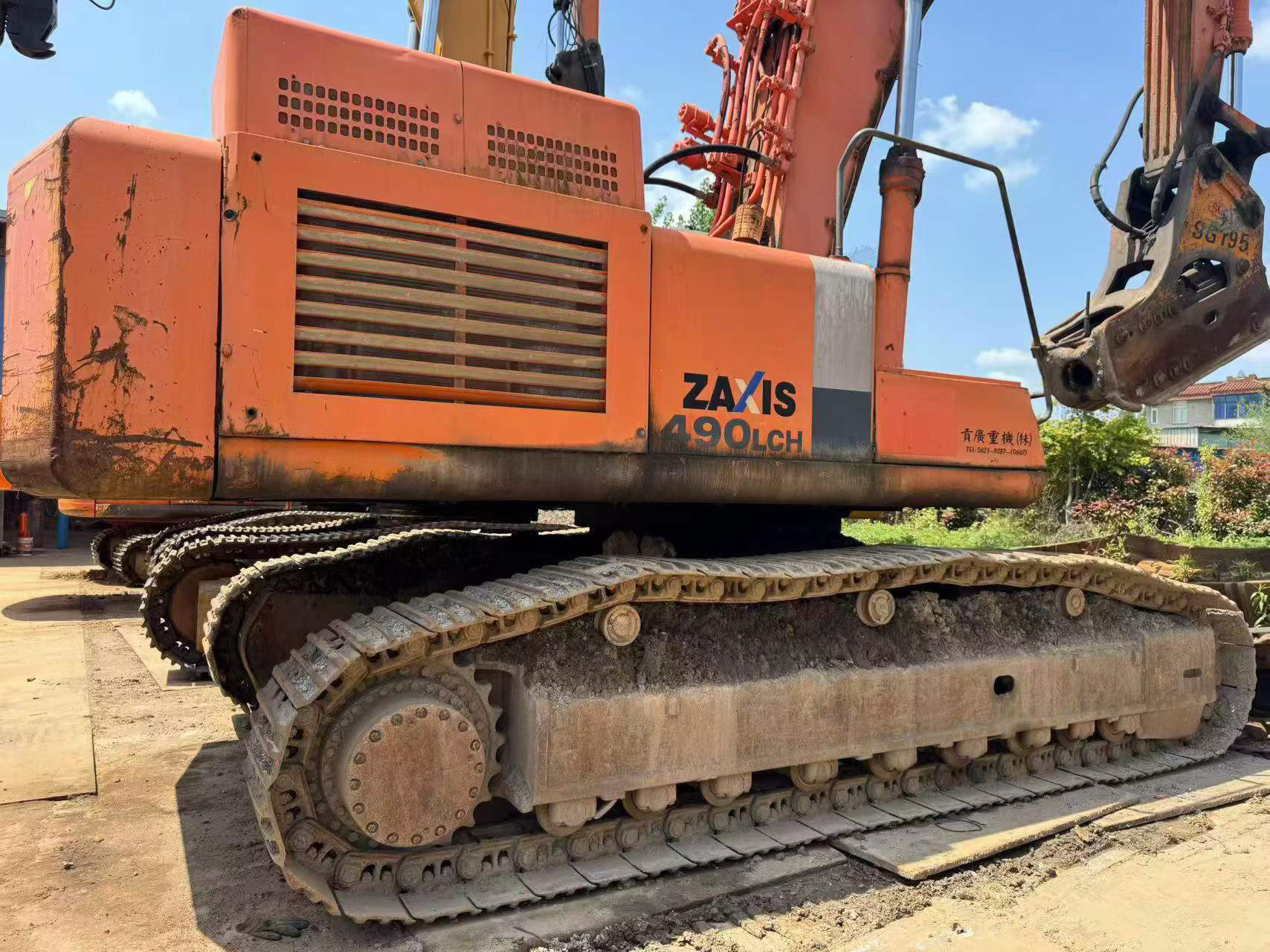

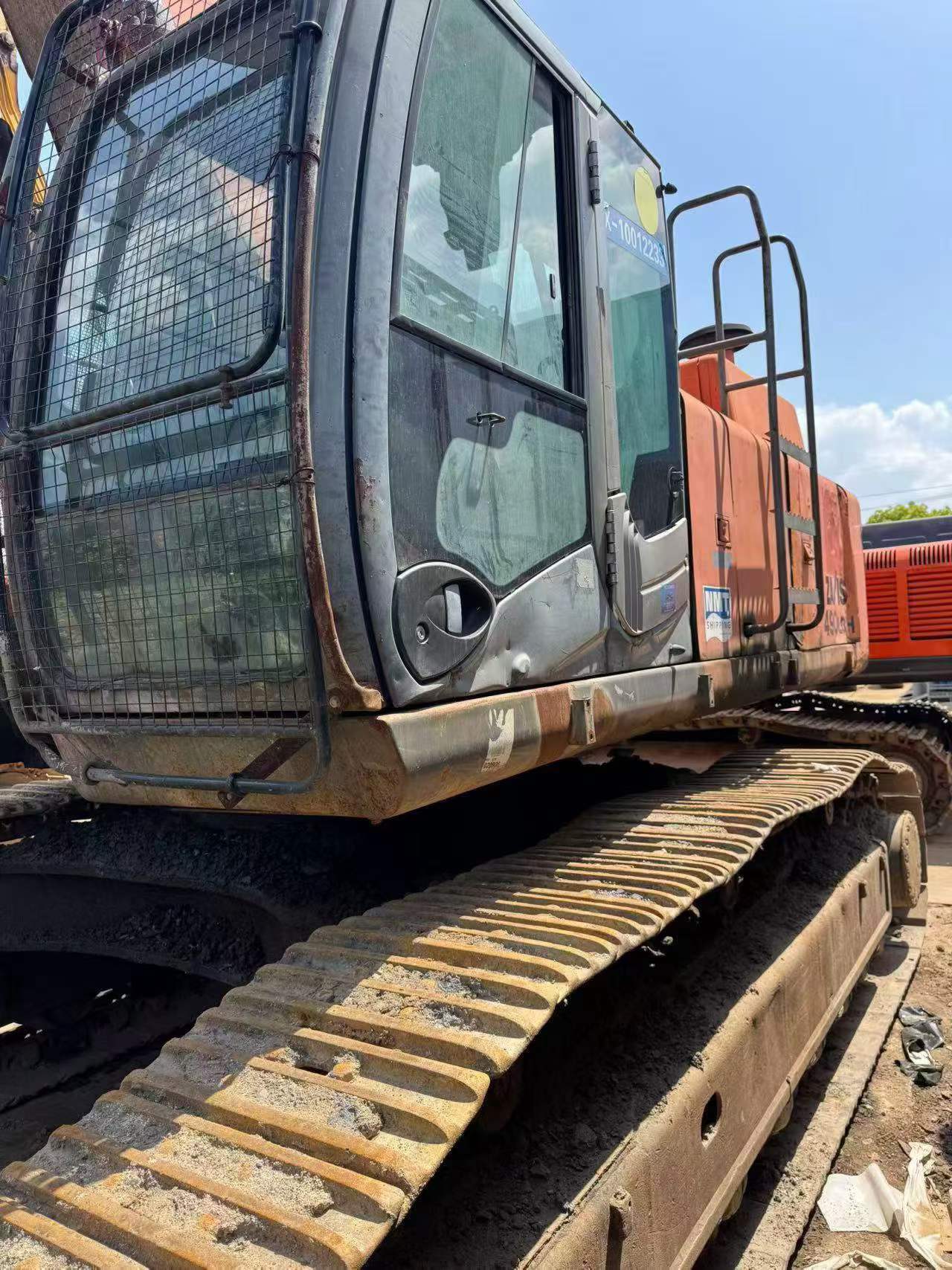

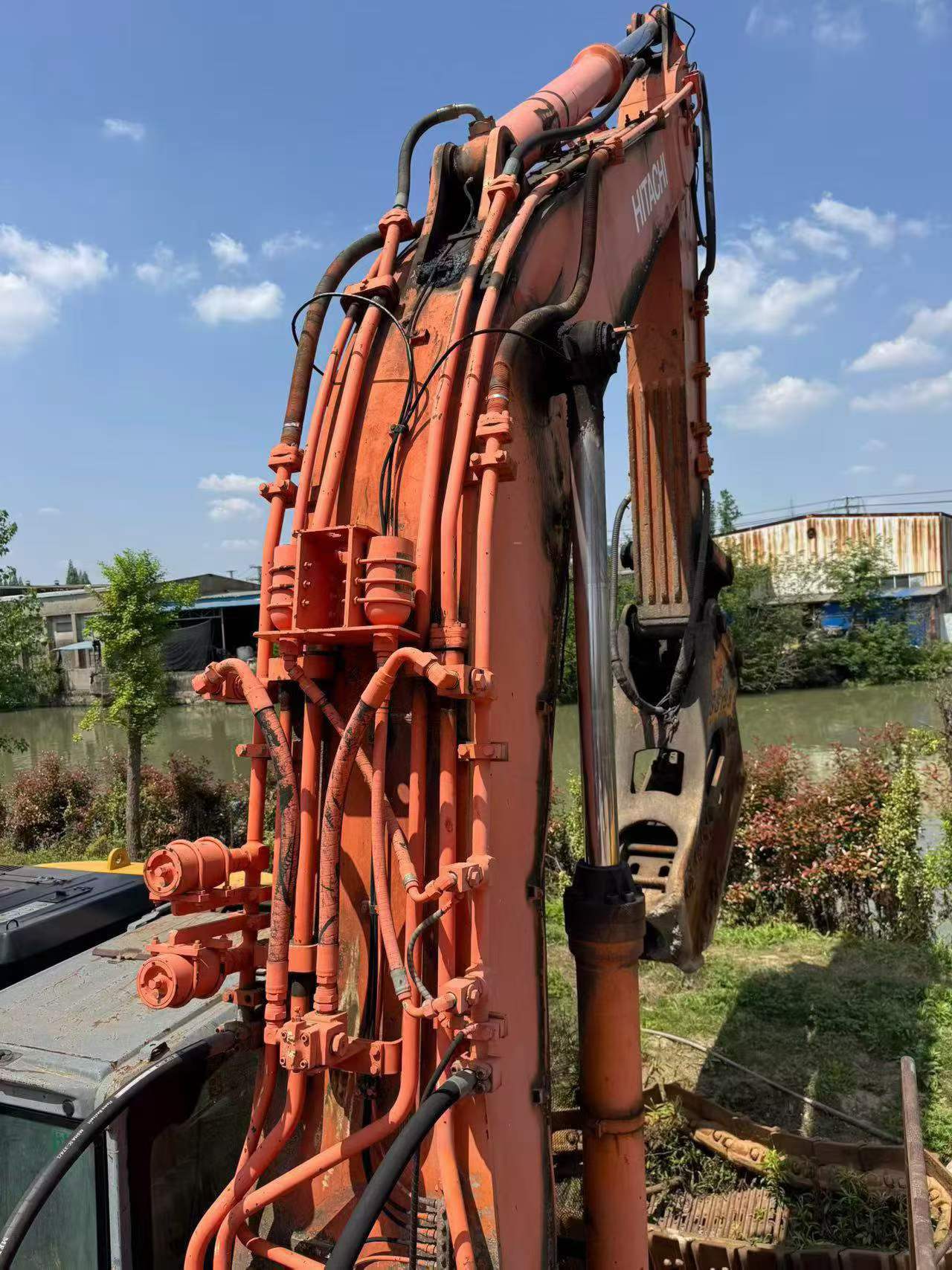

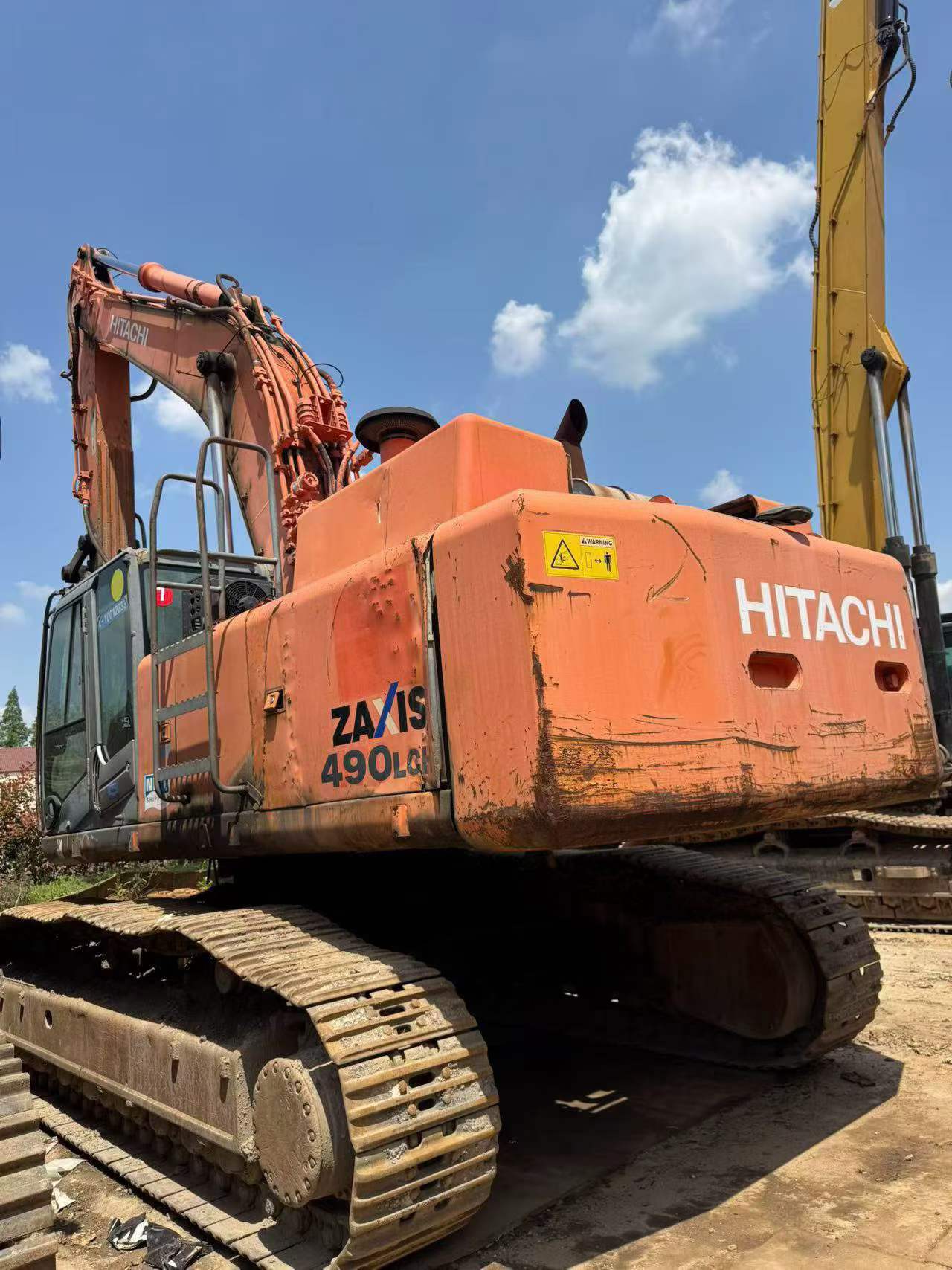

This 2020 Hitachi ZX470H-3 hydraulic excavator is currently located in Zhejiang, China and available for immediate acquisition. As a genuine Japanese import model, this machine represents Hitachi's commitment to heavy-duty performance and reliability in the 47-ton class.

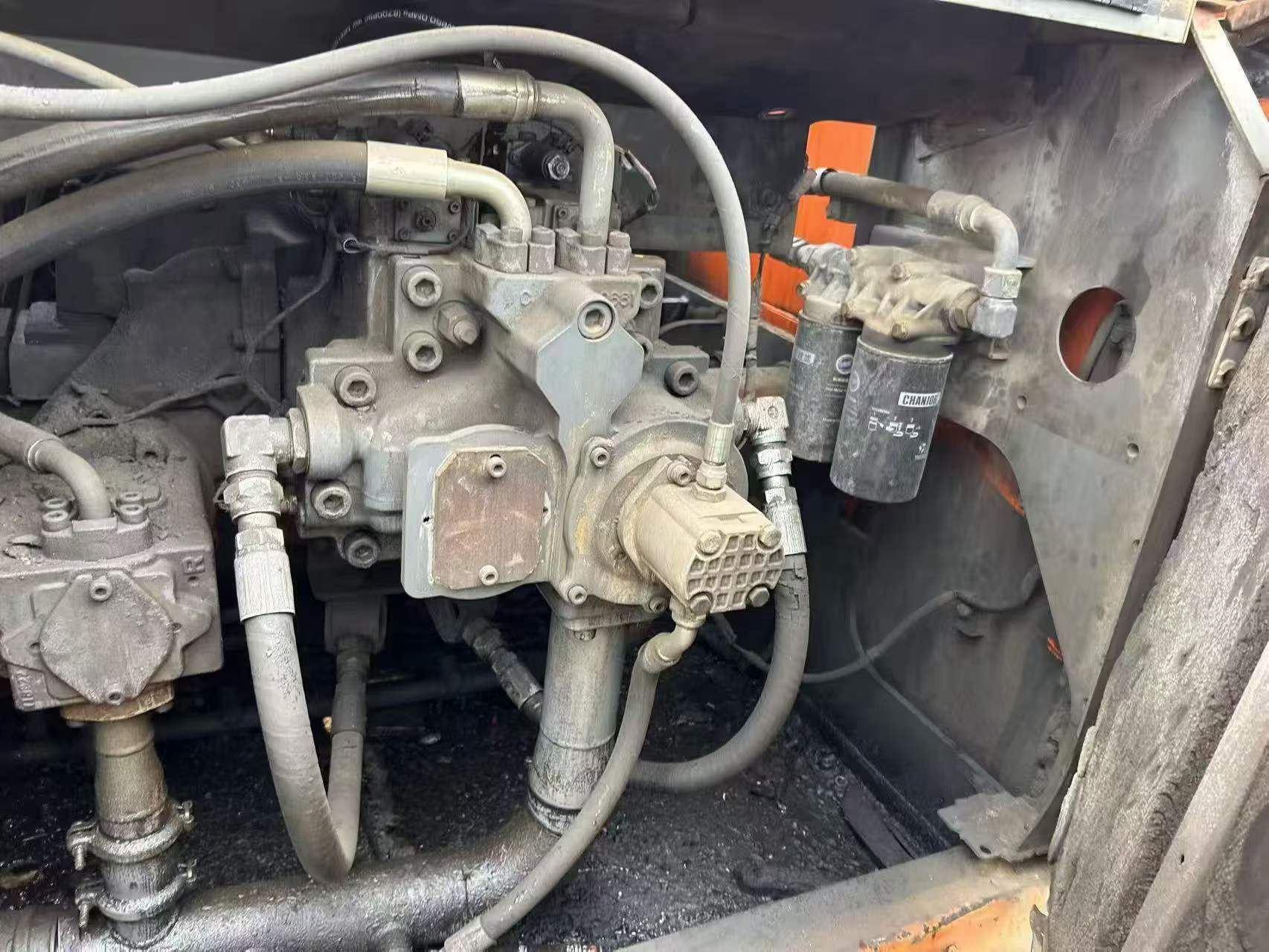

The unit has been maintained in good working condition and is offered at a competitive price point for the secondary equipment market. The ZX470H-3 features Hitachi's proven HIOS III hydraulic system, delivering efficient power management and responsive control for demanding excavation, loading, and material handling applications.
- Year of Manufacture: 2020
- Model: Hitachi ZX470H-3
- Location: Zhejiang Province, China
- Condition: Good working order

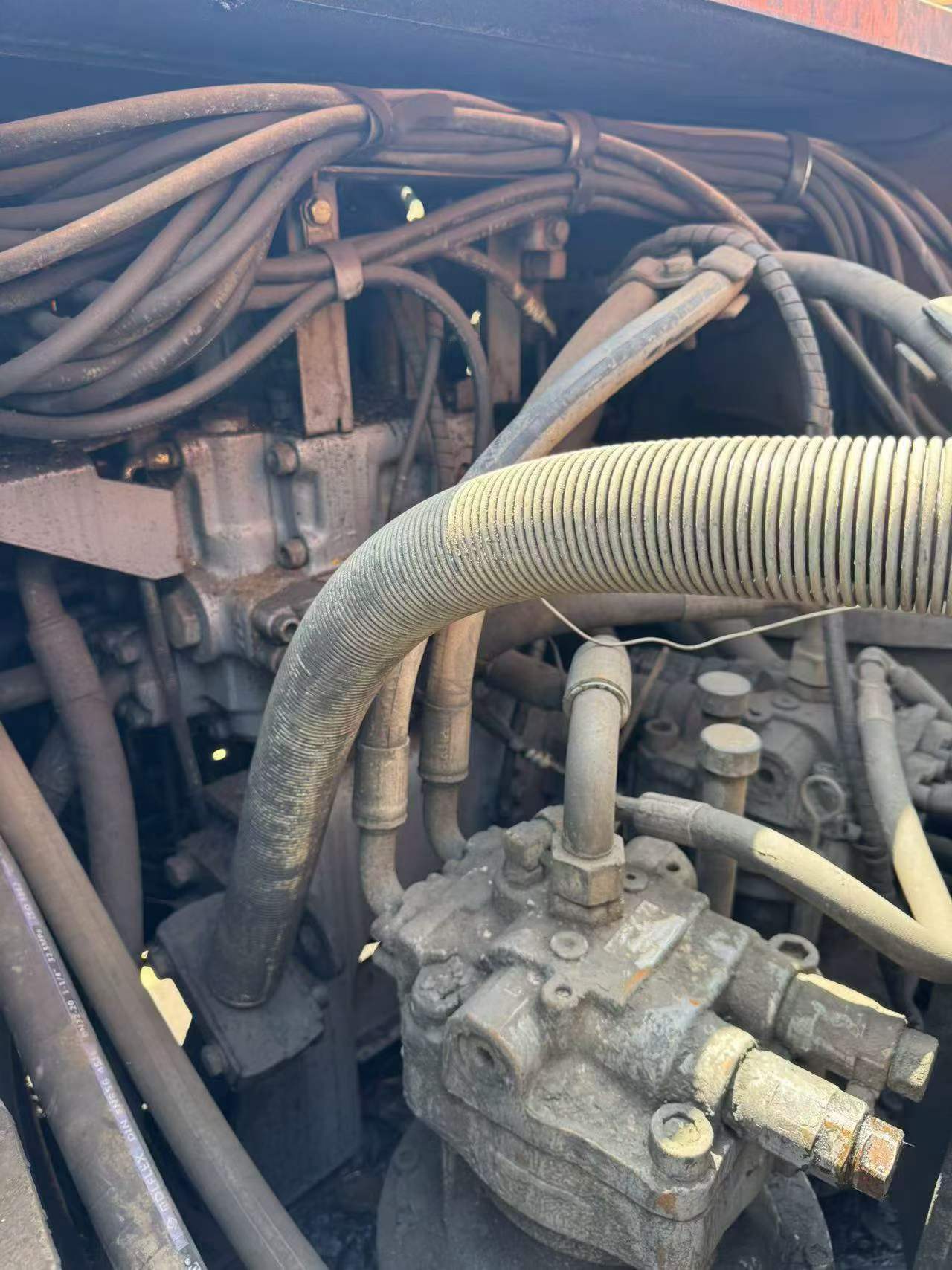

- Documentation: Photographic evidence available
Inspection recommended prior to purchase. Contact for detailed specifications, operating hours, and pricing information.
| Specifications | Value |
|---|---|

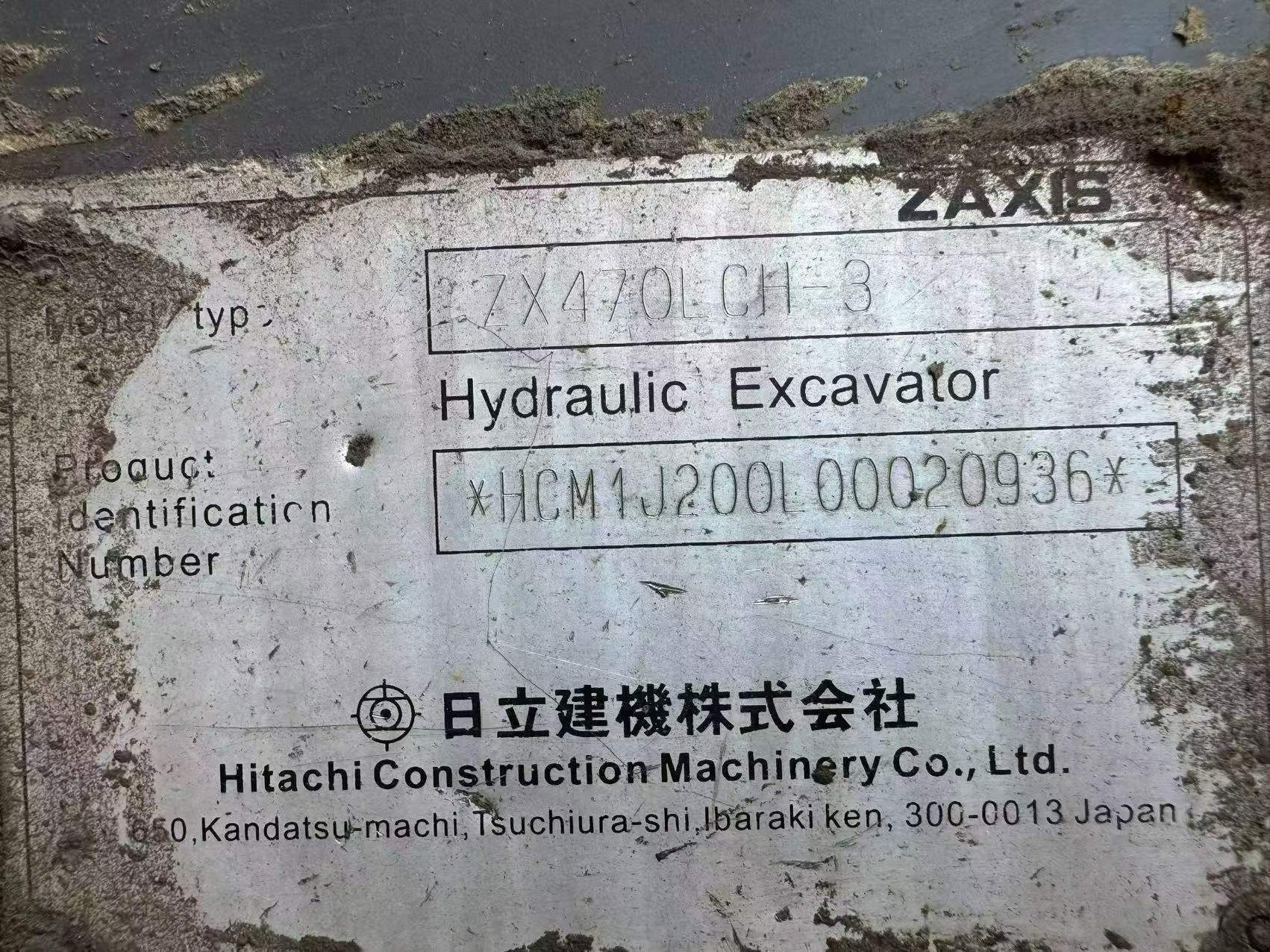

| No. | 1140919 |
| Tonnage (tons) | 47 |
| Working weight (kg) | 47100 |
| Bucket capacity (m³) | 2.1/1.9 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

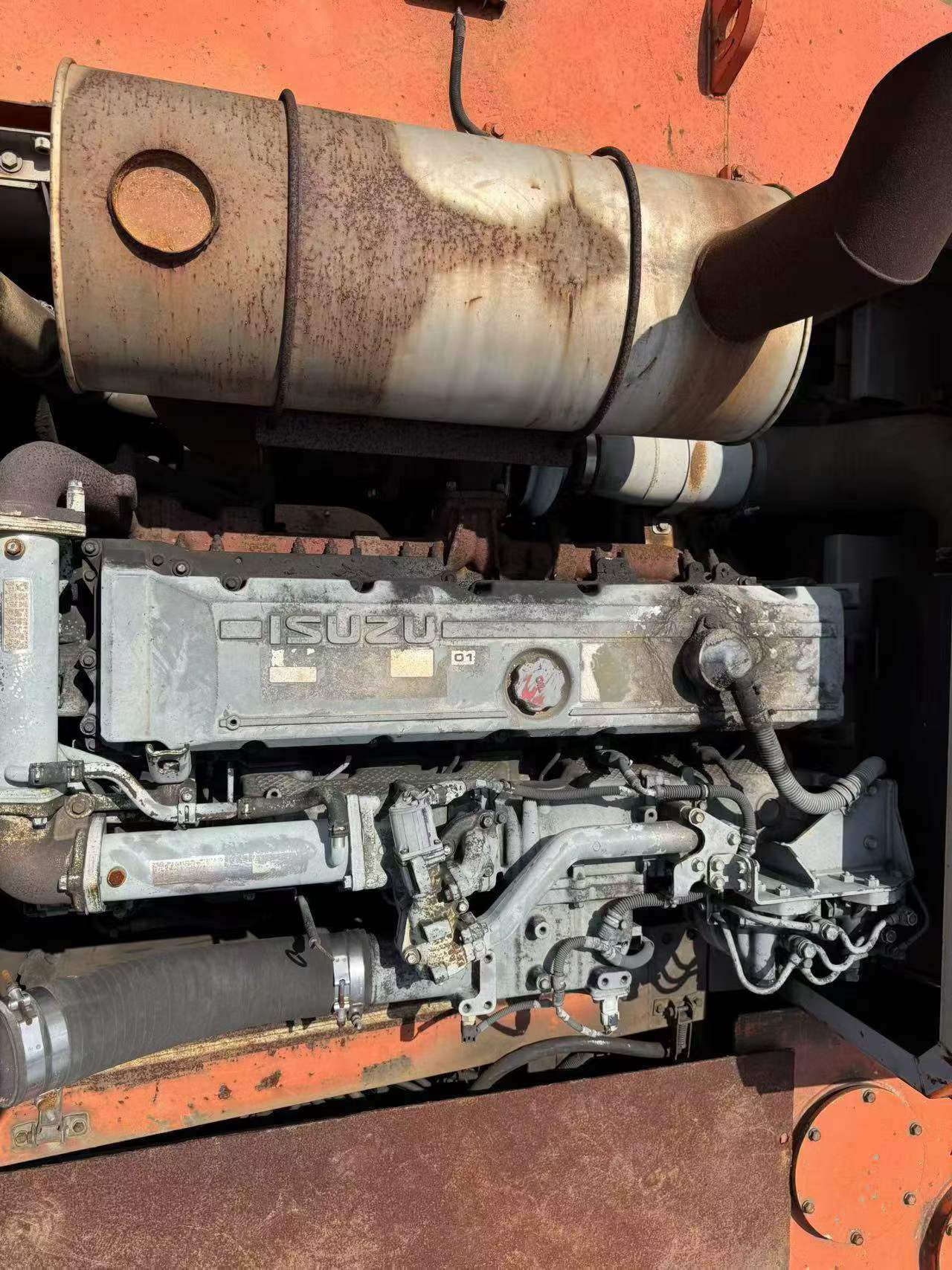

| Engine type | Isuzu AH-6WG1XYSA-01 |
| Rated power (kw/rpm) | 260/1800 |
| Displacement (L) | 15.7 |
| Ground specific pressure (Kpa) | 88 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 725 |
| Engine Oil changes (L) | 57 |
| Coolant (L) | 55 |
| Hydraulic System (L) | 560 |
| Total transport width (mm) | 3490 |
| Full cab height (mm) | 3450 |
| Counterweight ground clearance (mm) | 1360 |
| Minimum ground clearance (mm) | 723 |
| Back end turning radius (mm) | 3645 |
| Track gauge (mm) | 2890 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 7200 |
| Maximum excavation height (mm) | 170 |
| Maximum unloading height (mm) | 7100 |
| Maximum vertical digging depth (mm) | 4270 |
| Maximum excavation radius of stop surface (mm) | 11090 |
