Product Description

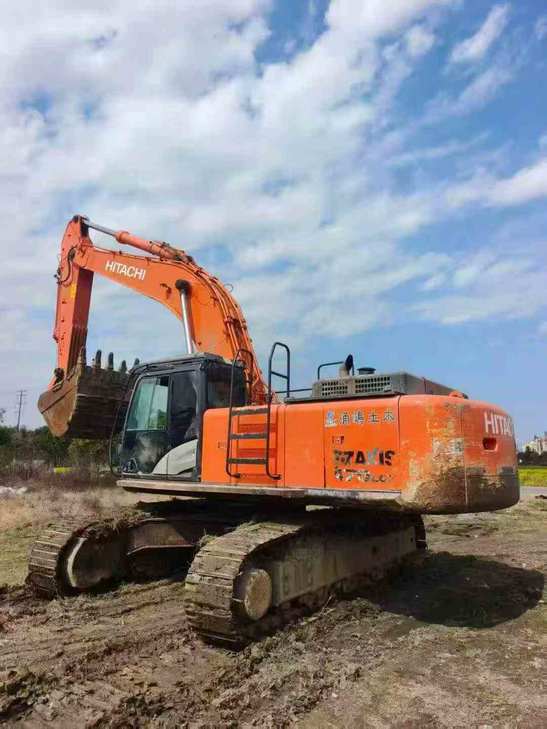

Engineered for relentless performance, this 2016 Hitachi ZX470LCH-5G excavator delivers proven reliability across demanding jobsites. With a robust 47-ton working weight and powerful ISUZU 6-cylinder engine producing 235kW at 1800 rpm, this machine tackles heavy-duty applications with confidence. The 2.1m³ rock bucket and impressive 296kN bucket digging force make quick work of tough excavation projects, while the 12,060mm maximum digging radius ensures exceptional reach.
- Built in Hefei with joint venture quality standards for long-term durability
- Water-cooled 15.7L turbocharged engine designed for extended operational life
- Dual variable axial piston pumps (2×360 L/min) provide consistent hydraulic power
- 5-stiffener reinforced 2900mm rod configuration enhances structural integrity
- Proven workhorse with 70% climbing ability for challenging terrain
- Currently located in Wenzhou, Zhejiang—ready for immediate deployment
Seven years of field operation demonstrate the exceptional build quality that defines Hitachi's heavy equipment legacy. This ZX470LCH-5G represents a dependable investment for contractors requiring uncompromising performance and longevity.
| Specifications | Value |
|---|---|
| No. | 1021780 |
| Tonnage (tons) | 47 |
| Working weight (kg) | 47200 |
| Bucket capacity (m³) | 2.1(Rock bucket) |
| Boom length (mm) | 6300 |
| Rod length (mm) | Model 2900 (5 stiffeners) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AH-6WG1XYSA-01 |
| Rated power (kw/rpm) | 235/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 147 x 154 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.691 |
| Working form | Direct injection, turbocharged |
| Ground specific pressure (Kpa) | 83 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 296 |
| Rod digging force (kN) | 218 |
| Travel speed (km/h) | 3.4/5.5 |
| Rotary hydraulic motor type | Axial piston motor x 2 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 360 + 30 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 170 x 120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 190 x 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 170 x 116 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 330 |
| Engine Oil changes (L) | 57 |
| Coolant (L) | 55 |
| Total transport length (mm) | 11560 |
| Total transport width (mm) | 4300 |
| Total transport height (mm) | 3480 |
| Full cab height (mm) | 3450 |
| Counterweight ground clearance (mm) | 1360 |
| Minimum ground clearance (mm) | 723 |
| Back end turning radius (mm) | 3645 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2890/2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3490/2990 |
| Track ground length (mm) | 4470 |
| Maximum digging radius (mm) | 12060 |
| Maximum digging depth (mm) | 5790 |
| Maximum excavation height (mm) | 10660 |
| Maximum unloading height (mm) | 7320 |
| Maximum vertical digging depth (mm) | 4260 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10210 |
| Maximum effective digging depth (mm) | 5620 |
Overview
No.1021780
Brand Name：
HitachiModel Number：
ZX470LCH-5GYear：
2016
Location：
Zhejiang China
Pub Date：
