Product Description

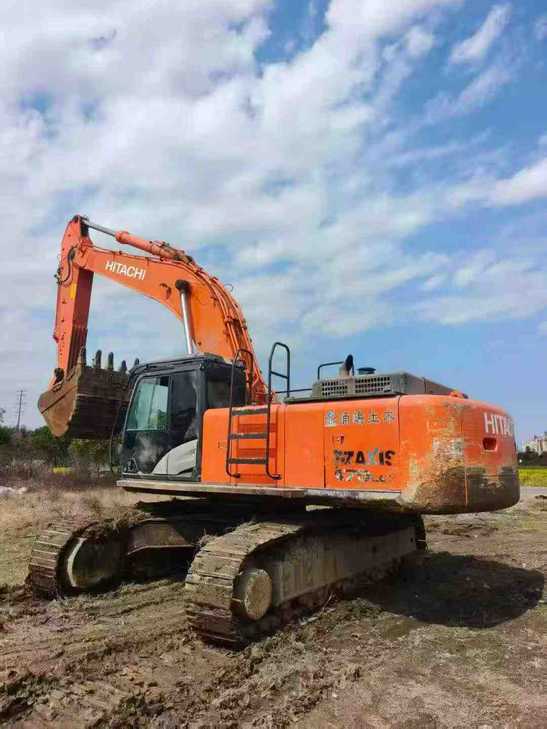

Built for high-output earthmoving and deep foundation work, this 2016 Hitachi ZX470LCH-5G delivers 47 tons of working weight and 235 kW of ISUZU turbocharged power. Currently located in Zhejiang, this crawler excavator arrives with a 2.1 m³ rock bucket, 6300 mm boom, and 2900 mm arm—engineered for demanding excavation cycles on construction sites, quarries, and infrastructure projects.
Performance specifications include:
- Maximum digging reach of 12,060 mm with 5,790 mm depth capability
- Bucket digging force: 296 kN; arm digging force: 218 kN
- Dual variable axial piston pumps (2 × 360 L/min) for responsive hydraulics
- Water-cooled 6-cylinder engine (15.691 L displacement) at 1800 rpm
- 725 L fuel capacity for extended operation between refills
- 70% gradeability (35°) for challenging terrain access
Factory-equipped with dual axial piston swing motors and variable travel motors, this machine handles repetitive digging, loading, and material placement with precision. Ready for immediate deployment on your next heavy civil or mining operation.
| Specifications | Value |
|---|---|
| No. | 1040394 |
| Tonnage (tons) | 47 |
| Working weight (kg) | 47200 |
| Bucket capacity (m³) | 2.1(Rock bucket) |
| Boom length (mm) | 6300 |
| Rod length (mm) | Model 2900 (5 stiffeners) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AH-6WG1XYSA-01 |
| Rated power (kw/rpm) | 235/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 147 x 154 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.691 |
| Working form | Direct injection, turbocharged |
| Ground specific pressure (Kpa) | 83 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 296 |
| Rod digging force (kN) | 218 |
| Travel speed (km/h) | 3.4/5.5 |
| Rotary hydraulic motor type | Axial piston motor x 2 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 360 + 30 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 170 x 120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 190 x 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 170 x 116 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 330 |
| Engine Oil changes (L) | 57 |
| Coolant (L) | 55 |
| Total transport length (mm) | 11560 |
| Total transport width (mm) | 4300 |
| Total transport height (mm) | 3480 |
| Full cab height (mm) | 3450 |
| Counterweight ground clearance (mm) | 1360 |
| Minimum ground clearance (mm) | 723 |
| Back end turning radius (mm) | 3645 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2890/2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3490/2990 |
| Track ground length (mm) | 4470 |
| Maximum digging radius (mm) | 12060 |
| Maximum digging depth (mm) | 5790 |
| Maximum excavation height (mm) | 10660 |
| Maximum unloading height (mm) | 7320 |
| Maximum vertical digging depth (mm) | 4260 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10210 |
| Maximum effective digging depth (mm) | 5620 |
see more
Overview
No.1040394
Brand Name：
HitachiModel Number：
ZX470LCH-5GYear：
2016
Location：
Zhejiang China
