Product Description

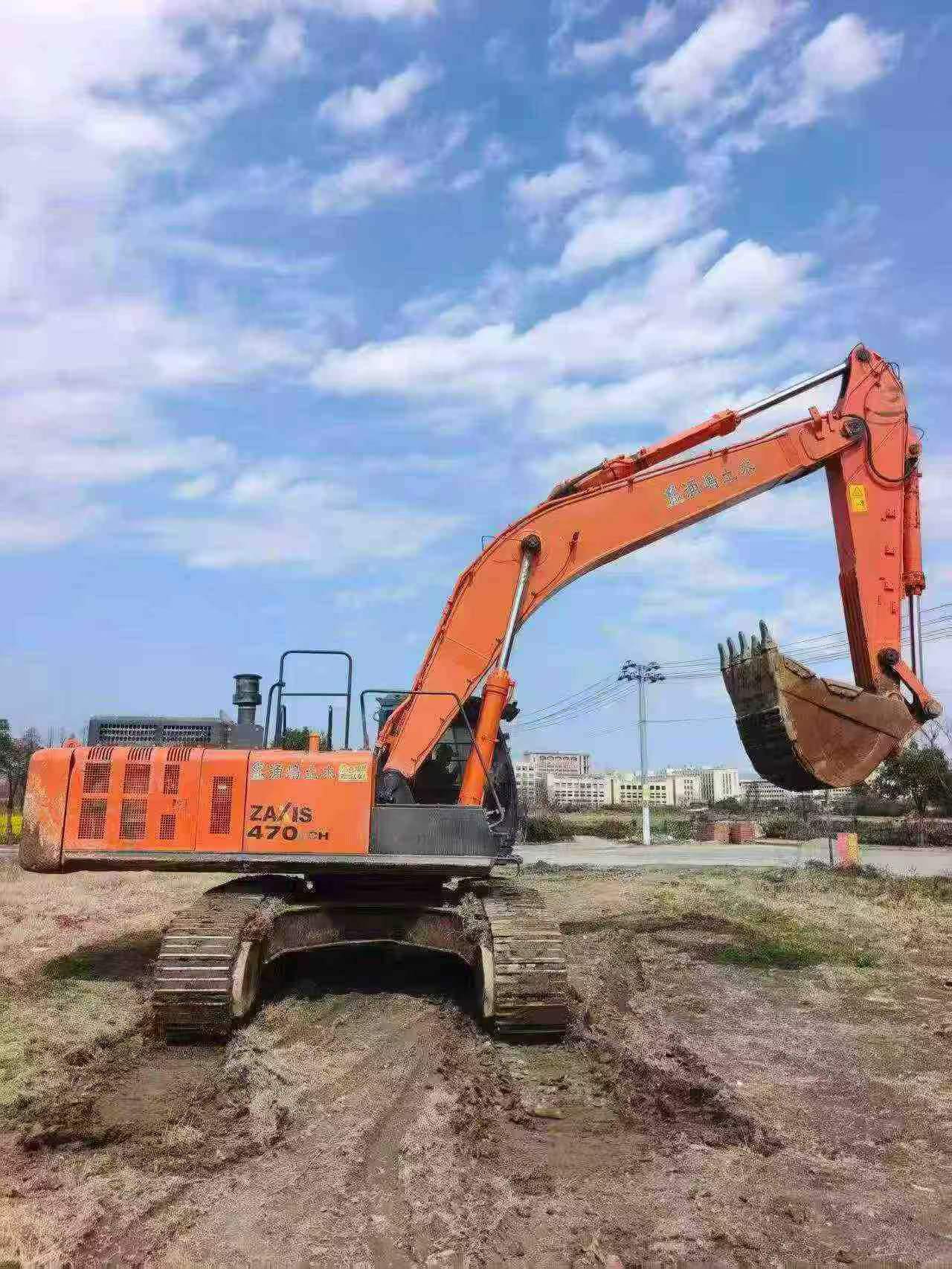

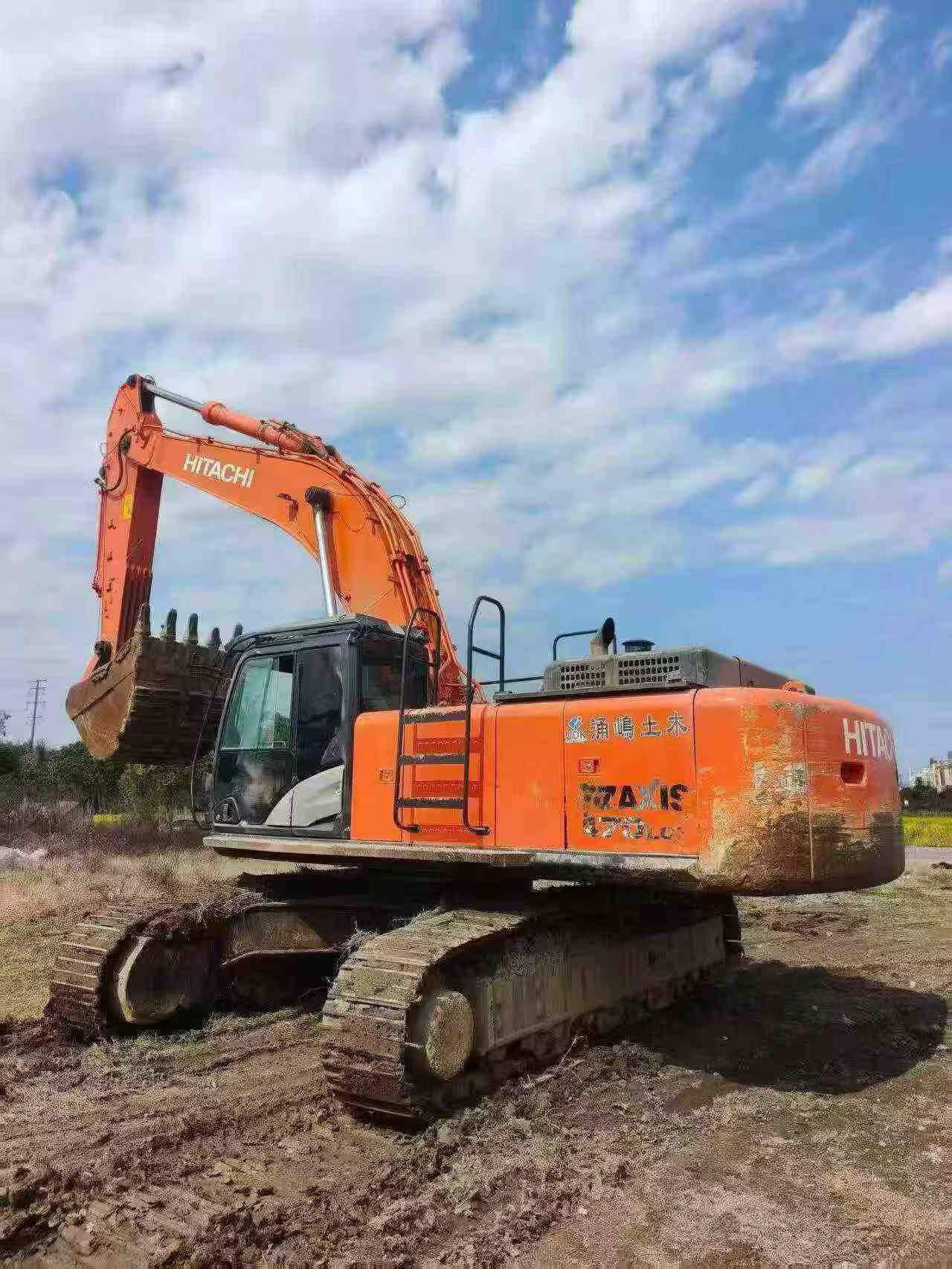

Engineered for demanding excavation projects, this 2016 Hitachi ZX470LCH-5G delivers exceptional operator-focused performance in a 47-ton platform. Built at Hitachi's Hefei facility with proven ISUZU AH-6WG1XYSA-01 engine technology, this machine combines 235 kW of power with advanced hydraulic systems for superior control and productivity.
Operator advantages define this excavator's design. Dual axial piston motors provide smooth, responsive rotation at 9 rpm, while the spacious cab offers commanding visibility across the 12,060 mm working radius. Stability remains uncompromised with an 83 kPa ground pressure distribution and 4,470 mm track ground contact, ensuring confident operation on variable terrain. Hydraulic precision comes from the dual 360 l/min variable piston pumps, delivering 296 kN bucket digging force with exceptional control feedback.
- Working Weight: 47,200 kg with 2.1 m³ rock bucket capacity
- Reach Specifications: 5,790 mm max digging depth, 10,660 mm max height
- Boom/Arm Configuration: 6,300 mm boom, 2,900 mm reinforced rod
- Travel Performance: Dual-speed 3.4/5.5 km/h with 70% gradeability
- Current Location: Wenzhou, Zhejiang Province
| Specifications | Value |
|---|---|
| No. | 1049195 |
| Tonnage (tons) | 47 |
| Working weight (kg) | 47200 |
| Bucket capacity (m³) | 2.1(Rock bucket) |
| Boom length (mm) | 6300 |
| Rod length (mm) | Model 2900 (5 stiffeners) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

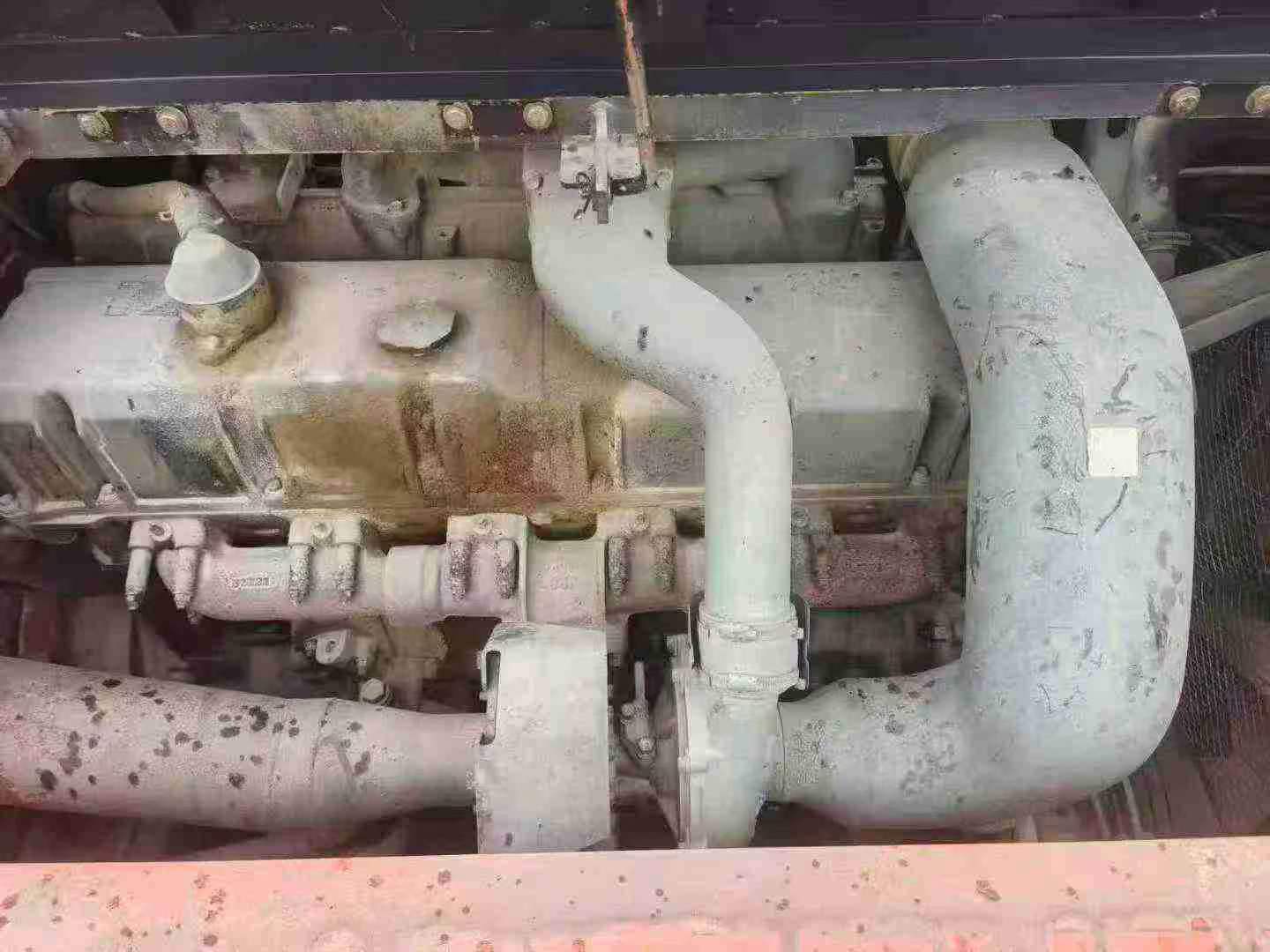

| Engine type | ISUZU AH-6WG1XYSA-01 |
| Rated power (kw/rpm) | 235/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 147 x 154 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.691 |
| Working form | Direct injection, turbocharged |
| Ground specific pressure (Kpa) | 83 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 296 |
| Rod digging force (kN) | 218 |
| Travel speed (km/h) | 3.4/5.5 |

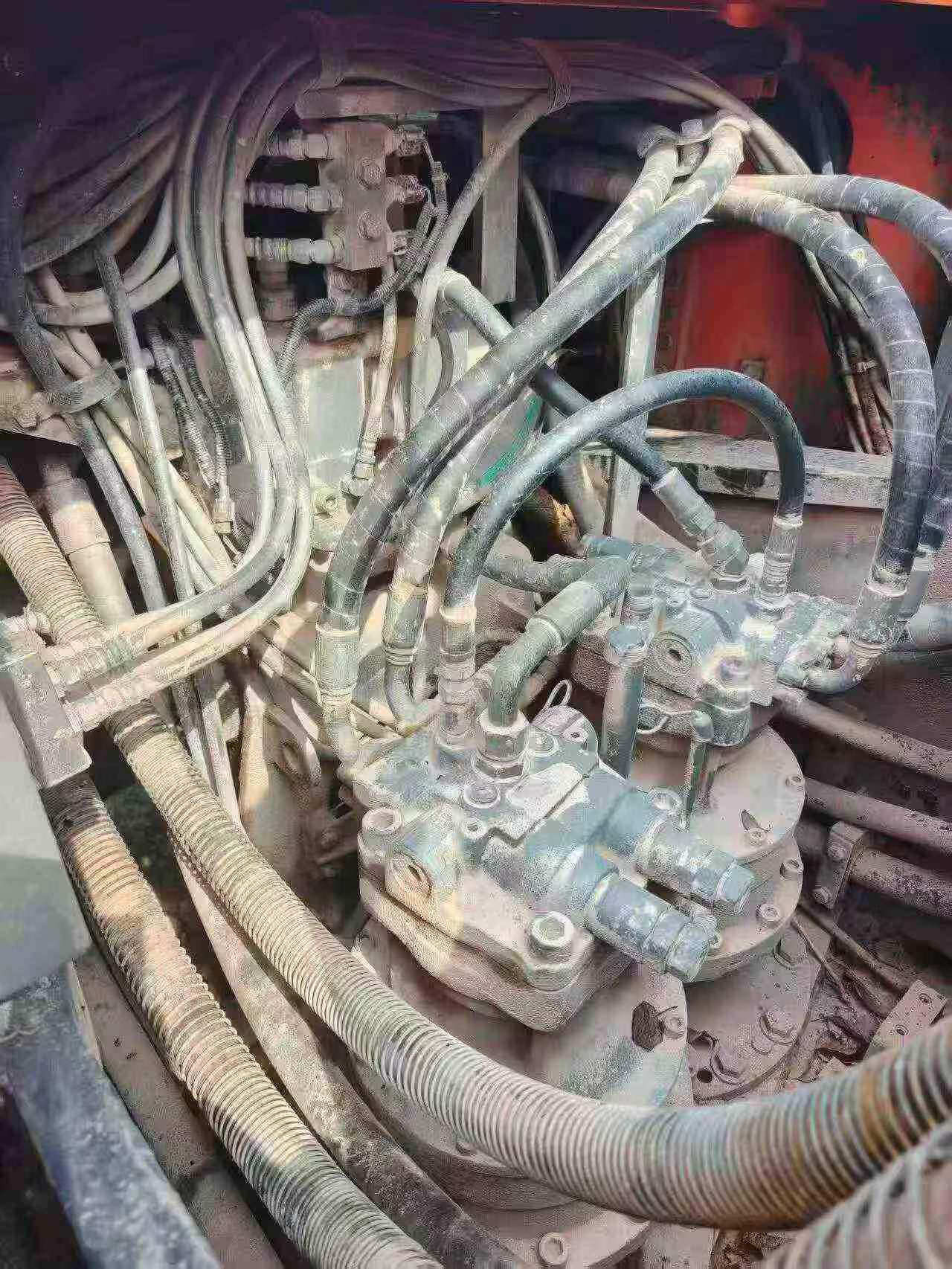

| Rotary hydraulic motor type | Axial piston motor x 2 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 360 + 30 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Hydraulic crushing pipeline is standard | no |

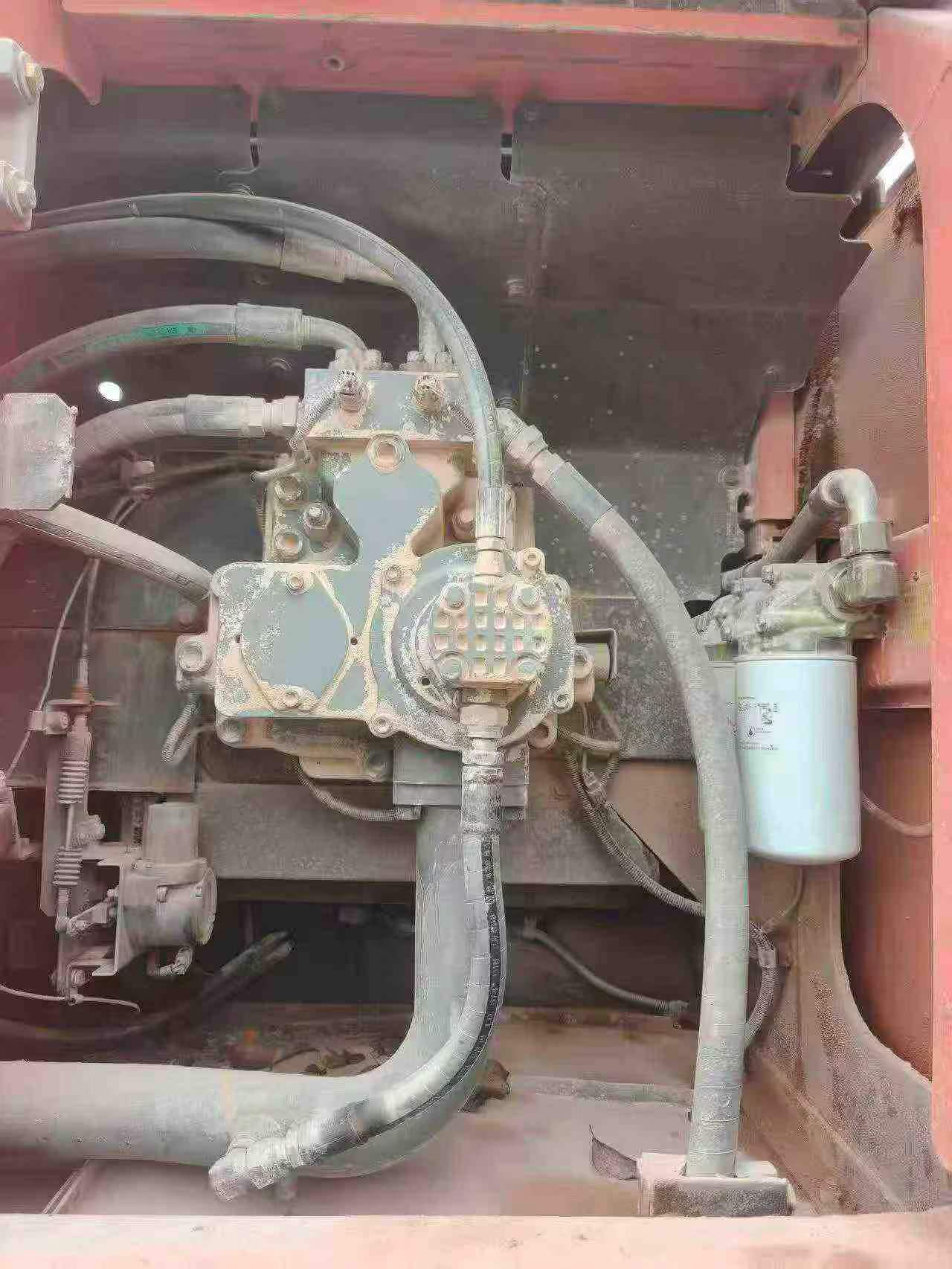

| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 170 x 120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 190 x 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 170 x 116 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 330 |
| Engine Oil changes (L) | 57 |
| Coolant (L) | 55 |
| Total transport length (mm) | 11560 |
| Total transport width (mm) | 4300 |
| Total transport height (mm) | 3480 |
| Full cab height (mm) | 3450 |
| Counterweight ground clearance (mm) | 1360 |
| Minimum ground clearance (mm) | 723 |
| Back end turning radius (mm) | 3645 |

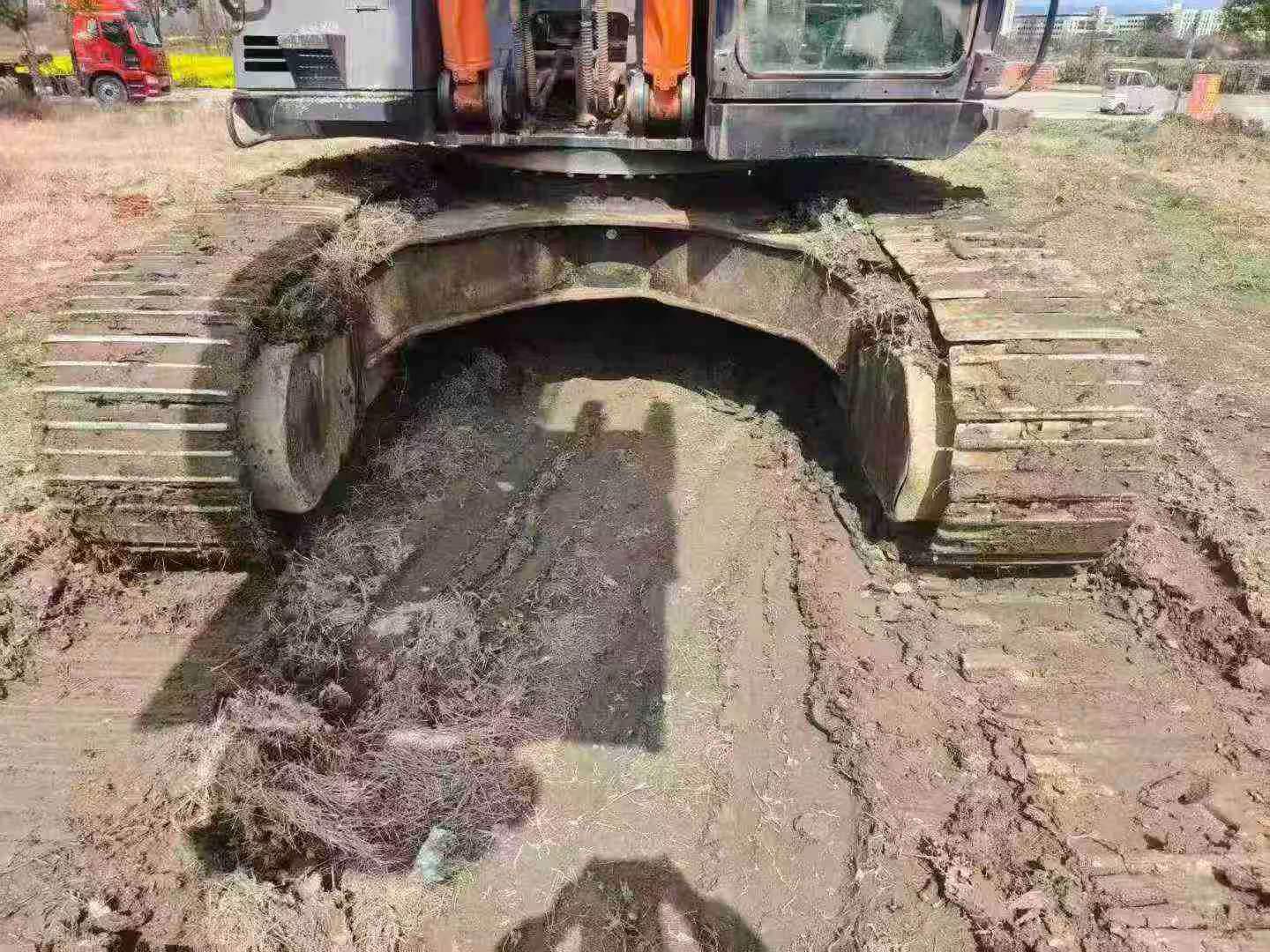

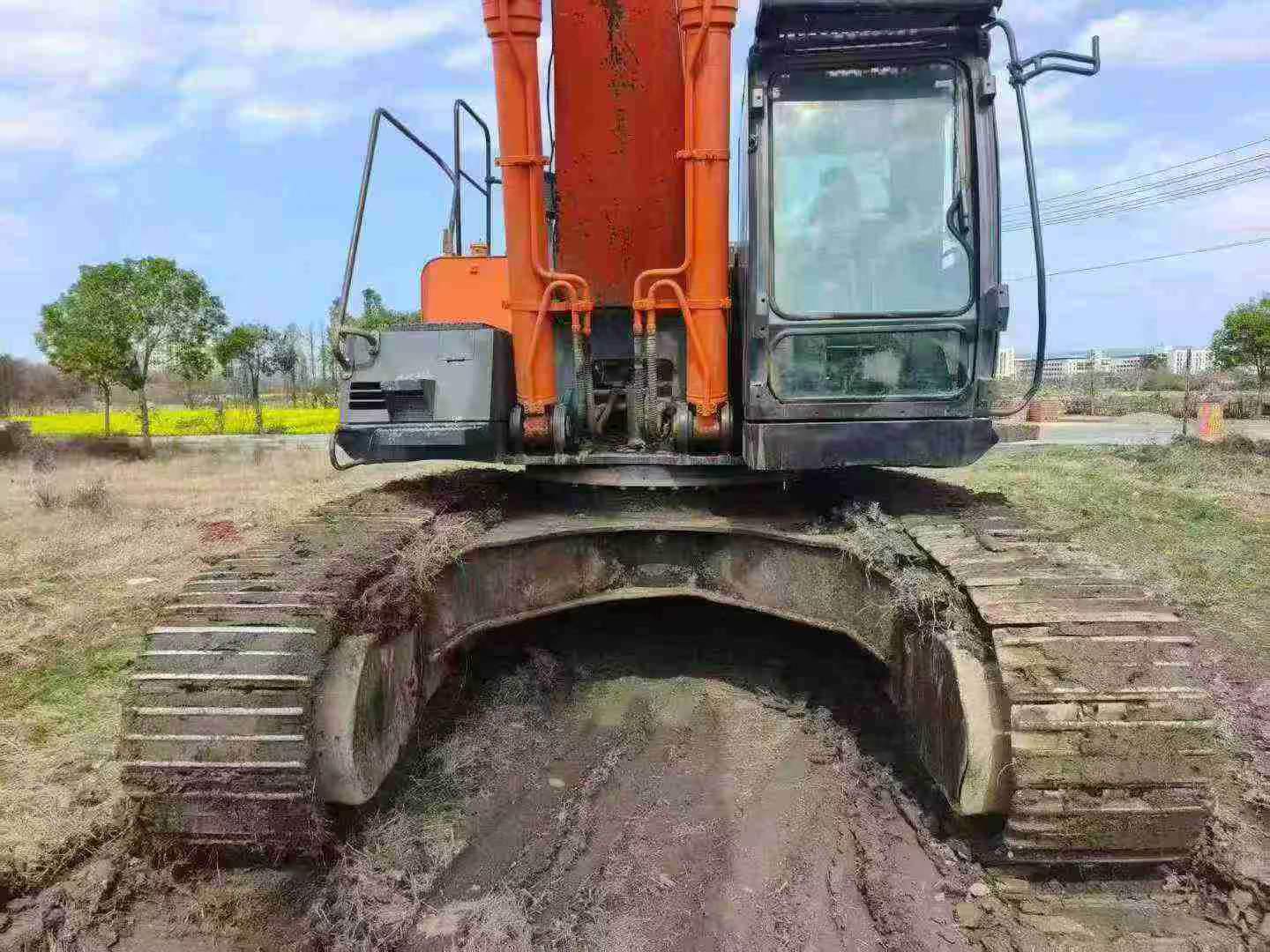

| Total track length (mm) | 5470 |
| Track gauge (mm) | 2890/2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3490/2990 |
| Track ground length (mm) | 4470 |
| Maximum digging radius (mm) | 12060 |
| Maximum digging depth (mm) | 5790 |
| Maximum excavation height (mm) | 10660 |
| Maximum unloading height (mm) | 7320 |
| Maximum vertical digging depth (mm) | 4260 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10210 |
| Maximum effective digging depth (mm) | 5620 |
