Product Description

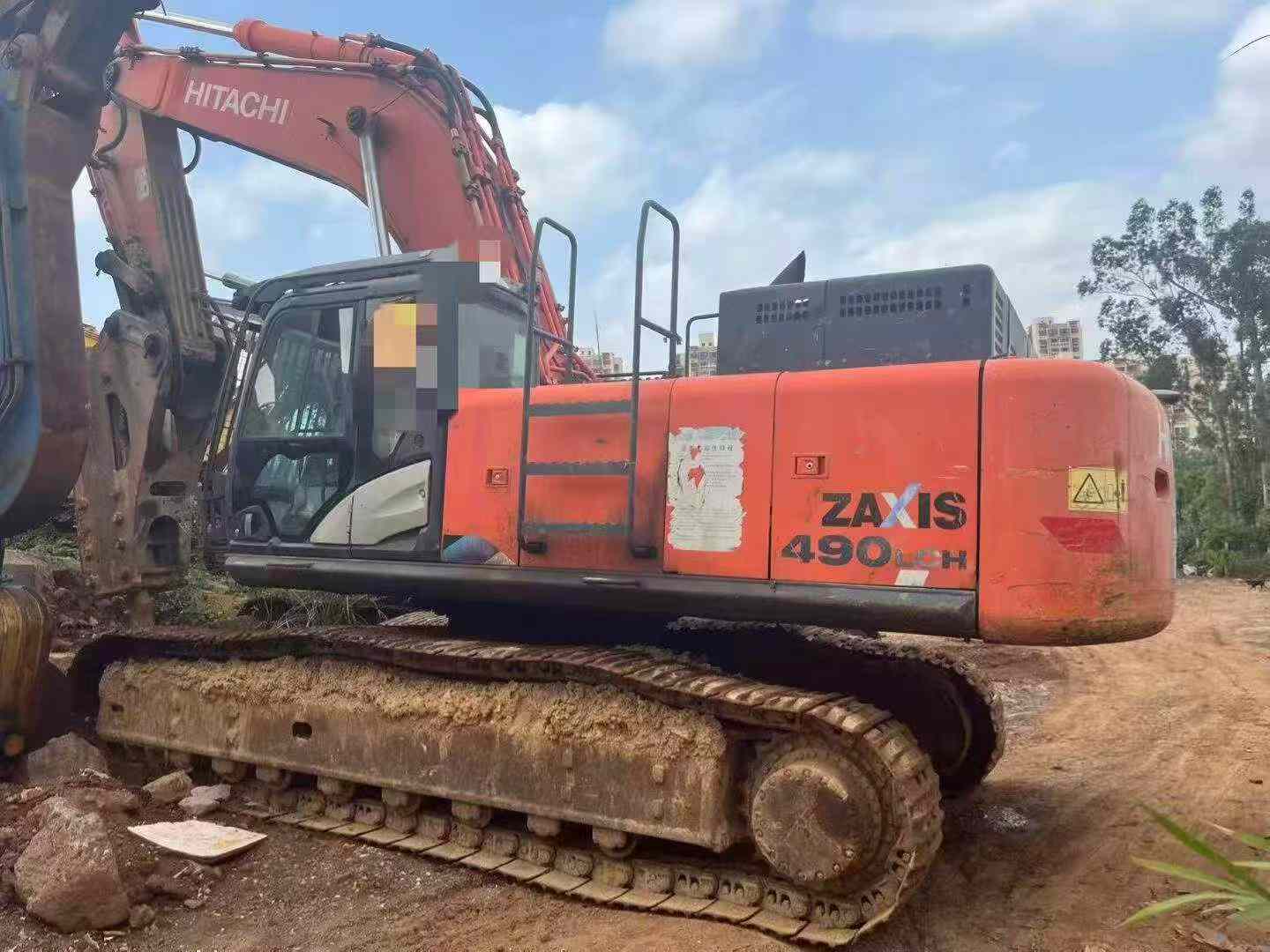

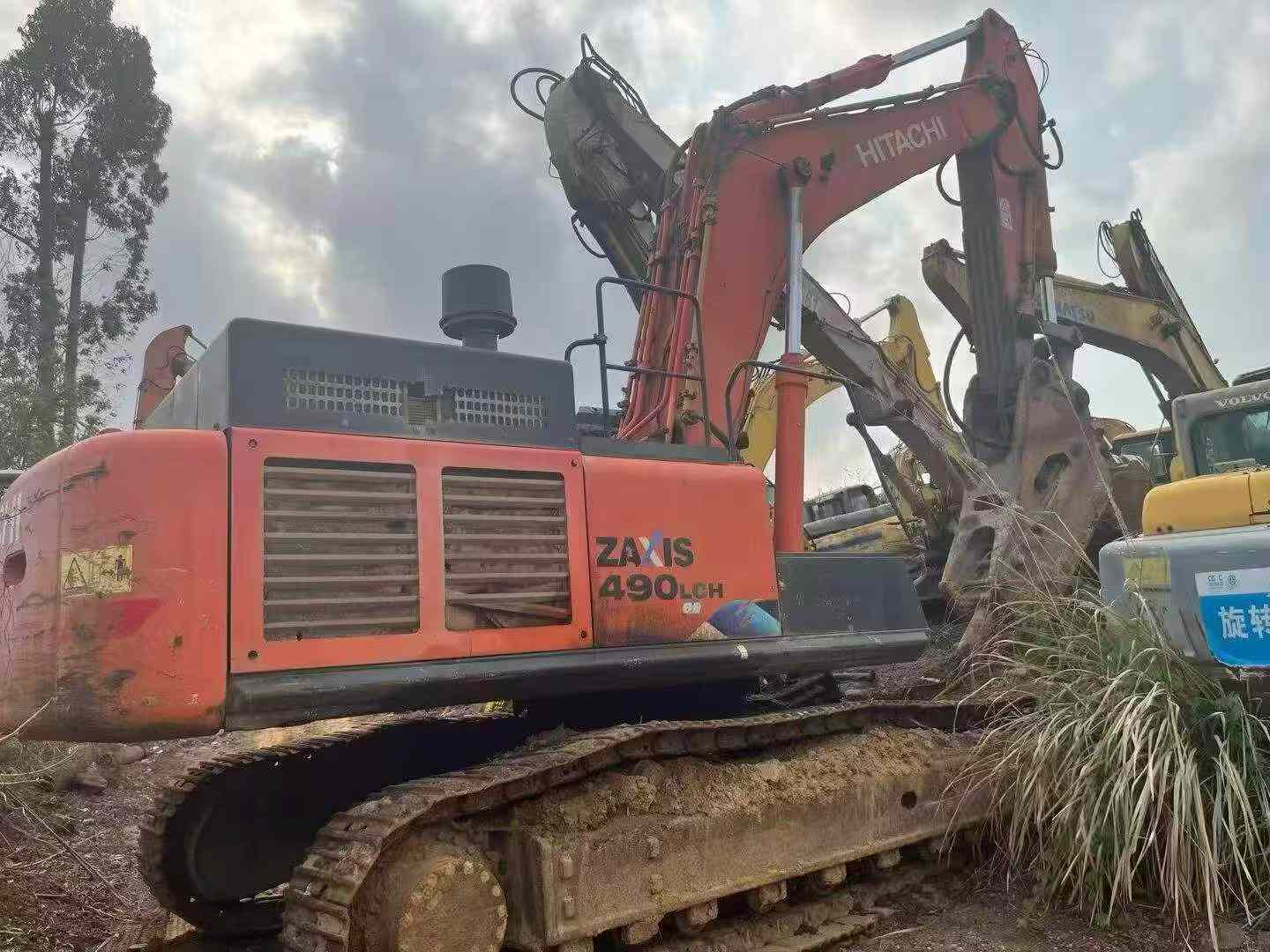

Proven performance meets legendary durability in this 2016 Hitachi ZX490LCH-5A excavator, now available from our Zhejiang Shaoxing yard. Operating at 49 tons with a robust 257 kW Isuzu engine, this machine delivers 296 kN bucket digging force and a commanding 12-meter reach—engineered for heavy-duty earthmoving, demolition, and large-scale construction projects.
Hitachi excavators dominate the used equipment market for good reason. Parts availability remains exceptional worldwide, with both OEM and aftermarket components readily accessible at competitive prices. Resale values consistently outperform competitors due to proven longevity and lower total cost of ownership. This joint-venture manufactured unit features water-cooled hydraulics, dual 400 L/min pumps, and a reinforced undercarriage with 53-plate tracks per side—built to withstand demanding job sites while maintaining operational efficiency.
Key Specifications:
- Working Weight: 47,200–47,500 kg
- Bucket Capacity: 2.1–3.0 m³
- Maximum Digging Depth: 7,850 mm
- Fuel Tank: 725 L for extended runtime
- Hydraulic System: 31.9 MPa working pressure
Invest in reliability. Contact Fair Trade Machi
| Specifications | Value |
|---|---|
| No. | 1025622 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 47200-47500 |
| Bucket capacity (m³) | 2.1-3.0 |
| Boom length (mm) | 7000 |
| Rod length (mm) | 3400 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

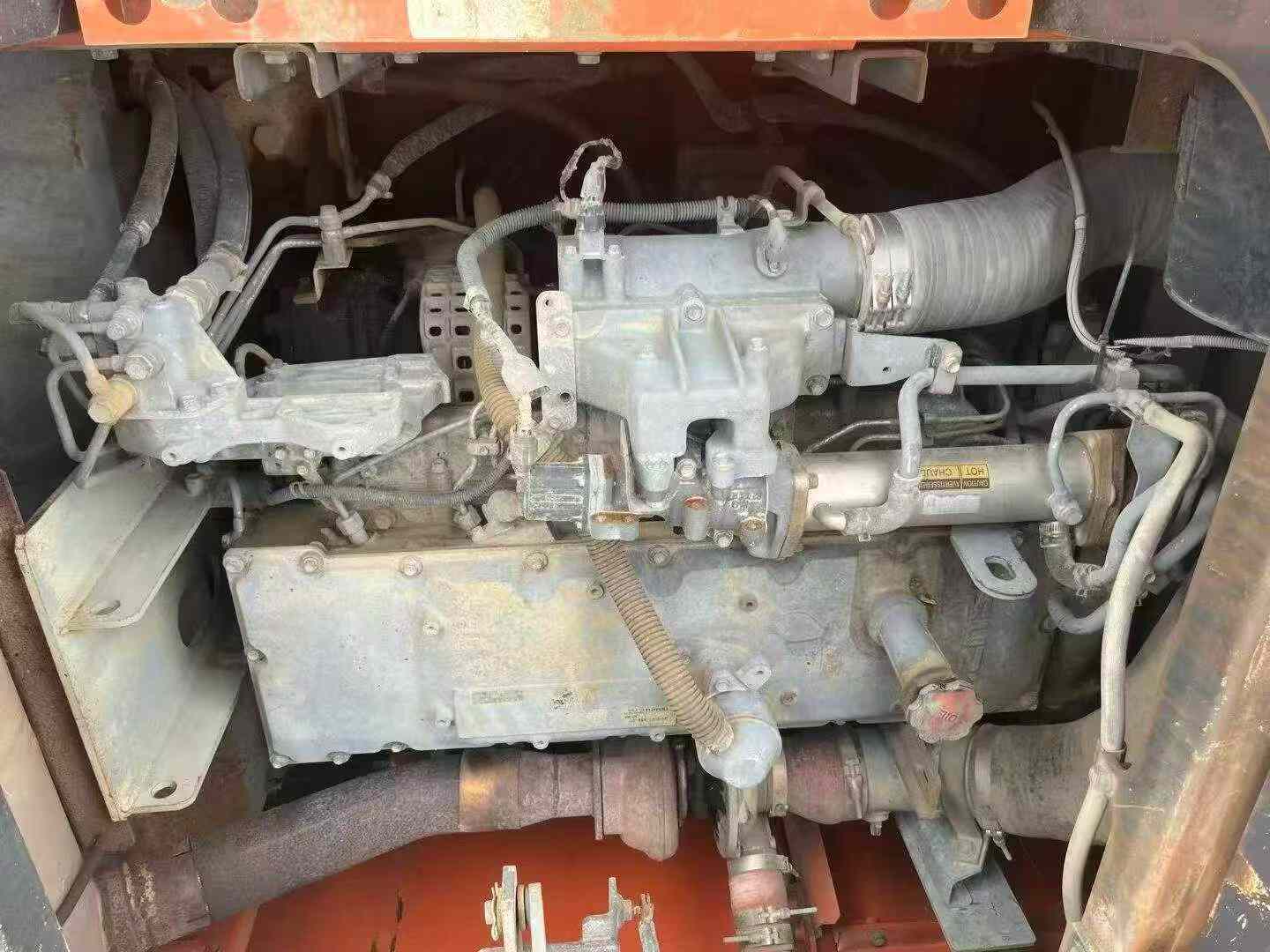

| Engine type | Isuzu GH-6UZ1XKSA-01 |
| Rated power (kw/rpm) | 257/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 120 x 145 |
| Maximum torque (N.m) | 1363/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 9.839 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 80 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 296 |
| Rod digging force (kN) | 224 |
| Travel speed (km/h) | 5.5 (High) /3.9 (Low) |
| Turning torque (Nm) | 148 |

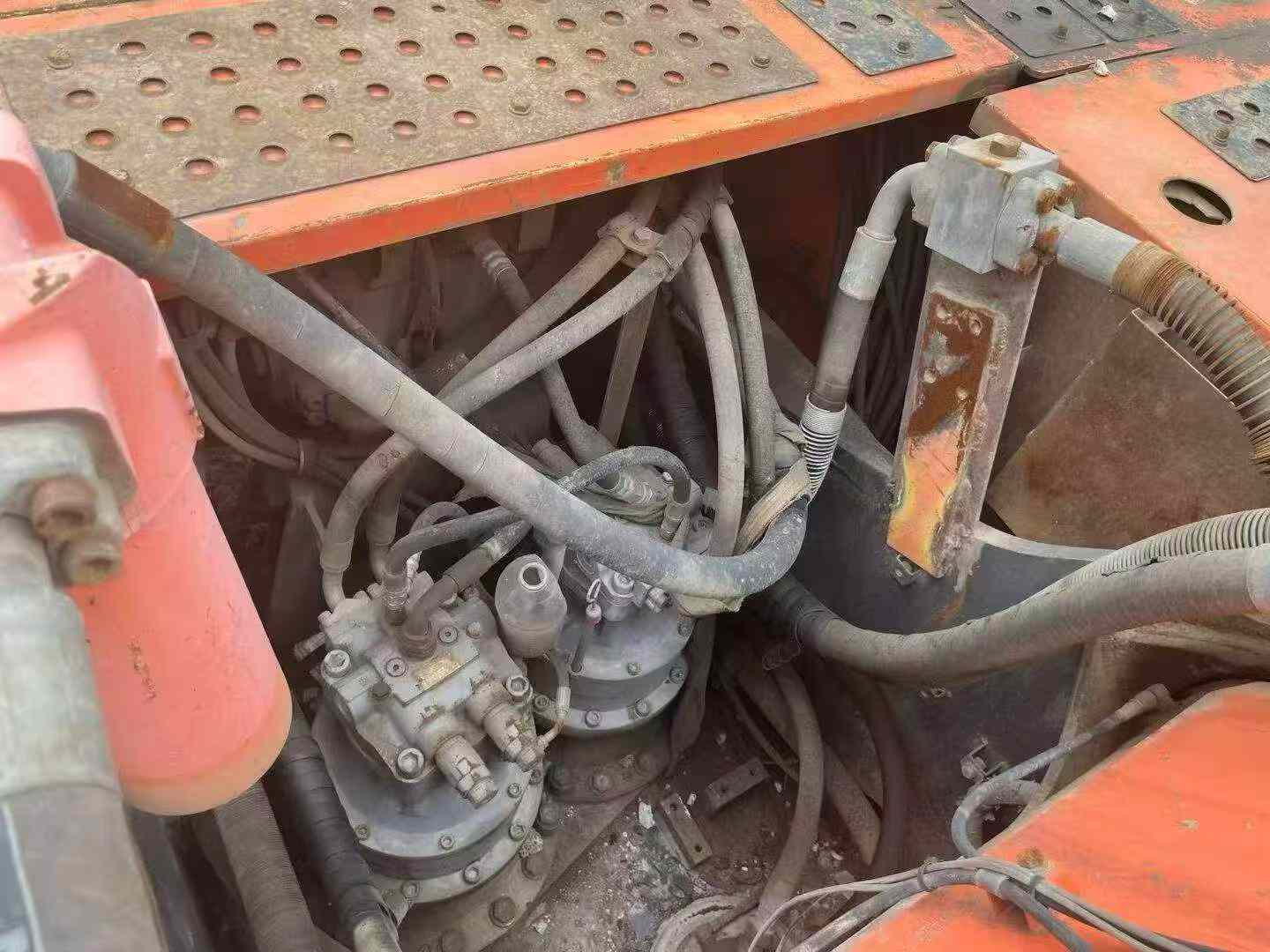

| Rotary hydraulic motor type | Two swashplate quantitative axial piston motors |
| Type of walking hydraulic motor | 2 swashplate variable axial piston motors (with parking brake) |
| Maximum flow of main pump (l/min) | 2 x 400 + 30 |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |

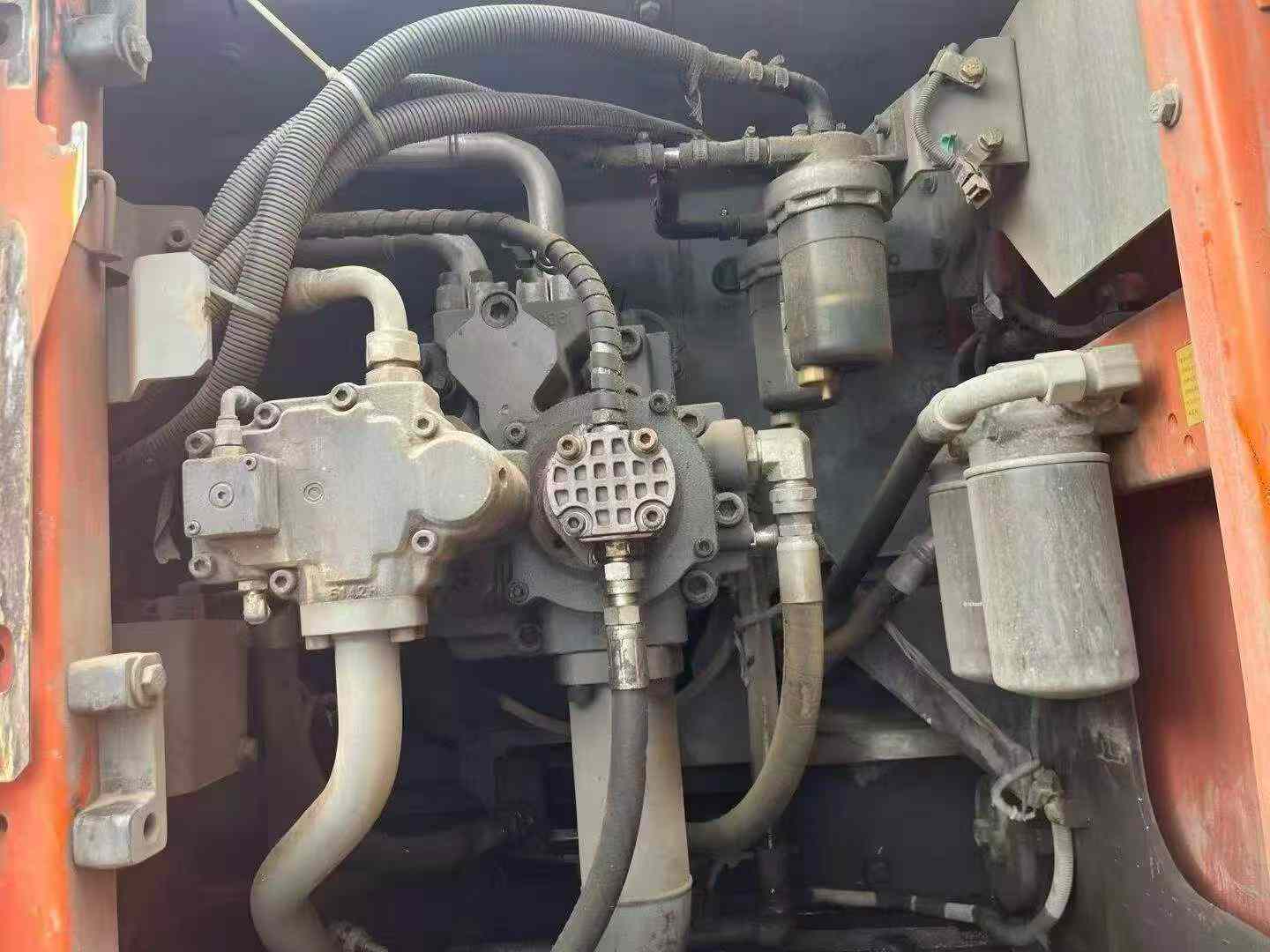

| Main pump type | 2 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 170 x 120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 190 x 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 170 x 115 |
| Fuel Tank (L) | 725.0 |
| Hydraulic Tank (L) | 310.0 |
| Engine Oil changes (L) | 41.0 |
| Coolant (L) | 58.0 |
| Total transport length (mm) | 12040 |
| Total transport width (mm) | 3550 |
| Total transport height (mm) | 3450 |
| Full cab height (mm) | 3320 |
| Counterweight ground clearance (mm) | 1270 |
| Minimum ground clearance (mm) | 535 |
| Minimum turning radius of front working device (mm) | 4840 |
| Back end turning radius (mm) | 3670 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4470 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 12060 |
| Maximum digging depth (mm) | 7850 |
| Maximum excavation height (mm) | 10980 |
| Maximum unloading height (mm) | 7580 |
| Maximum vertical digging depth (mm) | 7170 |
| Maximum excavation radius of stop surface (mm) | 11860 |
Overview
No.1025622
Brand Name：
HitachiModel Number：
ZX490LCH-5AYear：
2016
Location：
Zhejiang China
Pub Date：
