Product Description

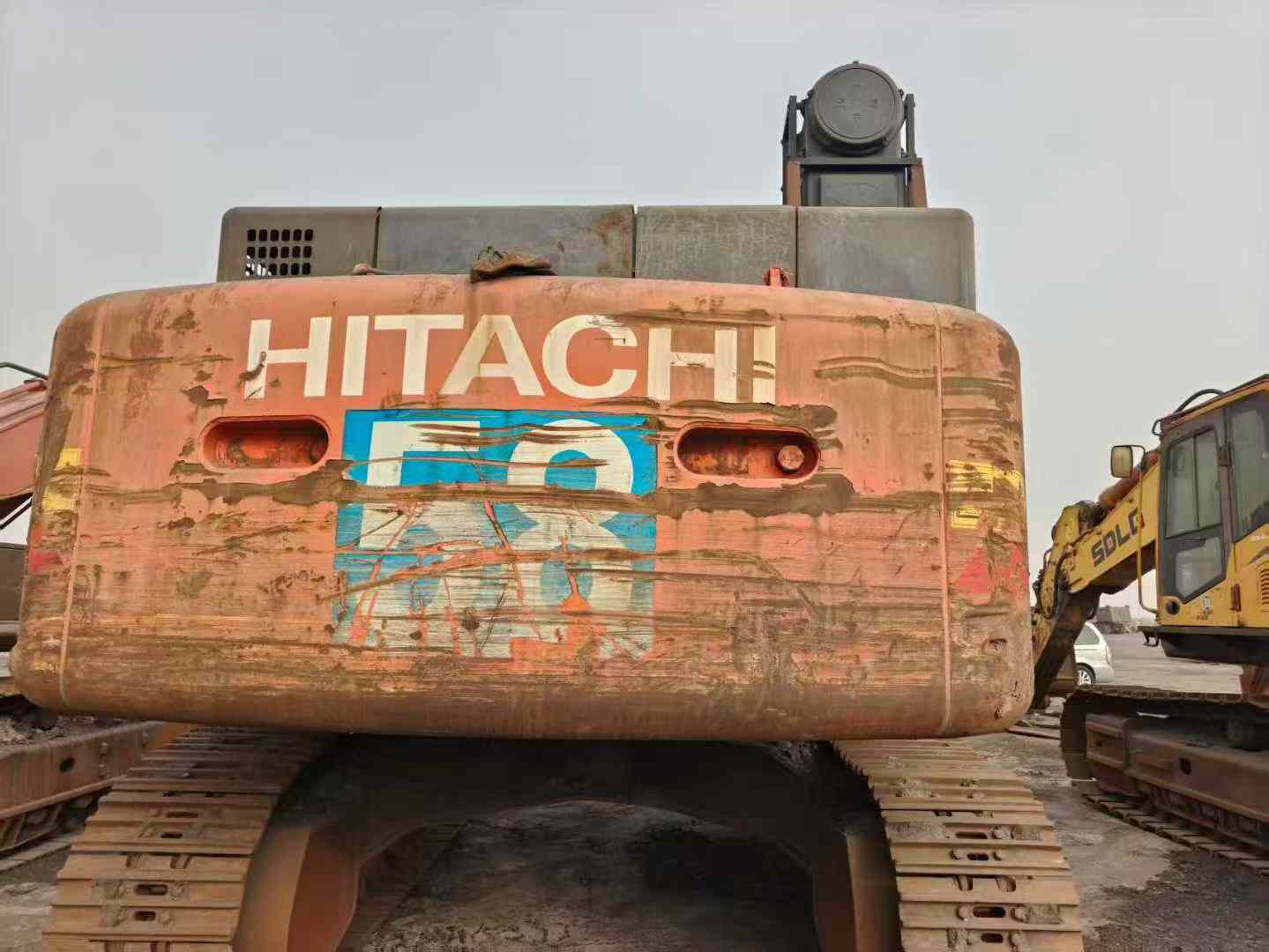

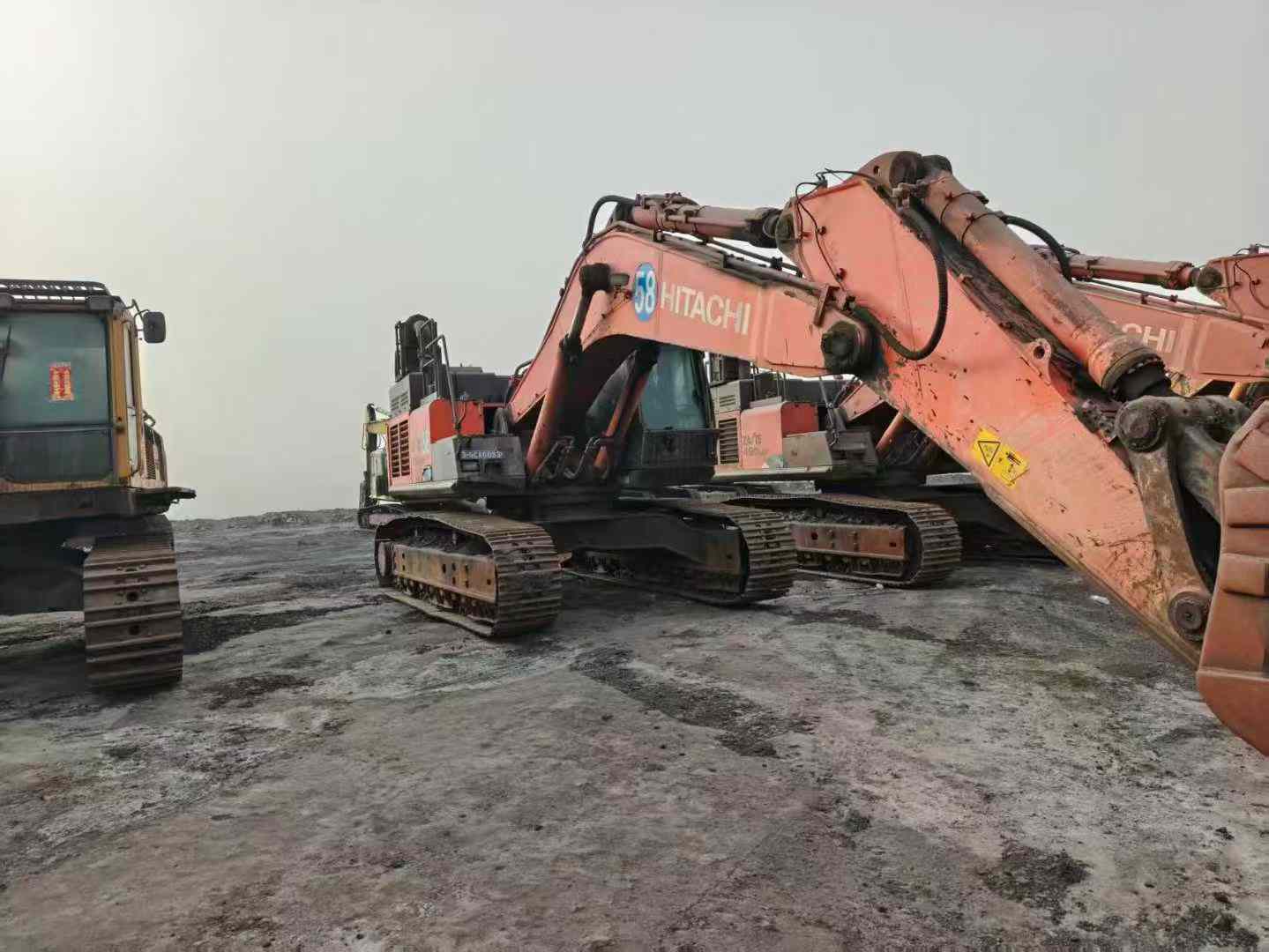

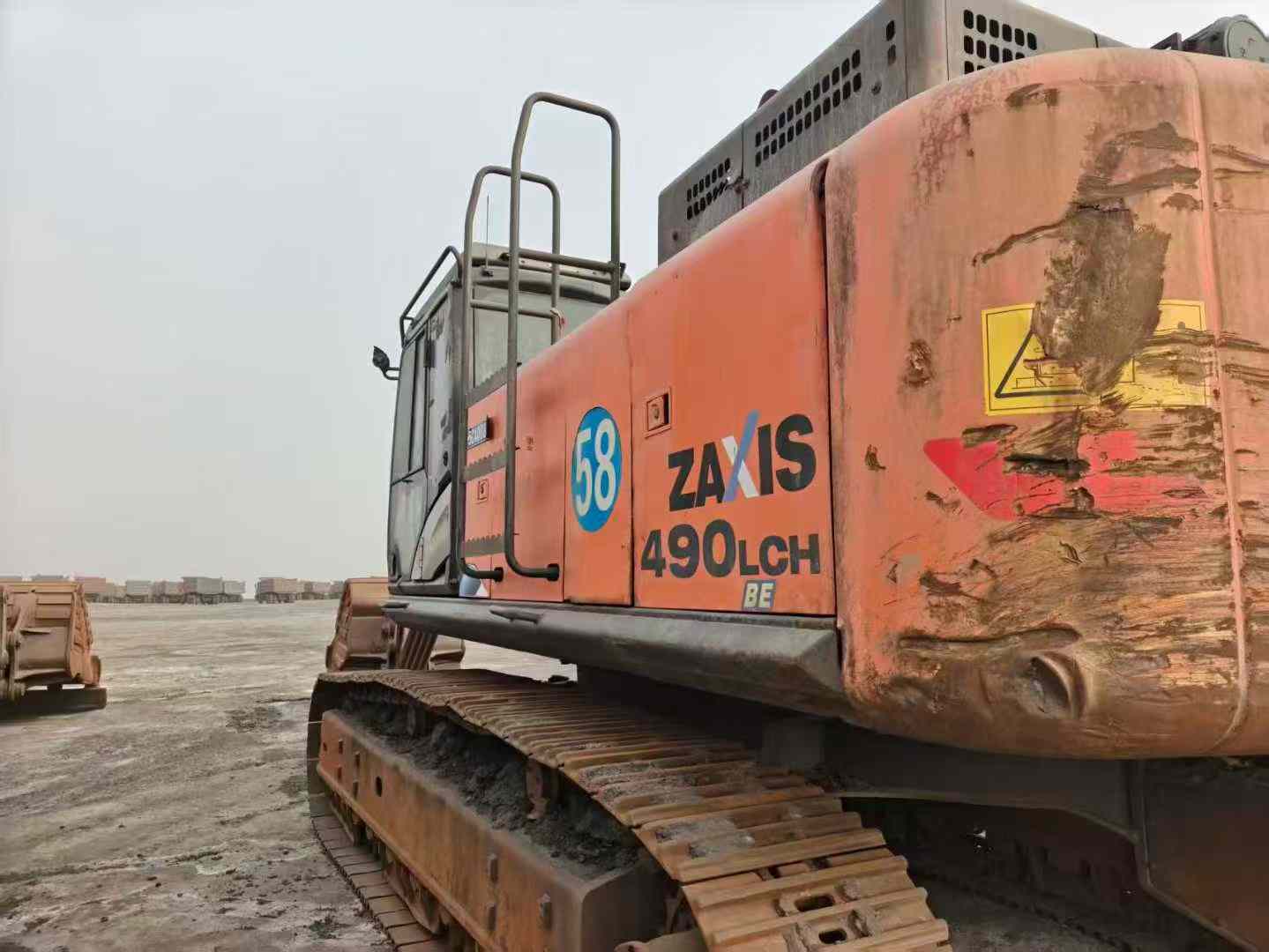

With a working weight of 47,200-47,500 kg and a powerful Isuzu GH-6UZ1XKSA-01 engine, this 2018 Hitachi ZX490LCH-5A excavator delivers reliable performance. Featuring a bucket capacity of 2.1-3.0 m³ and a boom length of 7,000 mm, it is designed for efficiency and durability. Located in Fujian Putian, this machine boasts a maximum digging force of 296 kN and a travel speed of up to 5.5 km/h, making it ideal for demanding construction sites.
- Proven reliability with Hitachi's robust engineering and high-quality components
- Excellent parts availability and strong resale value in the used market
- Powered by a 257 kW Isuzu engine, ensuring consistent power and fuel efficiency
- Equipped with advanced hydraulic systems for precise control and versatility
- Designed for easy maintenance and long-term operational reliability
| Specifications | Value |
|---|---|
| No. | 1033376 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 47200-47500 |
| Bucket capacity (m³) | 2.1-3.0 |
| Boom length (mm) | 7000 |
| Rod length (mm) | 3400 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

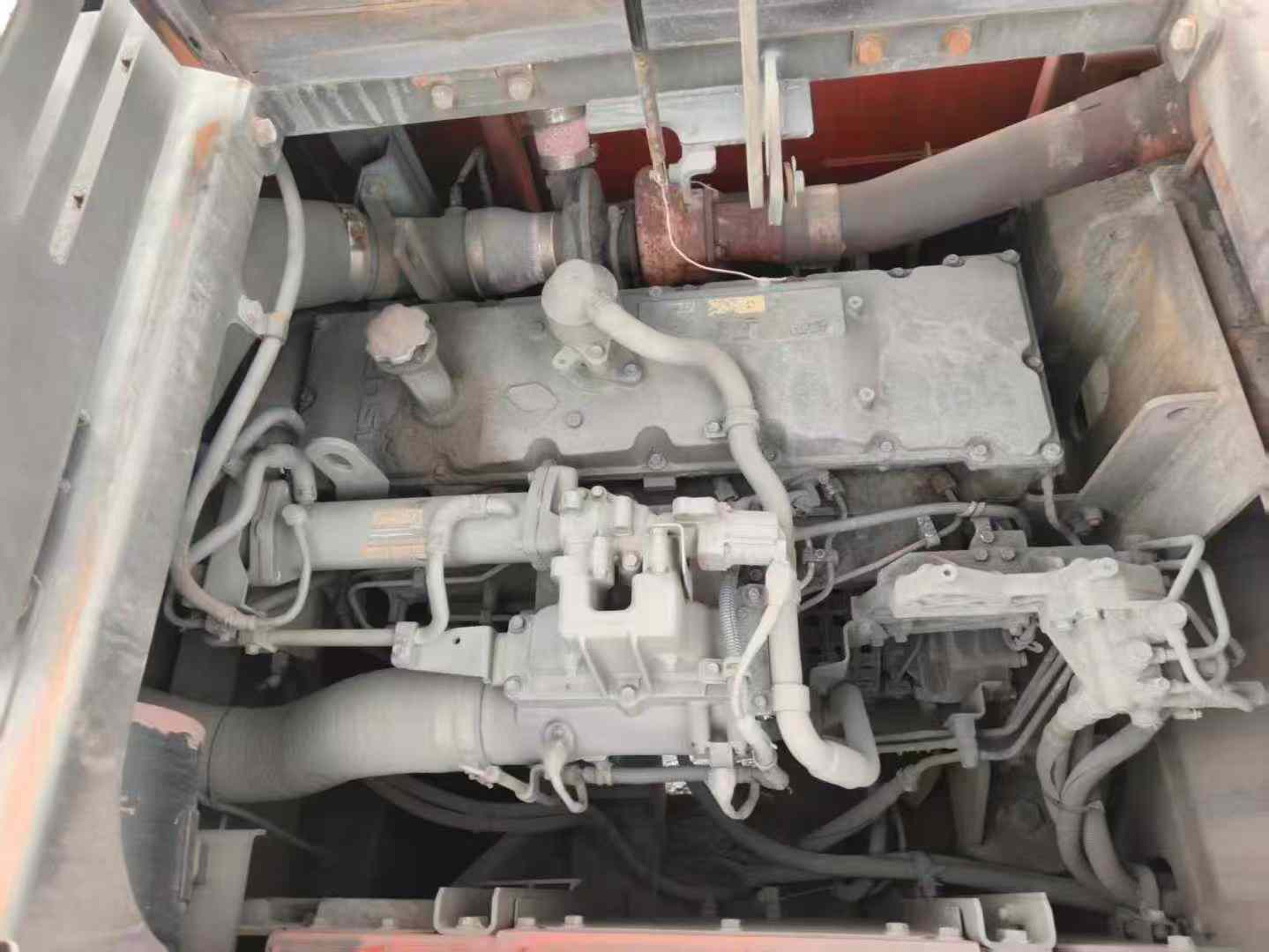

| Engine type | Isuzu GH-6UZ1XKSA-01 |
| Rated power (kw/rpm) | 257/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 120 x 145 |
| Maximum torque (N.m) | 1363/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 9.839 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 80 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 296 |
| Rod digging force (kN) | 224 |
| Travel speed (km/h) | 5.5 (High) /3.9 (Low) |
| Turning torque (Nm) | 148 |

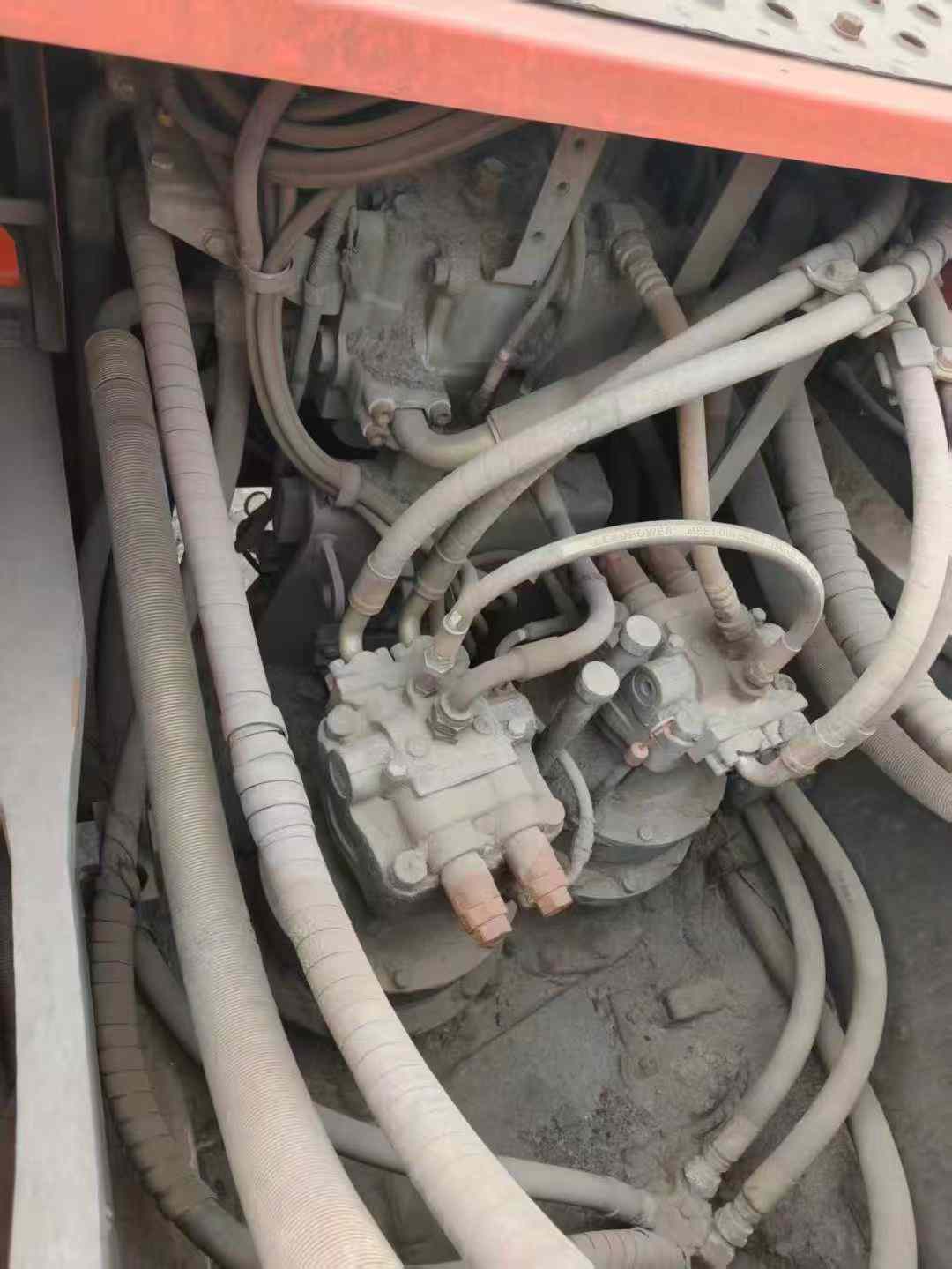

| Rotary hydraulic motor type | Two swashplate quantitative axial piston motors |
| Type of walking hydraulic motor | 2 swashplate variable axial piston motors (with parking brake) |
| Maximum flow of main pump (l/min) | 2 x 400 + 30 |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |

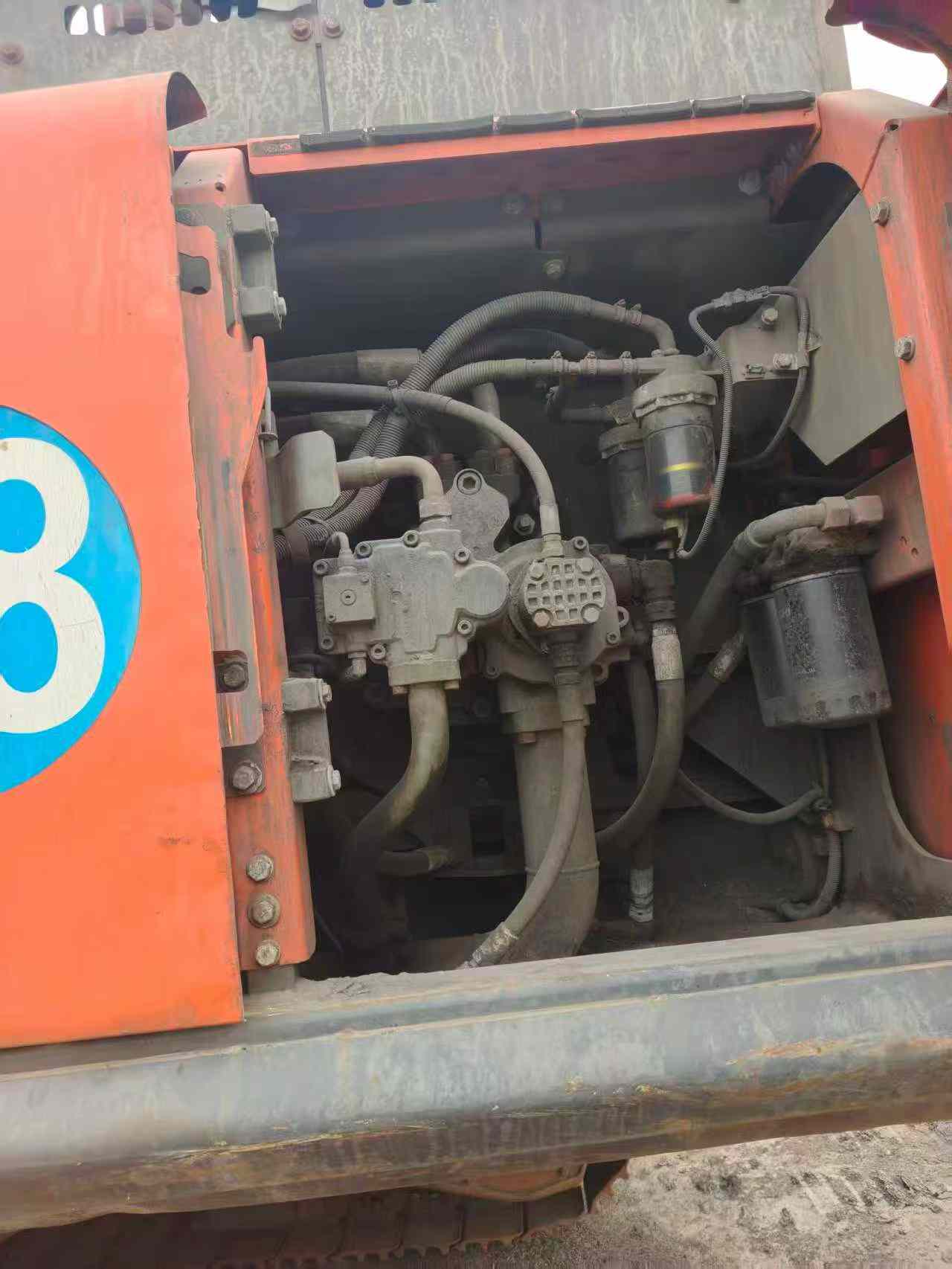

| Main pump type | 2 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 170 x 120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 190 x 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 170 x 115 |
| Fuel Tank (L) | 725.0 |
| Hydraulic Tank (L) | 310.0 |
| Engine Oil changes (L) | 41.0 |
| Coolant (L) | 58.0 |
| Total transport length (mm) | 12040 |
| Total transport width (mm) | 3550 |
| Total transport height (mm) | 3450 |
| Full cab height (mm) | 3320 |
| Counterweight ground clearance (mm) | 1270 |
| Minimum ground clearance (mm) | 535 |
| Minimum turning radius of front working device (mm) | 4840 |
| Back end turning radius (mm) | 3670 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4470 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 12060 |
| Maximum digging depth (mm) | 7850 |
| Maximum excavation height (mm) | 10980 |
| Maximum unloading height (mm) | 7580 |
| Maximum vertical digging depth (mm) | 7170 |
| Maximum excavation radius of stop surface (mm) | 11860 |
see more
Overview
No.1033376
Brand Name：
HitachiModel Number：
ZX490LCH-5AYear：
2018
Location：
Fujian China
Pub Date：
