Product Description

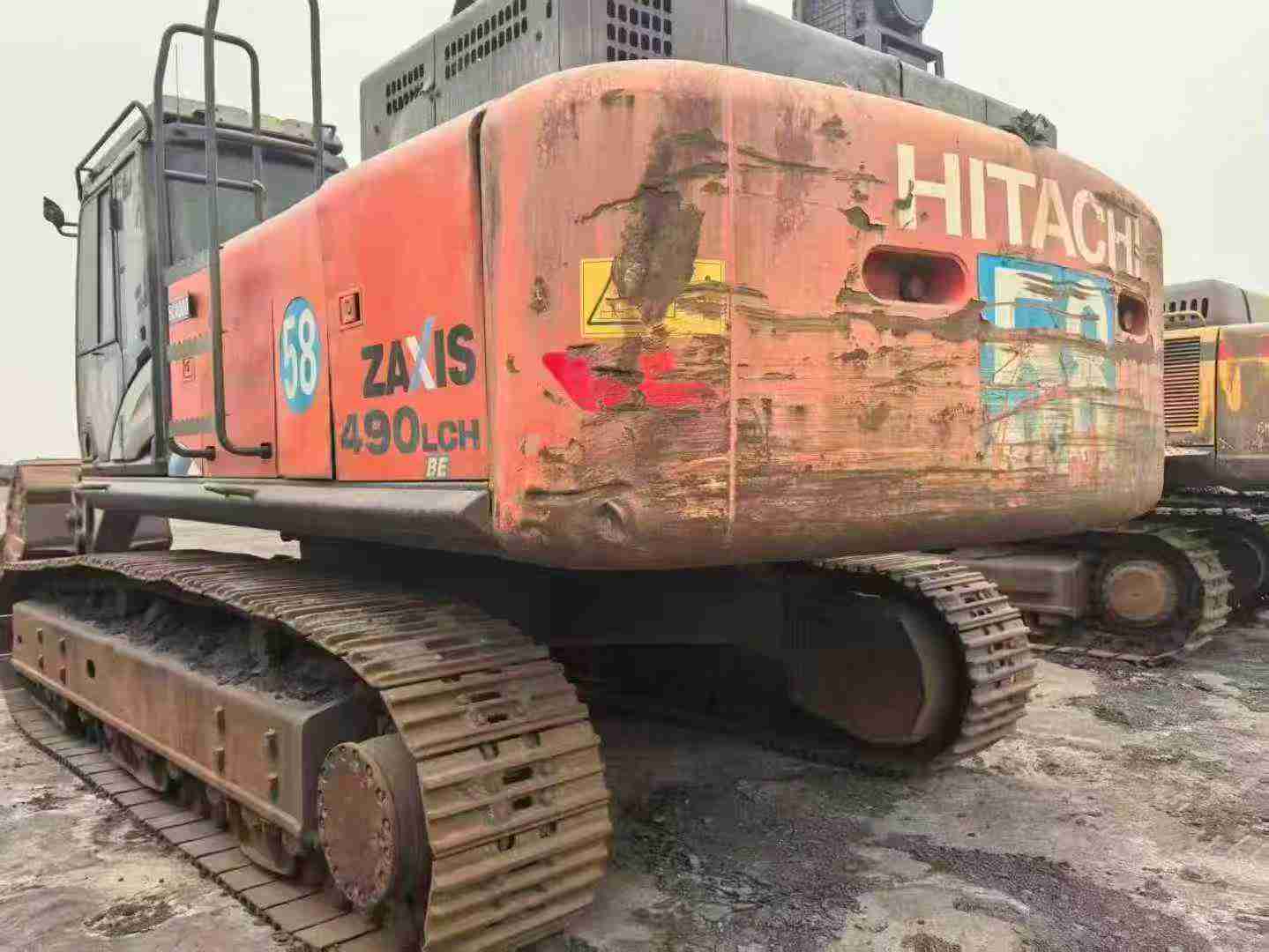

Proven performance meets global reliability in this 2019 Hitachi ZX490LCH-5A excavator, currently located in Luzhou, Sichuan. Engineered with a robust Isuzu 6-cylinder engine delivering 257kW at 2000 rpm, this 49-ton workhorse combines exceptional digging force (296kN bucket, 224kN arm) with intelligent hydraulic efficiency through dual 400 L/min variable piston pumps.
Hitachi's reputation for durability translates directly into lower ownership costs. Parts availability remains excellent worldwide, and resale values consistently outperform competing brands due to proven longevity in demanding applications. This ZX490LCH-5A features a 12.06m maximum reach and 7.85m digging depth, supported by a 7000mm boom and 3400mm arm configuration ideal for large-scale earthmoving and mining operations.
- Operating weight: 47,200-47,500 kg with 2.1-3.0 m³ bucket capacity
- Water-cooled Isuzu GH-6UZ1XKSA turbocharged engine (9.839L displacement)
- Dual hydraulic circuits optimized for 31.9 MPa working pressure
- 725L fuel capacity for extended operation cycles
- Factory-backed specifications ensure authentic replacement parts sourcing
| Specifications | Value |
|---|---|
| No. | 1031237 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 47200-47500 |
| Bucket capacity (m³) | 2.1-3.0 |
| Boom length (mm) | 7000 |
| Rod length (mm) | 3400 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6UZ1XKSA-01 |
| Rated power (kw/rpm) | 257/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 120 x 145 |
| Maximum torque (N.m) | 1363/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 9.839 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 80 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 296 |
| Rod digging force (kN) | 224 |
| Travel speed (km/h) | 5.5 (High) /3.9 (Low) |
| Turning torque (Nm) | 148 |
| Rotary hydraulic motor type | Two swashplate quantitative axial piston motors |
| Type of walking hydraulic motor | 2 swashplate variable axial piston motors (with parking brake) |
| Maximum flow of main pump (l/min) | 2 x 400 + 30 |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Main pump type | 2 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 170 x 120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 190 x 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 170 x 115 |
| Fuel Tank (L) | 725.0 |
| Hydraulic Tank (L) | 310.0 |
| Engine Oil changes (L) | 41.0 |
| Coolant (L) | 58.0 |
| Total transport length (mm) | 12040 |
| Total transport width (mm) | 3550 |
| Total transport height (mm) | 3450 |
| Full cab height (mm) | 3320 |
| Counterweight ground clearance (mm) | 1270 |
| Minimum ground clearance (mm) | 535 |
| Minimum turning radius of front working device (mm) | 4840 |
| Back end turning radius (mm) | 3670 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4470 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 12060 |
| Maximum digging depth (mm) | 7850 |
| Maximum excavation height (mm) | 10980 |
| Maximum unloading height (mm) | 7580 |
| Maximum vertical digging depth (mm) | 7170 |
| Maximum excavation radius of stop surface (mm) | 11860 |
Overview
No.1031237
Brand Name：
HitachiModel Number：
ZX490LCH-5AYear：
2019
Location：
Sichuan China
Pub Date：
