Product Description
Built for precision work in confined spaces, this 2010 Hitachi ZX60 mini excavator delivers reliable performance with operator-focused engineering. Powered by a robust ISUZU CC-4JG1 engine generating 40.5kW at 2100rpm, this 6-ton machine combines agility with substantial digging force—41.4kN bucket force and 28.4kN arm force handle demanding excavation tasks efficiently.

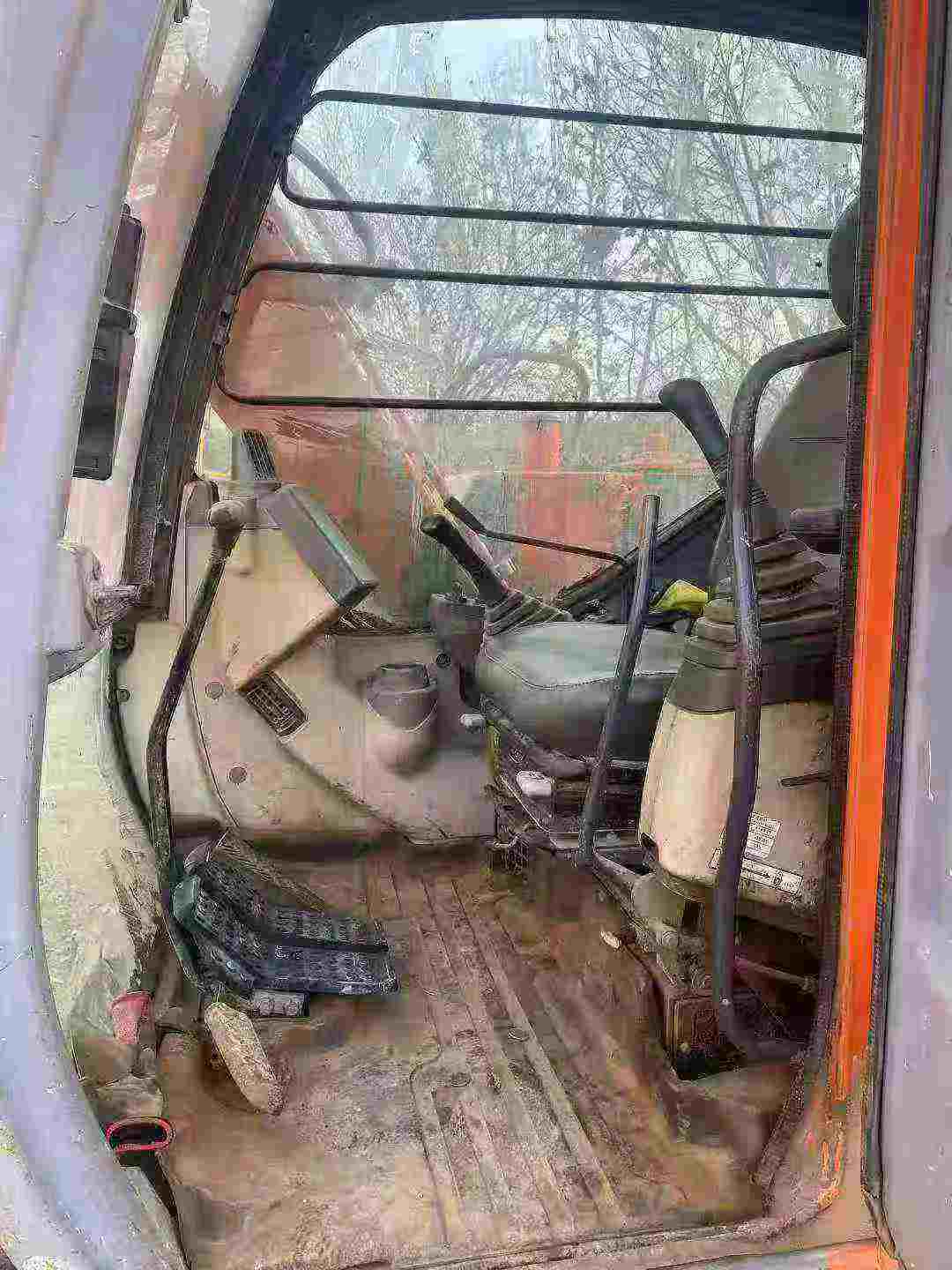

Operators benefit from exceptional visibility and intuitive controls within the cab, while the compact 2060mm transport width enables navigation through tight urban sites and narrow access points. With a maximum digging depth of 3850mm and reach extending to 6250mm, this ZX60 tackles foundation work, trenching, and utility installation with confidence.
- Working weight: 5850kg with 0.22m³ bucket capacity
- Enhanced 1.6m arm length for extended versatility
- Variable piston pump hydraulic system (24.5MPa)

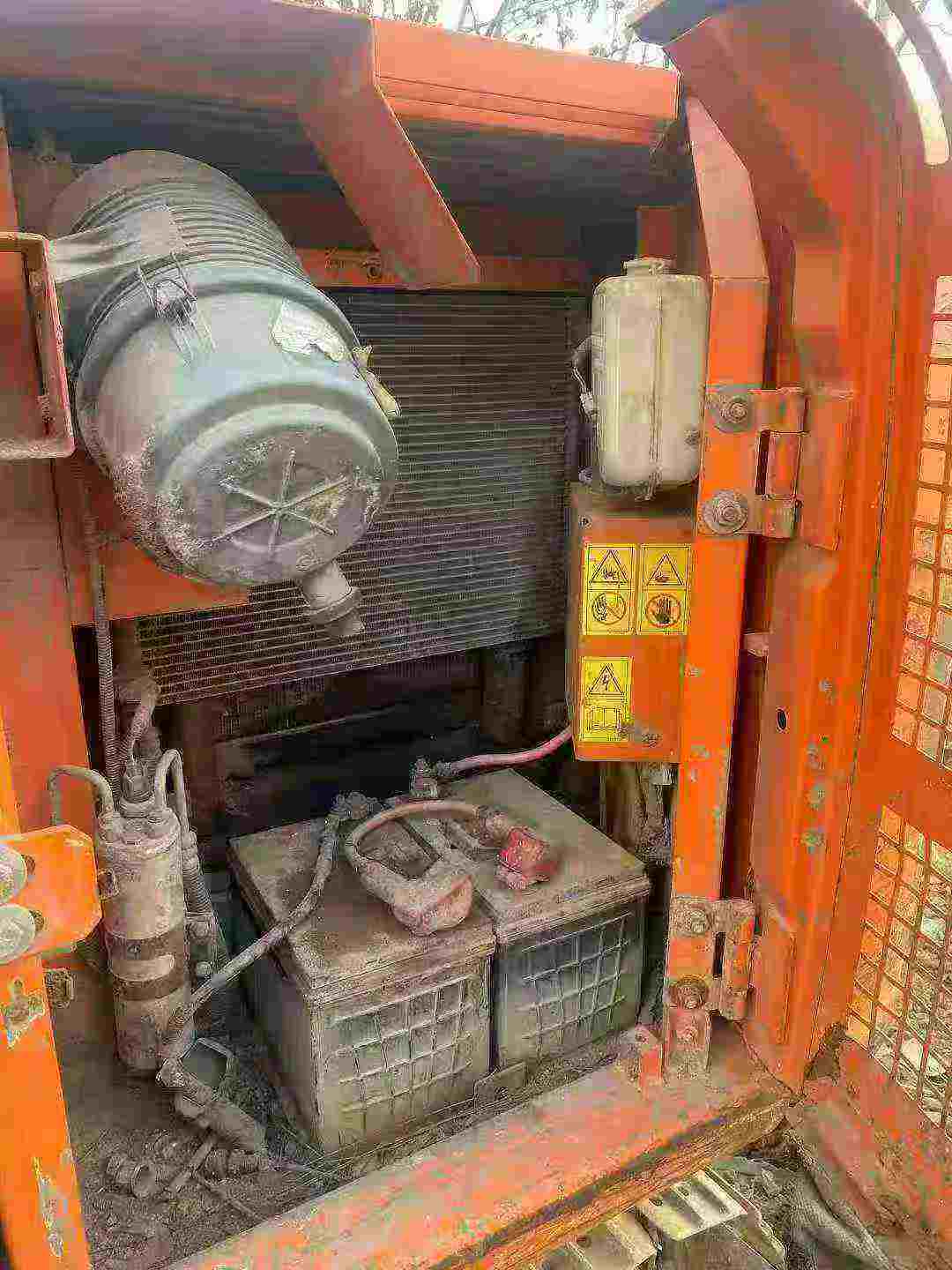

- Water-cooled 4-cylinder engine (3.059L displacement)
- 9.3rpm rotation speed for smooth, controlled movements
- Currently located in Qinhuangdao, Hebei Province
Proven joint-venture manufacturing quality ensures durability across multiple applications, from landscaping to construction support wo
| Specifications | Value |
|---|---|
| No. | 1018163 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
