Product Description
With a working weight of 5850 kg and powered by a reliable ISUZU CC-4JG1 engine, this 2011 Hitachi ZX60 excavator is ready for immediate deployment. Located in 广东茂名, it offers quick access to your project site, allowing you to skip the factory lead times. Equipped with a 0.22 m³ bucket and a boom length of 3.49 mm, this machine is designed for efficiency and speed. Its enhanced rod length of 1.6 mm and a maximum digging depth of 3850 mm ensure versatile performance on various terrains. The ZX60 features a robust hydraulic system, including variable piston pumps and axial piston motors, providing precise control and high productivity. Available now, this excavator ensures fast deployment to your site, making it an ideal choice for projects requiring rapid setup and operation.
- Working weight: 5850 kg

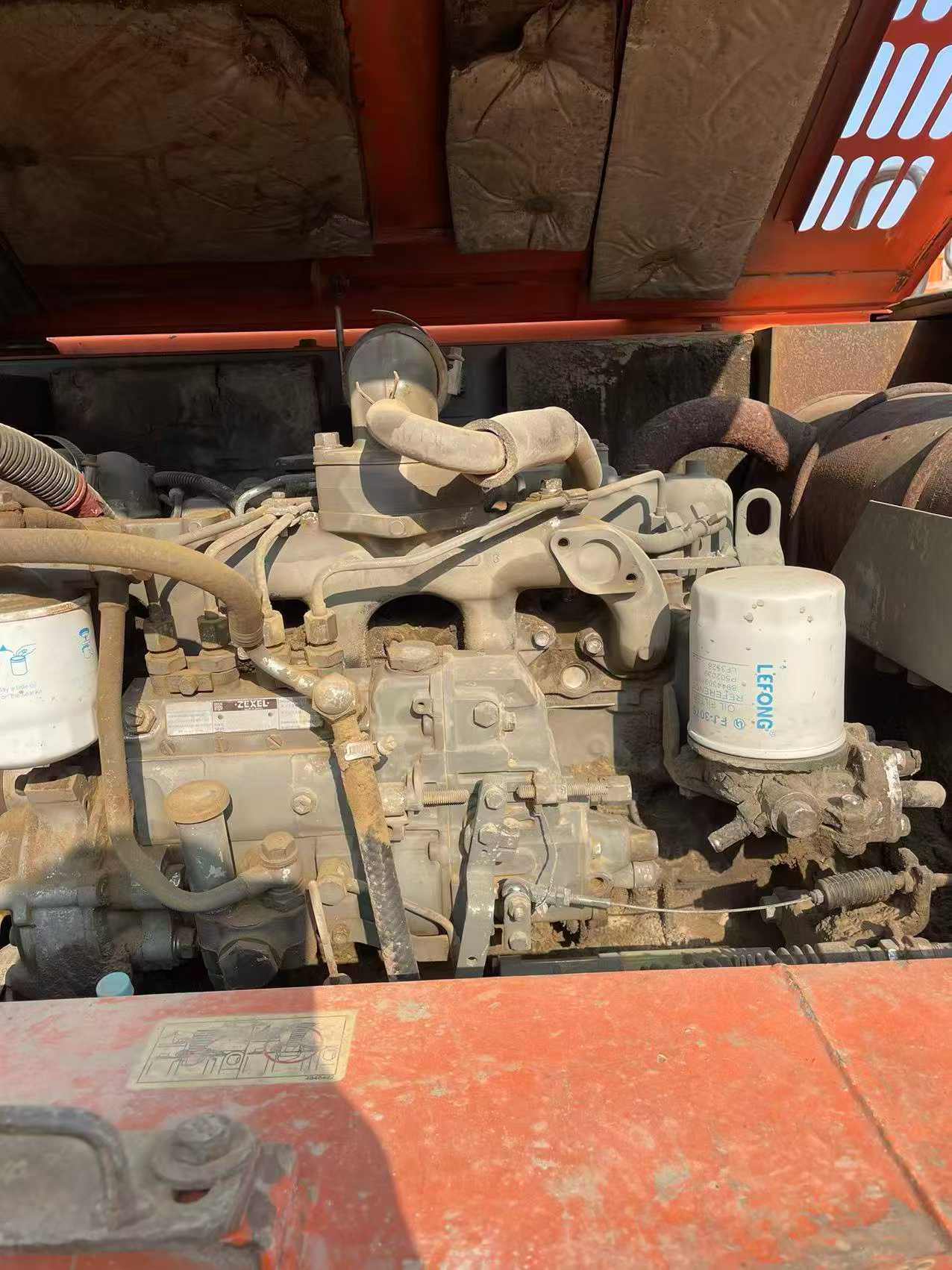

- Engine: ISUZU CC-4JG1, 40.5 kW at 2100 rpm
- Bucket capacity: 0.22 m³
- Maximum digging depth: 3850 mm

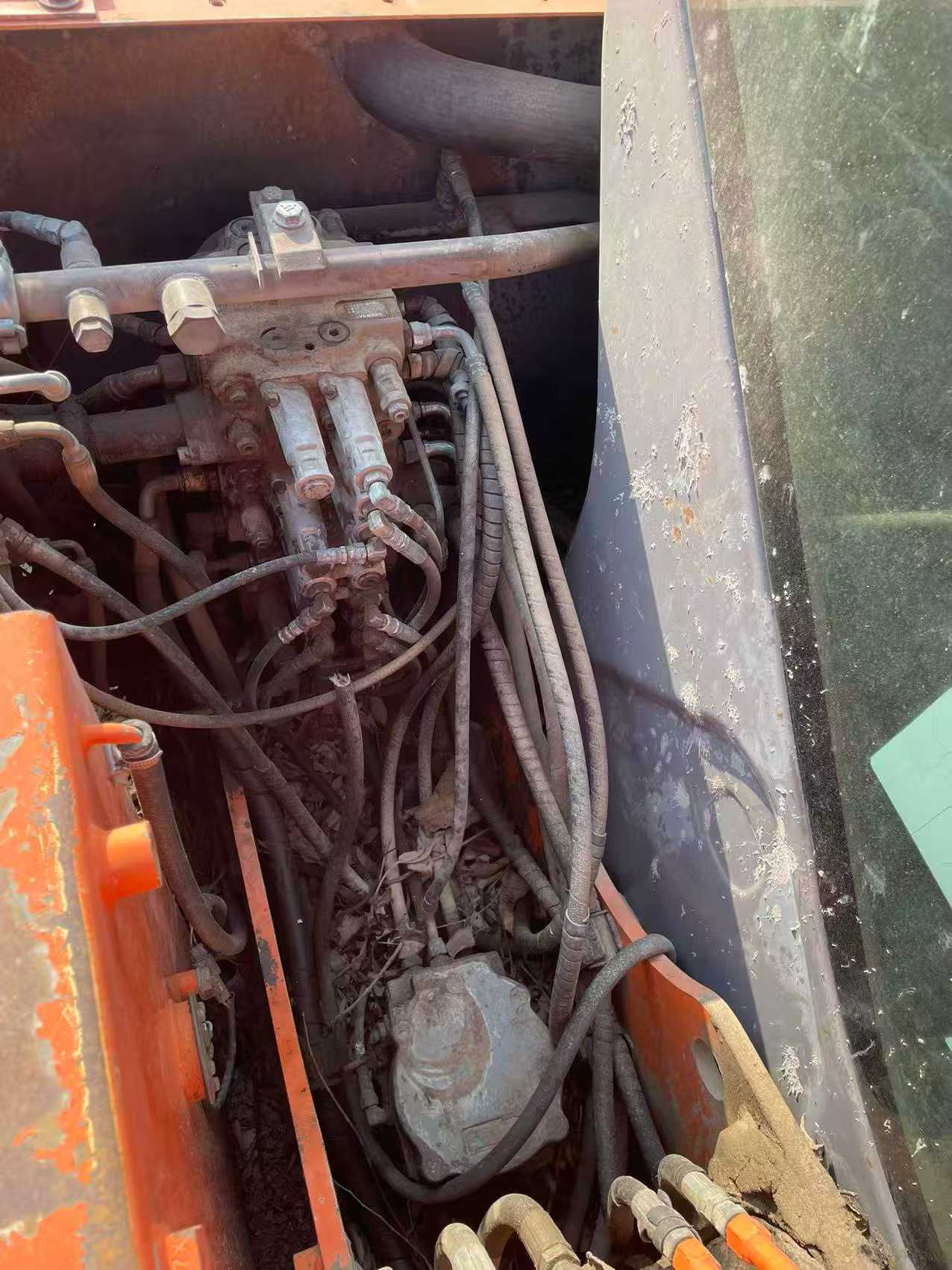

- Hydraulic system: Variable piston pumps and axial piston motors
| Specifications | Value |
|---|---|
| No. | 1001917 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
