Product Description

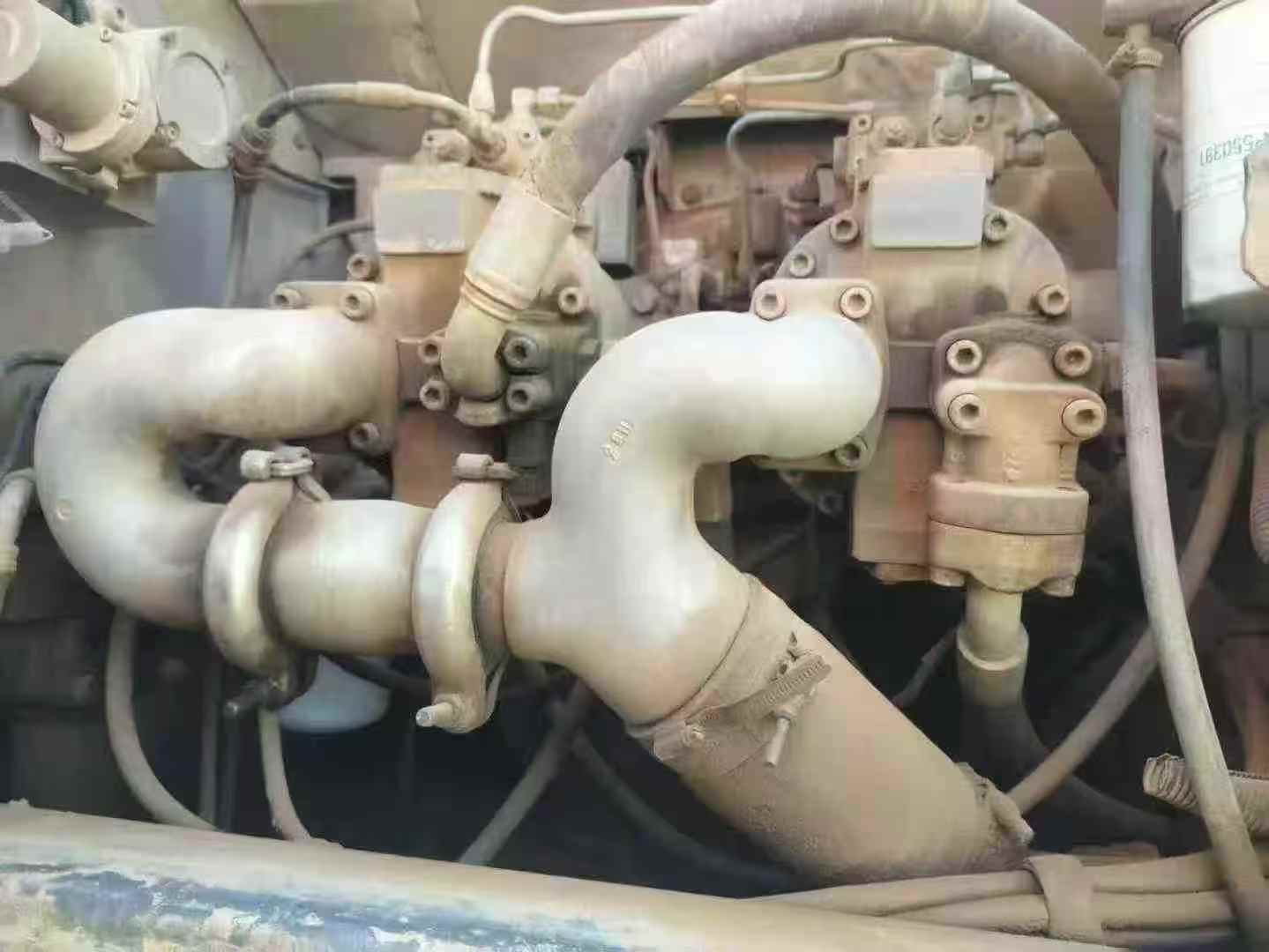

Proven through over a decade of field operation, this 2011 Hitachi ZX60 mini excavator demonstrates the enduring reliability that defines Japanese engineering. Manufactured in Hefei, Anhui Province as a joint venture model, this 6-ton workhorse combines a robust ISUZU CC-4JG1 engine delivering 40.5kW at 2100rpm with Hitachi's renowned hydraulic systems—dual variable piston pumps paired with dual gear pumps ensure consistent performance across demanding jobsites.
Built to withstand challenging conditions, the ZX60 offers:
- Maximum digging depth of 3,850mm with superior bucket digging force (41.4kN)
- Compact transport dimensions (6,060mm × 2,060mm × 2,470mm) for versatile site access
- Impressive 70% (35°) climbing ability, conquering steep terrain with confidence
- Water-cooled 4-cylinder engine with proven direct injection technology
- Enhanced 1,600mm rod length for extended reach capabilities
Currently located in Guizhou, this machine represents a tested, dependable solution for contractors requiring proven performance without compromise. The ZX60's continued operation after years of service validates Hitachi's reputation for building excavators that endure.
| Specifications | Value |
|---|---|
| No. | 1011843 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
