Product Description

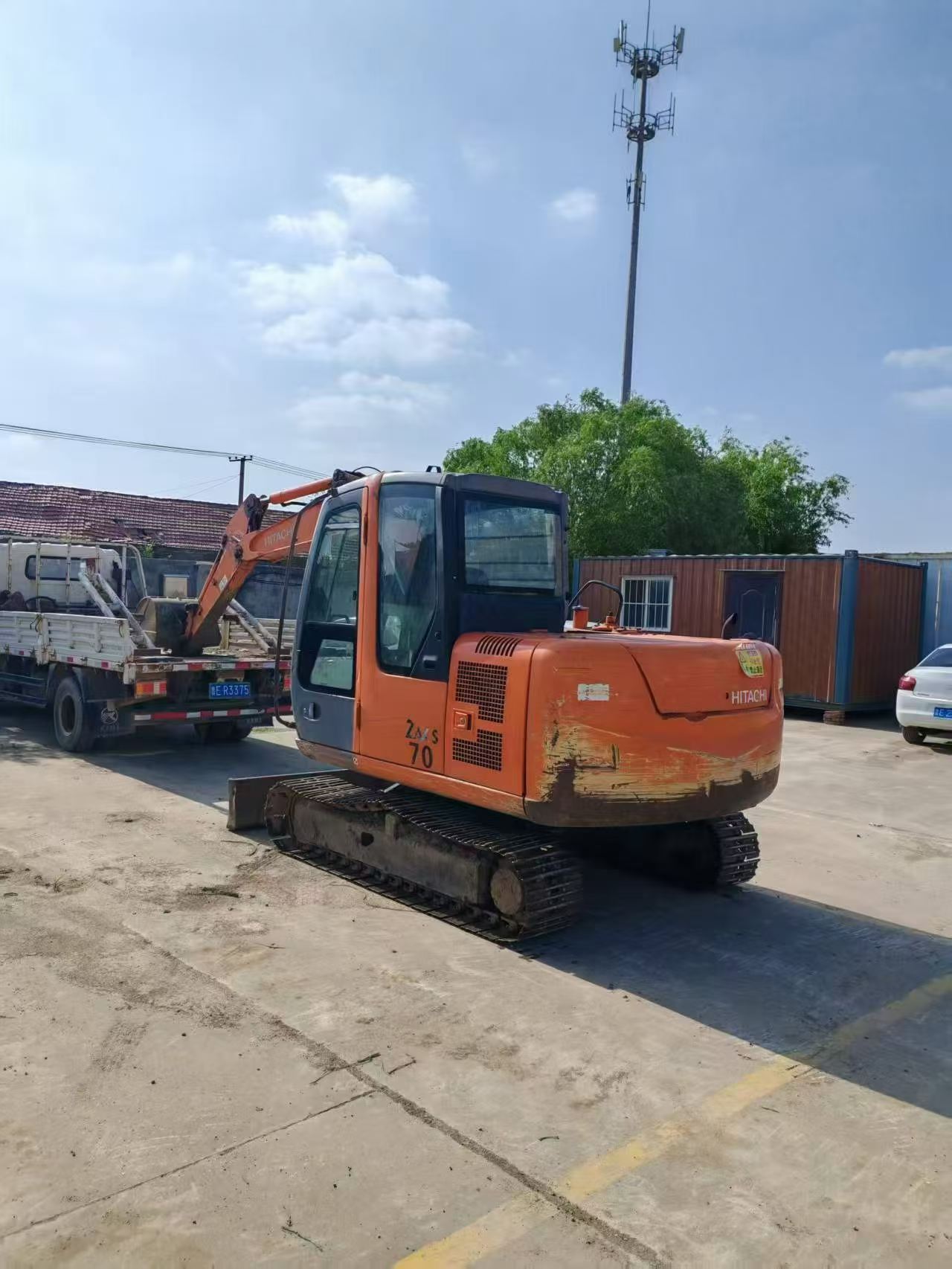

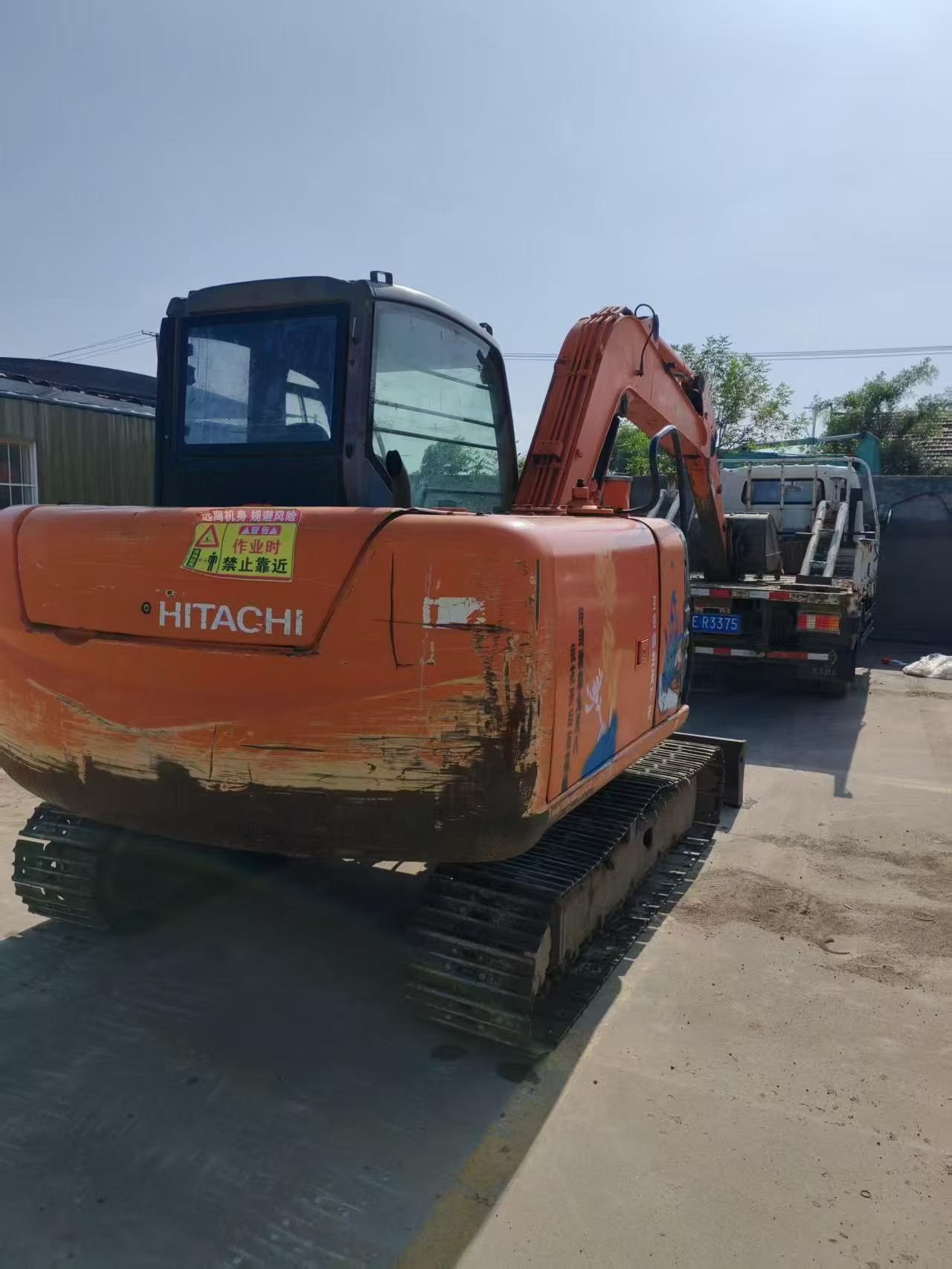

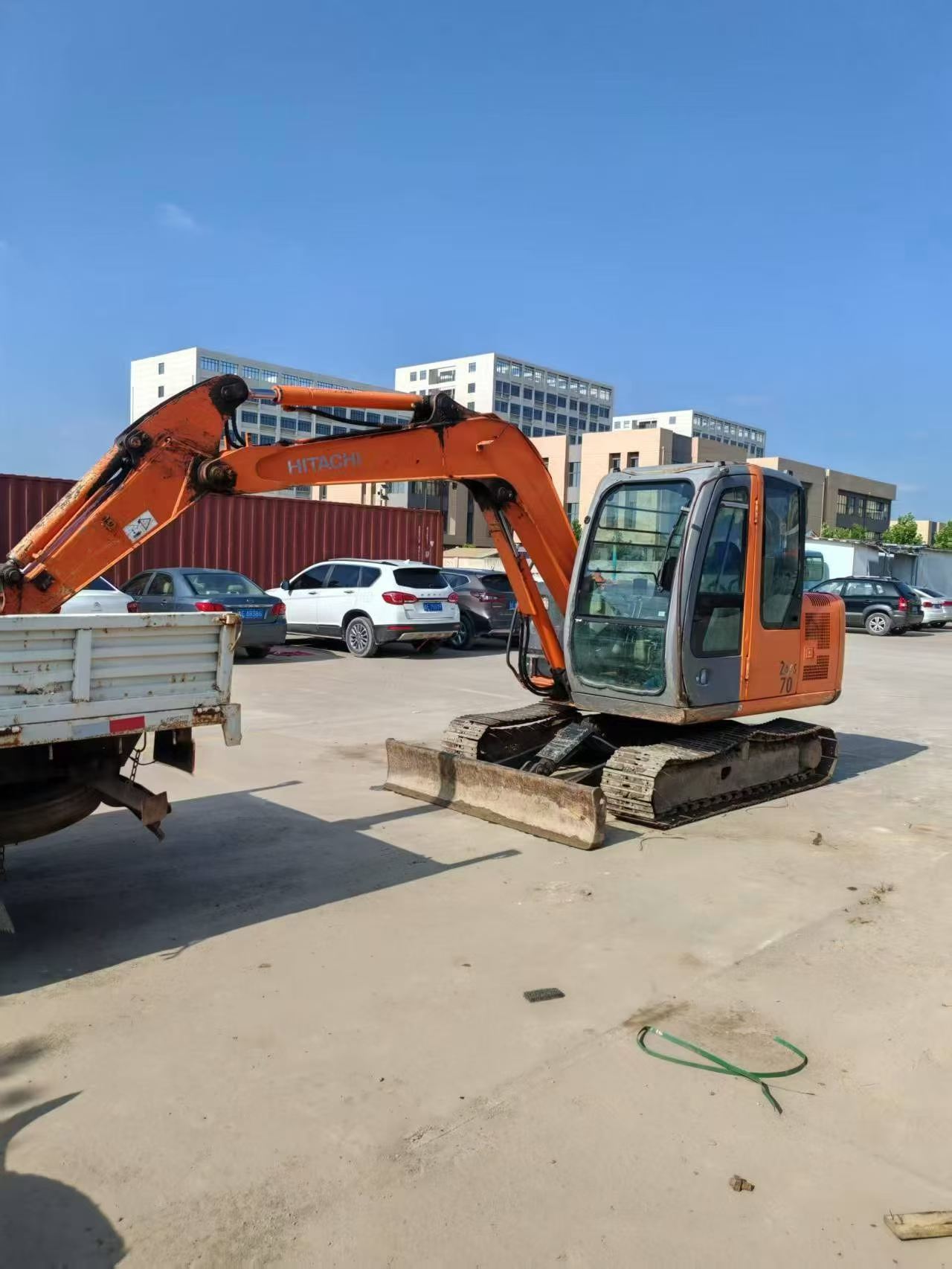

This 2012 Hitachi ZX60 excavator represents a well-maintained example of Hitachi's reliable compact excavator series. Currently located in Shandong, China, this machine features original factory paintwork throughout, indicating careful ownership and minimal cosmetic wear. The ZX60 is known for its versatility in construction, landscaping, and utility applications, offering operators an effective balance of digging power and maneuverability in confined spaces.
Key attributes include:
- Original factory finish with minimal repainting
- Consistent operational performance
- Compact dimensions suitable for urban and restricted job sites
- Competitive pricing for the current market
The Hitachi ZX60 series is valued for dependable hydraulic systems and fuel efficiency. This unit is available for inspection in Shandong Province. Interested buyers are encouraged to arrange viewing and operational assessment to verify condition and suitability for their specific application requirements.
| Specifications | Value |
|---|---|
| No. | 1116457 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

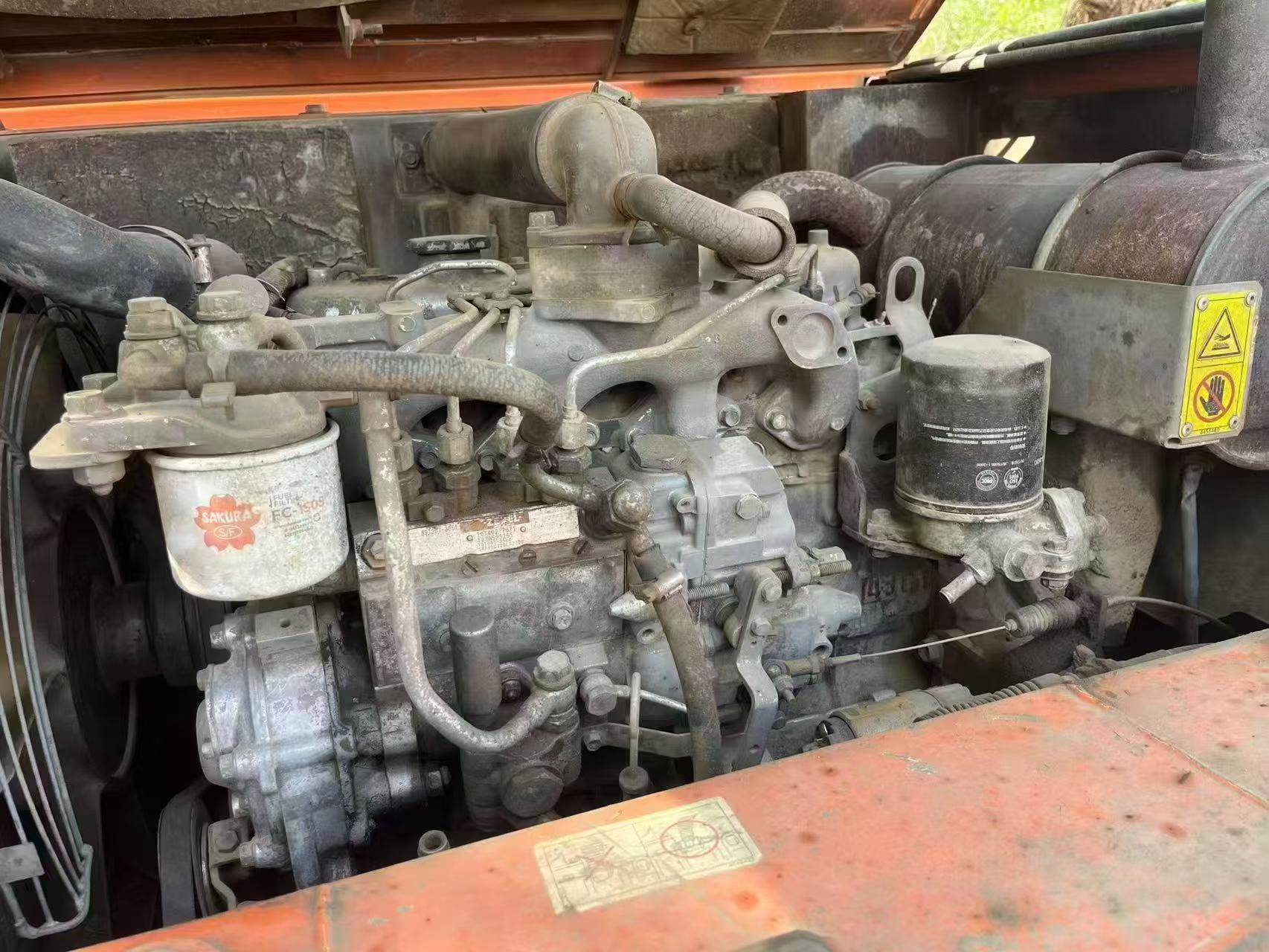

| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |

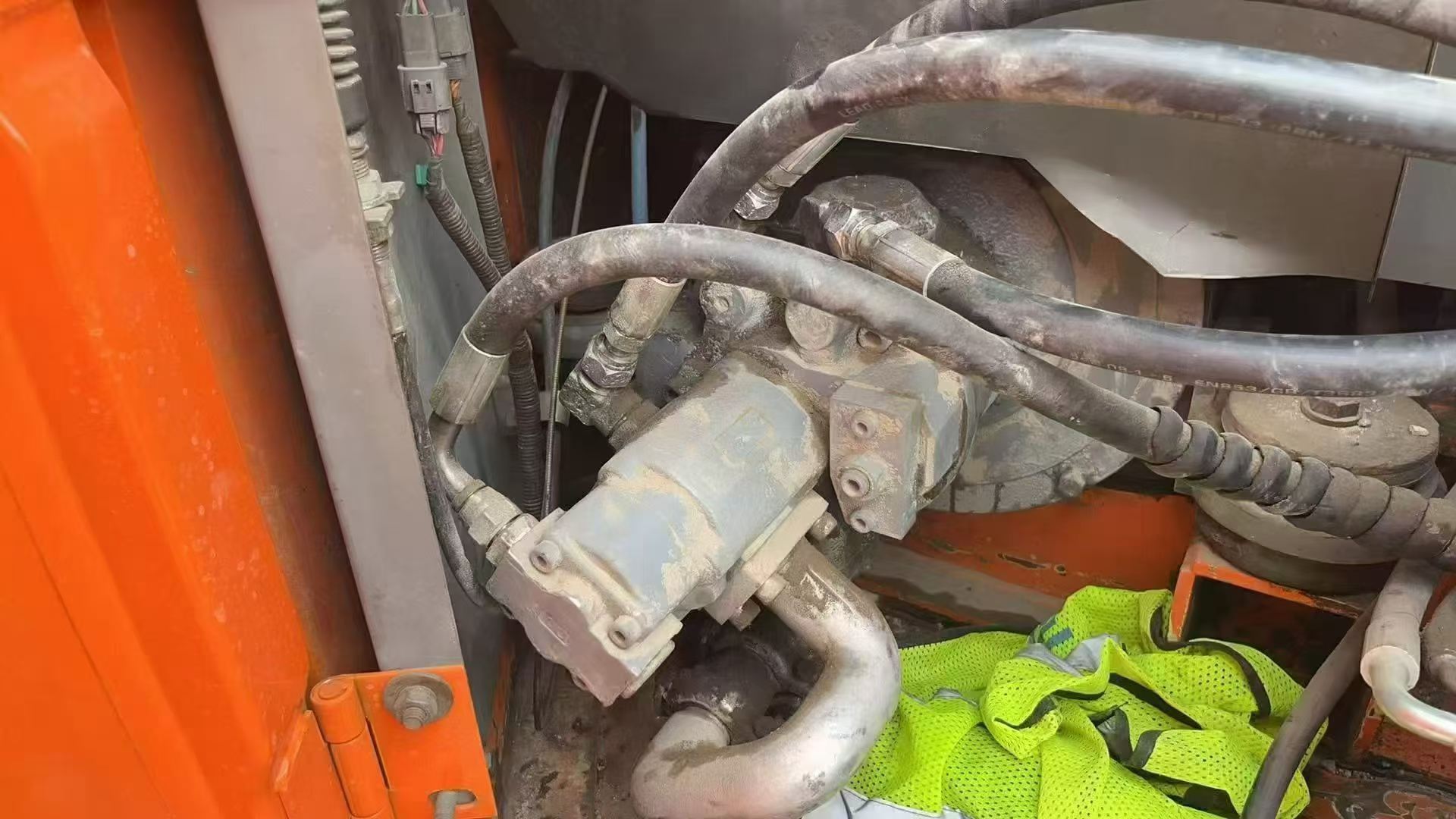

| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |

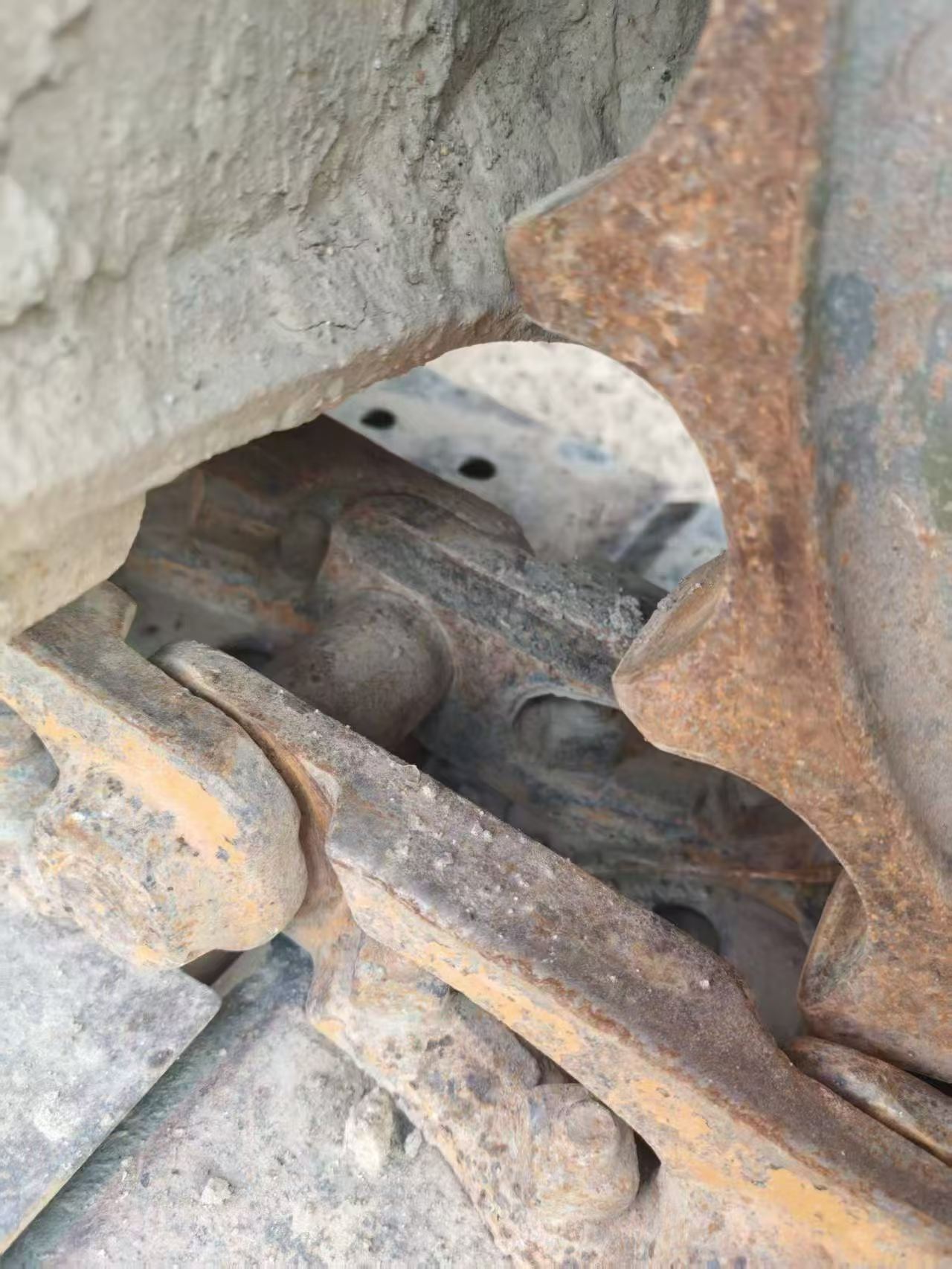

| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |

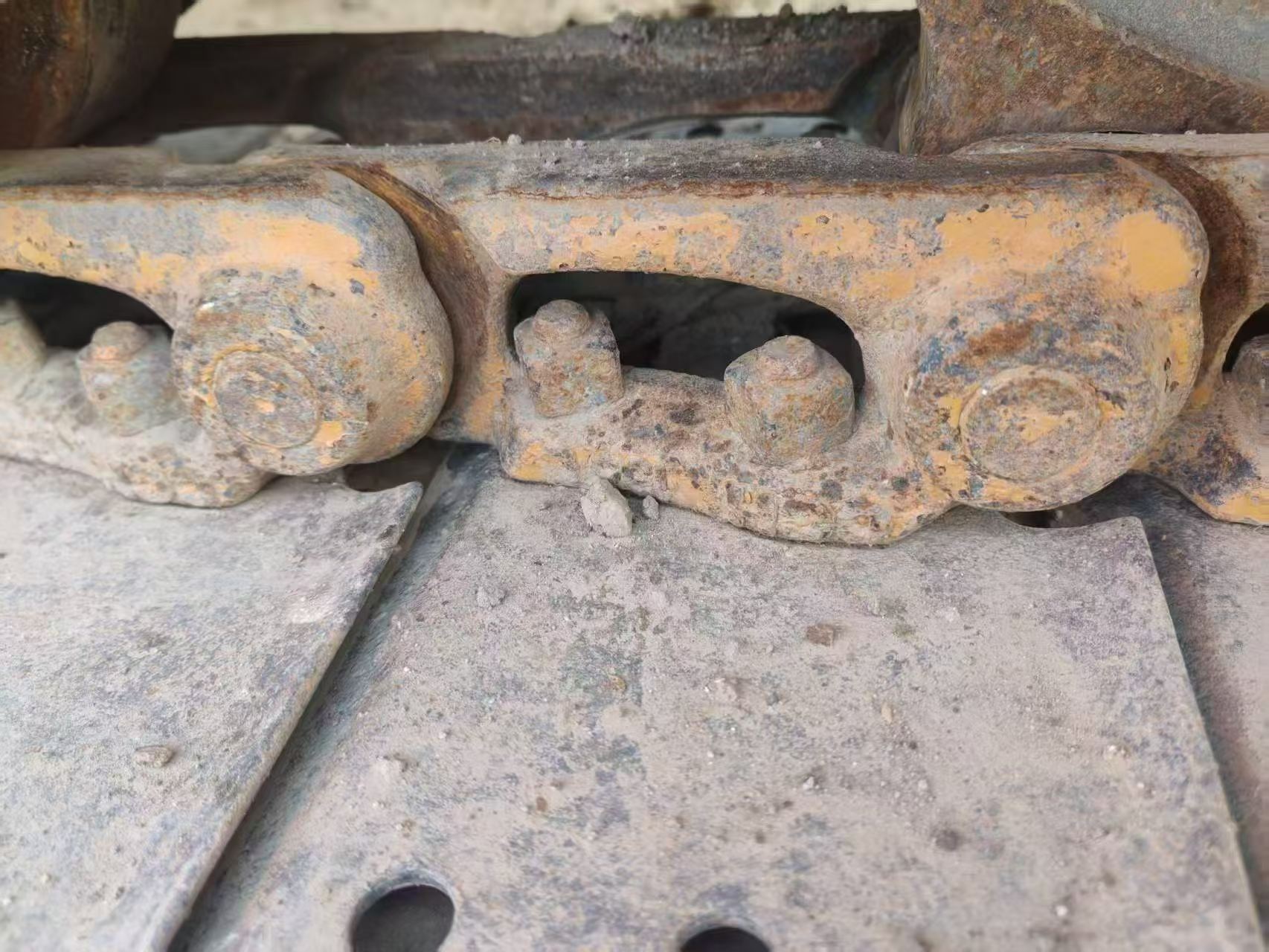

| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
