Product Description

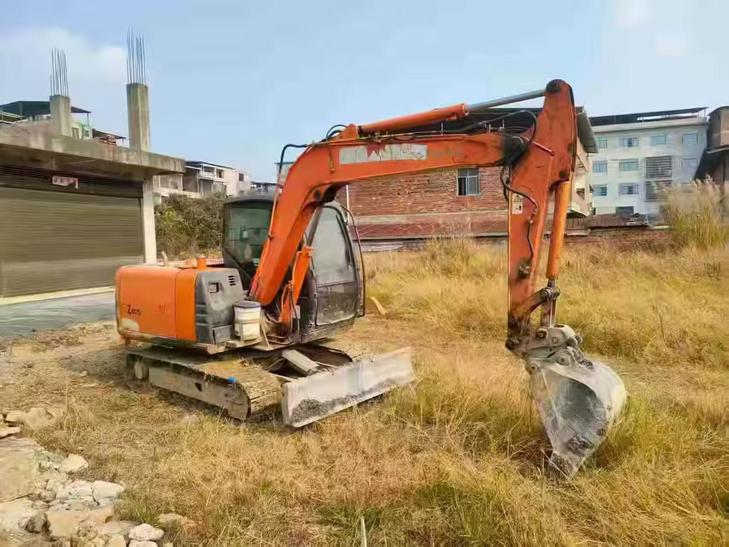

Available now from our Hunan facility, this 2014 Hitachi ZX60 mini excavator eliminates factory lead times and delivers immediate deployment to your jobsite. Operating at 5,850 kg with a reliable ISUZU 4JG1 engine producing 40.5 kW, this compact workhorse combines Japanese engineering with practical Chinese manufacturing from Hefei, Anhui Province.
Performance specifications include a maximum digging depth of 3,850 mm, digging radius of 6,250 mm, and bucket digging force of 41.4 kN—sufficient for utility trenching, landscaping, and urban construction projects. Dual variable piston pumps and axial piston rotary motor ensure smooth hydraulic operation across all functions.
- Compact footprint: 6,060 mm transport length, 2,060 mm width
- 0.22 m³ bucket capacity with enhanced 1.6 m rod
- Water-cooled 4-cylinder engine, 3.059 L displacement
- 9.3 rpm rotation speed, 70% gradeability
- 120 L fuel tank, 95 L hydraulic capacity
- Ready for immediate inspection and export from Hunan
Skip extended procurement cycles. Secure this proven ZX60 and put it to work within days, not months.
| Specifications | Value |
|---|---|
| No. | 1027037 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
