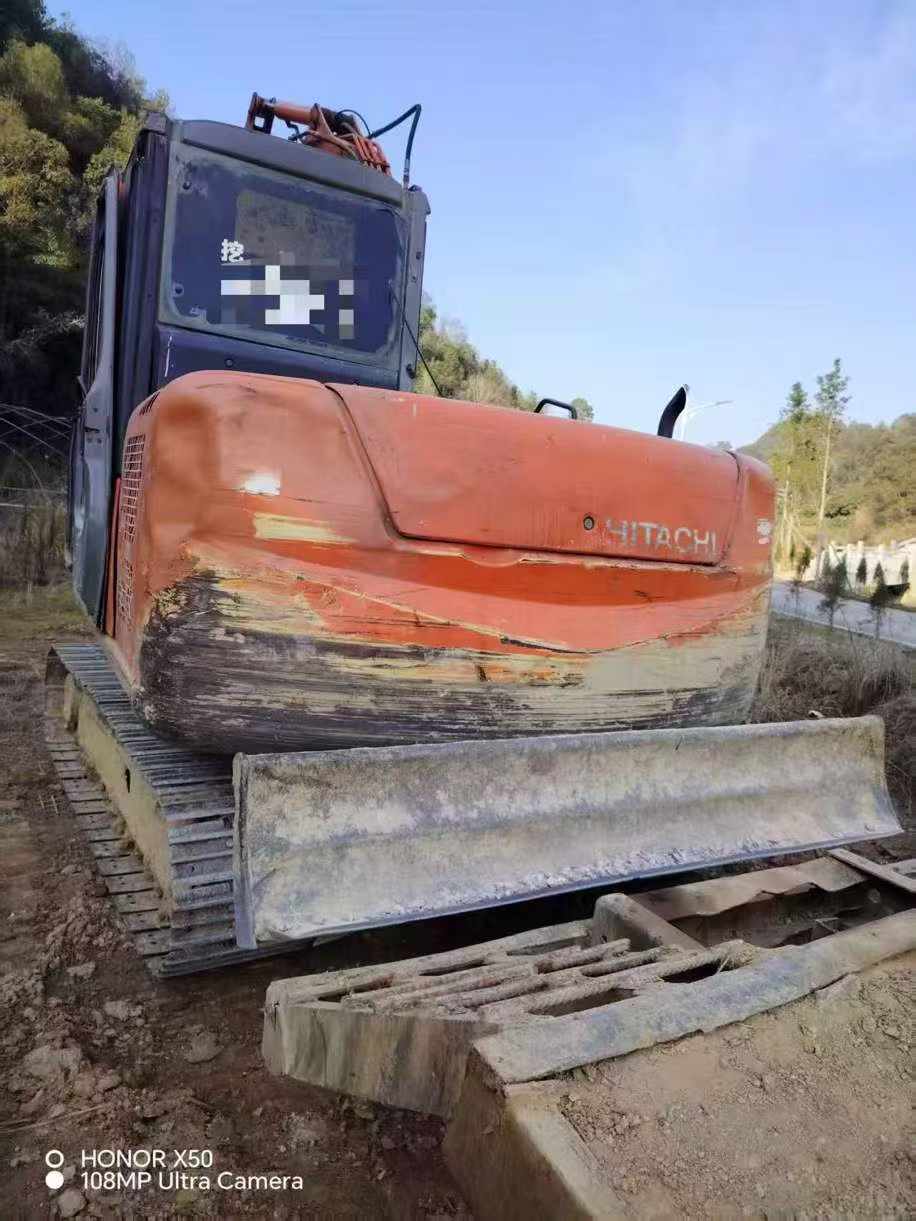

Name: Used Excavators 2016 Hitachi ZX60
Brand: Hitachi
SKU: USED-1049743
Availability: InStock
Rating: 4.4 (37 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

Built in 2016, this Hitachi ZX60 mini excavator delivers reliable performance for confined jobsites and utility work. Operating at 5,850 kg working weight with a 0.22 m³ bucket capacity, this 6-ton machine combines compact dimensions with serious digging capability. Powered by an ISUZU CC-4JG1 engine producing 40.5 kW at 2100 rpm, the unit offers consistent hydraulic performance through its dual variable piston pumps and axial piston rotary motor.

Operators benefit from excellent stability and control throughout the working envelope. With a 9.3 rpm rotation speed and 33 kPa ground pressure, the ZX60 maintains balanced handling across soft terrain. The cab provides clear sightlines to the 6,250 mm maximum digging radius and 3,850 mm digging depth, while 2,470 mm transport height keeps the profile low for trailer movement. Dual-speed travel at 2.5/4.5 km/h and a tight 1,650 mm rear turning radius enhance maneuverability in urban environments.

<ul>
<li>Bucket digging force: 41.4 kN</li>
<li>Rod digging force: 28.4 kN</li>
<li>Climbing ability: 70% (35°)</li>
<li>120 L fuel tank for extended shifts</li>
<li>Currently located in Jinhua, Zhejiang</li>
</ul>

Proven performance meets exceptional value in this 2014 Sany SY195C-9 excavator, a 20-ton workhorse engineered for demanding job sites. Operating successfully for nearly a decade, this machine demonstrates Sany's commitment to durability and reliability. Powered by a robust 6-cylinder SANY D06S2 engine delivering 114kW at 2050 rpm, it combines impressive digging force (135kN bucket, 109kN arm) with a maximum digging reach of 9740mm and depth of 6410mm. Built to handle challenging terrain with 70% climbing ability and 440mm ground clearance, this excavator excels in excavation, loading, and grading applications.

<ul>
<li>Working Weight: 20,700 kg</li>
<li>Engine: SANY D06S2, 6-cylinder water-cooled, 114kW</li>
<li>Bucket Capacity: 0.83 m³ (0.7-1.0 m³ optional)</li>
<li>Max Digging Reach: 9740mm</li>
<li>Max Digging Depth: 6410mm</li>
<li>Travel Speed: 5.4/3.3 km/h</li>
<li>Location: Luzhou, Sichuan, China</li>
<li>Condition: Ready for immediate deployment</li>
</ul>

Contact Fair Trade Machinery today to acquire this proven excavator for your fleet.

Sany SY195C-9

Engineered for precision work in confined spaces, this 2015 Kobelco SK15SR mini excavator delivers 1.5-ton capacity with the hydraulic efficiency Kobelco's joint venture manufacturing is known for. Traditional power systems ensure straightforward maintenance and reliable fuel availability across global markets. The SK15SR series features advanced hydraulic circuitry that maximizes breakout force while minimizing cycle times, making it ideal for utility installation, landscaping, and urban construction projects.

<ul>
<li>Tonnage: 1.5 tons operational weight</li>
<li>Power System: Traditional diesel engine for proven durability</li>
<li>Hydraulics: Kobelco's proprietary system with responsive control</li>
<li>Configuration: Standard backhoe attachment included</li>
<li>Manufacturing: Joint venture quality with import-grade components</li>
<li>Location: Currently available in Jiangsu, China</li>
</ul>

Compact dimensions paired with zero-tail-swing design allow operators to work efficiently alongside buildings and in congested job sites. This unit represents Kobelco's commitment to engineering excellence in the mini excavator s

Kobelco SK15SR

Available now from our 江苏 warehouse, this 2022 Sany SY135 excavator delivers immediate deployment without factory wait times. Rated at 13 tons with a working weight of 13,500 kg, this Chinese-manufactured machine offers proven performance for medium-duty excavation, grading, and trenching operations. Traditional power systems ensure straightforward maintenance and reliable field operation across diverse jobsites.

<ul>
<li>Year: 2022</li>
<li>Model: Sany SY135</li>
<li>Operating Weight: 13,500 kg (13-ton class)</li>
<li>Power Type: Traditional diesel</li>
<li>Configuration: Backhoe bucket included</li>
<li>Origin: Made in China</li>
<li>Location: 江苏, China</li>
</ul>

Skip months of factory lead times. Positioned in 江苏 for rapid logistics coordination, this excavator can reach your project site significantly faster than new orders. Fast-track your equipment acquisition and maintain project timelines with in-stock machinery ready for immediate inspection and shipment.

Sany SY135

Built for precision and all-day productivity, this 2014 Komatsu PC210LC-8 delivers 21 tons of dependable performance on demanding jobsites. Powered by a Komatsu SAA6D107E-1 engine generating 110 kW at 2000 rpm, this excavator combines robust digging force with operator-centric design. Located in Jiangsu, this joint venture model represents proven engineering tailored for professional contractors.

Operators benefit from exceptional visibility and intuitive controls within the spacious cabin, reducing fatigue during extended shifts. Stability remains constant across varied terrain, while responsive hydraulics provide smooth, controlled movements for precise material handling. With a maximum digging depth of 6,095 mm and bucket digging force of 152 kN, this machine tackles trenching, loading, and excavation tasks with consistent efficiency.

<ul>
<li>Working weight: 20,900 kg with 1.0 m³ backhoe bucket</li>
<li>Maximum digging radius: 9,380 mm</li>
<li>Maximum digging height: 9,800 mm</li>
<li>Travel speed: 5.5 km/h for efficient repositioning</li>
<li>Transport dimensions: 9,495 × 2,980 × 3,190 mm</li>
</ul>

Ready to work with proven Komatsu reliability and operator comfort that keeps crews productive shift after shift

Komatsu PC210LC-8

Built for heavy-duty excavation and grading operations, this 2012 Doosan DH215-7 delivers 147 kW of reliable power through its proven DB58T1 engine. Currently located in Jiangsu, this 21-ton excavator arrives site-ready with a 0.86 m³ backhoe bucket and versatile rod configurations (2400/2900/3500 mm) to match your project requirements. Maximum digging depth reaches 6660 mm, while the 9970 mm working radius covers substantial ground on every cycle.

<ul>
 <li>Bucket digging force: 136.2-144.1 kN for tough soil conditions</li>
 <li>Rod digging force: 100-104.9 kN ensures efficient trenching</li>
 <li>350 L fuel capacity minimizes refueling downtime</li>
 <li>12.1 rpm rotation speed enables fast load-and-dump cycles</li>
 <li>480 mm ground clearance handles uneven terrain</li>
 <li>2750 mm rear turning radius for confined workspace maneuverability</li>
</ul>

Operator comfort comes standard with a full-height cab (3100 mm) and air-cooled engine system. Transport dimensions of 9550 × 2800 × 3100 mm allow straightforward logistics. Whether you're excavating foundations, clearing demolition sites, or cutting drainage channels, this Doosan DH215-7 combines proven joint-venture manufacturing quality with the performance metric

Doosan DH215-7

Expand your operational capacity with this 2021 XCMG XE60DA compact excavator, purpose-built for contractors managing multiple job sites simultaneously. Operating at 6 tons with a 6,010 kg working weight, this Chinese-manufactured unit delivers reliable performance as a secondary machine or fleet backup when primary equipment is deployed elsewhere.

Powered by a water-cooled 4TNV94L engine producing 36.2 kW at 2100 rpm, this excavator generates 48.3 kN bucket digging force and reaches a maximum digging depth of 3,830 mm. The 0.23 m³ backhoe bucket handles utility work, trenching, and site preparation with consistent efficiency. With a 6,130 mm maximum digging radius and 5,630 mm excavation height, it covers substantial work envelopes despite its compact 5,860 mm transport length.

Key fleet integration advantages include:
<ul>
<li>110L fuel tank and 85L hydraulic reservoir minimize refueling downtime between shifts</li>
<li>1,920 mm transport width allows trailer transport alongside larger equipment</li>
<li>35% climbing ability and 32.5 kPa ground pressure suit varied terrain conditions</li>
<li>4.2 km/h travel speed enables quick repositioning across active sites</li>
</ul>

Currently located in Jiangsu, China

XCMG XE60DA

Built for high-output excavation work, this 2020 Sany SY205C delivers 20-ton class performance with zero downtime. Powered by a 118kW engine at 2000rpm, this backhoe excavator tackles digging, grading, and demolition tasks with 138kN bucket digging force and 109kN arm force. Currently located in Jiangsu, China, this machine arrives site-ready with proven reliability across demanding jobsites.

<ul>
 <li>Immediate Productivity: 0.9-1.1m³ bucket capacity handles material loading and trench excavation efficiently</li>
 <li>Extended Reach: 10,280mm maximum digging radius and 6,600mm depth for deep foundation and utility work</li>
 <li>Compact Maneuverability: 2,900mm rear turning radius enables operation in confined spaces and urban sites</li>
 <li>Proven Power: Traditional diesel powertrain with 70% grading ability conquers rough terrain</li>
 <li>Transport Ready: 9,680mm length fits standard lowboy trailers for rapid mobilization</li>
</ul>

Operating weight of 21,500kg provides stability during heavy digging cycles. Dual travel speeds (5.4/3.3 km/h) optimize positioning and transport across the worksite. This Chinese-manufactured excavato

Sany SY205C

Commanding a 70-ton operational class, this 2021 Caterpillar 374D delivers the precision handling and structural stability demanded by high-volume excavation projects. Manufactured as a joint venture/import model and stationed in Wenzhou, Zhejiang Province, this machine integrates traditional power systems with proven hydraulic efficiency for consistent performance across demanding site conditions.

Operator-centric design defines this excavator's competitive advantage. Enhanced cabin visibility provides unobstructed sightlines to the backhoe attachment and surrounding work zones, reducing blind spots during complex maneuvers. Responsive joystick controls translate directly to bucket positioning, while advanced suspension systems absorb ground irregularities to maintain operational comfort during extended shifts. Stability remains uncompromised even when working on uneven terrain or handling maximum load capacities.

<ul>
<li>70-ton operational capacity for large-scale earthmoving</li>
<li>2021 production year with documented service history</li>
<li>Backhoe configuration optimized for deep trenching applications</li>
<li>Traditional power platform ensuring straightforward maintenance protocols</li>
<li>Ergonomic cabin la

Caterpillar 374D

Commanding precision and power define this 2021 Caterpillar 374D excavator, a 70-ton workhorse engineered for demanding excavation and loading operations. Positioned in Wenzhou, Zhejiang, this joint venture machine delivers robust traditional power with exceptional operator-centered design. Responsive hydraulics and superior stability enable confident material handling across diverse terrain conditions.

Operator advantages include:
<ul>
<li>Spacious cabin with panoramic visibility for enhanced site awareness and safety</li>
<li>Intuitive joystick controls reducing fatigue during extended shifts</li>
<li>Advanced suspension seating and climate control for all-day comfort</li>
<li>Backhoe configuration optimized for deep excavation and precision trenching</li>
<li>Reinforced undercarriage providing exceptional stability on uneven ground</li>
<li>Ergonomic control layout minimizing reach and maximizing productivity</li>
</ul>

Built to Caterpillar's exacting standards, this 374D combines reliable performance with operator-focused engineering. Low operational hours and comprehensive maintenance records ensure immediate deployment readiness for infrastructure projects, mining operations, or heavy construction sites requiri

Engineered with precision hydraulics and a proven traditional powertrain, this 2022 Yanmar Vio30-1 delivers consistent 3-ton performance for demanding excavation tasks. Manufactured to joint venture/import standards, the unit combines responsive hydraulic flow control with fuel-efficient engine technology, ensuring optimal cycle times and reduced operational costs. The compact design maintains full digging capability while offering superior maneuverability in confined work zones.

<ul>
<li>Year: 2022</li>
<li>Model: Yanmar Vio30-1</li>
<li>Operating Weight: 3 tons</li>
<li>Power System: Traditional power</li>
<li>Manufacturer Origin: Joint venture/Import</li>
<li>Equipped with backhoe bucket</li>
<li>Current Location: Shaoxing, Zhejiang, China</li>
</ul>

Yanmar's Vio30 series reputation for durability stems from reinforced structural components and advanced hydraulic circuitry that withstand continuous heavy-duty applications. Available now from our Shaoxing facility, this machine represents proven engineering backed by comprehensive pre-export inspection.

Yanmar Vio30-1

Expand your operational capacity with this 2012 Doosan DH55 mini excavator, currently available in Luzhou, Sichuan. Built by a joint venture manufacturer to import standards, this 5.5-ton compact machine serves as an ideal fleet addition for contractors managing multiple jobsites or seeking reliable backup equipment during peak seasons. Traditional power delivery ensures straightforward maintenance protocols that align with existing fleet management systems.

Key specifications include:
<ul>
<li>Operating weight: 5.5 tons – optimal for urban construction and utility work</li>
<li>Backhoe bucket configuration for versatile digging applications</li>
<li>Proven Doosan engineering with accessible service points</li>
<li>Compact footprint for transport efficiency between project sites</li>
<li>Traditional power system compatible with standard fuel infrastructure</li>
</ul>

For contractors running tight schedules across multiple contracts, this DH55 provides the redundancy needed to maintain project timelines. Reduce downtime risk by adding proven capacity to your equipment roster. Contact Fair Trade Machinery today for detailed inspection reports and shipping solutions to your location.

Doosan DH55

Built for demanding site conditions, this 2011 Kato HD1430R excavator delivers 30-ton performance with operator-centered engineering. Powered by a Mitsubishi 6D16-TLC1A engine producing 183 kW at 2150 rpm, this Japan-origin machine combines hydraulic precision with field-proven reliability. The dual variable piston pump system provides 301 l/min flow per pump, ensuring responsive control during complex digging operations.

Operators benefit from excellent stability characteristics, with 62 kPa ground pressure distributing weight evenly across 600mm track plates. The spacious cab offers commanding visibility across an 11,160mm maximum digging radius, while the 3,020mm cab height provides clear sightlines to bucket positioning. Hydraulic responsiveness shines through 225 kN bucket digging force in standard mode, escalating to 236 kN when extra power is required.

<ul>
<li>Working weight: 30,700 kg with 1.4-1.6 m³ bucket capacity</li>
<li>Maximum digging depth: 7,380mm; maximum reach height: 10,320mm</li>
<li>Smooth rotation: 10 rpm swing speed with constant piston motor</li>
<li>Dual-speed travel: 3.7/5.5 km/h for site mobility</li>
<li>Currently located in Kunming, Yunnan</li>
</ul>

Kato HD1430R

Built for demanding operators who prioritize control and productivity, this 2020 Sany SY365C delivers 36-ton performance with proven traditional power engineering. Manufactured in China and currently located in Gansu Province, this excavator combines robust stability with operator-centered design for extended shift comfort and precision work.

Cabin visibility meets industry standards for 2020-era machines, providing clear sightlines to the backhoe bucket and work zone. Responsive hydraulics ensure smooth handling across grading, trenching, and loading applications. Stability remains consistent on uneven terrain, reducing operator fatigue during long operational hours.

<ul>
<li>Year: 2020</li>
<li>Model: Sany SY365C</li>
<li>Operating Weight: 36 tons</li>
<li>Power Type: Traditional diesel engine</li>
<li>Configuration: Backhoe bucket</li>
<li>Origin: Made in China</li>
<li>Current Location: Gansu Province</li>
</ul>

Ideal for contractors seeking reliable mid-range excavation capacity with straightforward maintenance requirements. Contact Fair Trade Machinery for detailed inspection reports and shipping options worldwide.

Sany SY365C

Built to endure the toughest job sites, this 2020 Sumitomo SH210-5 excavator delivers proven reliability and robust performance. Operating at 21 tons with a working weight of 20,600 kg, this joint venture machine combines Japanese engineering precision with field-tested durability. Powered by a 117.3 kW engine at 1800 rpm, it generates impressive digging force—142 kN bucket force and 103 kN arm force—making it a proven workhorse for demanding excavation projects.

<ul>
 <li>Bucket Capacity: 0.9-1.0 m³ for optimal material handling</li>
 <li>Reach Specs: 9,900 mm maximum digging radius, 6,650 mm maximum depth</li>
 <li>Boom & Arm: 5,700 mm boom, 2,900 mm arm for versatile operation</li>
 <li>Hydraulic Power: 422 L/min main pump flow with variable axial piston motor</li>
 <li>Mobility: 70% climbing ability, 3.4/5.6 km/h travel speeds</li>
 <li>Fuel Efficiency: 410 L fuel tank, 5.193 L displacement engine</li>
 <li>Location: Currently available in Hunan, China</li>
</ul>

With minimal downtime and consistent output, this SH210-5 represents dependable productivity backed by Sumitomo's reputation for long-l

Sumitomo SH210-5

Proven performance meets lasting value in this 2017 Hyundai R350LVS excavator, currently located in Hunan. Operating at 35 tons with a robust 33,200 kg working weight, this machine delivers reliable productivity backed by Hyundai's global reputation for durability and parts availability. Powered by a HYUNDAI HE8.9 engine generating 221 kW at 1850 rpm, it combines a 1.60 m³ bucket capacity with impressive reach specifications: 10,920 mm maximum digging radius and 6,970 mm maximum digging depth.

<ul>
 <li>Dual variable plunger pumps with 2 × 315 L/min flow for responsive hydraulics</li>
 <li>Water-cooled 8.9L 6-cylinder engine designed for extended service intervals</li>
 <li>6,450 mm boom and 2,850 mm arm configuration optimized for versatility</li>
 <li>70% grading ability with 9.8 rpm rotation speed for efficient operation</li>
 <li>Comprehensive parts network ensures minimal downtime across global markets</li>
</ul>

Hyundai's joint venture manufacturing standards guarantee component compatibility and strong resale retention. With readily accessible service documentation and widespread dealer support, this R350LVS represents a secure investment in proven heavy equipment technology. Complete transport dimensions: 10,99

Hyundai R350LVS

Engineered for precision work in confined spaces, this 2016 Komatsu PC128US-2 midi excavator delivers 64 kW of reliable power through its proven Komatsu S4D102E engine. Weighing 13,000 kg with a compact 2,460 mm transport width, this ultra-short radius machine excels in urban demolition, utility installation, and tight-access projects where maneuverability matters most.

Operators benefit from exceptional all-around visibility through the spacious cab, positioned at 2,775 mm height for commanding sightlines to the bucket and work area. Smooth hydraulic response from the 226 l/min main pump ensures precise control during delicate tasks, while the 43.2 kPa ground pressure minimizes surface disturbance on sensitive sites. The 1,465 mm rear turning radius allows rotation within the machine's own width, critical for roadside and between-building operations.

<ul>
<li>Maximum digging depth: 5,445 mm</li>
<li>Maximum reach: 8,085 mm at ground level</li>
<li>0.4 m³ backhoe bucket capacity</li>
<li>11 rpm swing speed for efficient cycle times</li>
<li>200 L fuel tank for extended shifts</li>
<li>Currently located in Hunan, China</li>
</ul>

Built in Japan with joint venture quality standards, this PC128US-2 combines compact dim

Specifications	Value
No.	1049743
Tonnage (tons)	6
Working weight (kg)	5850
Bucket capacity (m³)	0.22
Boom length (mm)	3.49
Rod length (mm)	1.6(Enhanced version)
Country of origin	Hefei, Anhui Province
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe

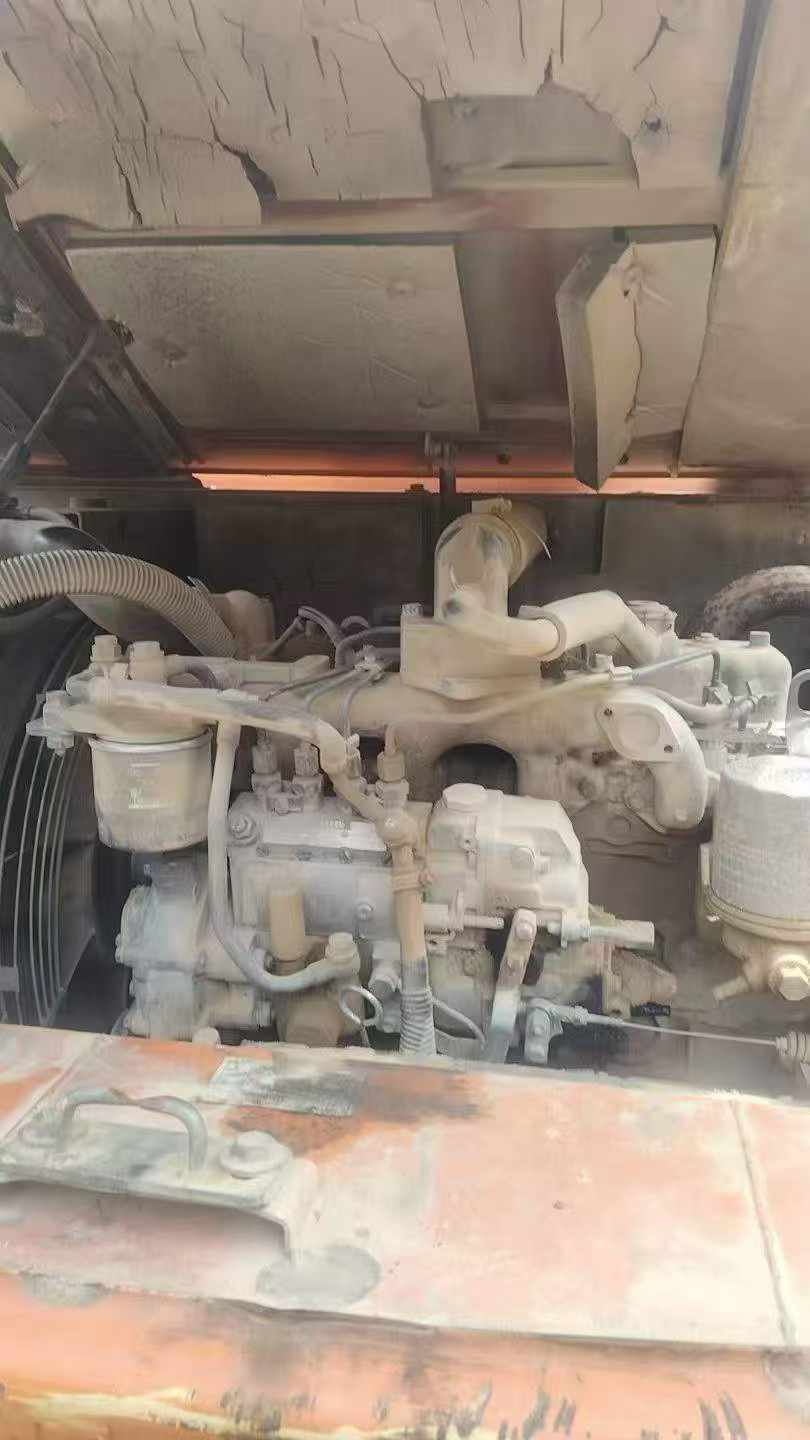

Engine type	ISUZU CC-4JG1
Rated power (kw/rpm)	40.5/2100
Cooling mode	water-cooling
Number of cylinders (PCS)	4
Displacement (L)	3.059
Working form	Direct injection
Ground specific pressure (Kpa)	33
Rotation speed (rpm)	9.3
Climbing ability (%)	70/35 °
Bucket digging force (kN)	41.4
Rod digging force (kN)	28.4
Travel speed (km/h)	2.5/4.5
Main overflow set pressure (Mpa)	24.5
Rotary hydraulic motor type	Axial piston motor ×1
Type of walking hydraulic motor	Variable swash plate plunger motor ×2
Main pump type	Variable piston pump ×2+ gear pump ×2
Fuel Tank (L)	120
Hydraulic Tank (L)	61(Full box 95)
Engine Oil changes (L)	12
Total transport length (mm)	6060
Total transport width (mm)	2060
Total transport height (mm)	2470
Full cab height (mm)	2470
Counterweight ground clearance (mm)	620
Minimum ground clearance (mm)	310
Minimum turning radius of front working device (mm)	2510
Back end turning radius (mm)	1650
Total track length (mm)	2480
Track gauge (mm)	1600
Track plate width (mm)	400
Total track width (mm)	2000
Track ground length (mm)	2000
Maximum digging radius (mm)	6250
Maximum digging depth (mm)	3850
Maximum excavation height (mm)	5800
Maximum unloading height (mm)	4080
Maximum vertical digging depth (mm)	3300
Bulldozer lift or depth (mm)	430/400

2016 Hitachi ZX60
