Product Description
Engineered with precision in Hefei, this 2016 Hitachi ZX60 compact excavator delivers exceptional performance through advanced hydraulic architecture and proven mechanical design. Powered by a robust ISUZU CC-4JG1 water-cooled engine generating 40.5kW at 2100rpm, this 5,850kg machine combines efficiency with reliable power delivery across demanding applications.
Hydraulic superiority defines this model's operational capability. Equipped with dual variable piston pumps and dual gear pumps, the system maintains 24.5MPa main overflow pressure, translating to impressive digging forces: 41.4kN bucket force and 28.4kN arm force. The axial piston rotary motor achieves 9.3rpm rotation speed, while variable swash plate plunger motors ensure precise travel control at 2.5/4.5 km/h.
Key technical specifications include:
- Maximum digging reach: 6,250mm with 3,850mm depth capability
- 0.22m³ bucket capacity with enhanced 1.6m arm configuration
- Superior climbing ability: 70% grade (35°)
- Compact footprint: 2,060mm width, 400mm track plates
- Efficient fuel management: 120L tank capacity
Currently located in Shandong, this joint-venture manufactured unit represents Hitachi's
| Specifications | Value |
|---|---|
| No. | 993435 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

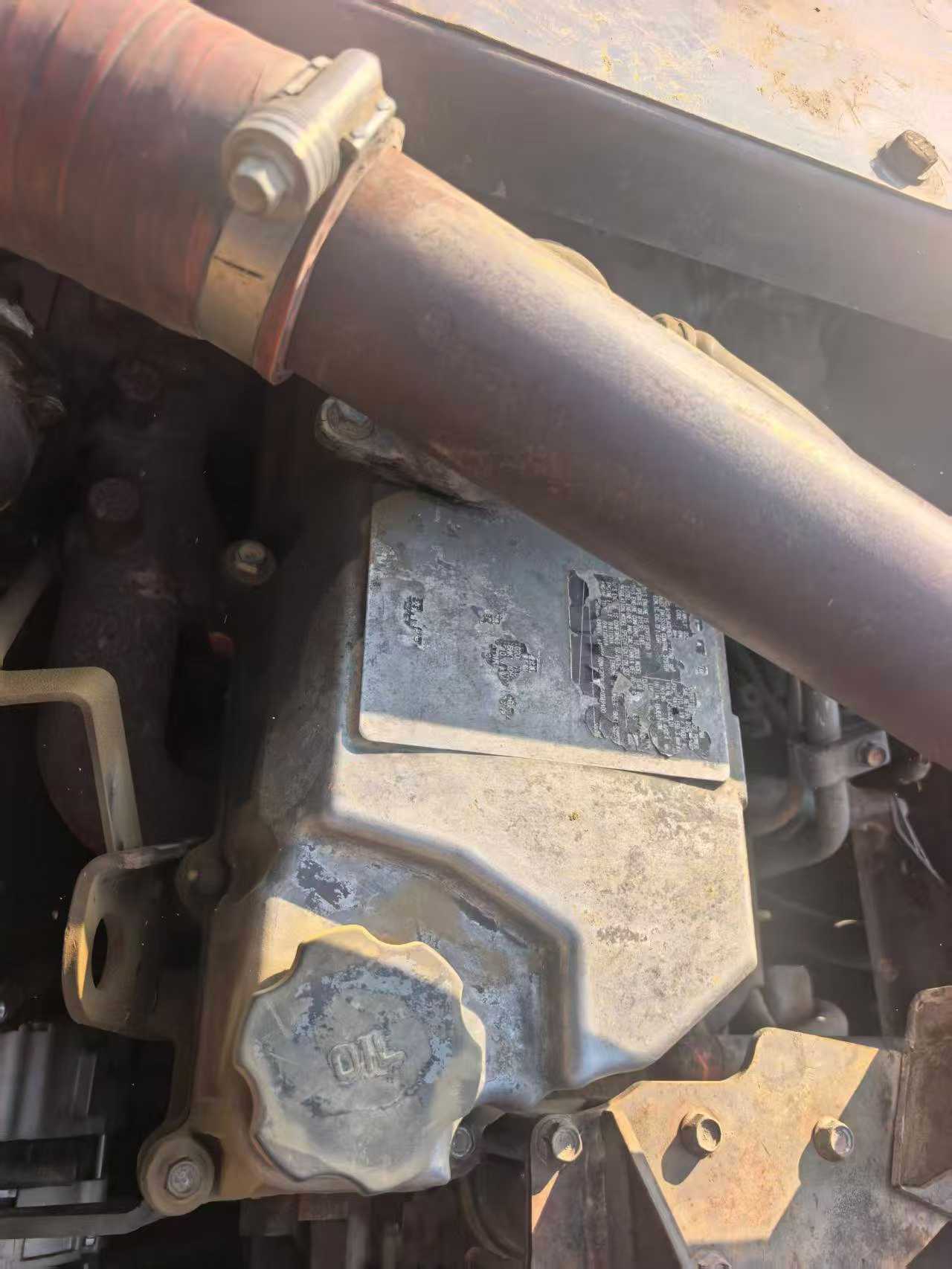

| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
