Product Description

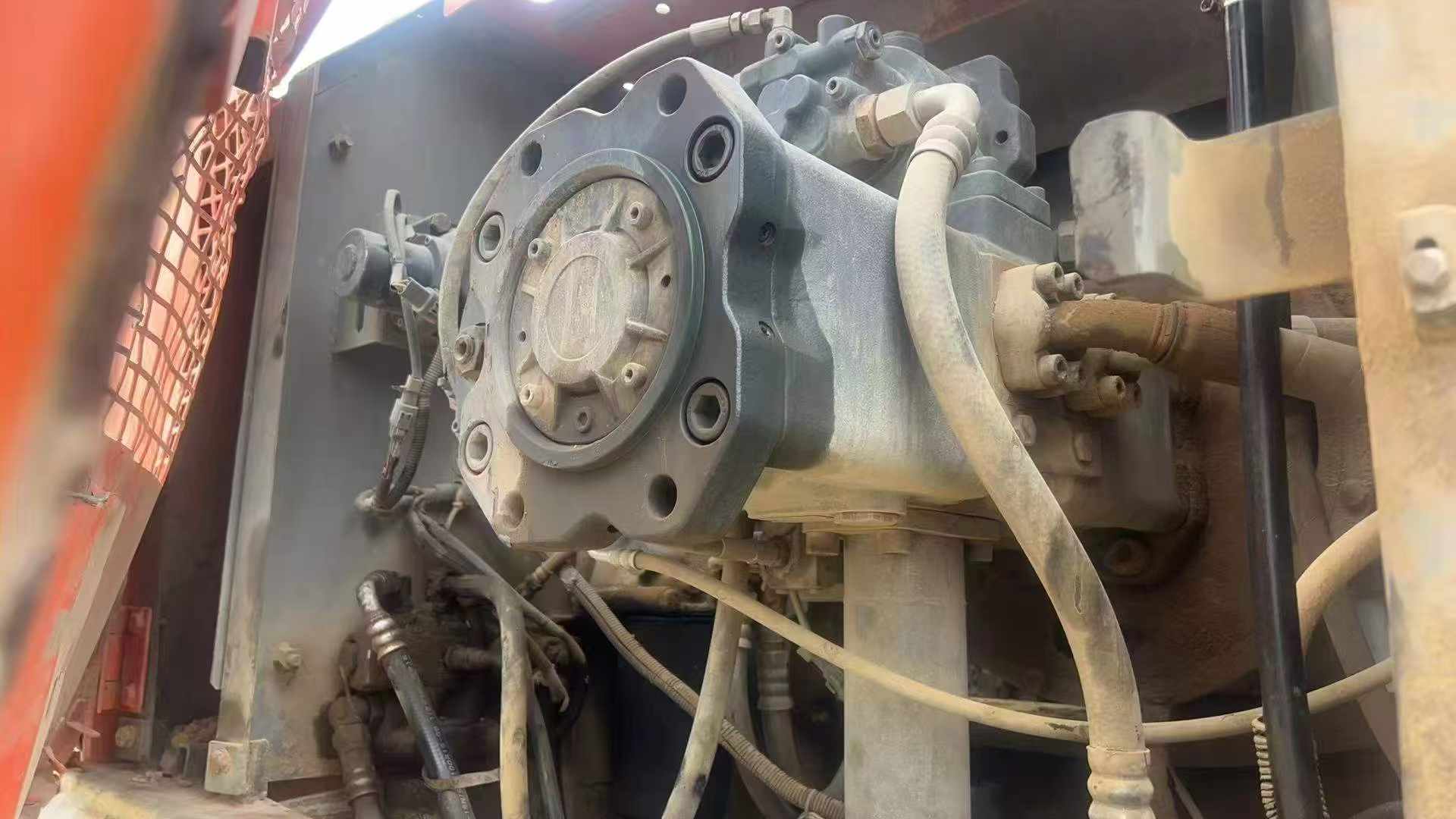

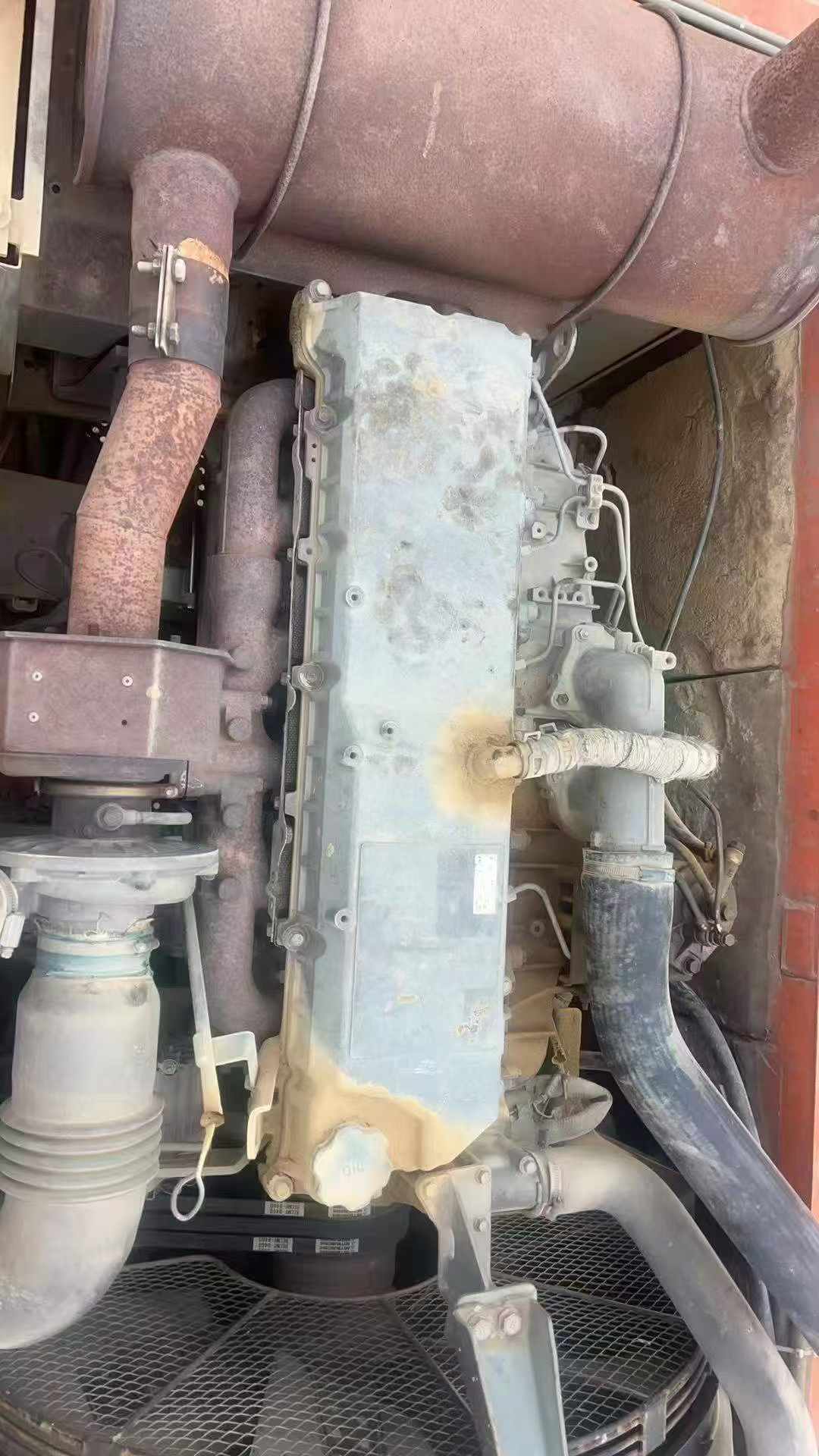

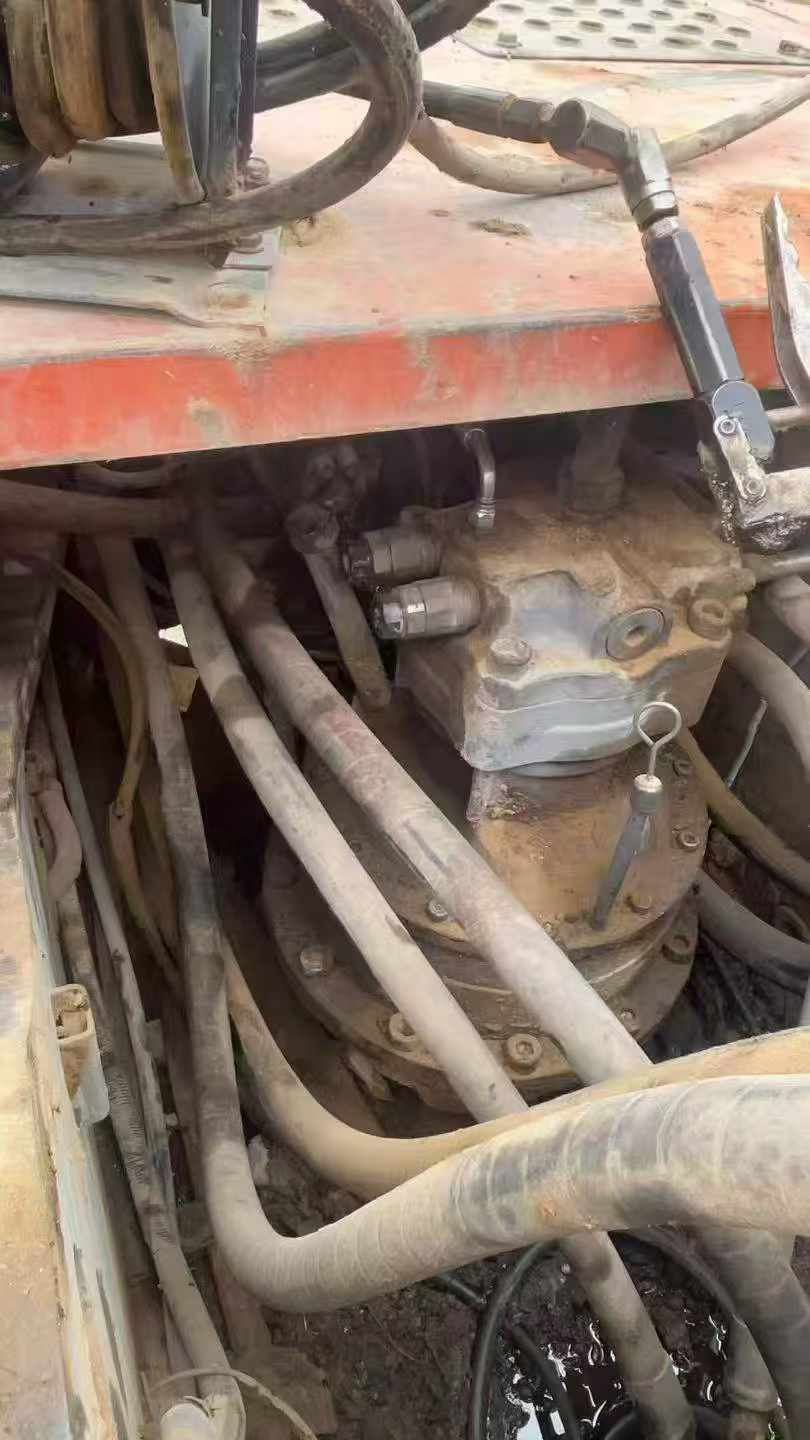

Engineered with precision in Hefei, this 2016 Hitachi ZX60 compact excavator demonstrates superior technical execution across critical performance parameters. Powered by a robust ISUZU CC-4JG1 four-cylinder engine delivering 40.5kW at 2100rpm, this 5,850kg machine combines reliable water-cooled direct injection technology with advanced hydraulic architecture. The dual variable piston pump system paired with an axial piston rotary motor ensures precise control and consistent power delivery across all operating conditions.
Hydraulic performance stands out with a main overflow pressure of 24.5MPa, generating exceptional bucket digging force of 41.4kN and rod digging force of 28.4kN. Operating parameters include a maximum digging radius of 6,250mm and depth capacity reaching 3,850mm, supported by a 0.22m³ backhoe bucket configuration. The enhanced 1,600mm rod length extends operational versatility while maintaining optimal balance.
- Working weight: 5,850kg with 33kPa ground pressure
- Rotation speed: 9.3rpm for efficient positioning
- Climbing capability: 70% grade (35°)
- Dual-speed travel: 2.5/4.5 km/h
- Compact transport dimensions: 6,060×2,060×2,470mm
Currently located
| Specifications | Value |
|---|---|
| No. | 995896 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
