Product Description
Ready to deploy from 广西 (Guangxi), this 2018 Hitachi ZX60 mini excavator eliminates factory wait times and ships directly to your project site. Built at Hitachi's Hefei facility with proven ISUZU CC-4JG1 power, this 5,850 kg workhorse delivers 40.5 kW of reliable performance for tight urban jobs, utility work, and landscaping operations across Asia-Pacific markets.
Compact dimensions—6,060 mm transport length and 2,060 mm width—allow immediate containerized export or regional trucking. The 0.22 m³ bucket combines 41.4 kN digging force with a 6,250 mm maximum reach, while dual variable piston pumps ensure responsive hydraulics. Water-cooled 4-cylinder engine, 120L fuel capacity, and 70% gradeability provide full-shift productivity without compromise.
Key advantages for fast mobilization:
- Available now from 广西—no manufacturing delays
- 3,850 mm digging depth and 5,800 mm excavation height
- Genuine ISUZU diesel with proven 3.059L displacement
- 9.3 RPM swing speed and dual travel motors for agile positioning
- Container-ready dimensions for immediate international shipping
Secure this turnkey unit today and start work tomorrow—not in six months.
| Specifications | Value |
|---|---|
| No. | 1011383 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

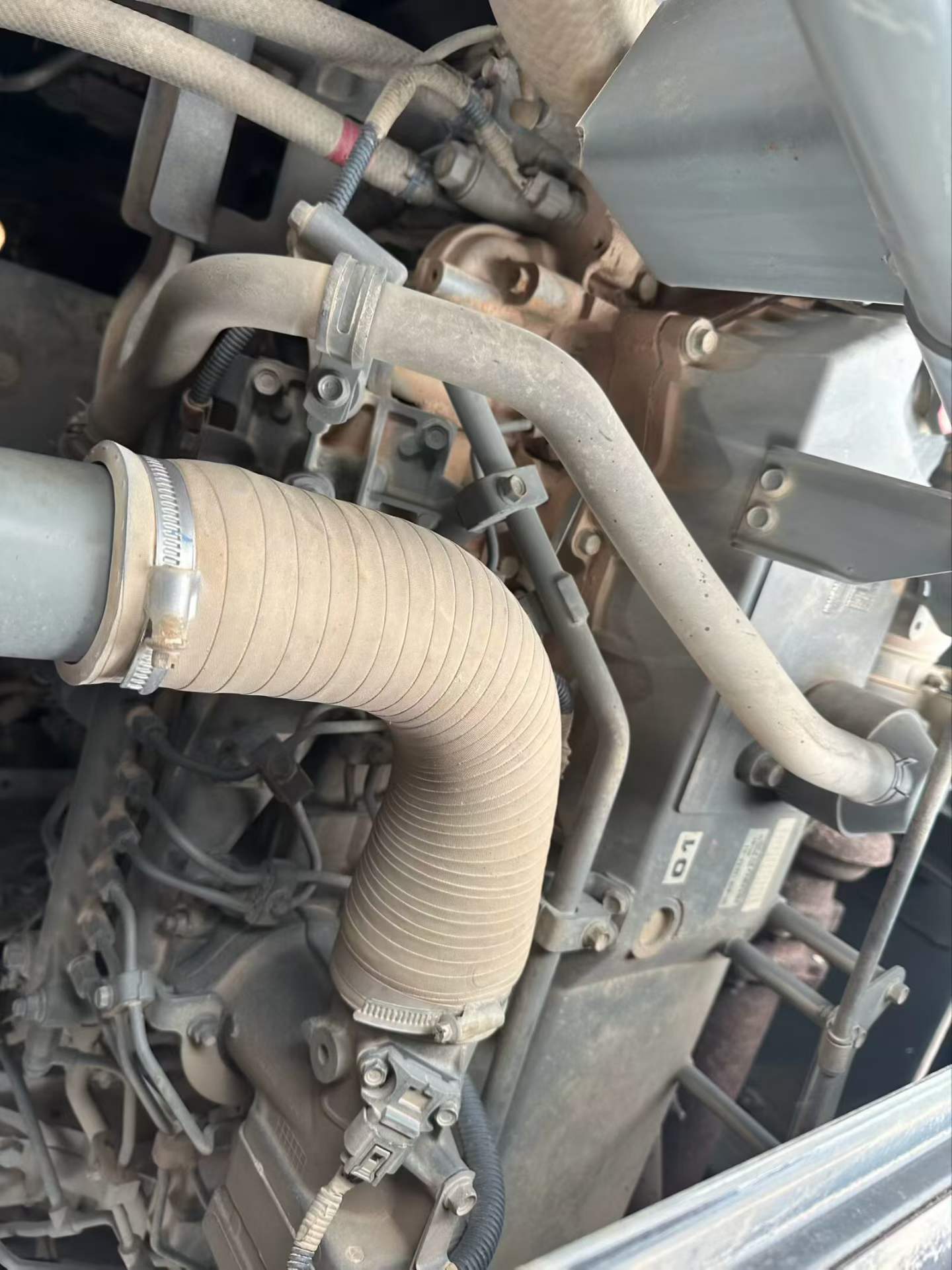

| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |

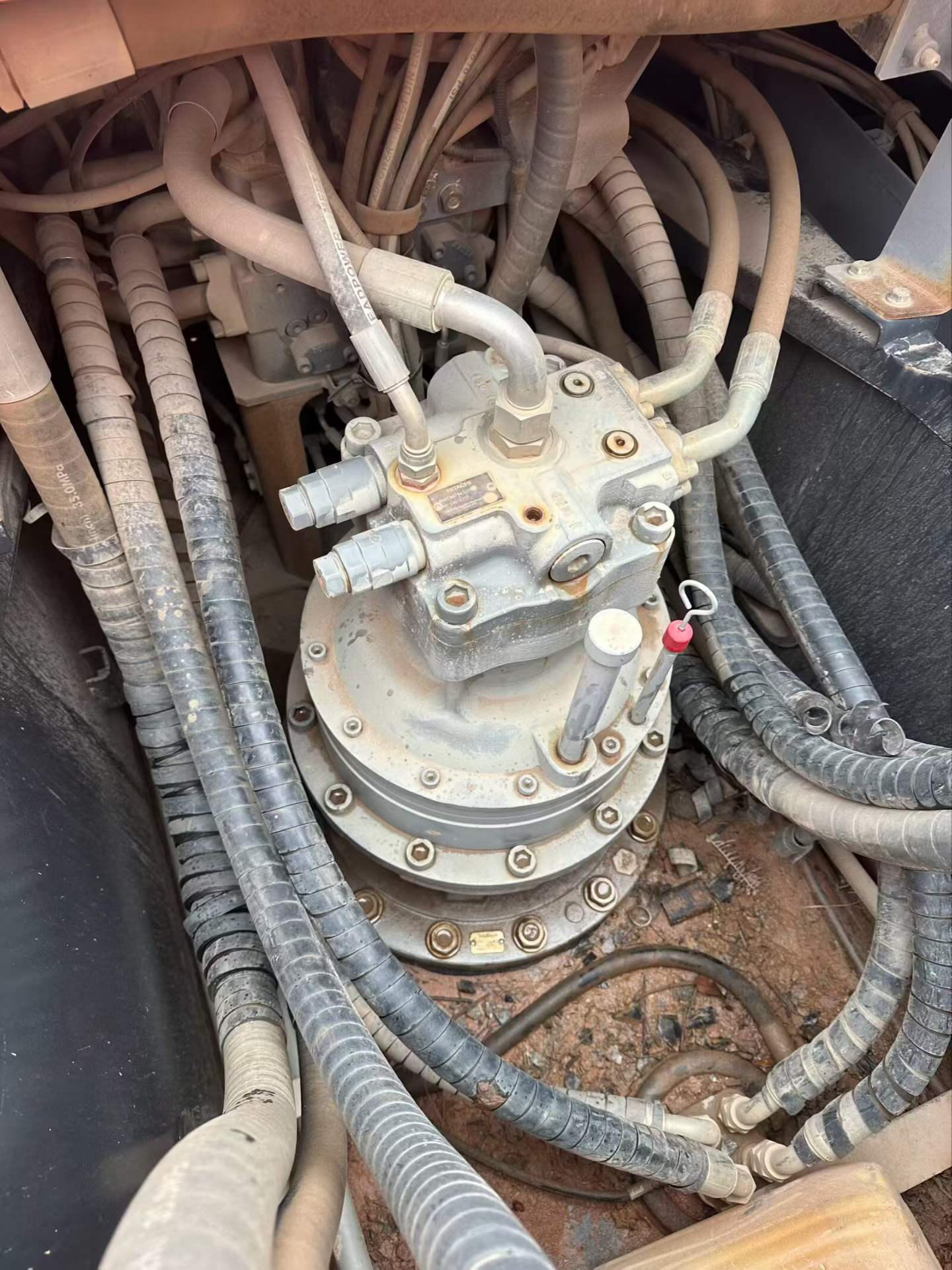

| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |

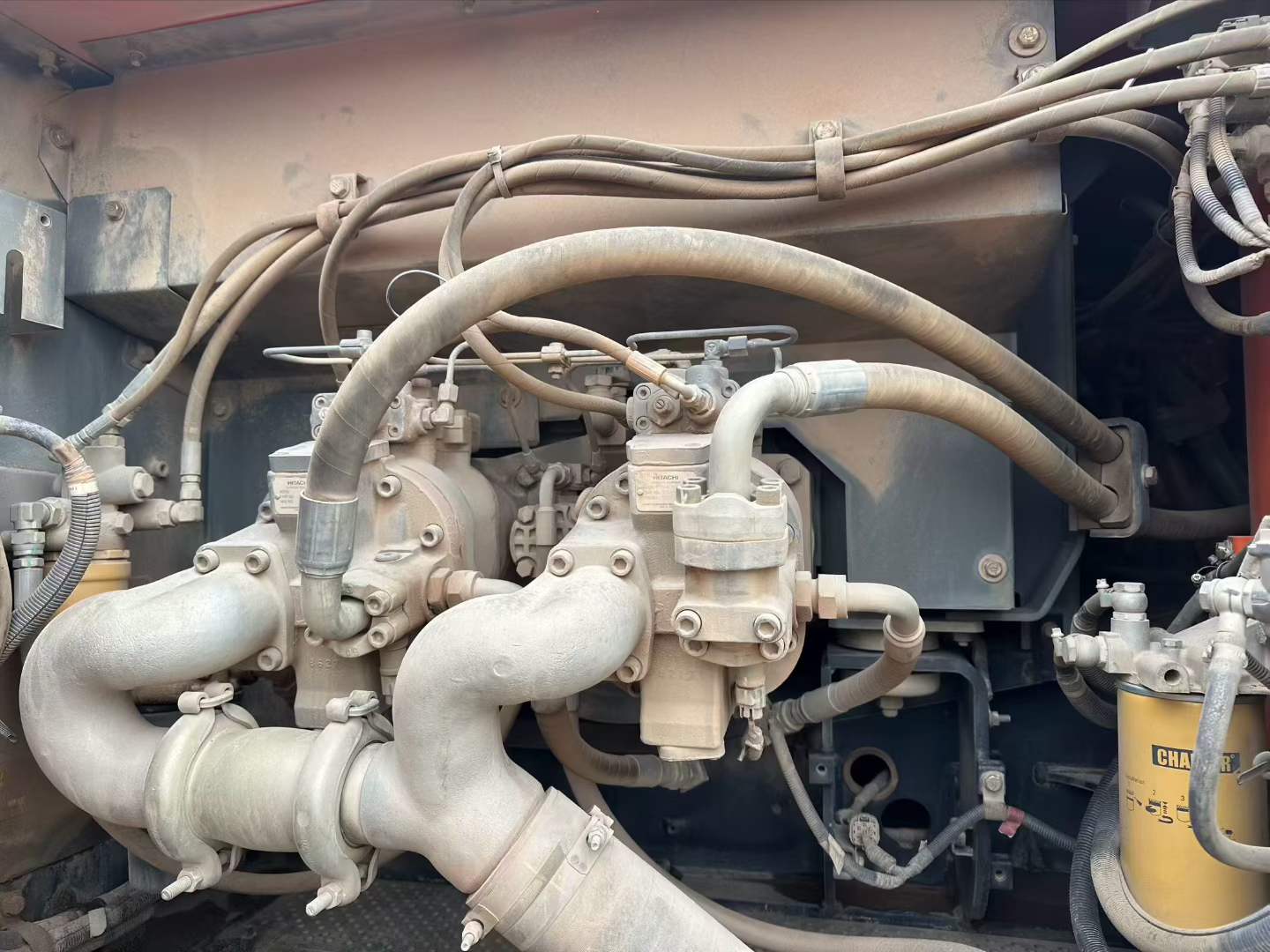

| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
