Product Description

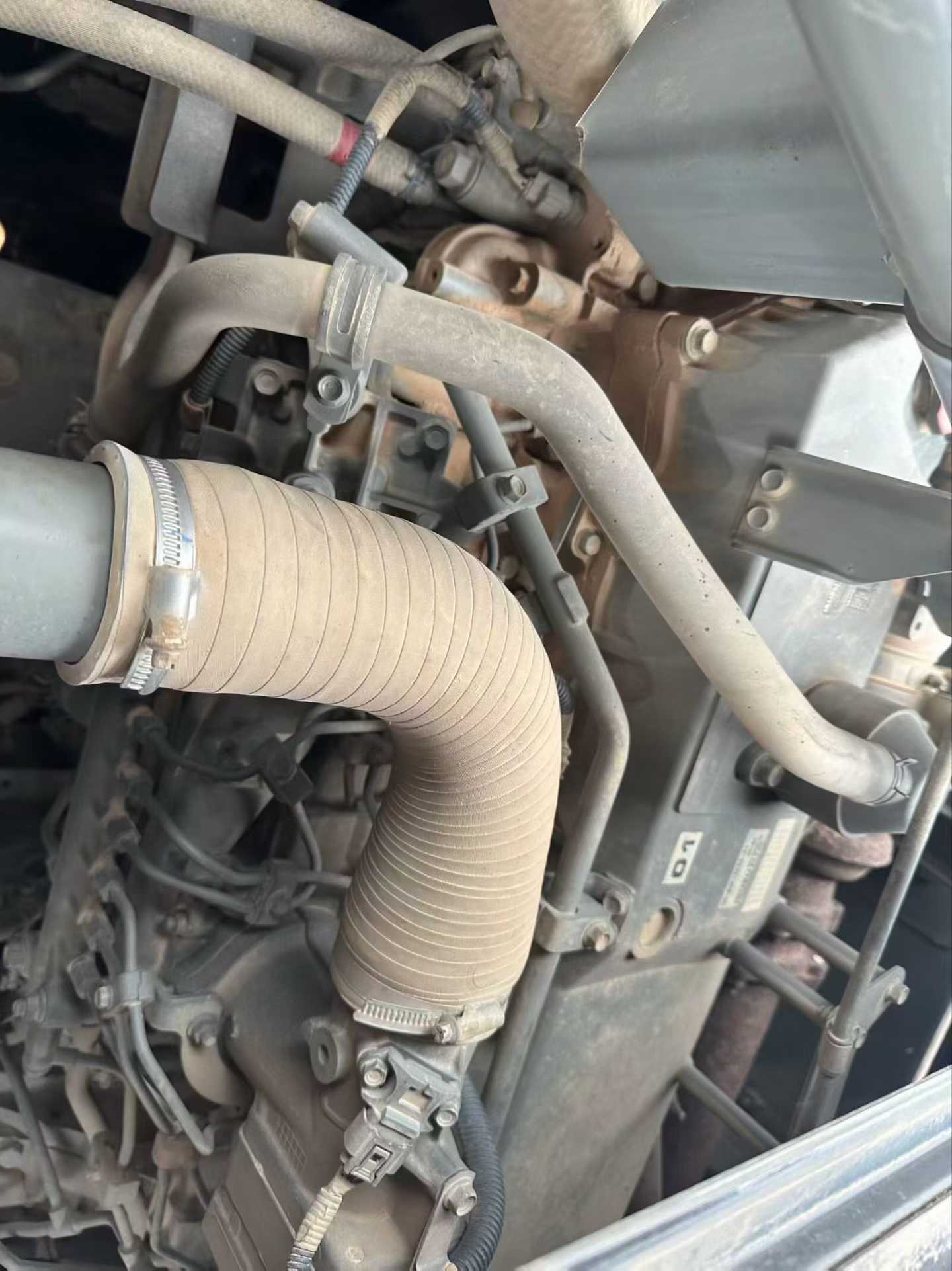

Engineered with precision at Hitachi's joint-venture facility in Hefei, this 2018 ZX60 delivers 6-ton performance through proven ISUZU CC-4JG1 diesel technology. Rated at 40.5kW at 2100 rpm, the water-cooled, 4-cylinder direct-injection engine generates 41.4kN bucket digging force and 28.4kN arm digging force—critical numbers for compact excavation work. Dual variable piston pumps paired with axial piston rotation and variable swashplate travel motors provide responsive hydraulics at 24.5 MPa system pressure, enabling smooth 9.3 rpm swing speed and precise control across the 6250mm working envelope.
- Hydraulic Power: Dual variable piston + gear pump configuration with 61L tank (95L capacity)
- Working Envelope: 3850mm max dig depth, 5800mm max dig height, 6250mm horizontal reach
- Mobility: 5850kg operating weight with 33kPa ground pressure; 70% (35°) gradeability
- Compact Footprint: 6060mm transport length, 2060mm width, 2510mm front turning radius
- Current Location: Heyuan, Guangdong Province
Built for contractors requiring reliable performance in confined urban sites or utility projects wh
| Specifications | Value |
|---|---|
| No. | 1016009 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |

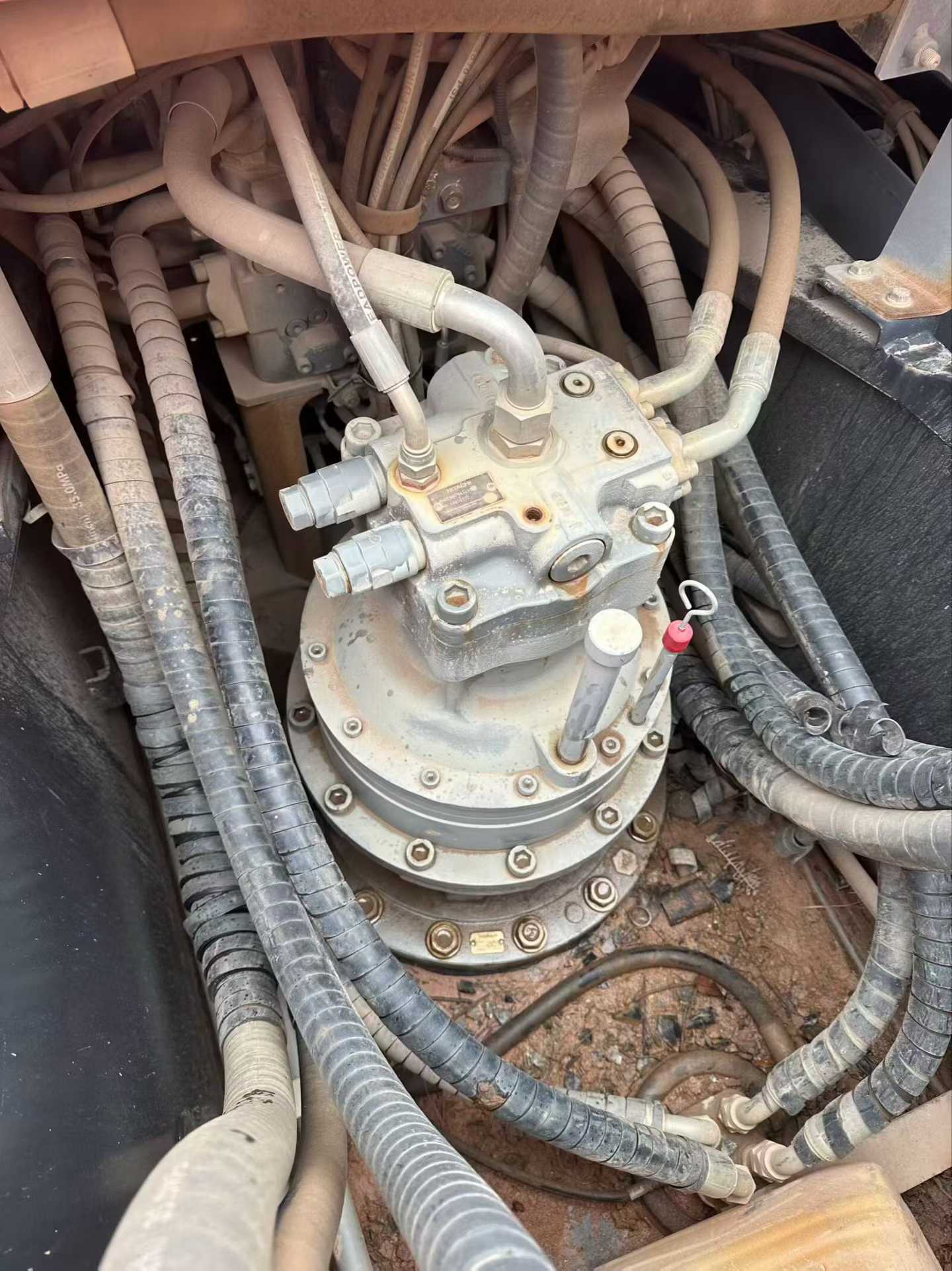

| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |

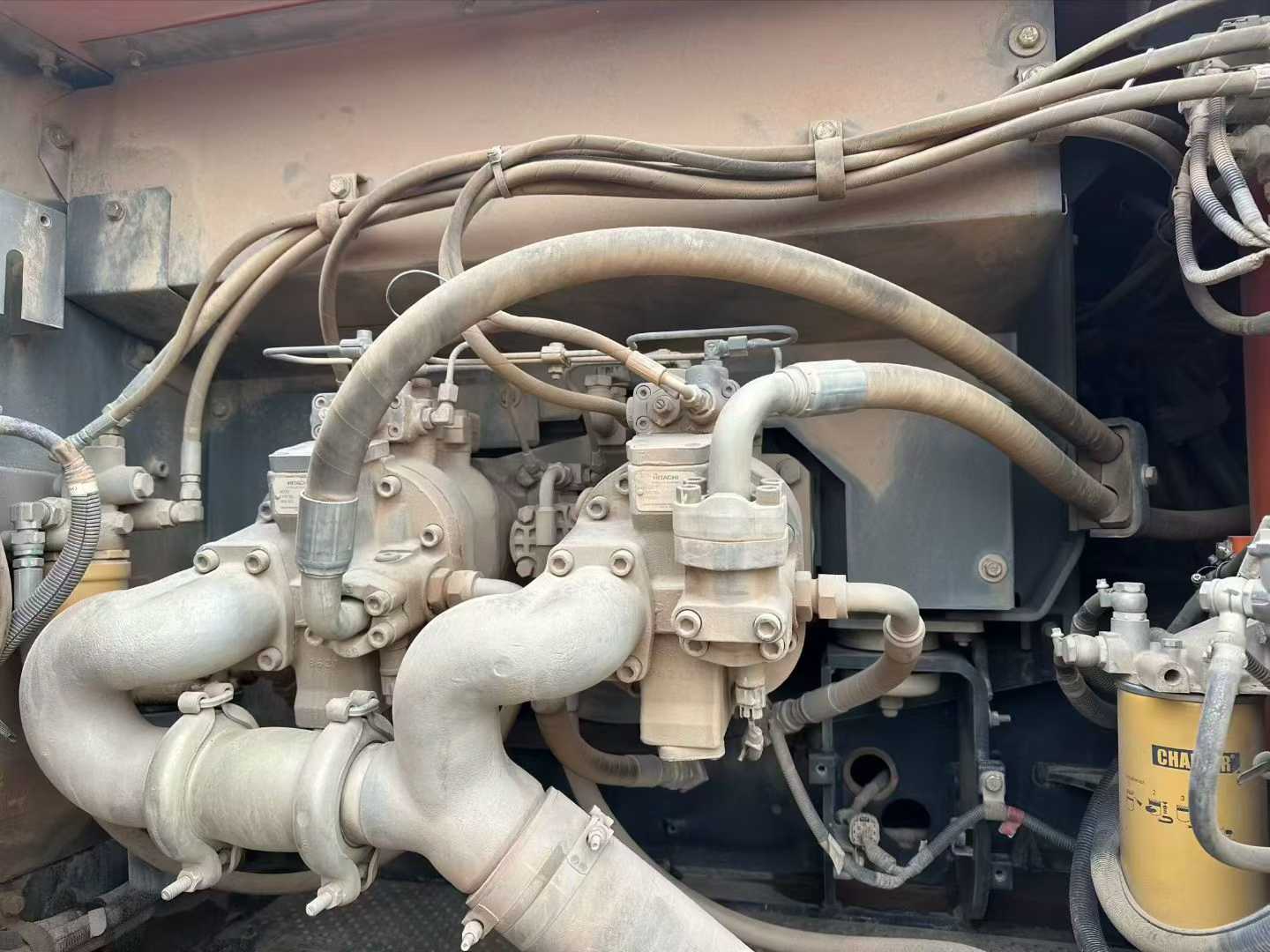

| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
