Product Description
Engineered with precision at Hitachi's Hefei facility, this 2019 ZX60 delivers 6-ton class performance through proven Japanese-German collaboration. Power comes from an ISUZU CC-4JG1 four-cylinder engine producing 40.5kW at 2100rpm, paired with dual variable piston pumps and axial piston swing motor for responsive hydraulic control. Maximum digging depth reaches 3,850mm with 41.4kN bucket force, while the enhanced 1.6m rod assembly provides exceptional breakout strength in confined applications.
Hydraulic efficiency defines this compact excavator. The system operates at 24.5MPa with dual variable swash plate motors driving independent tracks, enabling 9.3rpm swing speed and precise load placement within a 6,250mm working radius. Water-cooled reliability meets demanding schedules with 120L fuel capacity and 95L total hydraulic reservoir. Transport dimensions of 6,060×2,060×2,470mm allow legal road movement, while 70% gradeability and 400mm track plates maintain stability on challenging terrain.

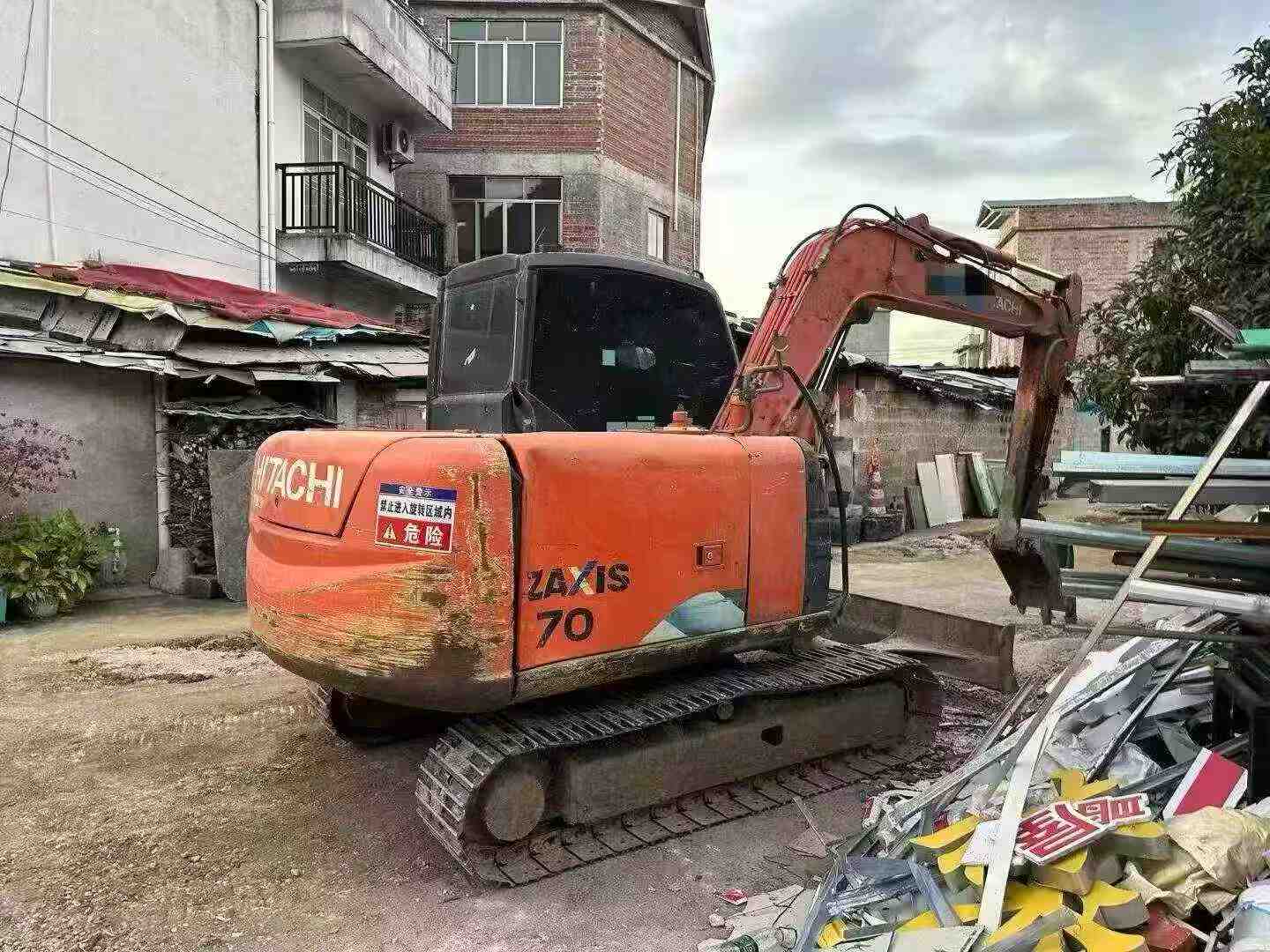

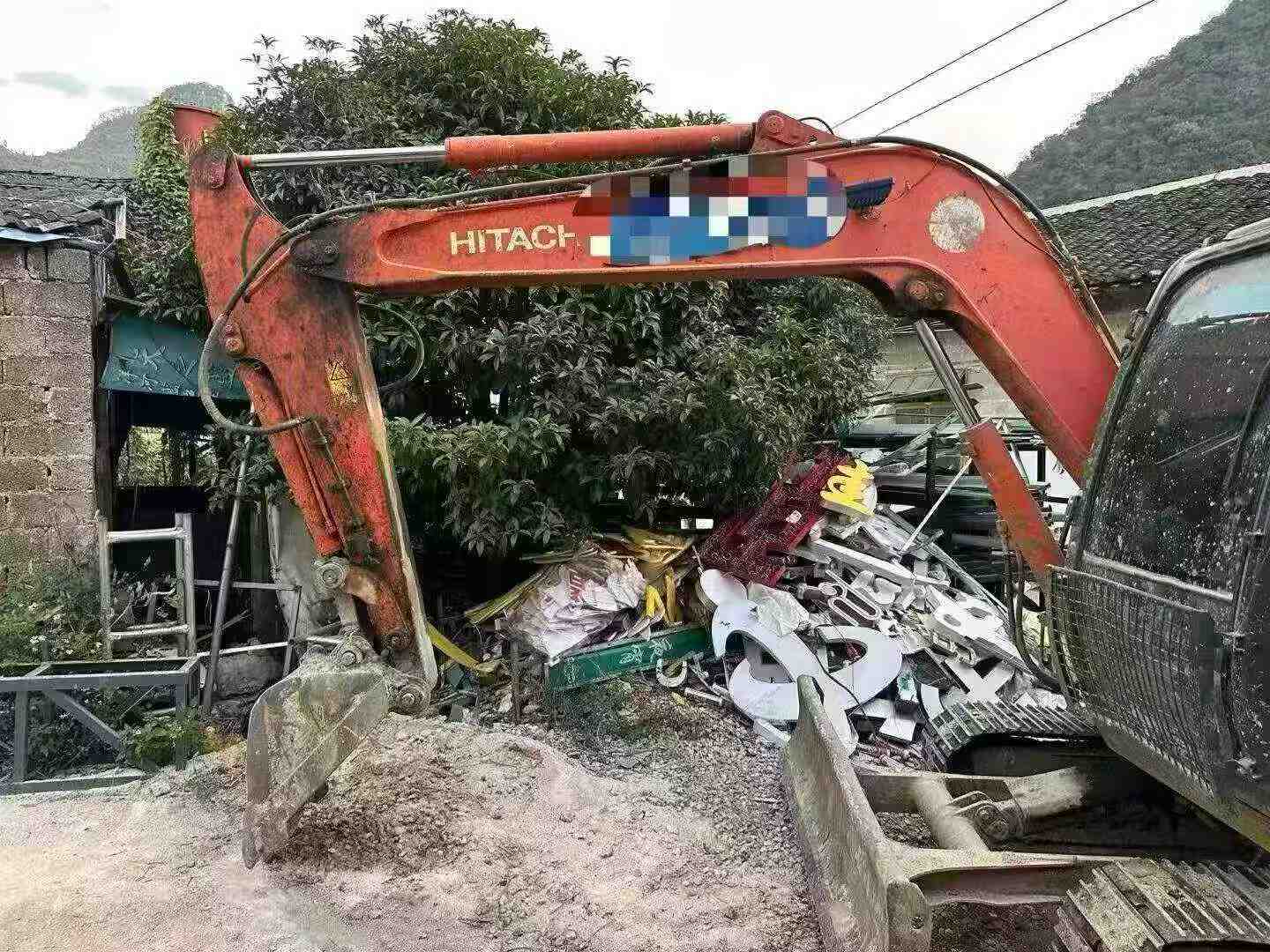

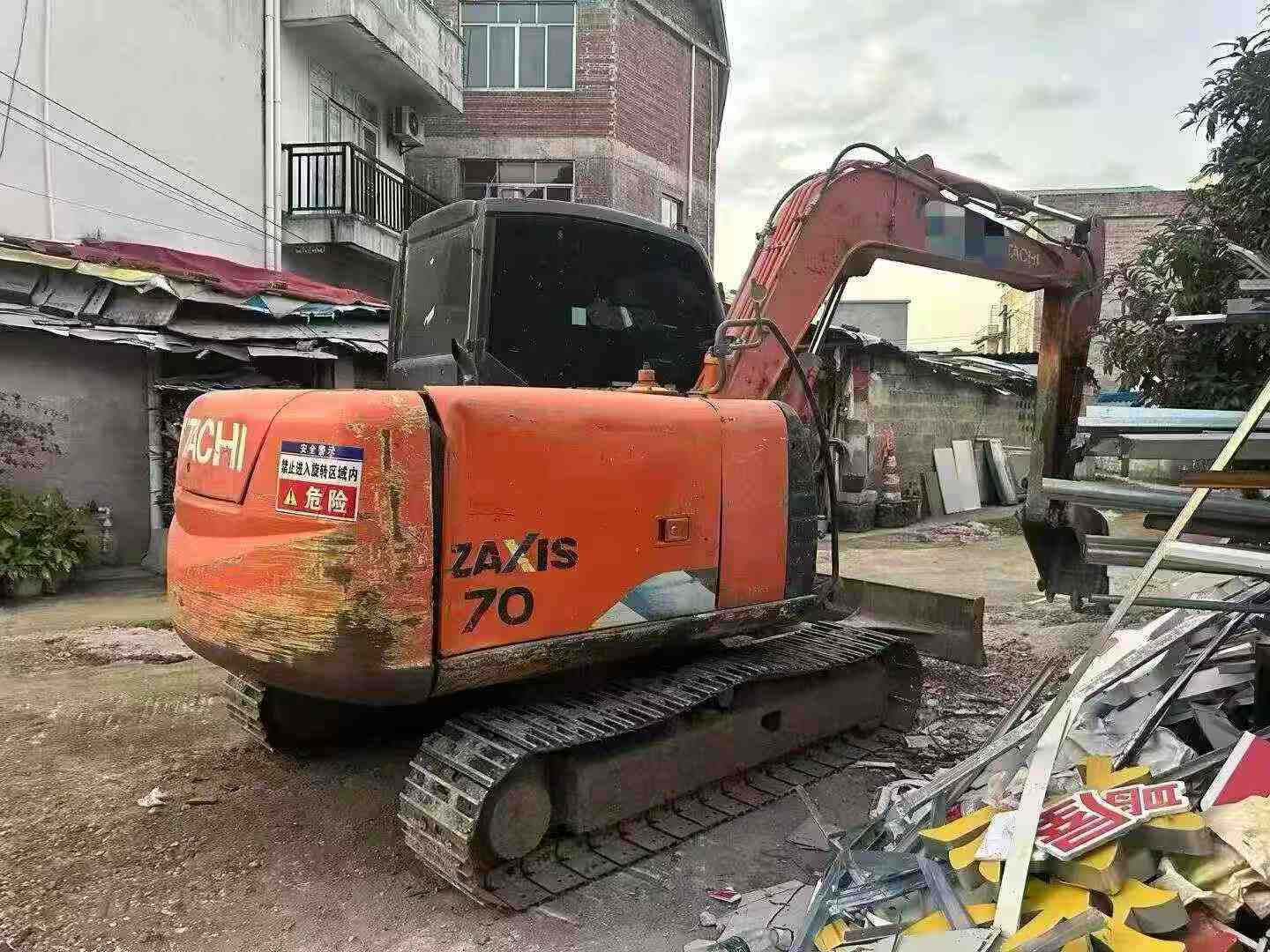

Currently located in Luzhou, Sichuan, this joint-venture manufactured unit represents Hitachi's commitment to durable mid-size excavation equipment for the Asian market.
| Specifications | Value |
|---|---|
| No. | 1021801 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
