Product Description

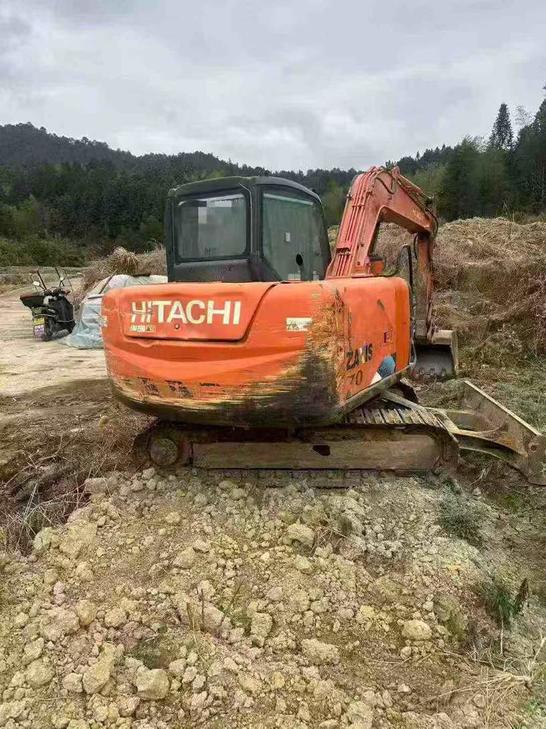

Skip the factory lead times and deploy a proven compact excavator immediately. This 2019 Hitachi ZX60 operates from our Hunan facility, ready for fast logistics coordination to your project site anywhere in the world. Built in Hefei with genuine ISUZU CC-4JG1 power (40.5kW), this 5,850kg machine delivers 41.4kN bucket digging force and 3,850mm maximum digging depth—ideal for urban construction, trenching, and utility work.
Available now with complete documentation for international export. Key specifications include:
- 6-ton class with 0.22m³ bucket capacity
- Enhanced 1.6m rod length for extended reach (6,250mm max radius)
- Water-cooled 4-cylinder engine with variable piston hydraulics
- Compact transport dimensions: 6,060mm L × 2,060mm W × 2,470mm H
- Dual-speed travel: 2.5/4.5 km/h for efficient site mobility
Sourced directly from Hunan, this ZX60 eliminates new equipment wait times. Contact Fair Trade Machinery today to arrange immediate inspection and shipping to your location.
| Specifications | Value |
|---|---|
| No. | 1026397 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
