Product Description

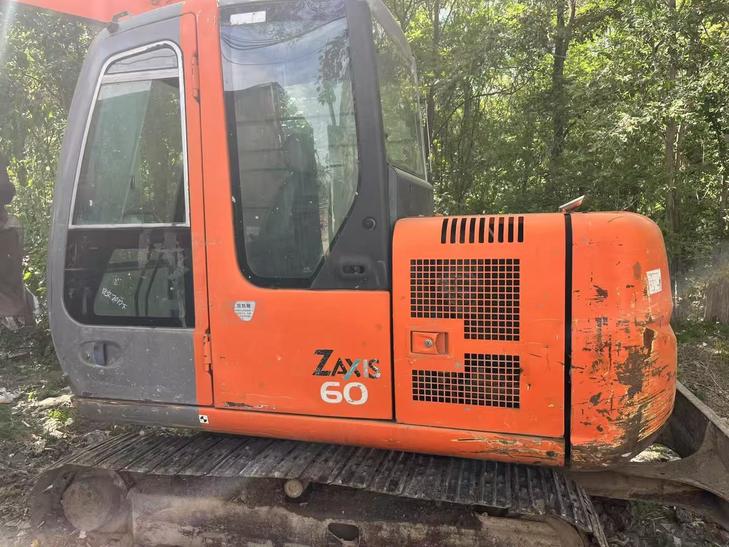

Built for precision work on tight job sites, this 2020 Hitachi ZX60 mini excavator arrives from Shandong, China, fully inspected and ready to deploy. Powered by a 4-cylinder ISUZU CC-4JG1 engine producing 40.5 kW at 2,100 rpm, it delivers reliable hydraulic force for digging, grading, and light demolition without the footprint of a full-size machine.
- Bucket digging force: 41.4 kN — rod digging force: 28.4 kN
- Maximum digging depth: 3,850 mm | Maximum digging radius: 6,250 mm
- Maximum unloading height: 4,080 mm — suited for truck loading and trench work
- Travel speed: 2.5 / 4.5 km/h with 70% climbing ability
- Compact transport dimensions: 6,060 mm (L) × 2,060 mm (W) × 2,470 mm (H)
- Track plate width: 400 mm | Ground pressure: 33 kPa — stable on soft terrain
- Dual variable piston pumps + gear pumps | Main system pressure: 24.5 MPa
- 120 L fuel tank supports extended shifts between refills
At 5,850 kg working weight, this 6-ton class machine fits where larger excavators cannot. A backhoe bucket, enhanced rod configuration, and water-cooled engine make it a practical, low-maintenance choice for contractors needing consistent output from day one.
| Specifications | Value |
|---|---|
| No. | 1060057 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
