Product Description
This 2020 Hitachi ZX60 compact excavator is available from Zhejiang, China. Equipped with a reliable Isuzu engine, this machine offers proven performance for tight-access jobsites and utility work. The ZX60 is known for its compact footprint and maneuverability in confined spaces while maintaining solid digging capability for its size class.
Key features include:
- Isuzu power plant for fuel efficiency and durability
- Compact design suitable for urban construction and landscaping
- Well-maintained unit with documented service history
- Ideal for contractors requiring reliable small-class excavation equipment
This used excavator represents a cost-effective solution for businesses seeking dependable compact excavation capacity. The machine is ready for inspection and available for immediate deployment. Contact us for detailed specifications, current condition assessment, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1137377 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

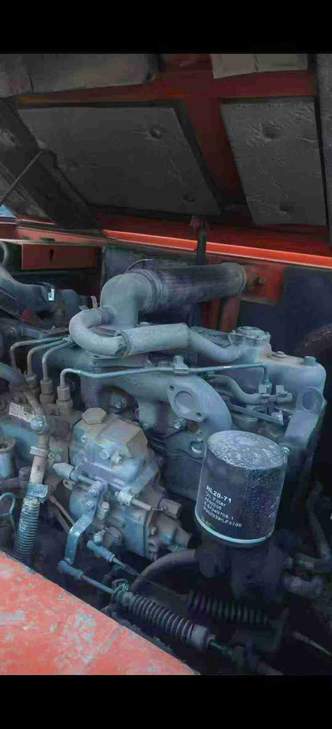

| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
