Product Description
Gain immediate access to proven Hitachi engineering at a fraction of replacement cost with this 2021 ZX60 compact excavator from Wenzhou, Zhejiang. Built in Hefei with genuine ISUZU CC-4JG1 power delivering 40.5kW, this 6-ton workhorse combines joint-venture reliability with practical operating economics that new equipment simply cannot match.
Performance specifications justify the investment: 6,250mm maximum digging radius, 3,850mm digging depth, and 41.4kN bucket force handle demanding applications across construction, utilities, and landscaping. Dual variable piston pumps and axial piston rotation motor ensure responsive hydraulics, while the enhanced 1,600mm rod extends your operational envelope beyond standard configurations.
- Operating weight: 5,850kg with 0.22m³ bucket capacity
- Water-cooled 4-cylinder engine (3.059L displacement)
- Dual-speed travel: 2.5/4.5 km/h for site flexibility
- Compact footprint: 6,060mm transport length, 2,060mm width
- 70% grading ability with 33kPa ground pressure
- 120L fuel tank supports extended shifts
Acquire field-ready capability without new-equipment depreciation. This ZX60 delivers contractor-grade performance with min
| Specifications | Value |
|---|---|
| No. | 1014320 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |

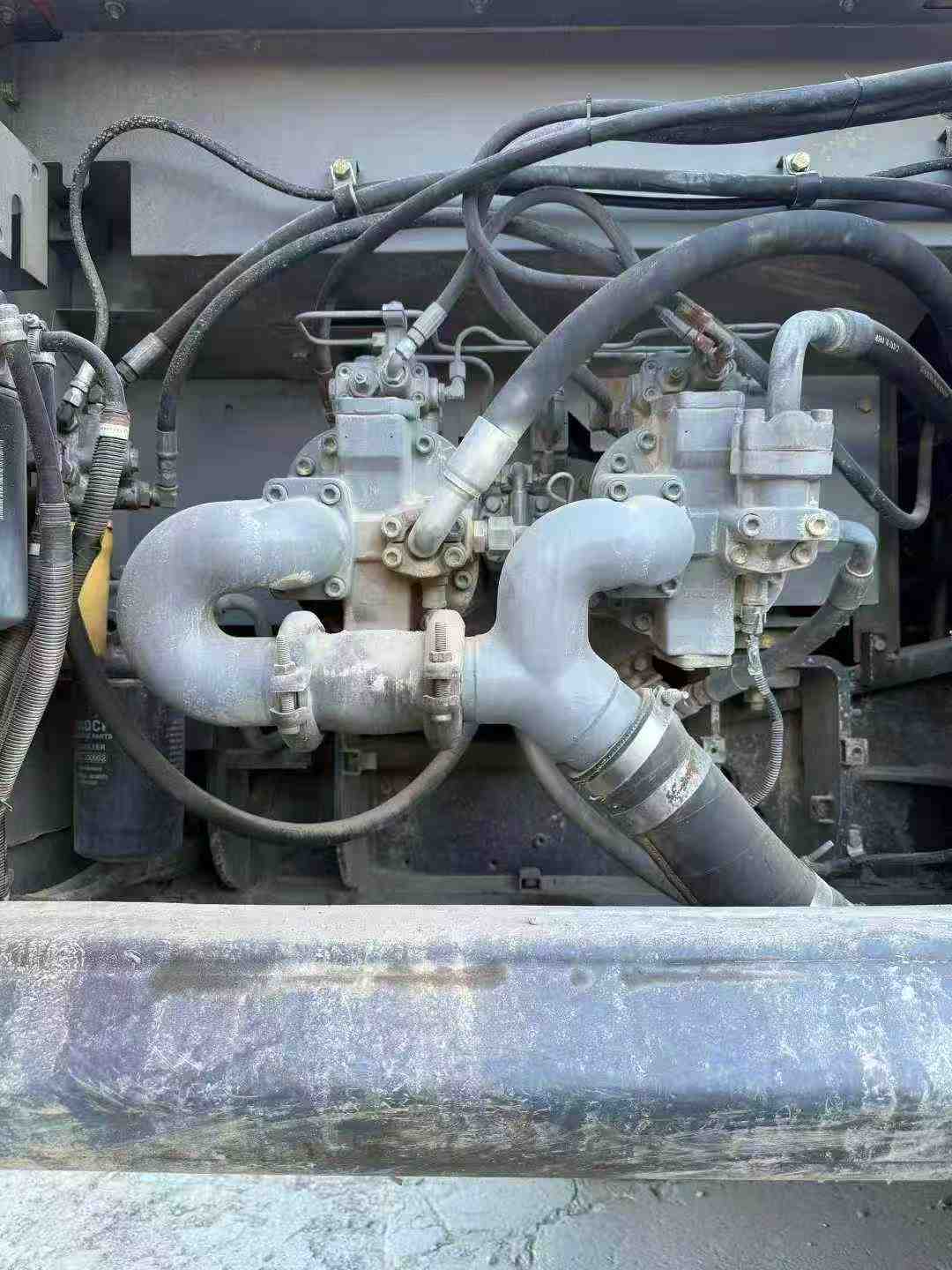

| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
