Product Description

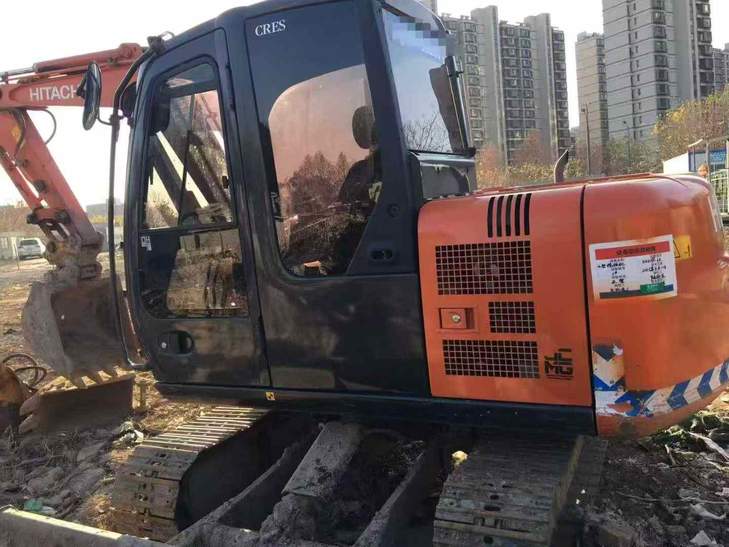

Acquire proven performance without the premium price tag. This 2023 Hitachi ZX60 mini excavator from Shandong Heze delivers exceptional value for contractors seeking reliable 6-ton capacity equipment. Powered by a robust ISUZU CC-4JG1 engine generating 40.5kW at 2100rpm, this machine combines Japanese engineering with cost-effective operation. With just minimal operational hours since manufacture, you're accessing near-new condition at a fraction of dealer pricing.
Performance specifications include a 6,250mm maximum digging radius, 3,850mm digging depth, and impressive 41.4kN bucket digging force—ideal for foundation work, trenching, and site preparation. The compact 2,060mm transport width ensures maneuverability in confined spaces, while the 0.22m³ bucket capacity maintains productivity on residential and commercial projects.
Key Investment Advantages:
- 2023 model year—modern technology without depreciation hit
- Water-cooled 4-cylinder ISUZU engine for durability
- Variable piston pumps and axial piston motor for precise control
- 120L fuel tank for extended operation cycles
- Factory-direct from Hefei joint venture facility
Smart buyers reco
| Specifications | Value |
|---|---|
| No. | 1027534 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
