Product Description

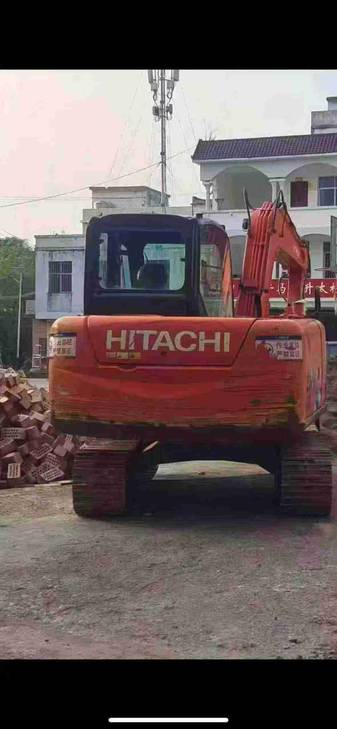

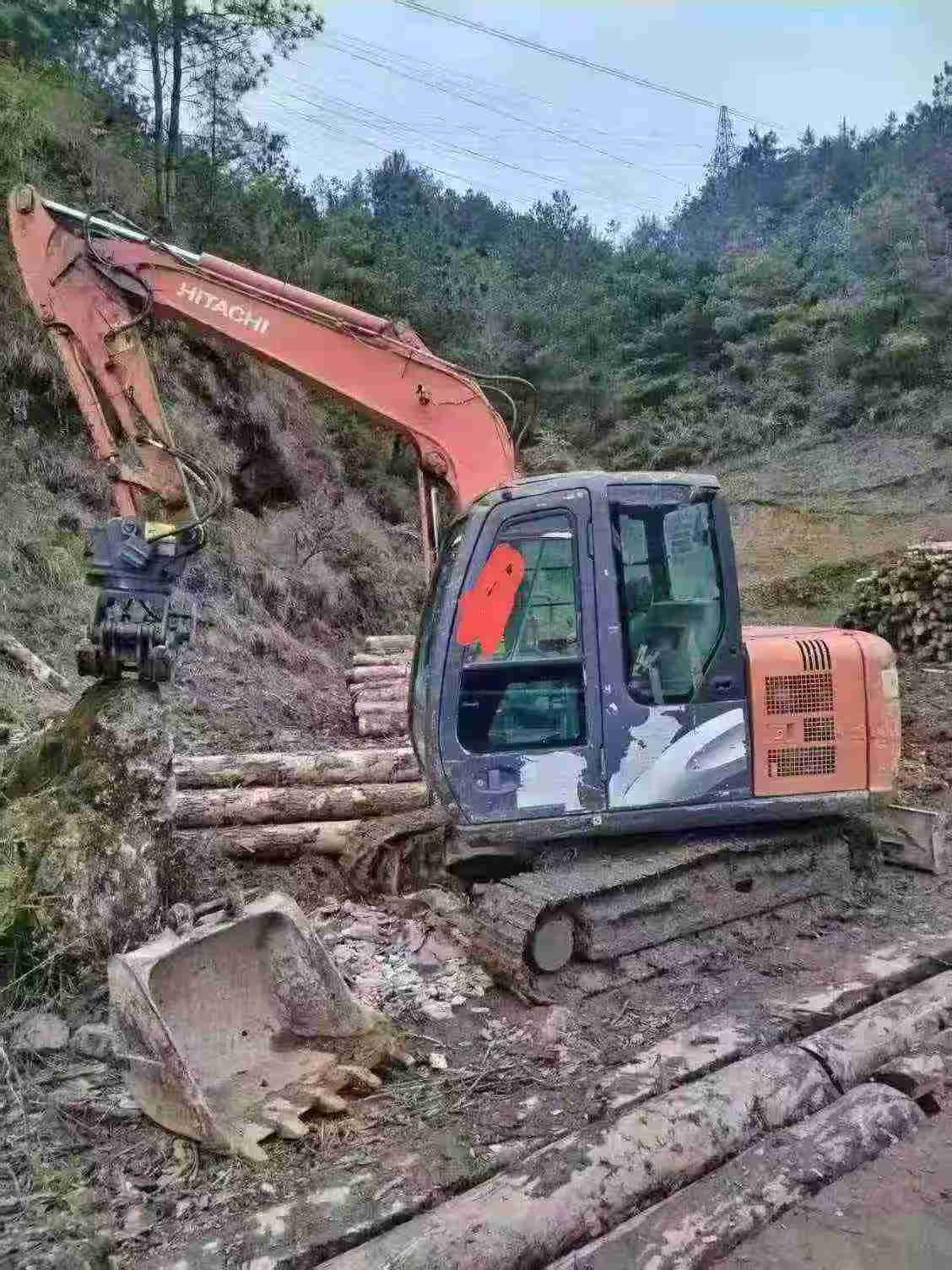

Well-maintained 2017 Hitachi ZX60-5A compact excavator available from Zhejiang, China. This 6-ton class machine delivers reliable performance for urban construction, landscaping, and utility work. The ZX60-5A features Hitachi's proven hydraulic system and efficient engine design, ensuring productive operation in confined spaces.
Unit comes equipped with standard excavator bucket. The compact footprint and robust build quality make this machine suitable for contractors seeking dependable performance in tight jobsites.
- Year: 2017
- Model: Hitachi ZX60-5A
- Operating Weight: Approximately 6 tonnes
- Configuration: Standard bucket included
- Location: Zhejiang Province, China
- Condition: Used, operational
Inspection welcomed. Contact us for detailed specifications, current hour meter reading, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1082591 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.24 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | 4TNV98 |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236/1350 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | 4 stroke, water cooled, direct injection |
| Ground specific pressure (Kpa) | 31 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Maximum tractive force (kN) | 38.5 |
| Travel speed (km/h) | 0-4.5/0-2.5 High/low |
| Turning torque (Nm) | 10 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 52.5 |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 17.6 |
| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 9.5 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 80 x 50 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 85 x 55 |
| Boom cylinders - Number × diameter × stroke (mm) | 1 x 105 x 60 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 60 |
| Engine Oil changes (L) | 12.3 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 93 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2085 |
| Full cab height (mm) | 2475 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 2060 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 39 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3440 |
| Bulldozer lift or depth (mm) | 430 x 400 |
| Dodging plate width × height (mm) | 2000 x 400 |
| Maximum excavation radius of stop surface (mm) | 6130 |
