Product Description
Discover a reliable and robust addition to your fleet with this 2018 Hitachi ZX60-5A, available for immediate purchase in Yunnan, China. This used excavator is priced competitively at over 60,000 RMB, making it an attractive option for businesses looking to enhance their operational capacity without a significant capital outlay. Known for its durability and efficiency, the ZX60-5A model is a versatile machine suitable for a variety of construction and excavation projects. It offers a blend of power, precision, and ease of maintenance, ensuring minimal downtime and maximum productivity on the job site.
- Year: 2018
- Brand: Hitachi
- Model: ZX60-5A
- Location: Yunnan, China
- Priced for quick sale: Over 60,000 RMB
| Specifications | Value |
|---|---|
| No. | 1130616 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.24 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

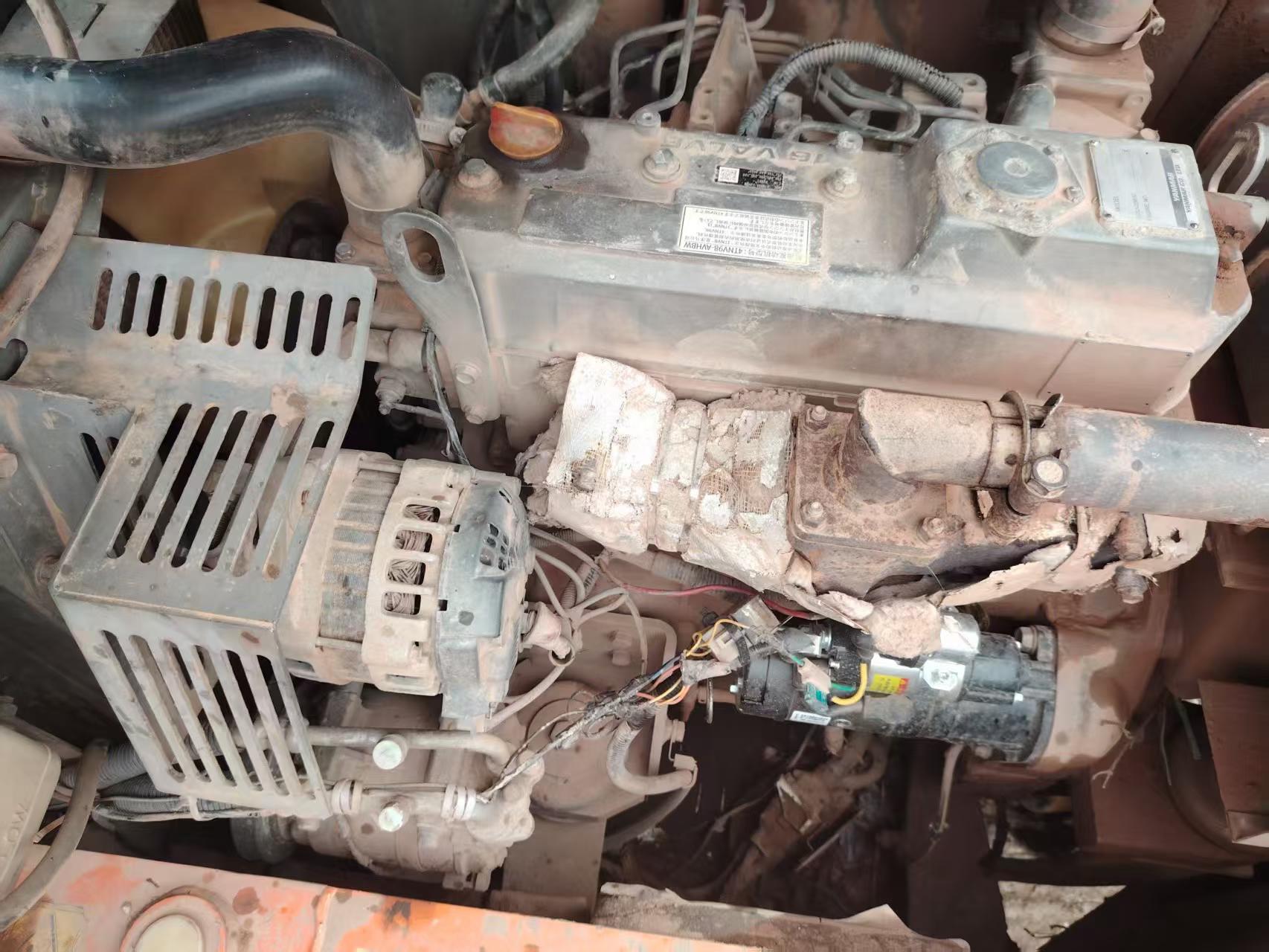

| Engine type | 4TNV98 |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236/1350 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | 4 stroke, water cooled, direct injection |
| Ground specific pressure (Kpa) | 31 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Maximum tractive force (kN) | 38.5 |
| Travel speed (km/h) | 0-4.5/0-2.5 High/low |
| Turning torque (Nm) | 10 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 52.5 |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 17.6 |
| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 9.5 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 80 x 50 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 85 x 55 |
| Boom cylinders - Number × diameter × stroke (mm) | 1 x 105 x 60 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 60 |
| Engine Oil changes (L) | 12.3 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 93 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2085 |
| Full cab height (mm) | 2475 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 2060 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 39 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3440 |
| Bulldozer lift or depth (mm) | 430 x 400 |
| Dodging plate width × height (mm) | 2000 x 400 |
| Maximum excavation radius of stop surface (mm) | 6130 |
