HOME>>Hitachi>>Hitachi ZX60-5G

2013 Hitachi ZX60-5G

1/4

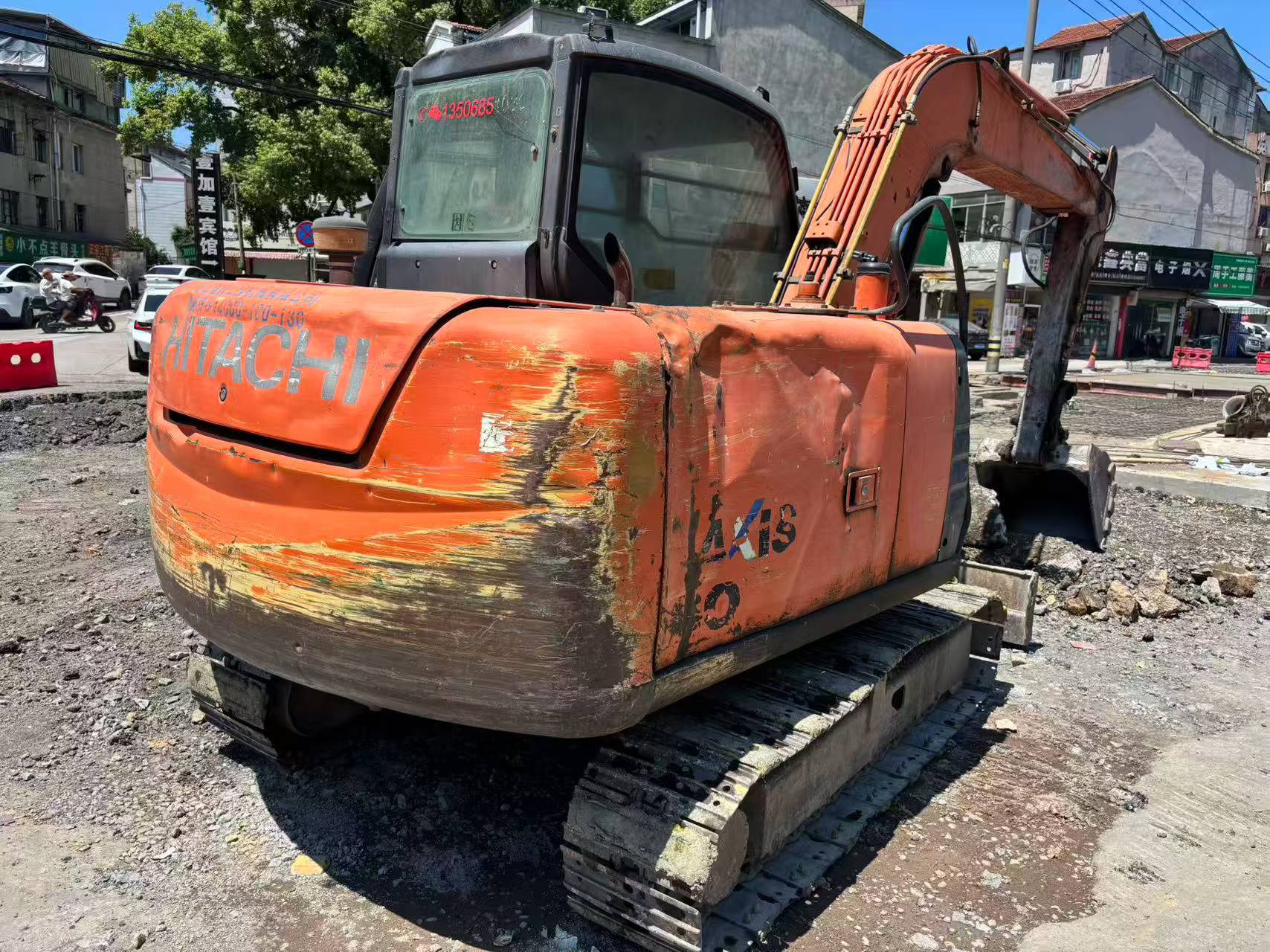

Buy Hitachi ZX60-5G Used Excavator / 1

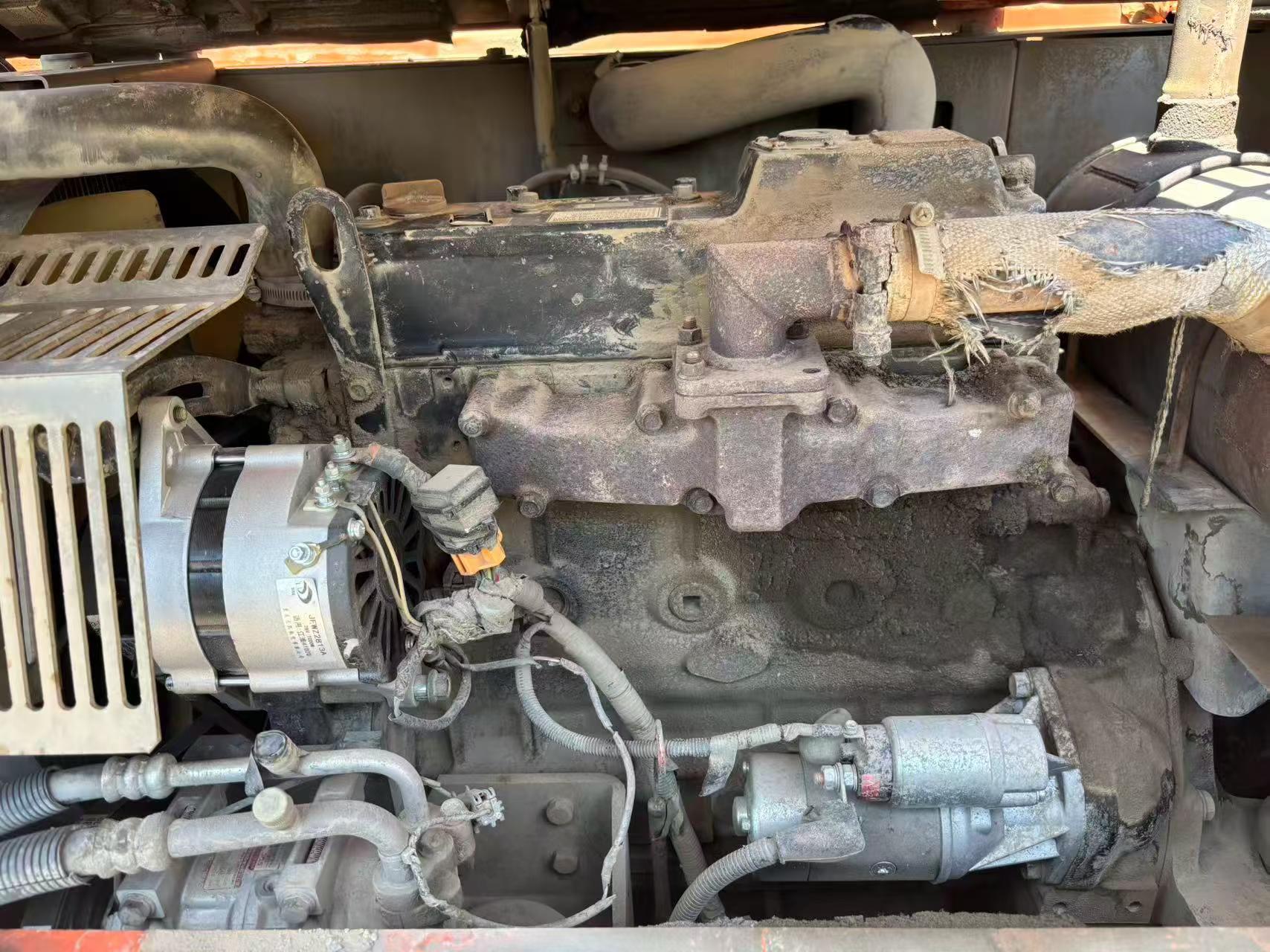

Buy Hitachi ZX60-5G Used Excavator / 2
Buy Hitachi ZX60-5G Used Excavator / 3

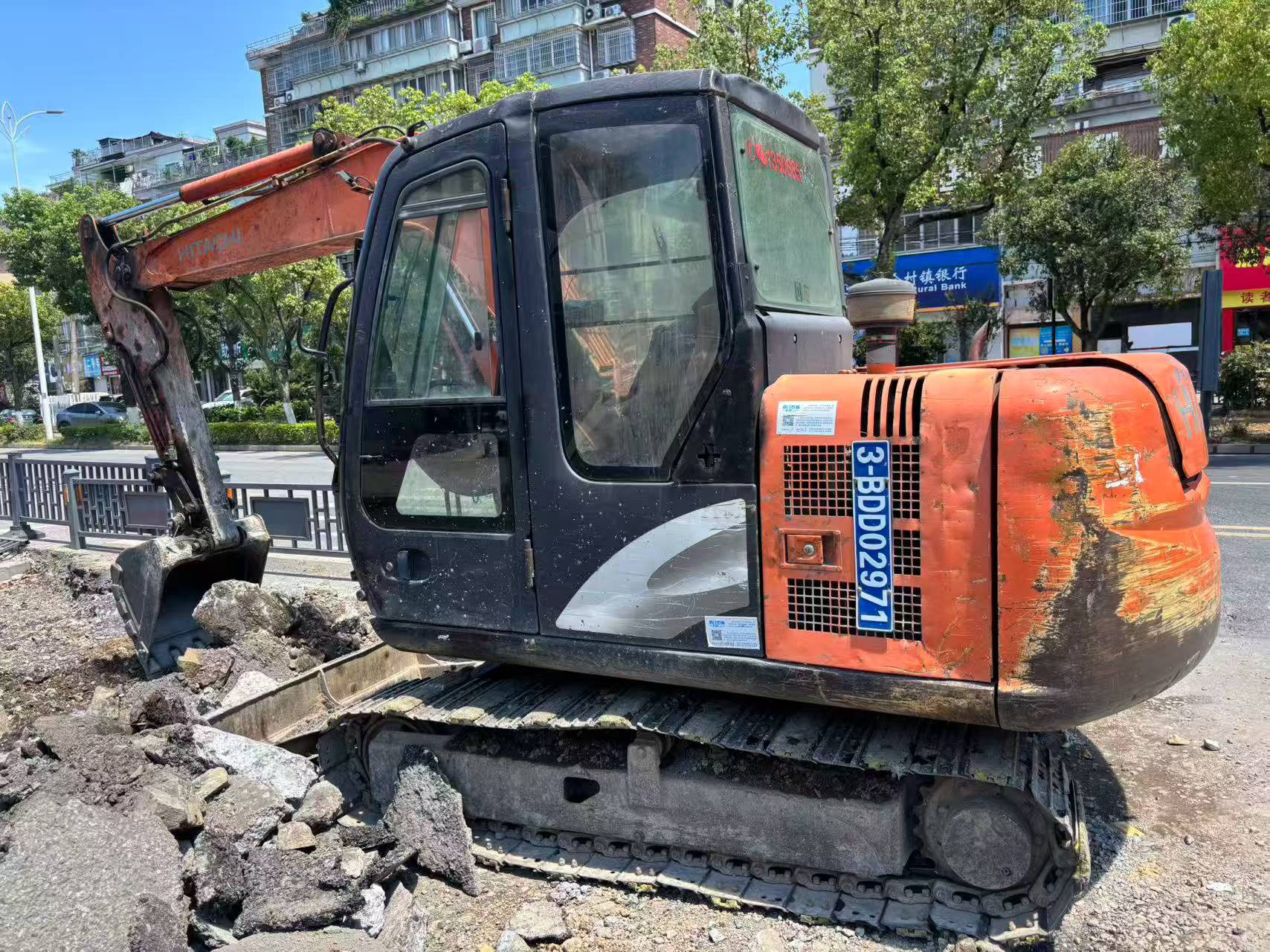

Buy Hitachi ZX60-5G Used Excavator / 4

Product Description

This 2013 Hitachi ZX60-5G compact excavator offers reliable performance for contractors seeking quality used equipment. Currently located in Zhejiang, China, this mid-size machine from Hitachi's proven ZX-5G series delivers dependable operation for various earthmoving and construction applications.

The ZX60-5G is well-regarded in the 6-ton class for its balanced combination of digging power, fuel efficiency, and operator comfort. With over a decade of service history, this unit represents an economical entry point for businesses looking to expand their fleet or replace aging equipment.

  • Year of Manufacture: 2013
  • Model: Hitachi ZX60-5G
  • Category: Compact Excavator
  • Current Location: Zhejiang Province, China
  • Suitable for: General construction, landscaping, utility work

Contact us for additional details, current condition assessment, and export arrangements to your location.

SpecificationsValue
No.1119368
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.24
Country of originHefei (Capital of Anhui Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98-AVHBW
Rated power (kw/rpm)42.4/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 x 110
Maximum torque (N.m)236
Number of cylinders (PCS)4
Working formFour-stroke, water-cooled, direct injection
Rotation speed (rpm)9.1
Climbing ability (%)70% (35°)
Maximum tractive force (kN)38.5
Travel speed (km/h)0-4.5/0-2.5
Turning torque (Nm)10
Rotary hydraulic motor type1 axial plunger motor
Type of walking hydraulic motor2 variable axial piston motors
Traveling Hydraulic Circuit (Mpa)24.5
Rotary Hydraulic Circuit (Mpa)17.6
Main pump type3 variable axial piston pumps
Working Hydraulic Circuit (Mpa)24.5
Fuel Tank (L)120
Hydraulic Tank (L)60
Coolant (L)8
Hydraulic System (L)93
Total transport length (mm)6060
Total transport width (mm)2060
Total transport height (mm)2085
Full cab height (mm)2475
Counterweight ground clearance (mm)620
Minimum ground clearance (mm)310
Minimum turning radius of front working device (mm)2510
Back end turning radius (mm)1650
Onboard width (mm)2060
Track gauge (mm)1600
Track plate width (mm)400
Maximum digging radius (mm)6250
Maximum digging depth (mm)3850
Maximum excavation height (mm)4080
Maximum vertical digging depth (mm)3440
Dodging plate width × height (mm)200 x 400
Maximum excavation radius of stop surface (mm)6130
see more

Overview

No.1119368

Brand Name:

Hitachi

Model Number:

ZX60-5G

Year:

2013

Location:

Zhejiang China

Pub Date
