Product Description

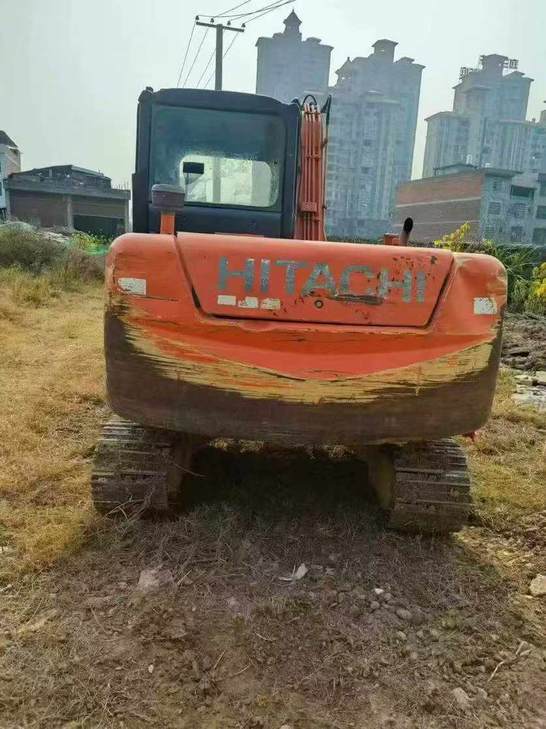

Engineered with Hitachi's renowned precision, this 2014 ZX60-5G compact excavator delivers exceptional performance through advanced hydraulic architecture. Powered by a Yanmar 4TNV98-AVHBW engine producing 42.4 kW at 2100 rpm with 236 N·m maximum torque, this 6-ton machine combines reliable four-stroke water-cooled technology with superior fuel efficiency. Three variable axial piston pumps maintain consistent 24.5 MPa working pressure across hydraulic circuits, ensuring precise control during demanding excavation tasks.
Operating specifications demonstrate robust capability:
- Maximum digging reach: 6,250 mm with 3,850 mm depth
- 0.24 m³ bucket capacity for optimal material handling
- 9.1 rpm rotation speed with dual variable piston travel motors
- 70% gradeability and 38.5 kN tractive force on challenging terrain
- Compact transport dimensions: 6,060 × 2,060 × 2,085 mm
Built in Hefei as a joint-venture model, this ZX60-5G combines Japanese engineering standards with practical jobsite versatility. Currently located in Hangzhou, Zhejiang, this machine represents proven reliability for contractors requiring precision excavation in confined spaces without compromising power
| Specifications | Value |
|---|---|
| No. | 1050418 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.24 |
| Country of origin | Hefei (Capital of Anhui Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98-AVHBW |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236 |
| Number of cylinders (PCS) | 4 |
| Working form | Four-stroke, water-cooled, direct injection |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70% (35°) |
| Maximum tractive force (kN) | 38.5 |
| Travel speed (km/h) | 0-4.5/0-2.5 |
| Turning torque (Nm) | 10 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 17.6 |
| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 60 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 93 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2085 |
| Full cab height (mm) | 2475 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 2060 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3440 |
| Dodging plate width × height (mm) | 200 x 400 |
| Maximum excavation radius of stop surface (mm) | 6130 |
