Product Description

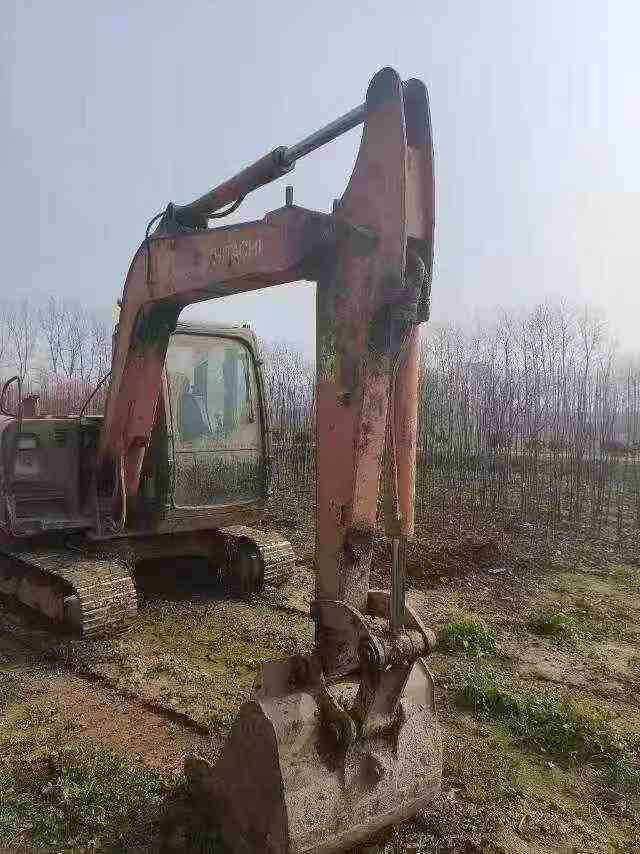

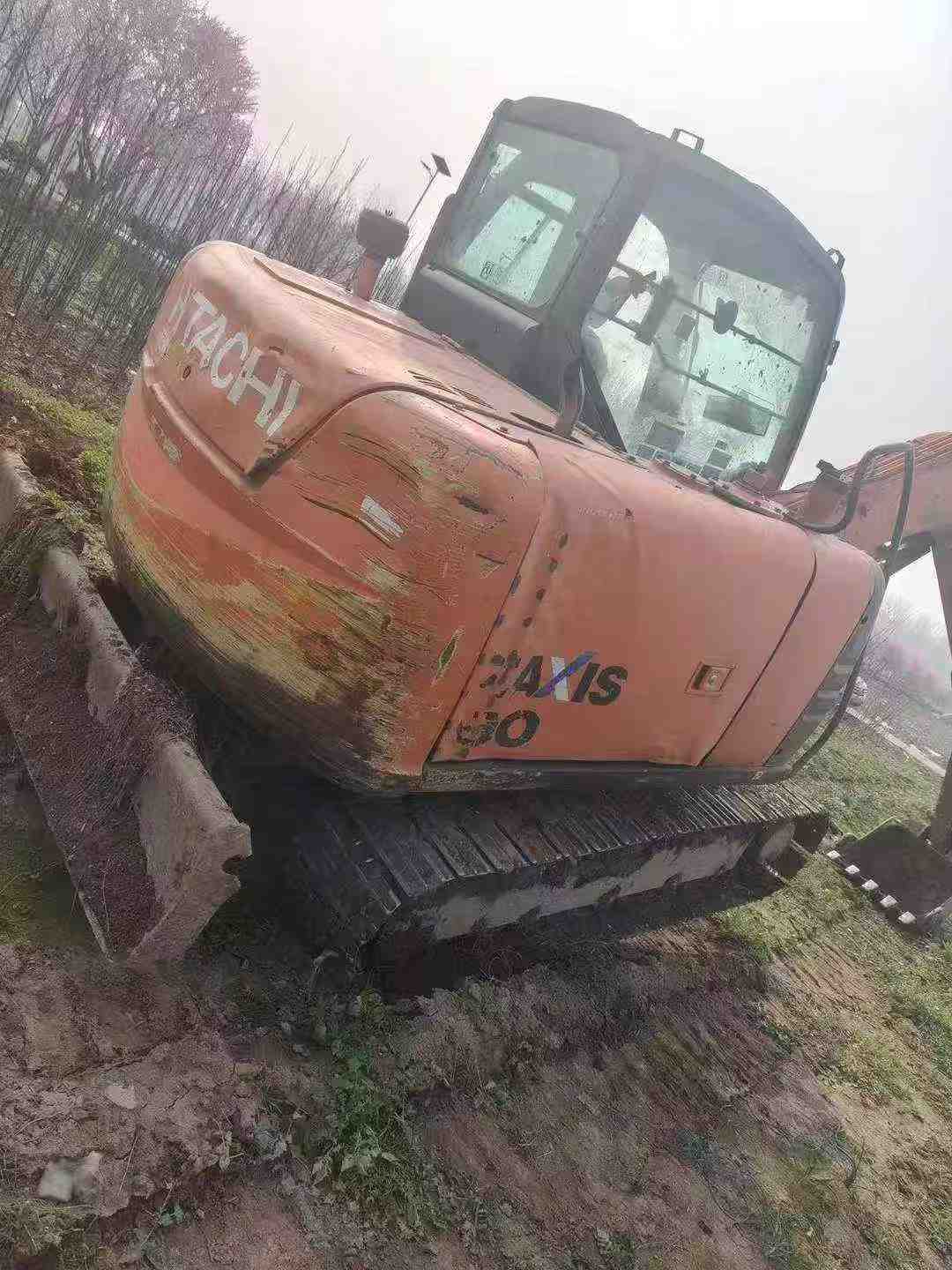

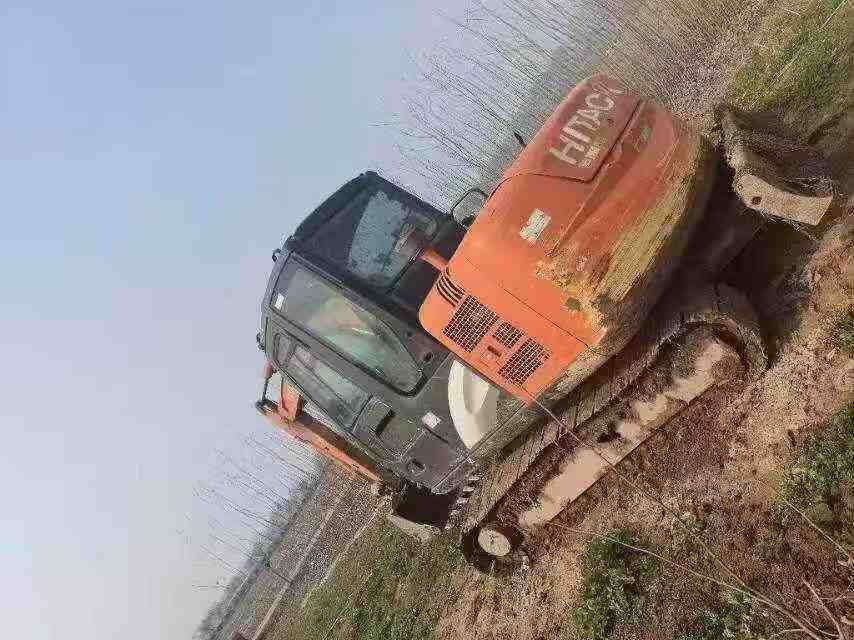

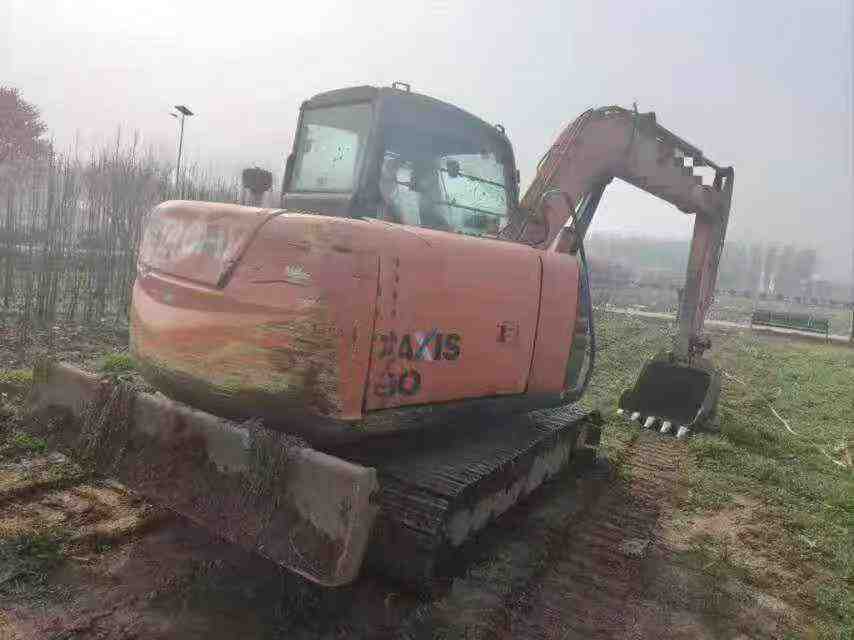

With a working weight of 5960 kg and a bucket capacity of 0.24 m³, the 2015 Hitachi ZX60-5G is designed for efficiency and reliability. Powered by a Yanmar 4TNV98-AVHBW engine, this excavator delivers 42.4 kW at 2100 rpm, ensuring robust performance on any job site. Located in 福建莆田, this machine is available now, allowing you to skip the factory lead times and achieve fast deployment to your site.
- Maximum digging depth: 3850 mm
- Travel speed: 0-4.5/0-2.5 km/h
- Rotary hydraulic motor: 1 axial plunger motor
- Total transport length: 6060 mm
- Track gauge: 1600 mm
Featuring a maximum tractive force of 38.5 kN and a climbing ability of 70%, the ZX60-5G is ideal for challenging terrains. Its 24.5 Mpa traveling hydraulic circuit and 17.6 Mpa rotary hydraulic circuit ensure smooth and powerful operation. Ready for immediate use, this excavator from 福建莆田 will enhance your project's logistics and speed.
| Specifications | Value |
|---|---|
| No. | 1033776 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |

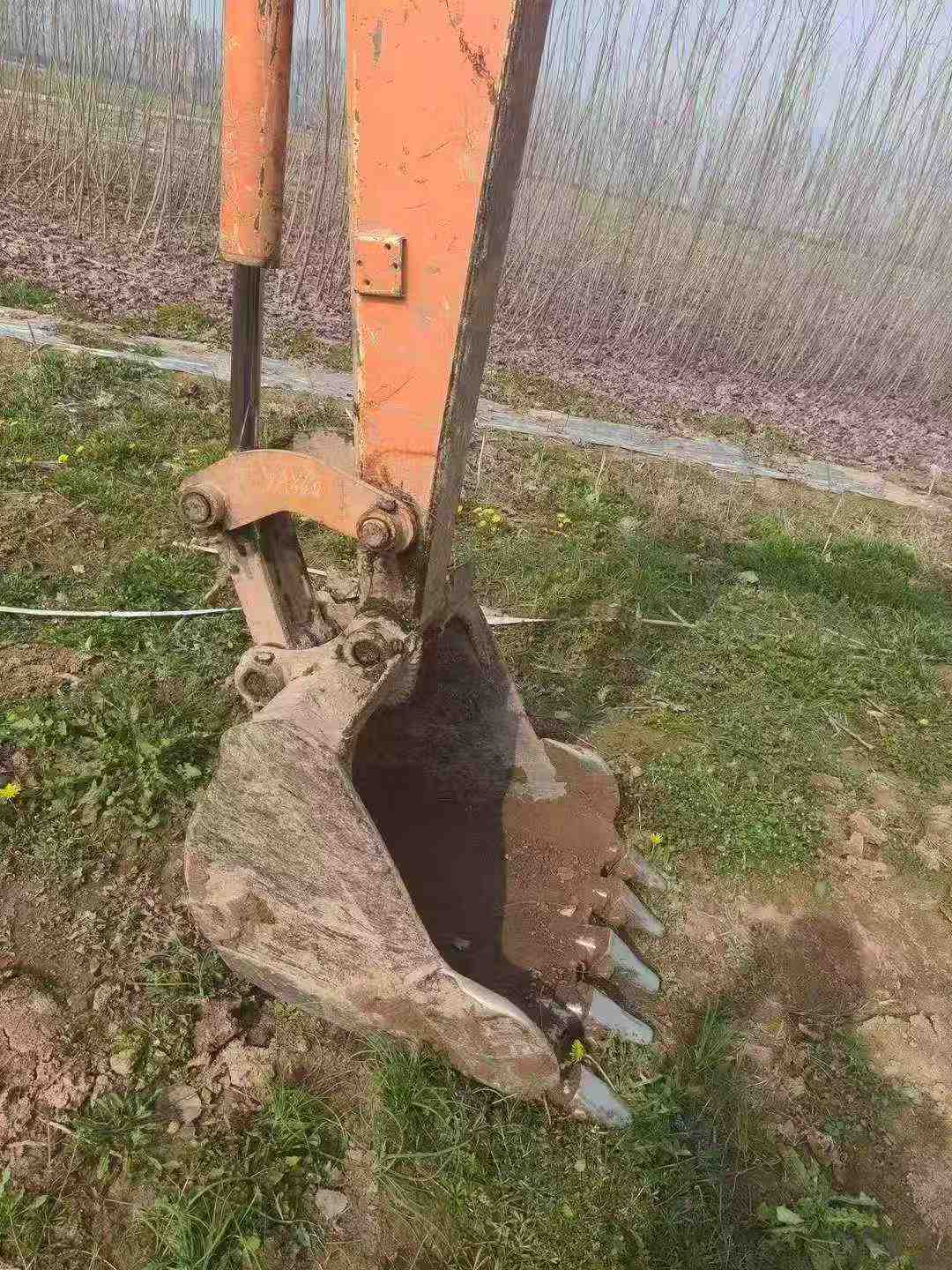

| Bucket capacity (m³) | 0.24 |
| Country of origin | Hefei (Capital of Anhui Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

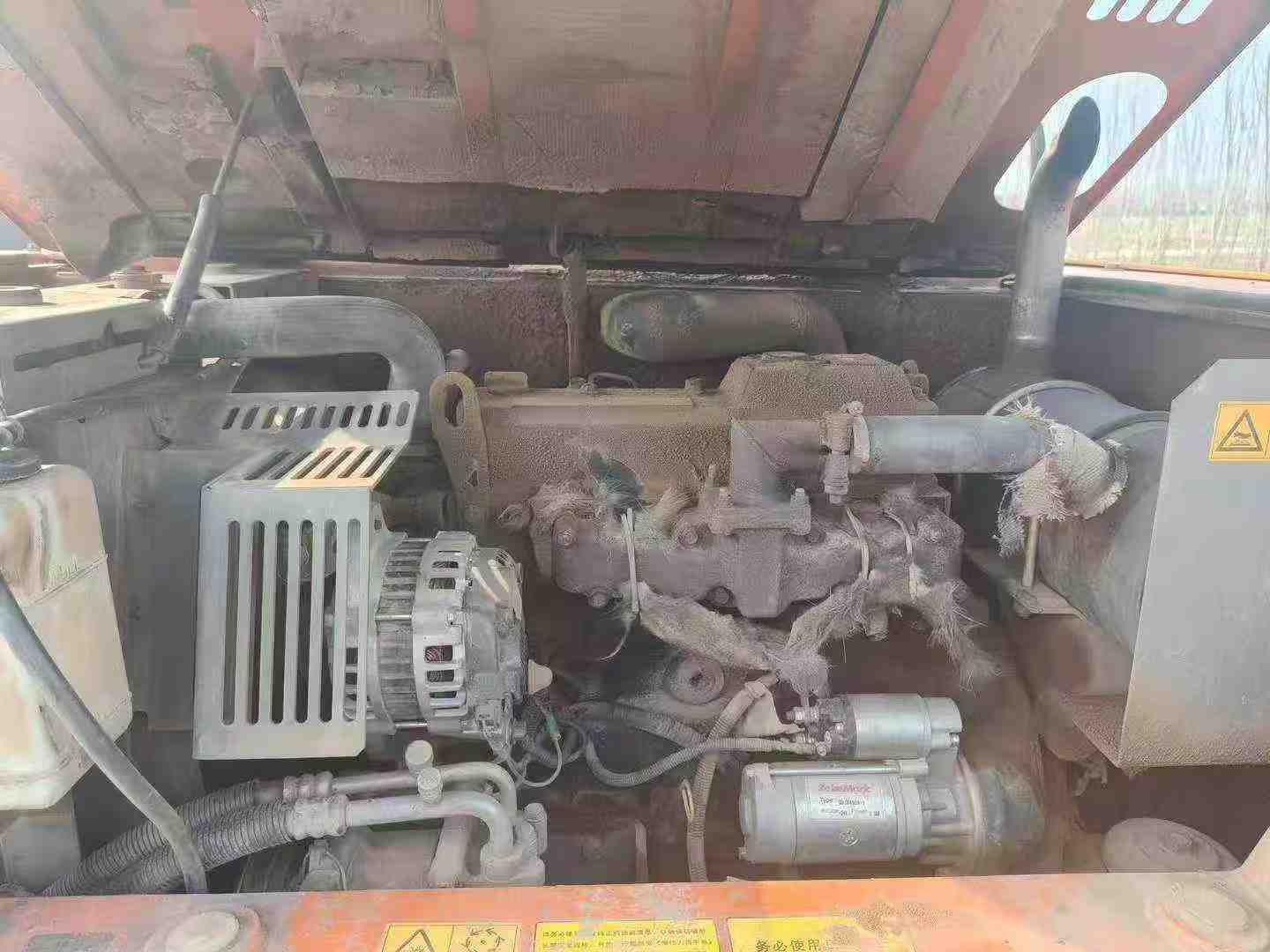

| Engine type | Yanmar 4TNV98-AVHBW |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236 |
| Number of cylinders (PCS) | 4 |
| Working form | Four-stroke, water-cooled, direct injection |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70% (35°) |
| Maximum tractive force (kN) | 38.5 |
| Travel speed (km/h) | 0-4.5/0-2.5 |
| Turning torque (Nm) | 10 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 17.6 |
| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 60 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 93 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2085 |
| Full cab height (mm) | 2475 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 2060 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3440 |
| Dodging plate width × height (mm) | 200 x 400 |
| Maximum excavation radius of stop surface (mm) | 6130 |
