Product Description

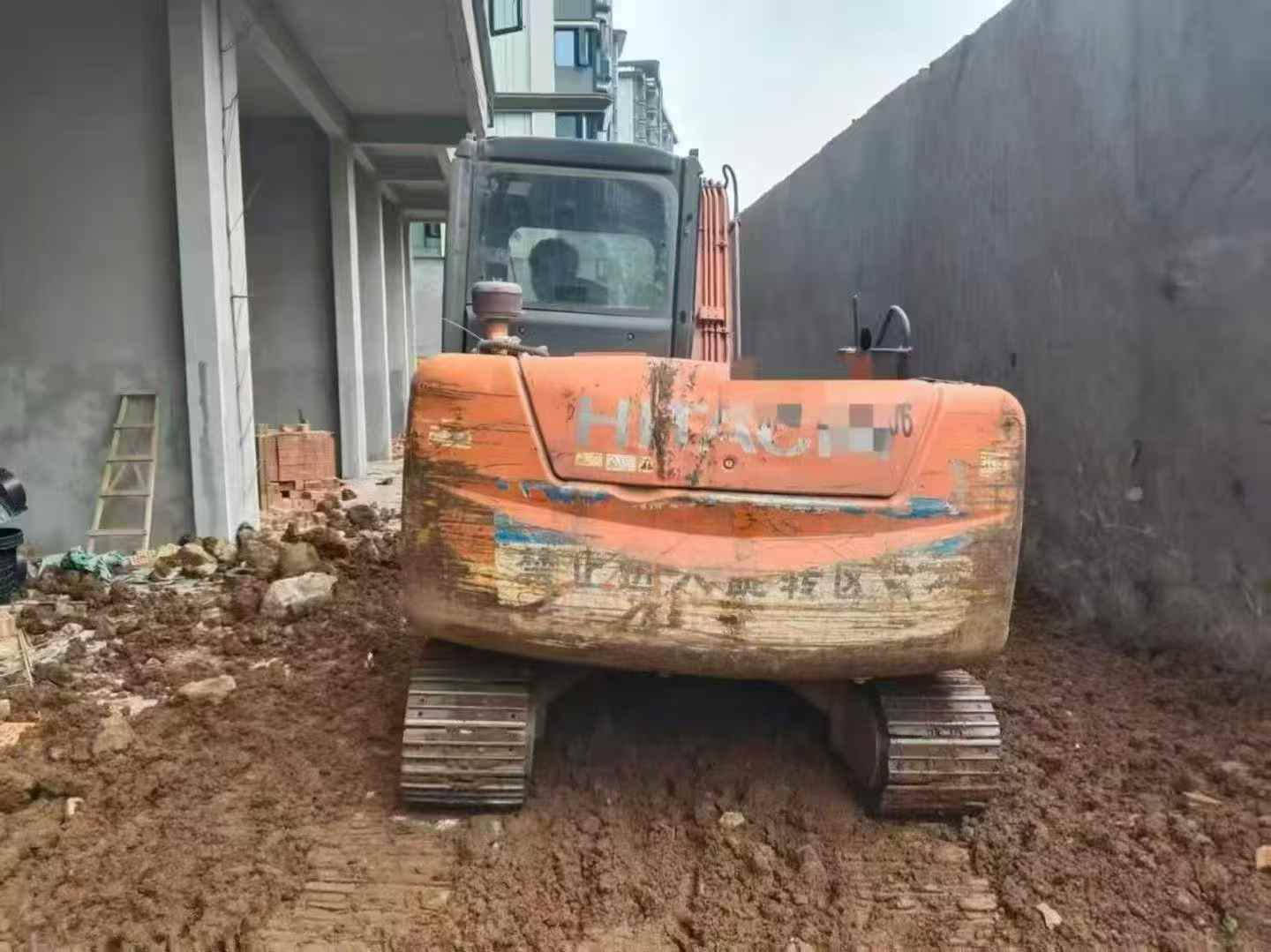

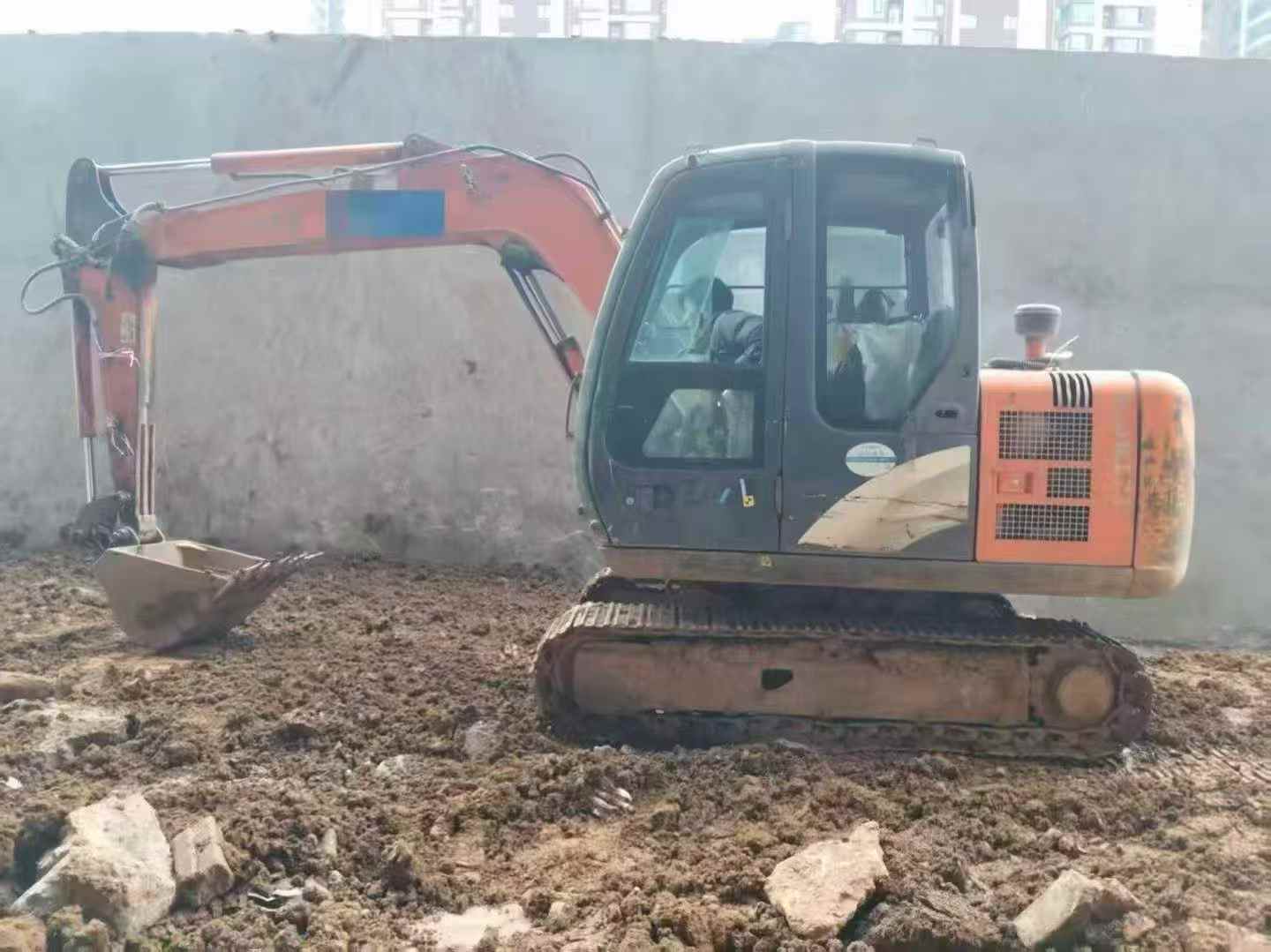

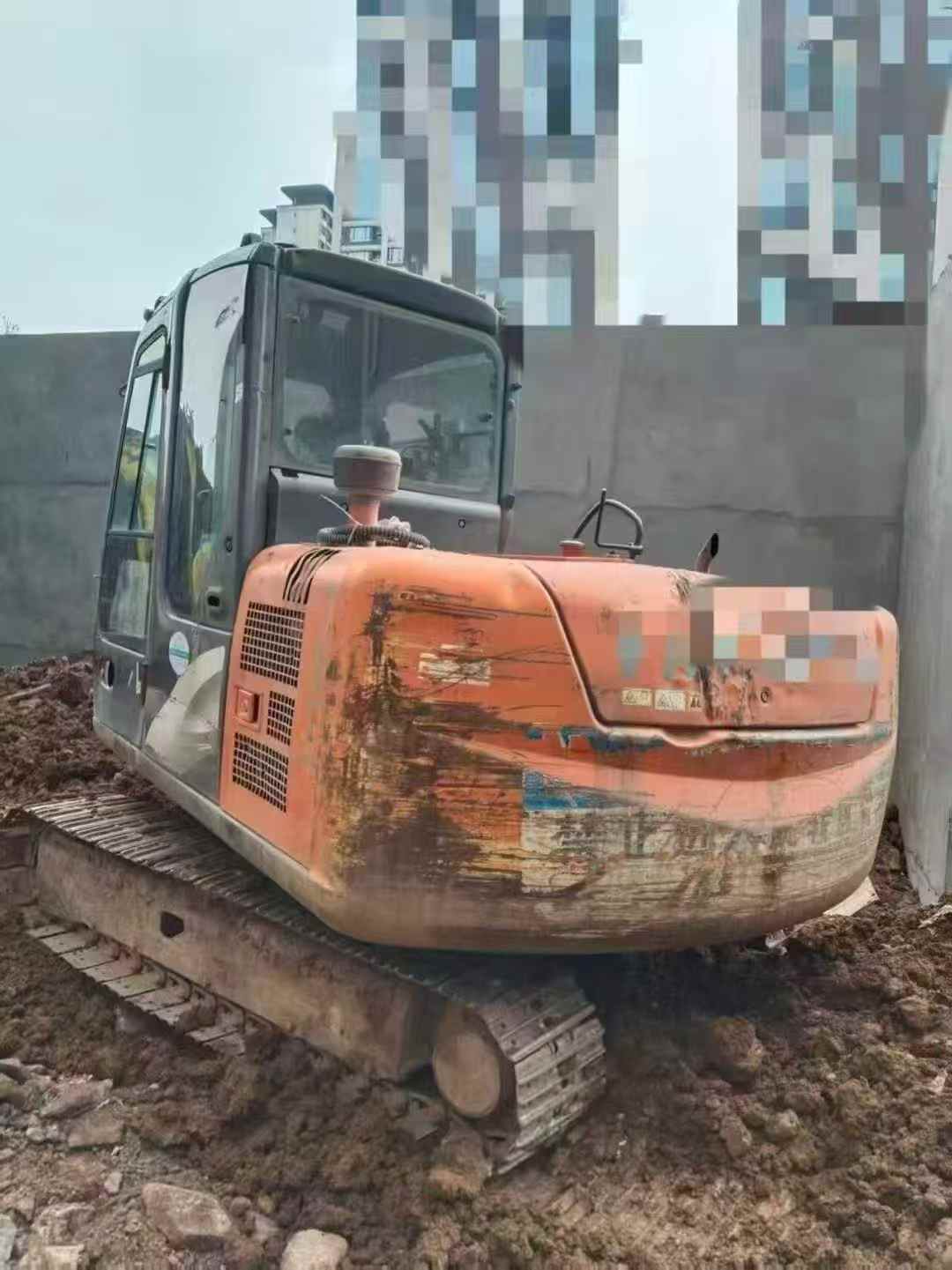

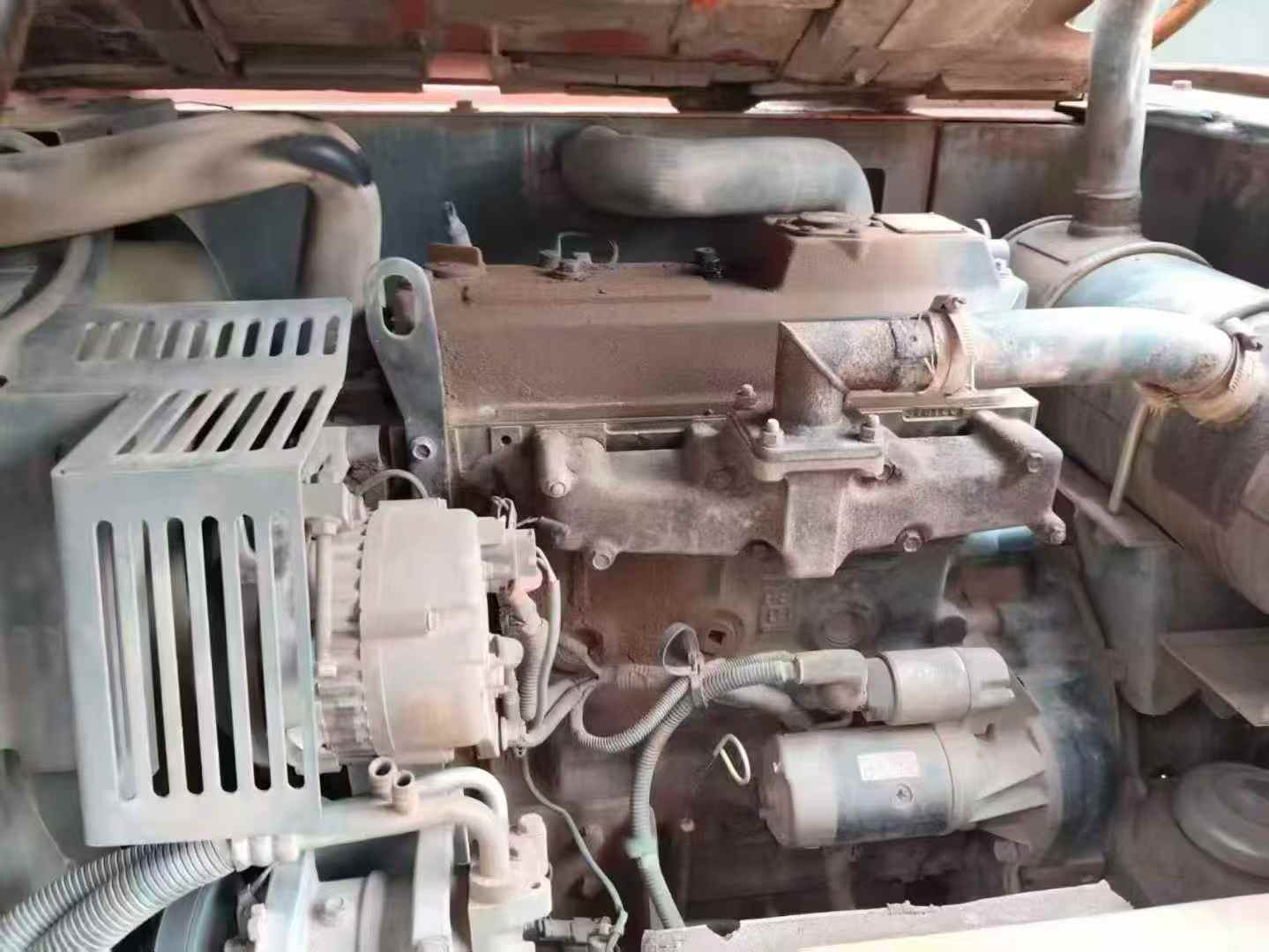

Proven in demanding conditions since 2016, this Hitachi ZX60-5G compact excavator demonstrates the durability that defines Japan-engineered machinery. Currently located in Guizhou, this 6-ton workhorse combines a reliable Yanmar 4TNV98-AVHBW engine delivering 42.4kW at 2100rpm with precision hydraulics designed for sustained performance. Operating weight of 5,960kg provides stability while maintaining agility in confined spaces.
Built for versatility, this machine features a maximum digging depth of 3,850mm and reach of 6,250mm, backed by a robust 0.24m³ backhoe bucket. Water-cooled four-stroke engine ensures consistent output across extended shifts. With 70% climbing ability and 38.5kN tractive force, challenging terrain poses no obstacle. Three variable axial piston pumps maintain 24.5MPa working pressure, while 120L fuel capacity minimizes downtime. Compact transport dimensions (6,060 x 2,060 x 2,475mm) facilitate easy mobilization between sites.
This proven excavator represents intelligent investment—mature technology, documented reliability, and the engineering standards that have established Hitachi's reputation across global construction and excavation sectors.
| Specifications | Value |
|---|---|
| No. | 1033849 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.24 |
| Country of origin | Hefei (Capital of Anhui Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98-AVHBW |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236 |
| Number of cylinders (PCS) | 4 |
| Working form | Four-stroke, water-cooled, direct injection |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70% (35°) |
| Maximum tractive force (kN) | 38.5 |
| Travel speed (km/h) | 0-4.5/0-2.5 |
| Turning torque (Nm) | 10 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 17.6 |
| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 60 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 93 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2085 |
| Full cab height (mm) | 2475 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 2060 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3440 |
| Dodging plate width × height (mm) | 200 x 400 |
| Maximum excavation radius of stop surface (mm) | 6130 |
