2016 Hitachi ZX60-5G

1/9

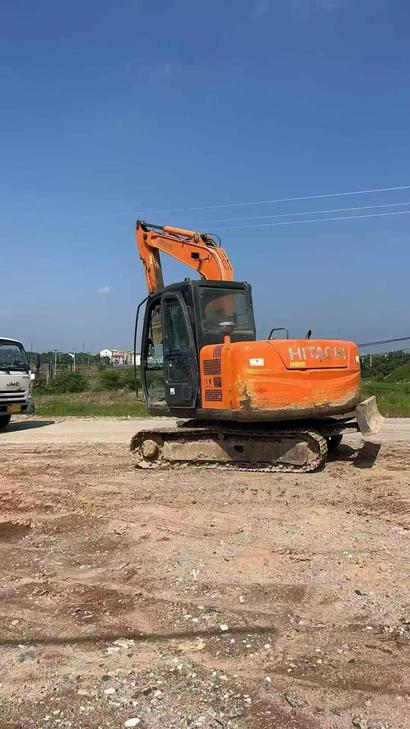

Buy Hitachi ZX60-5G Used Excavator / 1
Buy Hitachi ZX60-5G Used Excavator / 2
Buy Hitachi ZX60-5G Used Excavator / 3
Buy Hitachi ZX60-5G Used Excavator / 4
Buy Hitachi ZX60-5G Used Excavator / 5
Buy Hitachi ZX60-5G Used Excavator / 6
Buy Hitachi ZX60-5G Used Excavator / 7
Buy Hitachi ZX60-5G Used Excavator / 8
Buy Hitachi ZX60-5G Used Excavator / 9

Product Description

This 2016 Hitachi ZX60-5G compact excavator represents an excellent opportunity for contractors seeking reliable performance in a proven platform. Currently located in Jiangxi, China, this 6-ton class machine demonstrates exceptional care throughout its operational life.

The unit features well-maintained major components with no oil leakage reported, ensuring dependable hydraulic operation. The operator station includes functional air conditioning for improved comfort during extended shifts. External appearance shows minimal wear, while the undercarriage components retain approximately 97% remaining life—a significant value indicator for prospective buyers.

Key attributes include:

  • Low-hour condition with comprehensive maintenance history
  • Intact undercarriage with excellent remaining life
  • Climate-controlled cab for operator productivity
  • Clean hydraulic system with no reported leaks
  • Ready for immediate deployment

Ideal for utility work, landscaping, and light construction applications requiring maneuverability in confined spaces.

SpecificationsValue
No.1088284
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.24
Country of originHefei (Capital of Anhui Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98-AVHBW
Rated power (kw/rpm)42.4/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 x 110
Maximum torque (N.m)236
Number of cylinders (PCS)4
Working formFour-stroke, water-cooled, direct injection
Rotation speed (rpm)9.1
Climbing ability (%)70% (35°)
Maximum tractive force (kN)38.5
Travel speed (km/h)0-4.5/0-2.5
Turning torque (Nm)10
Rotary hydraulic motor type1 axial plunger motor
Type of walking hydraulic motor2 variable axial piston motors
Traveling Hydraulic Circuit (Mpa)24.5
Rotary Hydraulic Circuit (Mpa)17.6
Main pump type3 variable axial piston pumps
Working Hydraulic Circuit (Mpa)24.5
Fuel Tank (L)120
Hydraulic Tank (L)60
Coolant (L)8
Hydraulic System (L)93
Total transport length (mm)6060
Total transport width (mm)2060
Total transport height (mm)2085
Full cab height (mm)2475
Counterweight ground clearance (mm)620
Minimum ground clearance (mm)310
Minimum turning radius of front working device (mm)2510
Back end turning radius (mm)1650
Onboard width (mm)2060
Track gauge (mm)1600
Track plate width (mm)400
Maximum digging radius (mm)6250
Maximum digging depth (mm)3850
Maximum excavation height (mm)4080
Maximum vertical digging depth (mm)3440
Dodging plate width × height (mm)200 x 400
Maximum excavation radius of stop surface (mm)6130
see more

Overview

No.1088284

Brand Name:

Hitachi

Model Number:

ZX60-5G

Year:

2016

Location:

Jiangxi China

Pub Date
