Product Description

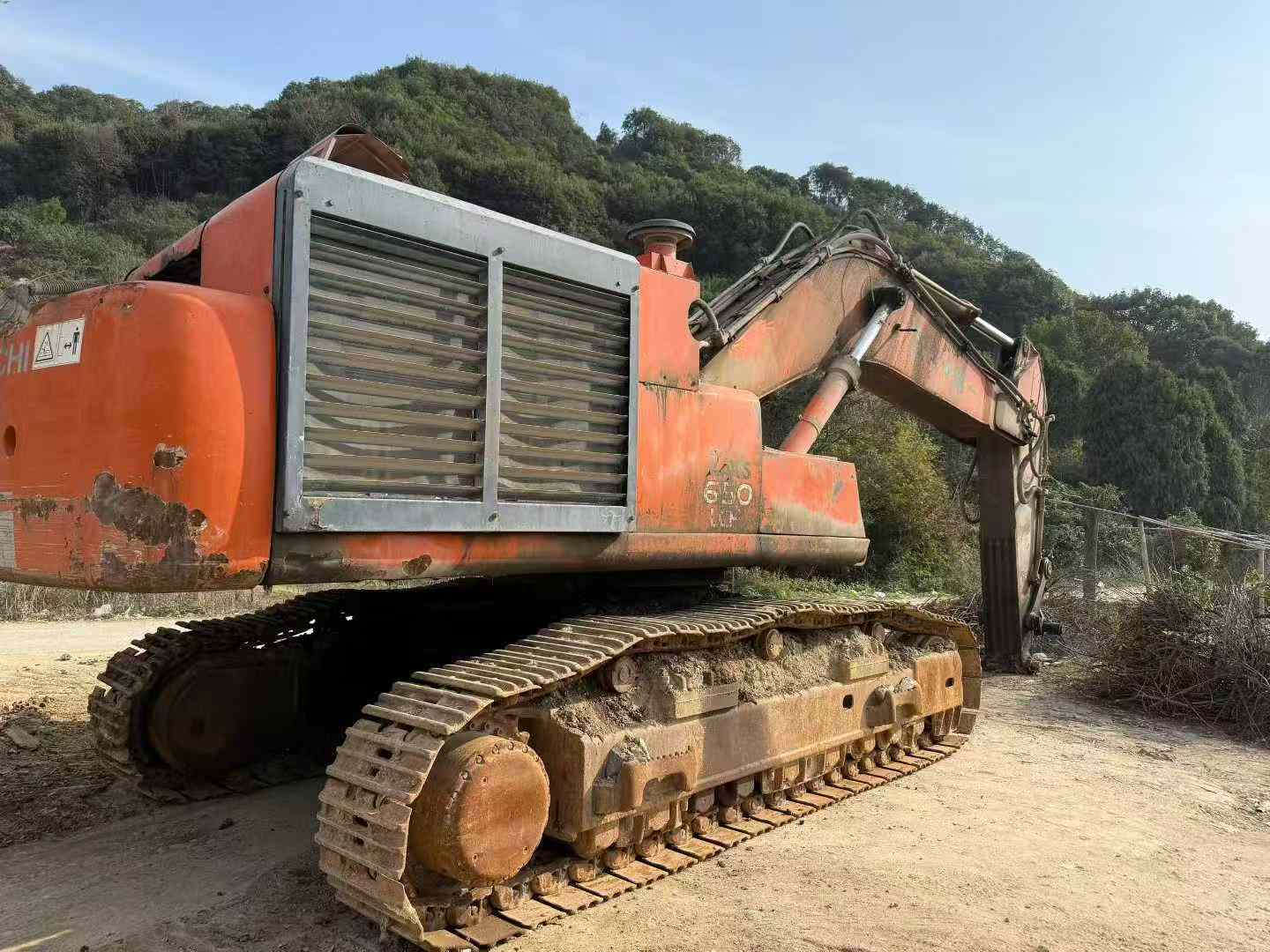

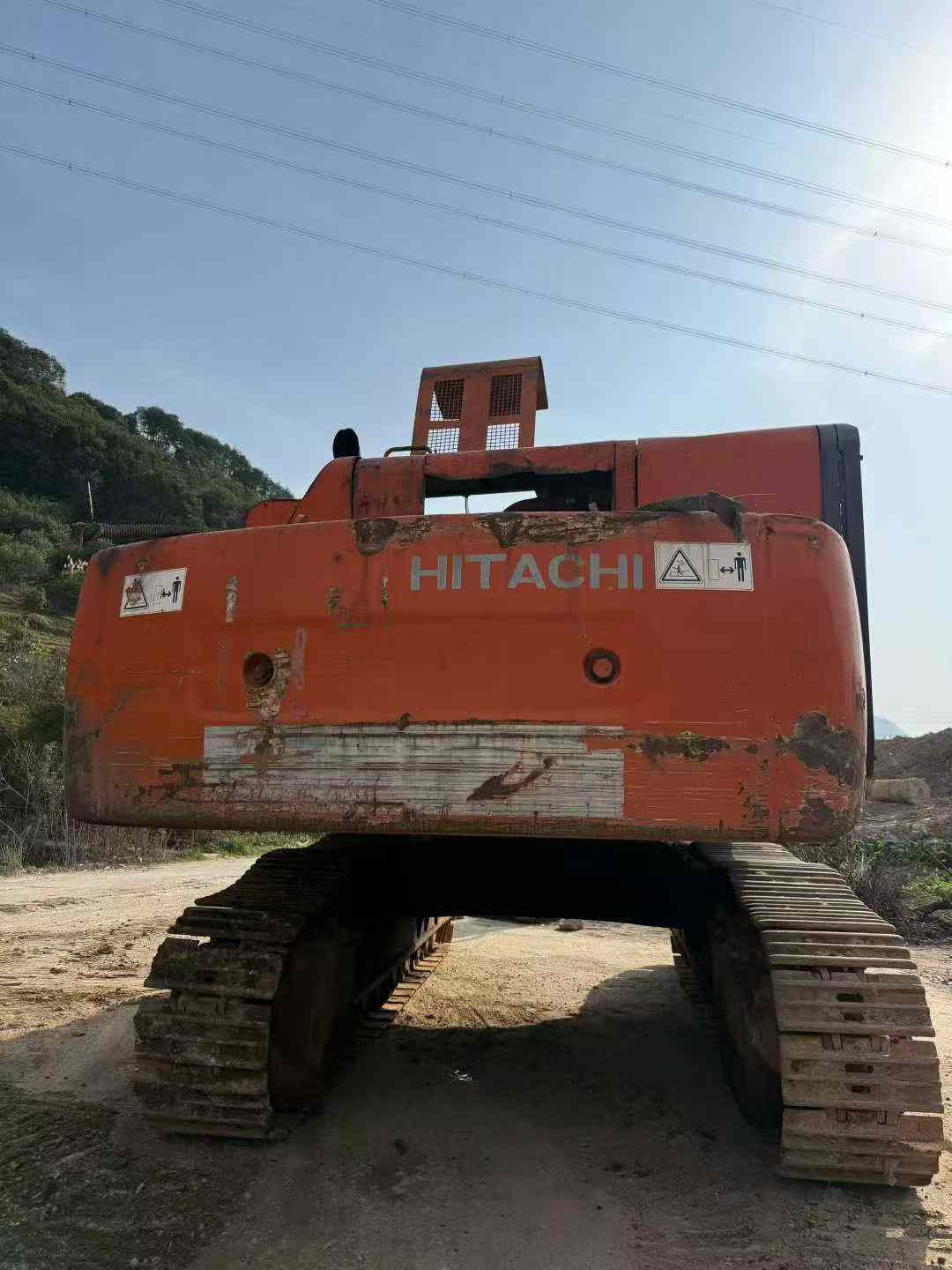

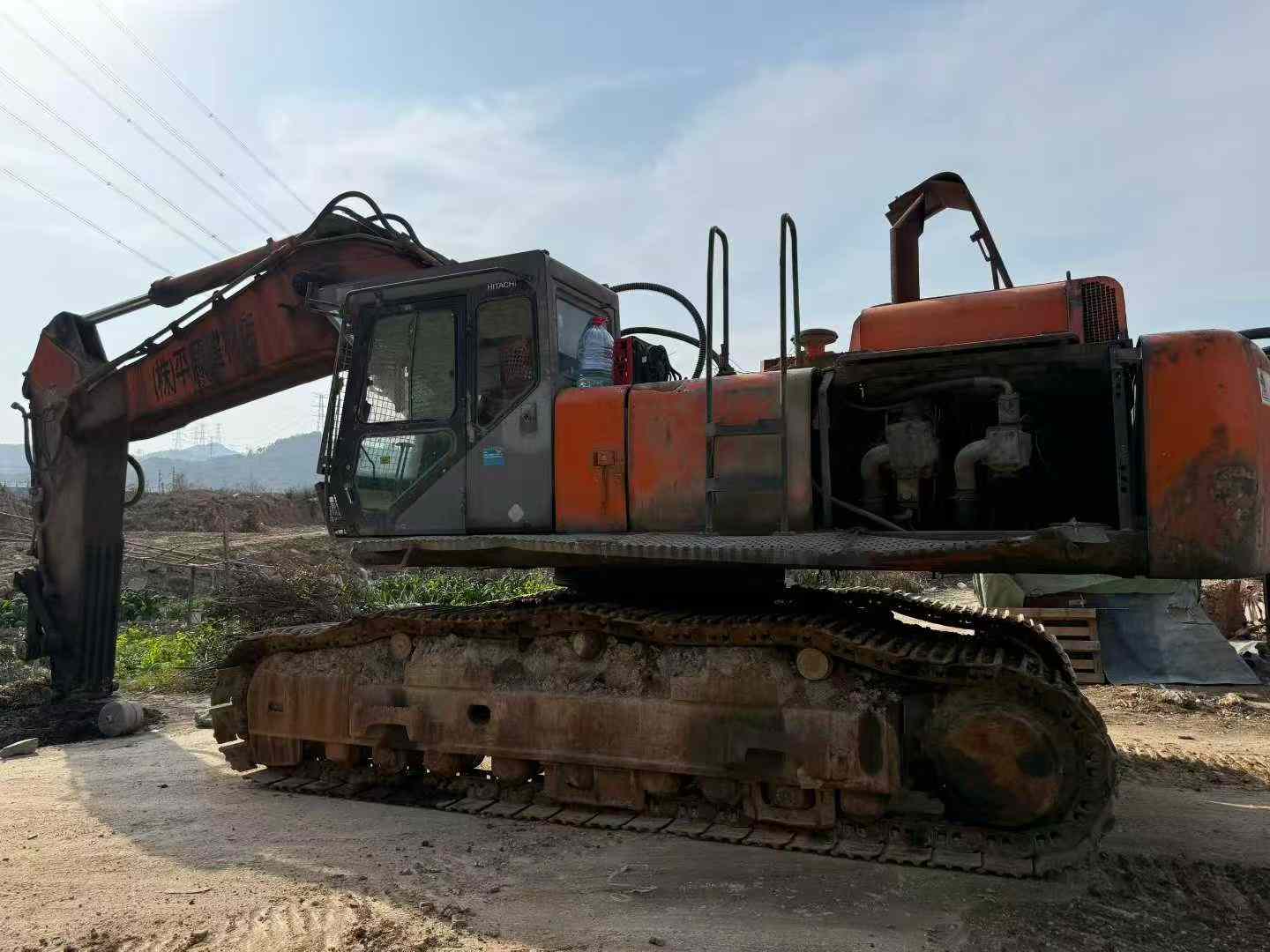

Acquire proven excavation power without the premium price tag. This 2016 Hitachi ZX650LC-3 delivers 65-ton performance with a robust Isuzu 6-cylinder engine generating 345kW at 1800rpm—ideal for large-scale earthmoving, mining, and infrastructure projects. Currently located in Lishui, Zhejiang, this machine represents exceptional value for operators seeking industrial-grade capacity at a fraction of new equipment costs.
- Operating Weight: 65,900 kg with superior stability
- Bucket Capacity: 2.9m³ standard (2.5-3.5m³ range available)
- Maximum Digging Depth: 7,120mm for deep excavation work
- Maximum Reach: 11,500mm at ground level
- Fuel Capacity: 900L tank minimizes refueling downtime
- Hydraulic System: 680L capacity ensures consistent performance

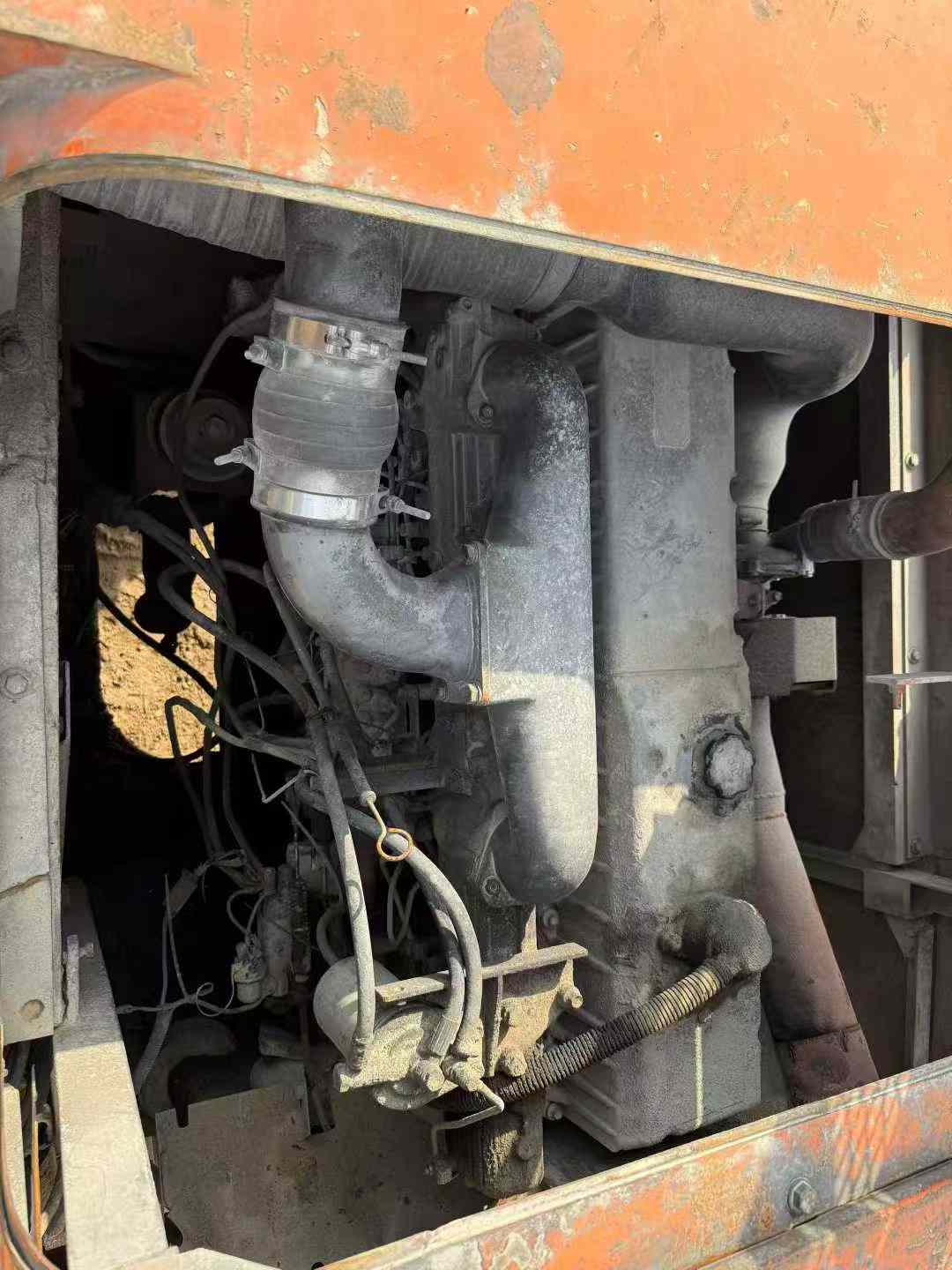

Backed by Hitachi's joint-venture manufacturing standards and powered by a reliable 15.7L Isuzu engine, this ZX650LC-3 offers the durability and productivity your operation demands. Smart buyers recognize the financial advantage: professional-grade capabilities with significantly reduced capital outlay compared to new machine
| Specifications | Value |
|---|---|
| No. | 1028339 |
| Tonnage (tons) | 65 |
| Working weight (kg) | 65900 |
| Bucket capacity (m³) | 2.9/2.5/3.5 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6WG1XYSA-02 |
| Rated power (kw/rpm) | 345/1800 |
| Displacement (L) | 15.7 |
| Ground specific pressure (Kpa) | 99 |
| Travel speed (km/h) | 4.9 |
| Fuel Tank (L) | 900 |
| Engine Oil changes (L) | 57 |
| Coolant (L) | 57 |
| Hydraulic System (L) | 680 |
| Total transport length (mm) | 12260 |
| Total transport width (mm) | 3950 |
| Total transport height (mm) | 4960 |
| Full cab height (mm) | 3450 |
| Counterweight ground clearance (mm) | 1530 |
| Minimum ground clearance (mm) | 860 |
| Back end turning radius (mm) | 3850 |
| Track gauge (mm) | 3300 |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4590 |
| Maximum digging depth (mm) | 7120 |
| Maximum excavation height (mm) | 11190 |
| Maximum unloading height (mm) | 7330 |
| Maximum vertical digging depth (mm) | 5280 |
| Maximum excavation radius of stop surface (mm) | 11500 |
