Product Description

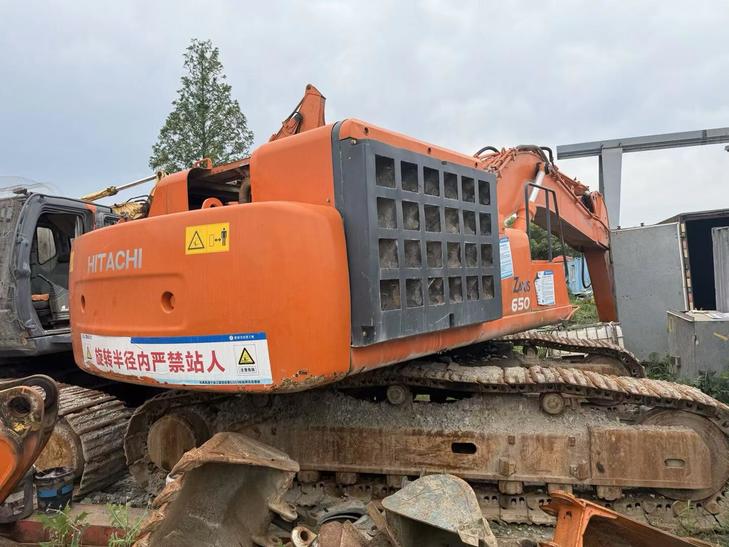

2020 Hitachi ZX650LC-3 hydraulic excavator available in Guangdong, China. This machine represents Hitachi's proven -3 series engineering with approximately 300+ operating hours, indicating limited field use and substantial remaining service life.
The ZX650LC-3 delivers reliable performance in demanding excavation, loading, and earthmoving applications. Equipped with Hitachi's HIOS IV hydraulic system for efficient power management and fuel economy. Long crawler configuration provides enhanced stability for heavy lifting and deep excavation work.
- Operating weight class: 65 metric tons
- Isuzu diesel engine with proven durability
- Spacious ROPS/FOPS certified operator cabin
- Standard bucket and attachment-ready hydraulics
- Well-maintained condition, ready for deployment
Suitable for mining, quarrying, infrastructure development, and large-scale construction projects. Inspection welcomed. Export documentation and loading assistance available.
| Specifications | Value |
|---|---|
| No. | 1083501 |
| Tonnage (tons) | 65 |
| Working weight (kg) | 65900 |
| Bucket capacity (m³) | 2.9/2.5/3.5 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6WG1XYSA-02 |
| Rated power (kw/rpm) | 345/1800 |
| Displacement (L) | 15.7 |
| Ground specific pressure (Kpa) | 99 |
| Travel speed (km/h) | 4.9 |
| Fuel Tank (L) | 900 |
| Engine Oil changes (L) | 57 |
| Coolant (L) | 57 |
| Hydraulic System (L) | 680 |
| Total transport length (mm) | 12260 |
| Total transport width (mm) | 3950 |
| Total transport height (mm) | 4960 |
| Full cab height (mm) | 3450 |
| Counterweight ground clearance (mm) | 1530 |
| Minimum ground clearance (mm) | 860 |
| Back end turning radius (mm) | 3850 |
| Track gauge (mm) | 3300 |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4590 |
| Maximum digging depth (mm) | 7120 |
| Maximum excavation height (mm) | 11190 |
| Maximum unloading height (mm) | 7330 |
| Maximum vertical digging depth (mm) | 5280 |
| Maximum excavation radius of stop surface (mm) | 11500 |
