Product Description

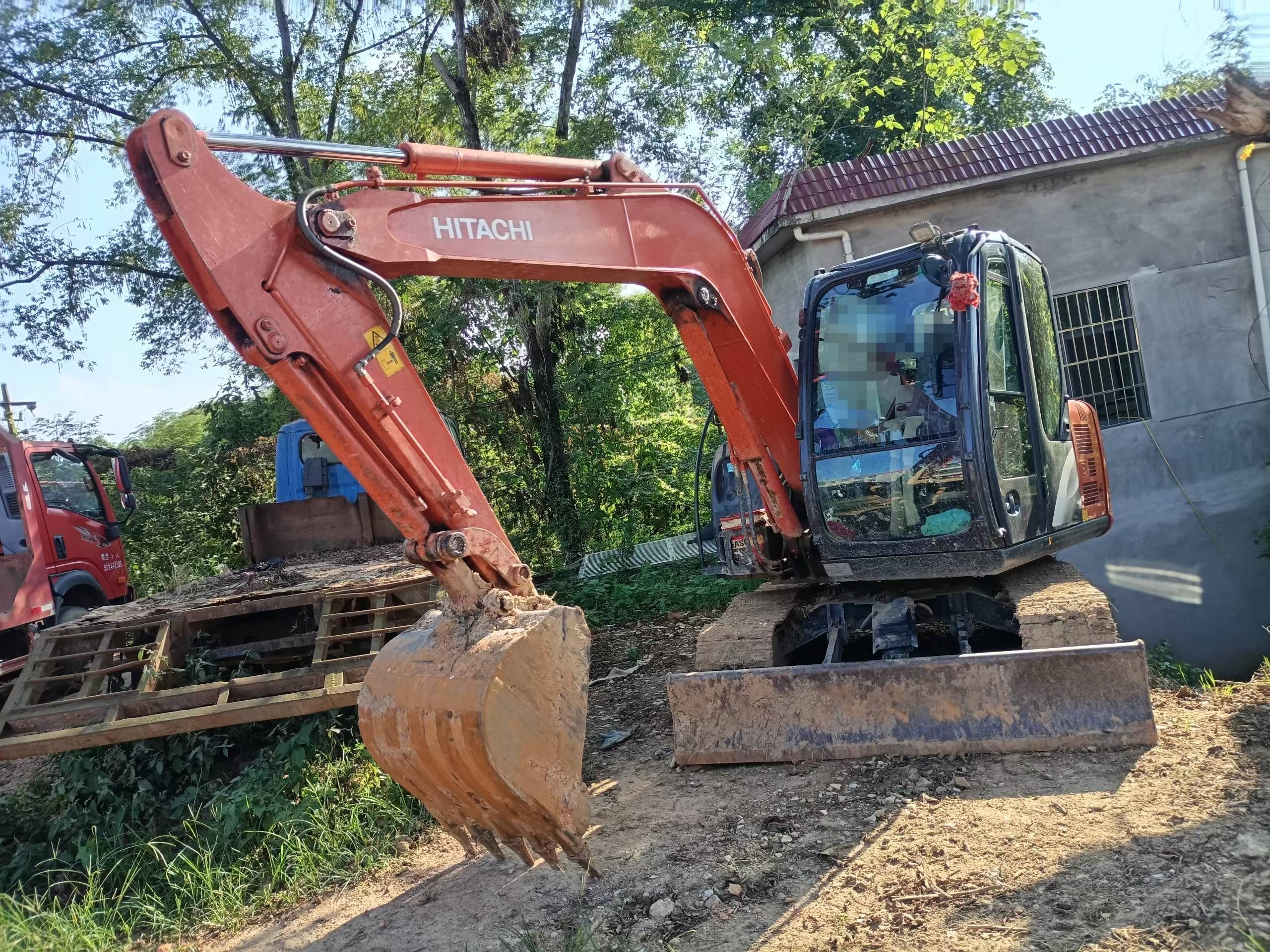

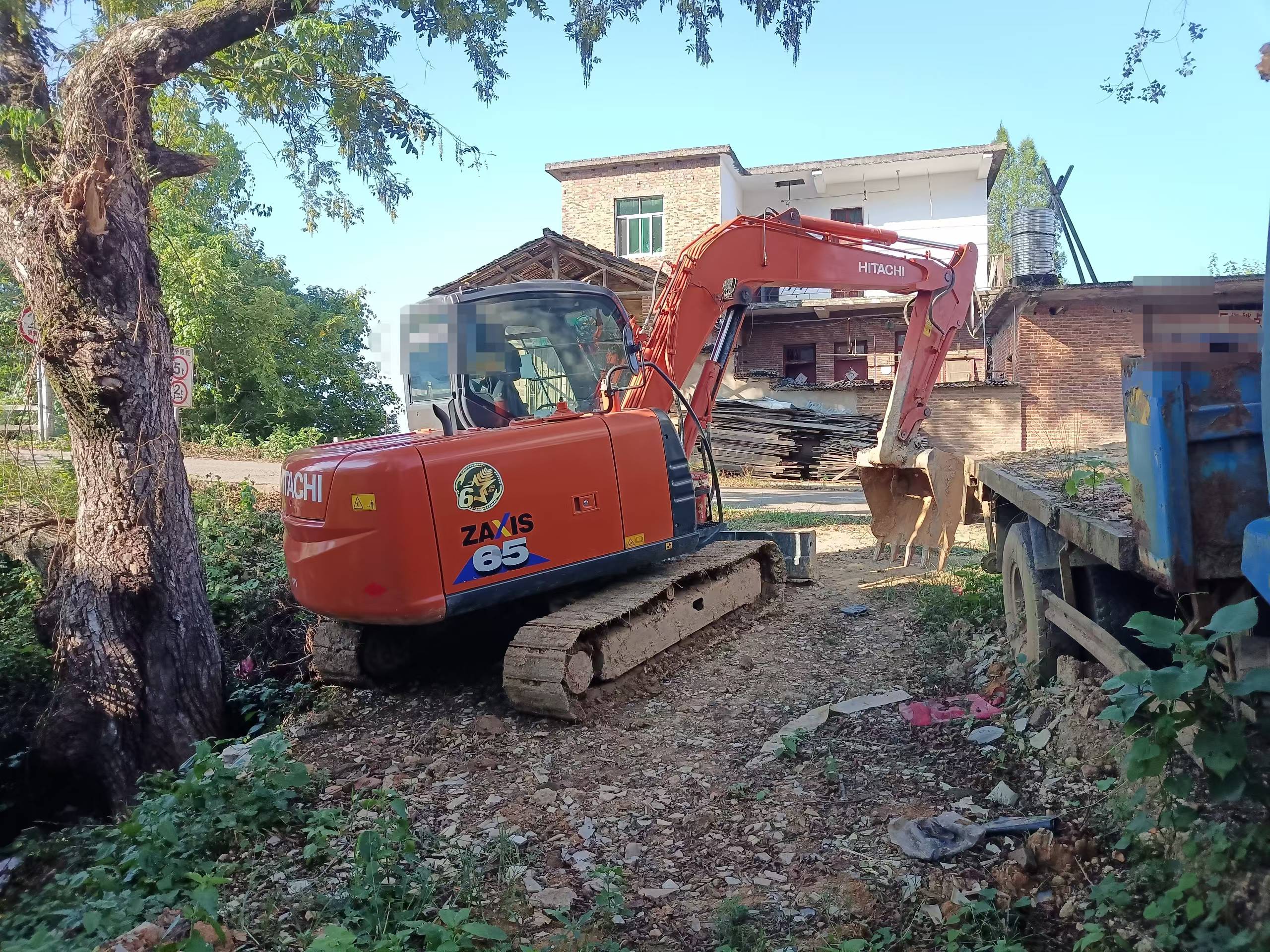

This 2023 Hitachi ZX65USB-3F compact excavator represents excellent value in the used equipment market. Currently located in Jiangxi, China, this zero tail swing machine delivers versatility for confined worksite operations.
The ZX65USB-3F features Hitachi's proven hydraulic system and compact design, making it ideal for urban construction, landscaping, and utility projects where space is limited. With approximately 6.5 metric tons operating weight, this machine balances power and maneuverability effectively.
- Year of Manufacture: 2023
- Model: ZX65USB-3F
- Configuration: Zero tail swing
- Current Location: Jiangxi Province, China
- Condition: Well-maintained used unit
This recent-year model offers buyers access to modern excavator technology at competitive pricing. Contact us for detailed specifications, inspection reports, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1114117 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6350 |
| Bucket capacity (m³) | 0.27 |
| Boom length (mm) | 2970 |
| Rod length (mm) | 1500 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanmar 4TNV98 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 243/1000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection type |
| Ground specific pressure (Kpa) | 36 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 58%(30 degrees) |
| Bucket digging force (kN) | 41.1 |
| Rod digging force (kN) | 31.1 |
| Maximum tractive force (kN) | 39.8 |
| Travel speed (km/h) | 4.2/2.4 |
| Turning torque (Nm) | 11 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 144 |
| Traveling Hydraulic Circuit (Mpa) | 25.7 |
| Rotary Hydraulic Circuit (Mpa) | 19.6 |
| Main pump type | Variable axial piston pump ×1+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 10.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 x 570 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-90 x 770 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-110 x 785 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 11.9 |
| Coolant (L) | 6.5 |
| Hydraulic System (L) | 127.5 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Counterweight ground clearance (mm) | 615 |
| Minimum ground clearance (mm) | 330 |
| Minimum turning radius of front working device (mm) | 2470 |
| Back end turning radius (mm) | 1390 |
| Onboard width (mm) | 2000 |
| Total track length (mm) | 2450 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Maximum digging radius (mm) | 6230 |
| Maximum digging depth (mm) | 3770 |
| Maximum excavation height (mm) | 5960 |
| Maximum unloading height (mm) | 4170 |
| Maximum vertical digging depth (mm) | 3050 |
| Bulldozer lift or depth (mm) | 445/390 |
| Dodging plate width × height (mm) | 2000 x 415 |
| Maximum excavation radius of stop surface (mm) | 6090 |
| Boom turning Angle (left/right °) | Left 65/ right 60 |
| Boom offset (left/right °) | Left 720/ Right 795 |
Overview
No.1114117
Brand Name：
HitachiModel Number：
ZX65USB-3FYear：
2023
Location：
Jiangxi China
Pub Date：
