Product Description

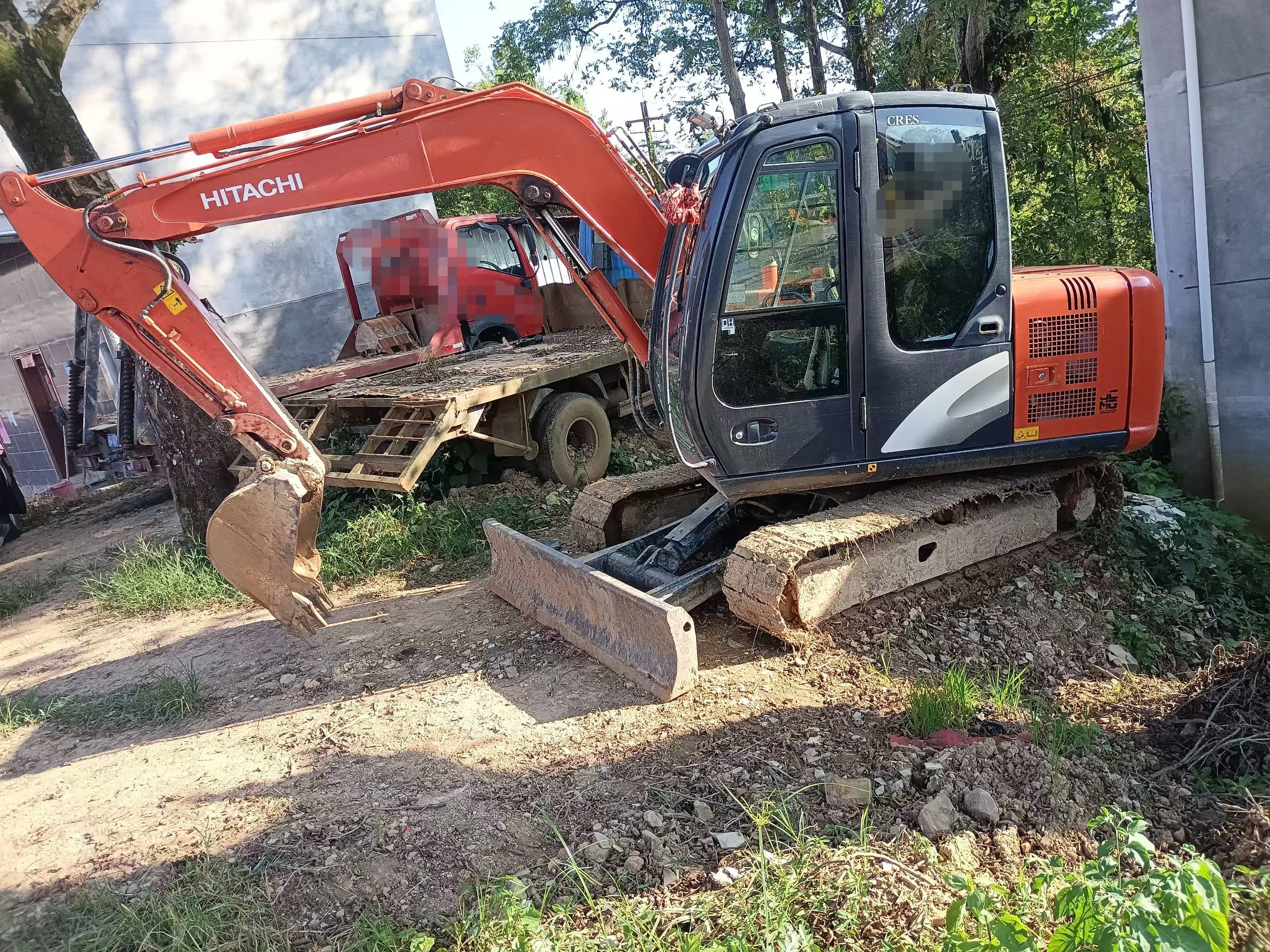

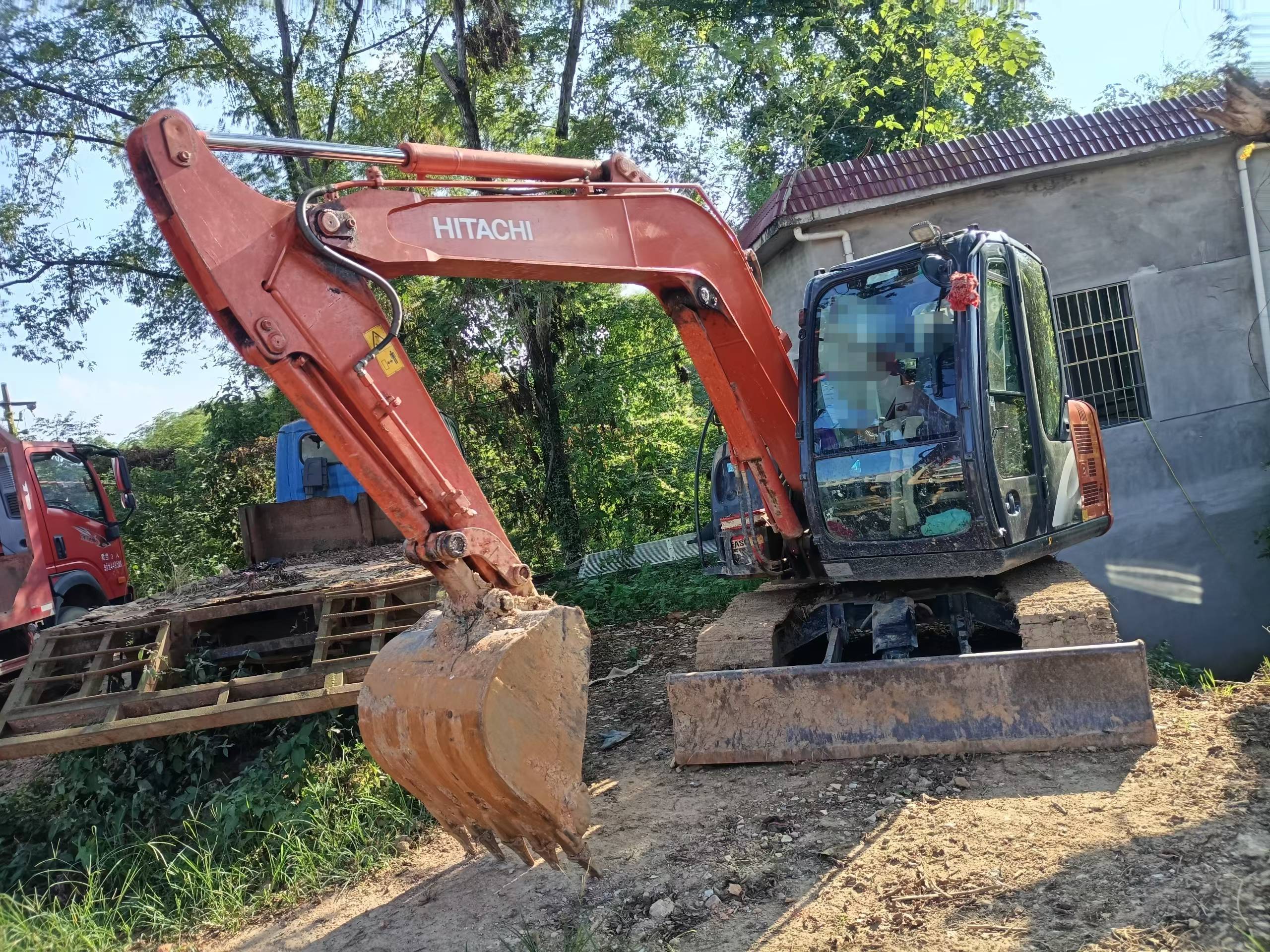

Discover the exceptional quality of a 2023 Hitachi ZX65USB-3F, now available in Jiangxi, China. This compact excavator is renowned for its durability and efficiency, making it an ideal choice for a wide range of construction and excavation projects. Built to withstand the rigors of demanding work environments, this machine offers reliable performance and superior maneuverability.
- Year: 2023
- Brand: Hitachi
- Model: ZX65USB-3F
- Location: Jiangxi, China
| Specifications | Value |
|---|---|
| No. | 1116210 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6350 |
| Bucket capacity (m³) | 0.27 |
| Boom length (mm) | 2970 |
| Rod length (mm) | 1500 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

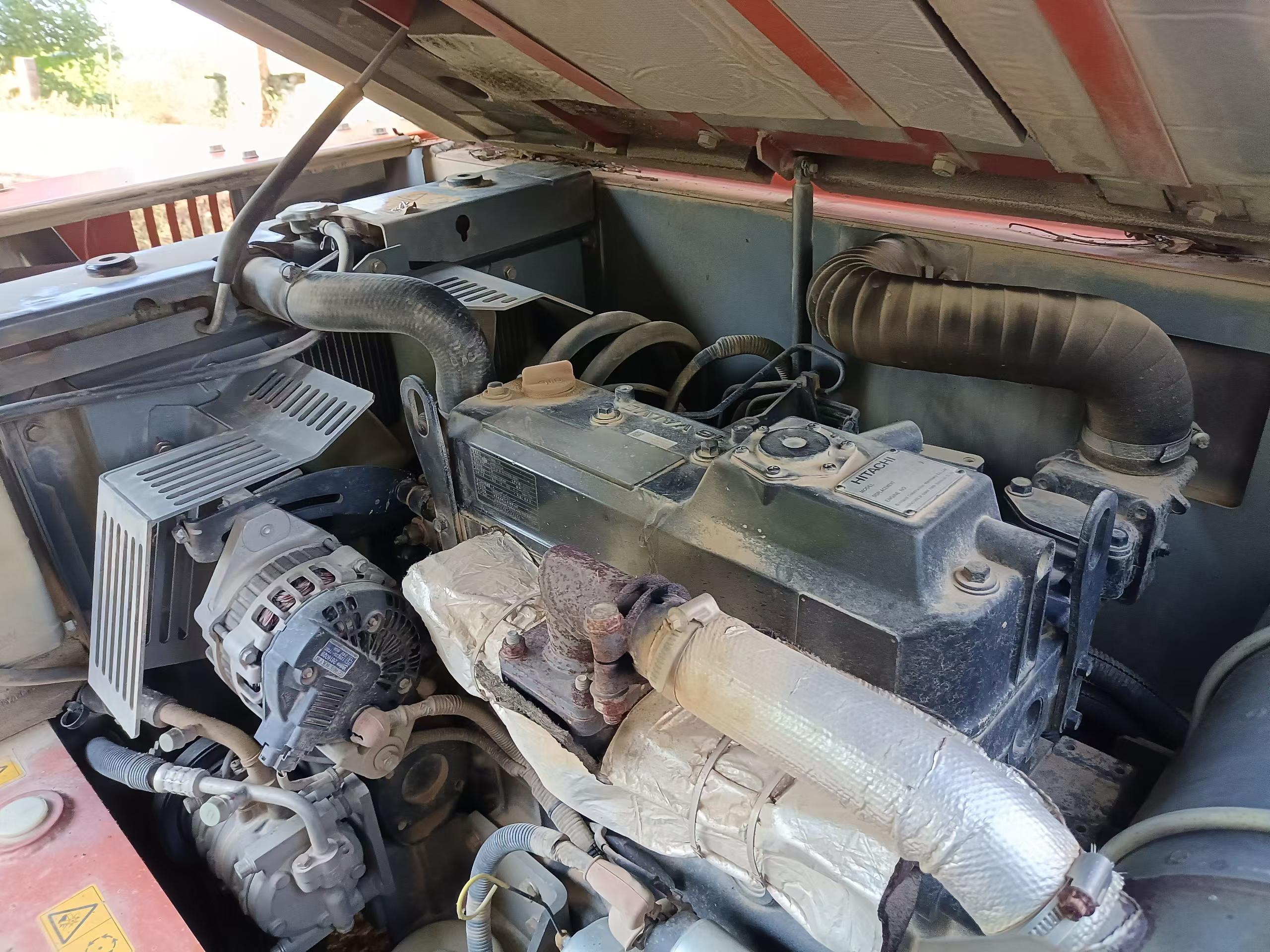

| Engine type | Yanmar Yanmar 4TNV98 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 243/1000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection type |
| Ground specific pressure (Kpa) | 36 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 58%(30 degrees) |
| Bucket digging force (kN) | 41.1 |
| Rod digging force (kN) | 31.1 |
| Maximum tractive force (kN) | 39.8 |
| Travel speed (km/h) | 4.2/2.4 |
| Turning torque (Nm) | 11 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 144 |
| Traveling Hydraulic Circuit (Mpa) | 25.7 |
| Rotary Hydraulic Circuit (Mpa) | 19.6 |
| Main pump type | Variable axial piston pump ×1+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 10.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 x 570 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-90 x 770 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-110 x 785 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 11.9 |
| Coolant (L) | 6.5 |
| Hydraulic System (L) | 127.5 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Counterweight ground clearance (mm) | 615 |
| Minimum ground clearance (mm) | 330 |
| Minimum turning radius of front working device (mm) | 2470 |
| Back end turning radius (mm) | 1390 |
| Onboard width (mm) | 2000 |
| Total track length (mm) | 2450 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Maximum digging radius (mm) | 6230 |
| Maximum digging depth (mm) | 3770 |
| Maximum excavation height (mm) | 5960 |
| Maximum unloading height (mm) | 4170 |
| Maximum vertical digging depth (mm) | 3050 |
| Bulldozer lift or depth (mm) | 445/390 |
| Dodging plate width × height (mm) | 2000 x 415 |
| Maximum excavation radius of stop surface (mm) | 6090 |
| Boom turning Angle (left/right °) | Left 65/ right 60 |
| Boom offset (left/right °) | Left 720/ Right 795 |
