Product Description
Proven performance meets exceptional value in this 2016 Hitachi ZX690LCH-5A hydraulic excavator, a 69-ton workhorse engineered for demanding mining and heavy construction applications. Powered by an Isuzu 6-cylinder engine delivering 345 kW at 1800 rpm, this machine combines robust digging forces—369 kN bucket force and 306 kN arm force—with an impressive 11,780 mm maximum digging radius. Currently located in Hangzhou, Zhejiang, this excavator represents a strategic investment backed by Hitachi's legendary reliability.
Why Choose Hitachi in the Used Market:
- Global Parts Network: Extensive dealer support ensures critical components remain readily available, minimizing downtime across continents
- Proven Resale Strength: Hitachi excavators consistently command premium prices due to documented durability and operator preference
- Service Documentation: Established maintenance protocols and diagnostic systems simplify fleet integration
- Operational Transparency: Water-cooled, electronically controlled direct injection technology with straightforward troubleshooting procedures
Equipped with dual v
| Specifications | Value |
|---|---|
| No. | 1031280 |
| Tonnage (tons) | 69 |
| Working weight (kg) | 69100 |
| Bucket capacity (m³) | 4 |
| Boom length (mm) | 6800 |
| Rod length (mm) | 2900 |
| Bucket width (mm) | 1950 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

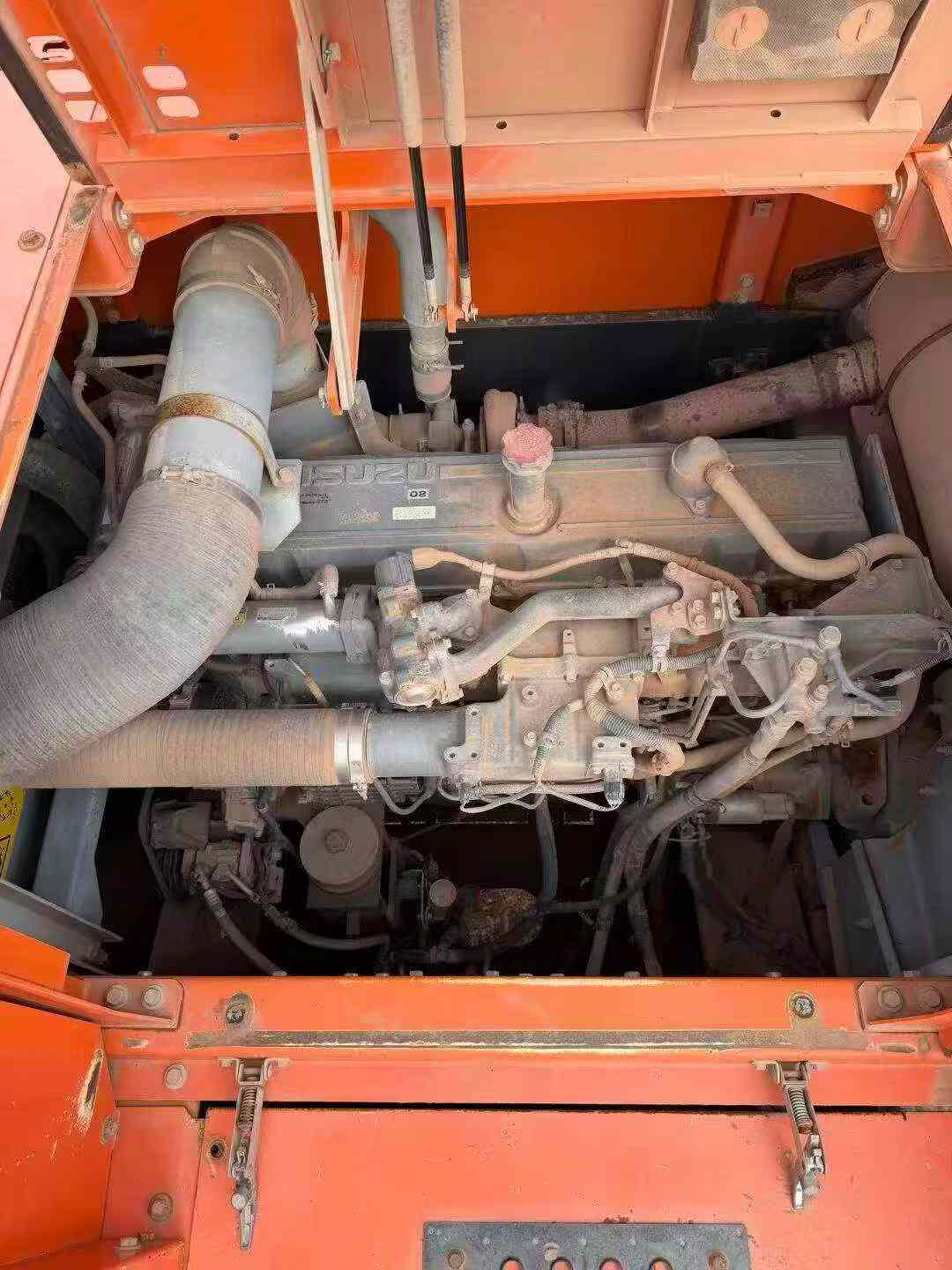

| Engine type | Isuzu GH-6WG1XKSA-02 |
| Rated power (kw/rpm) | 345/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 147*154 |
| Maximum torque (N.m) | 1980/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 104 |
| Rotation speed (rpm) | 9.0 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 369 |
| Rod digging force (kN) | 306 |
| Maximum tractive force (kN) | 460 |
| Travel speed (km/h) | 3.6/5.2 |
| Turning torque (Nm) | 194 |
| Rotary hydraulic motor type | Two swashplate quantitative axial piston motors |
| Type of walking hydraulic motor | 2 swash plate variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 489 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29.4 |

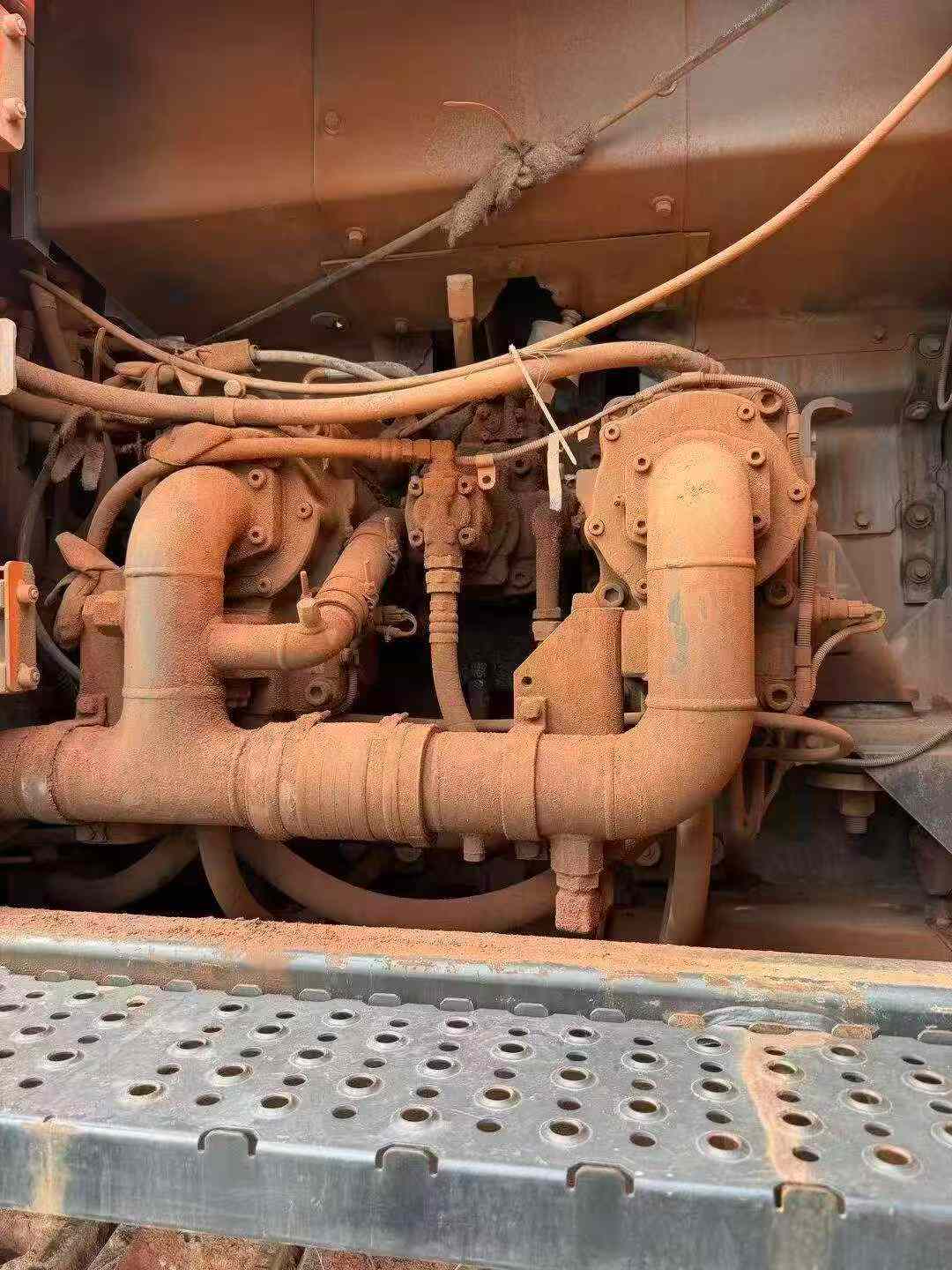

| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 50 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*190*130 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*200*140 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*190*130 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 920 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 57 |
| Coolant (L) | 70 |
| Hydraulic System (L) | 750 |
| Total transport length (mm) | 13,400 |
| Total transport width (mm) | 4,360 |
| Counterweight ground clearance (mm) | 1530 |
| Minimum ground clearance (mm) | 860 |
| Minimum turning radius of front working device (mm) | 5240 |
| Back end turning radius (mm) | 4020 |
| Track gauge (mm) | 3,300 / 2,830 |
| Track plate width (mm) | 650 |
| Number of sprockets (single side) (each) | 3 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 11780 |
| Maximum digging depth (mm) | 7170 |
| Maximum excavation height (mm) | 11150 |
| Maximum unloading height (mm) | 7340 |
| Maximum vertical digging depth (mm) | 5050 |
| Maximum excavation radius of stop surface (mm) | 11490 |
see more
Overview
No.1031280
Brand Name：
HitachiModel Number：
ZX690LCH-5AYear：
2016
Location：
Zhejiang China
