Product Description

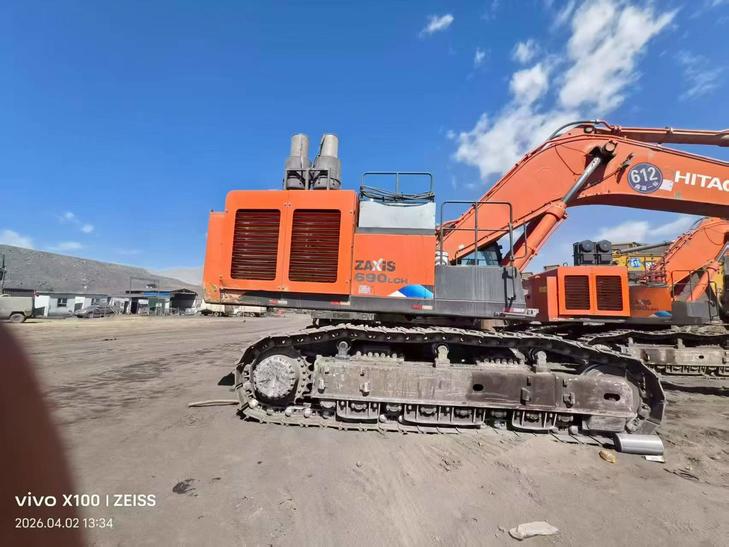

2018 Hitachi ZX690LCH-5A hydraulic excavator available for sale in Shanghai, China. This heavy-duty crawler excavator from Hitachi's proven ZX-5A series delivers reliable performance for large-scale earthmoving, mining, and quarry operations. The machine features a robust undercarriage design and powerful hydraulic system engineered for demanding applications.
- Operating weight class: approximately 69 tonnes
- Hitachi HIOS III hydraulic system for precise control
- Fuel-efficient engine meeting Tier 3 emission standards
- Spacious ROPS/FOPS certified cabin with ergonomic controls
- Heavy-duty boom and arm configuration
- Located in Shanghai with potential for inspection
This used excavator represents an opportunity to acquire Japanese engineering quality at a competitive price point. Suitable for contractors and operators requiring high-capacity excavation equipment. Contact us for detailed specifications, operational history, and current condition assessment.
| Specifications | Value |
|---|---|
| No. | 1084473 |
| Tonnage (tons) | 69 |
| Working weight (kg) | 69100 |
| Bucket capacity (m³) | 4 |
| Boom length (mm) | 6800 |
| Rod length (mm) | 2900 |
| Bucket width (mm) | 1950 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6WG1XKSA-02 |
| Rated power (kw/rpm) | 345/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 147*154 |
| Maximum torque (N.m) | 1980/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 104 |
| Rotation speed (rpm) | 9.0 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 369 |
| Rod digging force (kN) | 306 |
| Maximum tractive force (kN) | 460 |
| Travel speed (km/h) | 3.6/5.2 |
| Turning torque (Nm) | 194 |
| Rotary hydraulic motor type | Two swashplate quantitative axial piston motors |
| Type of walking hydraulic motor | 2 swash plate variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 489 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29.4 |
| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 50 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*190*130 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*200*140 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*190*130 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 920 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 57 |
| Coolant (L) | 70 |
| Hydraulic System (L) | 750 |
| Total transport length (mm) | 13,400 |
| Total transport width (mm) | 4,360 |
| Counterweight ground clearance (mm) | 1530 |
| Minimum ground clearance (mm) | 860 |
| Minimum turning radius of front working device (mm) | 5240 |
| Back end turning radius (mm) | 4020 |
| Track gauge (mm) | 3,300 / 2,830 |
| Track plate width (mm) | 650 |
| Number of sprockets (single side) (each) | 3 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 11780 |
| Maximum digging depth (mm) | 7170 |
| Maximum excavation height (mm) | 11150 |
| Maximum unloading height (mm) | 7340 |
| Maximum vertical digging depth (mm) | 5050 |
| Maximum excavation radius of stop surface (mm) | 11490 |
see more
Overview
No.1084473
Brand Name：
HitachiModel Number：
ZX690LCH-5AYear：
2018
Location：
Shanghai China
Pub Date：
