Product Description
Equipped with an ISUZU CC-4JG1 engine, this 2013 Hitachi ZX70 delivers a robust 40.5 kW at 2000 rpm, ensuring reliable performance. Its advanced hydraulic system, featuring a variable piston pump and gear pump, provides precise control and efficiency. Designed for durability, the ZX70 boasts a working weight of 6510 kg and a bucket capacity of 0.3 m³, ideal for a variety of construction tasks.

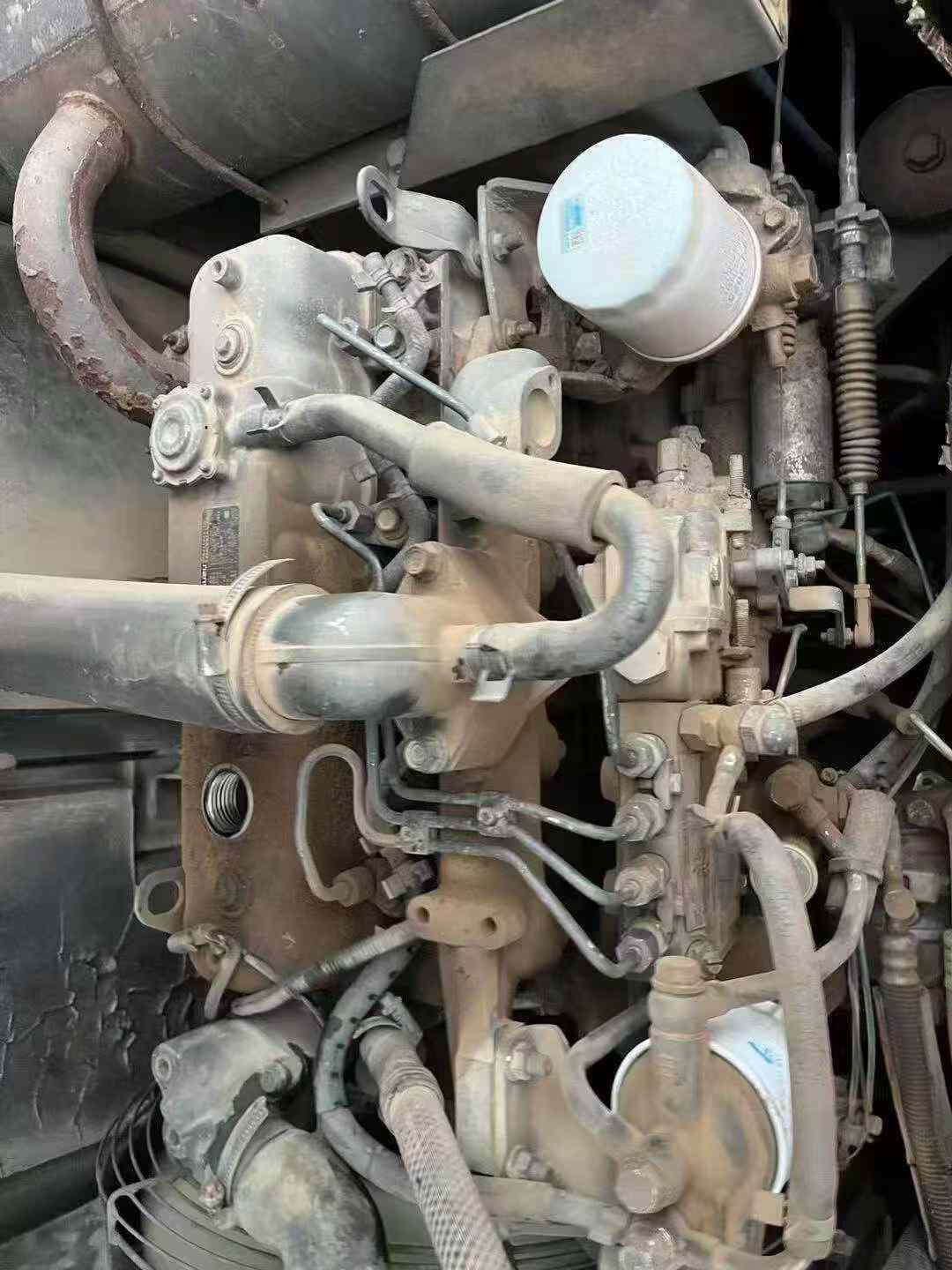

- Engine: ISUZU CC-4JG1, 4-cylinder, 3.318 L displacement
- Hydraulic System: Variable piston pump ×3 + gear pump ×1
- Boom Length: 3.72 mm, Rod Length: 1.62 mm (reinforced)
- Maximum Digging Depth: 4170 mm, Maximum Excavation Height: 7150 mm
- Travel Speed: 3.4/5.0 km/h, Ground Specific Pressure: 30 Kpa
With a reinforced rod and a powerful digging force of 55 kN, this excavator is engineered to handle tough jobs with ease. Located in 浙江绍兴, this machine is ready to meet your project's demands with its superior engineering and reliability.
| Specifications | Value |
|---|---|
| No. | 1016224 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6510 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3.72 |
| Rod length (mm) | 1.62(reinforced type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Variable piston pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Main pump type | Variable piston pump ×3+ gear pump ×1 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60(over 100) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | No bulldozer |
