Product Description

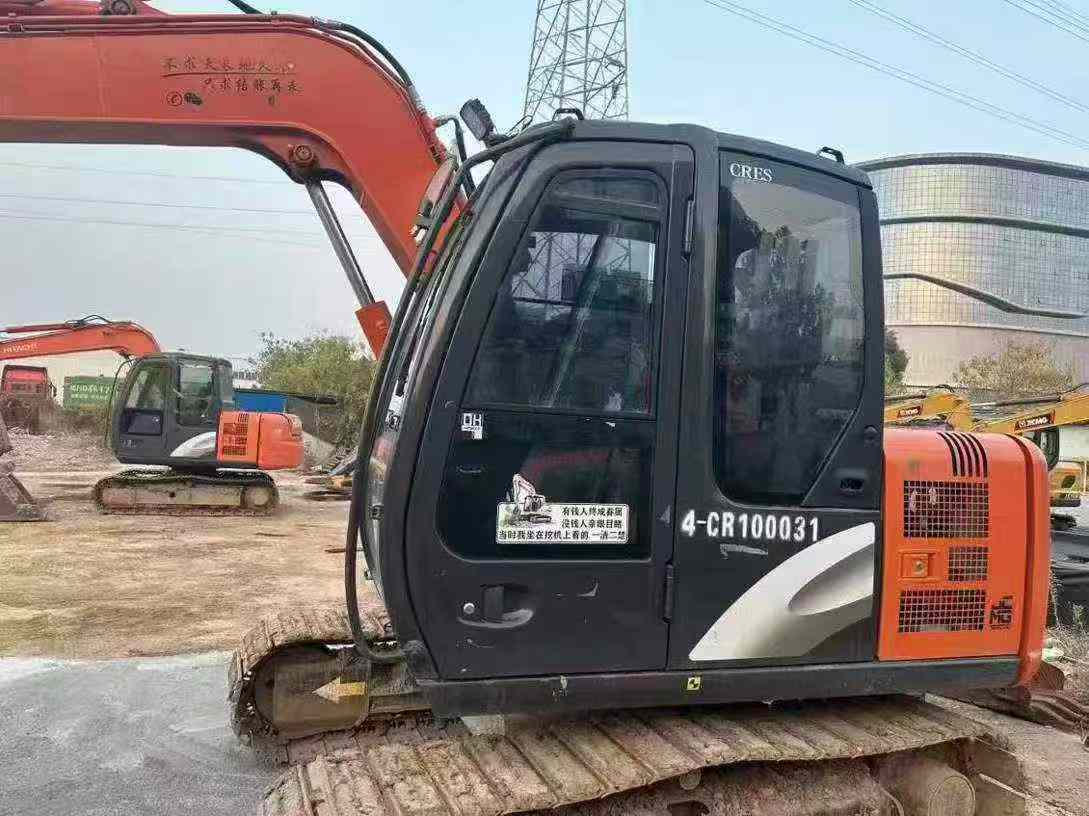

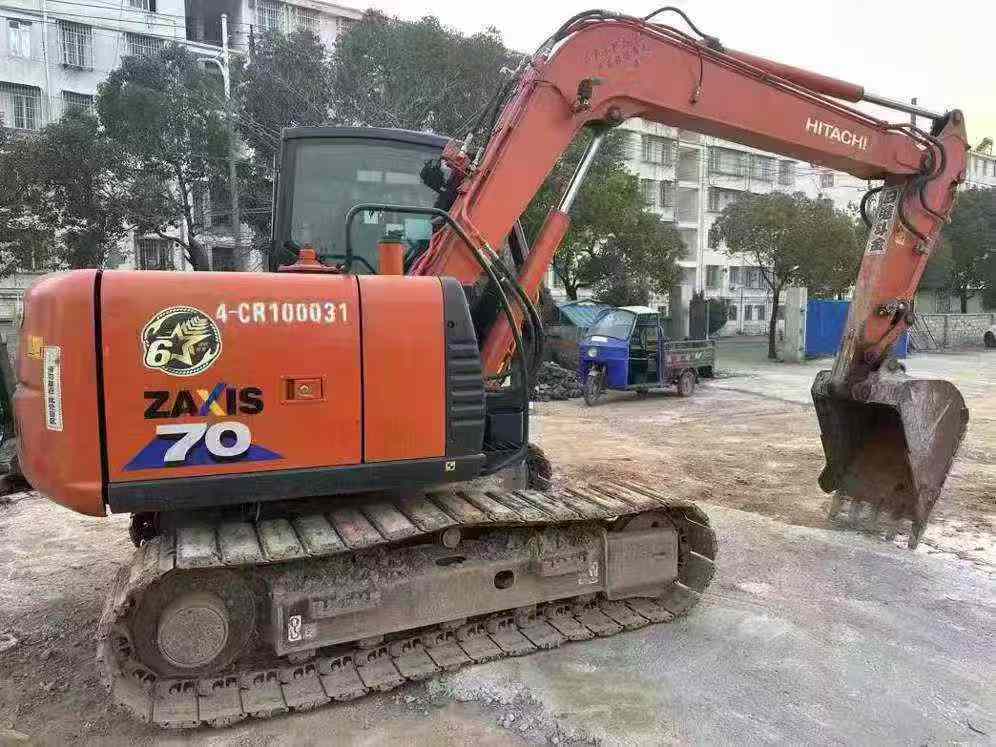

Built with Hitachi's legendary engineering precision, this 2023 ZX70 compact excavator delivers proven performance for medium-duty construction and landscaping projects. Operating at 7 tons with a robust ISUZU CC-4JG1 engine producing 40.5kW, this machine combines power with fuel efficiency through its 135L tank capacity.
Hitachi's reputation in the used equipment market stems from exceptional parts availability and strong resale values. With manufacturing roots in Hefei, Anhui Province, this model benefits from established supply chains and comprehensive dealer networks across Asia. Key specifications include:
- Maximum digging depth of 4,170mm with 0.3m³ bucket capacity

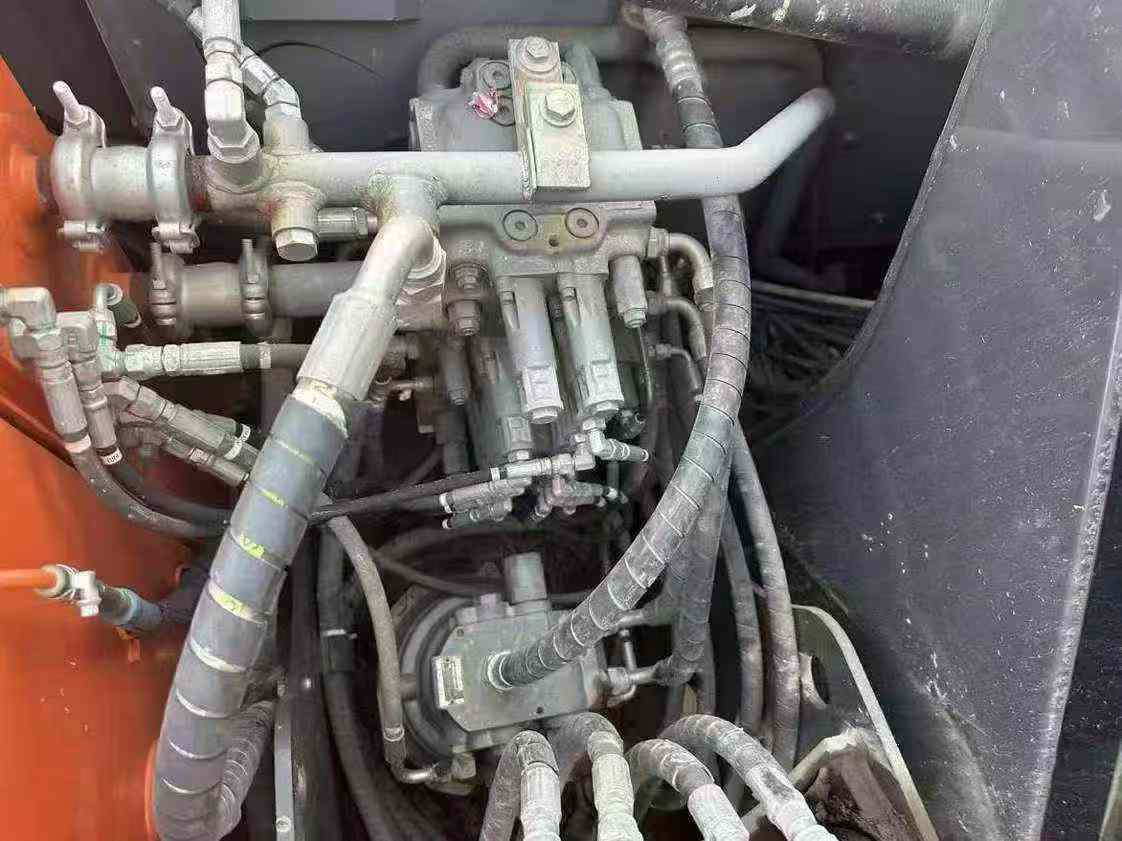

- Variable piston pump hydraulic system for precise control
- Compact transport dimensions: 6,080mm length × 2,260mm width
- Superior climbing ability up to 70% grade
Located in Zhejiang Shaoxing, this ZX70 represents a smart investment backed by Hitachi's proven track record for durability and long-term value retention in competitive resale markets.
| Specifications | Value |
|---|---|
| No. | 992989 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6510 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3.72 |
| Rod length (mm) | 1.62(reinforced type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

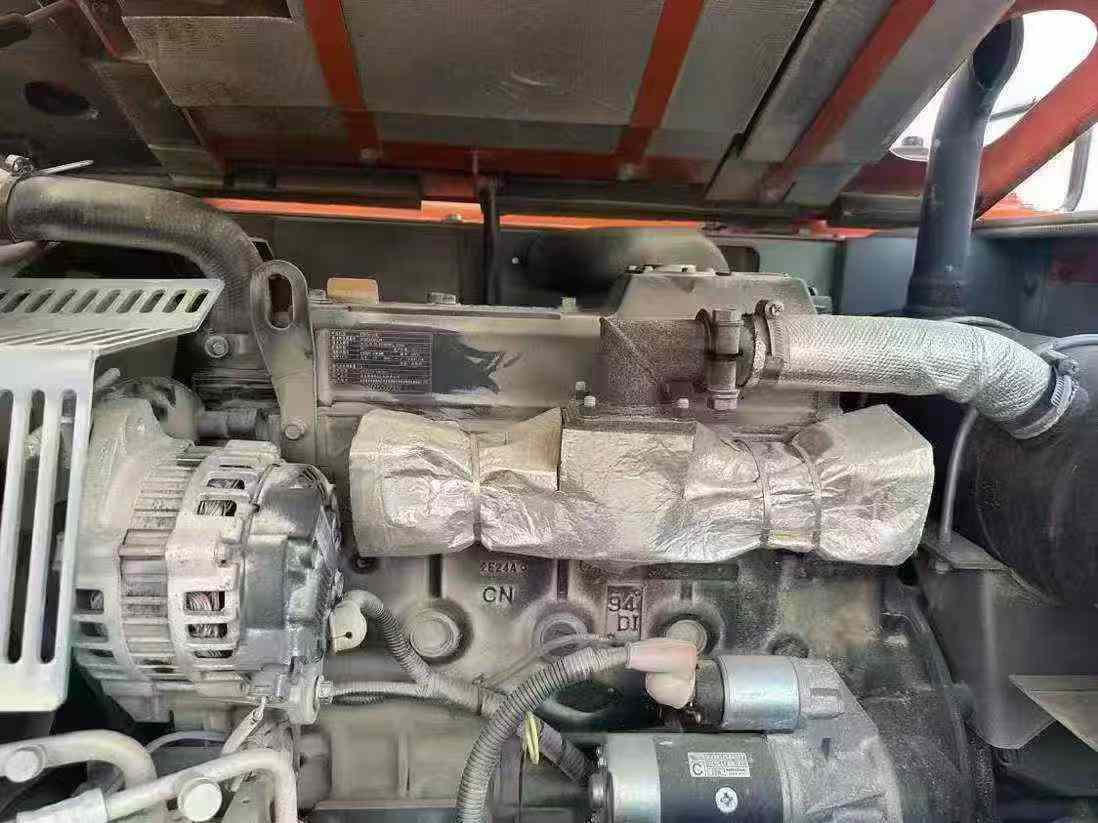

| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Variable piston pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Main pump type | Variable piston pump ×3+ gear pump ×1 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60(over 100) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |

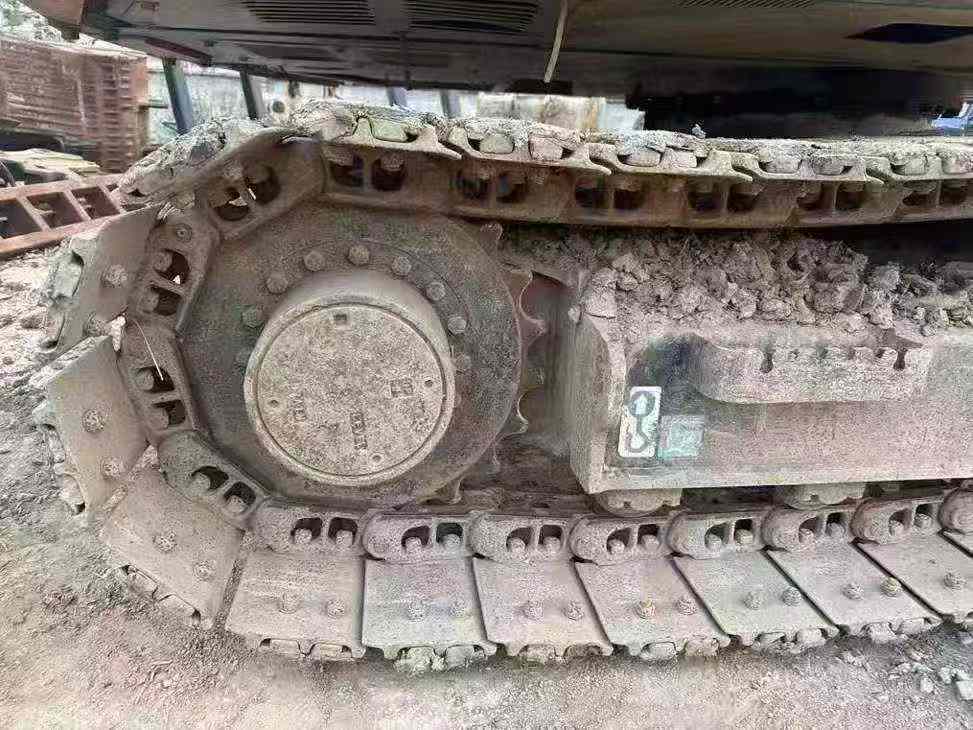

| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | No bulldozer |
