Product Description

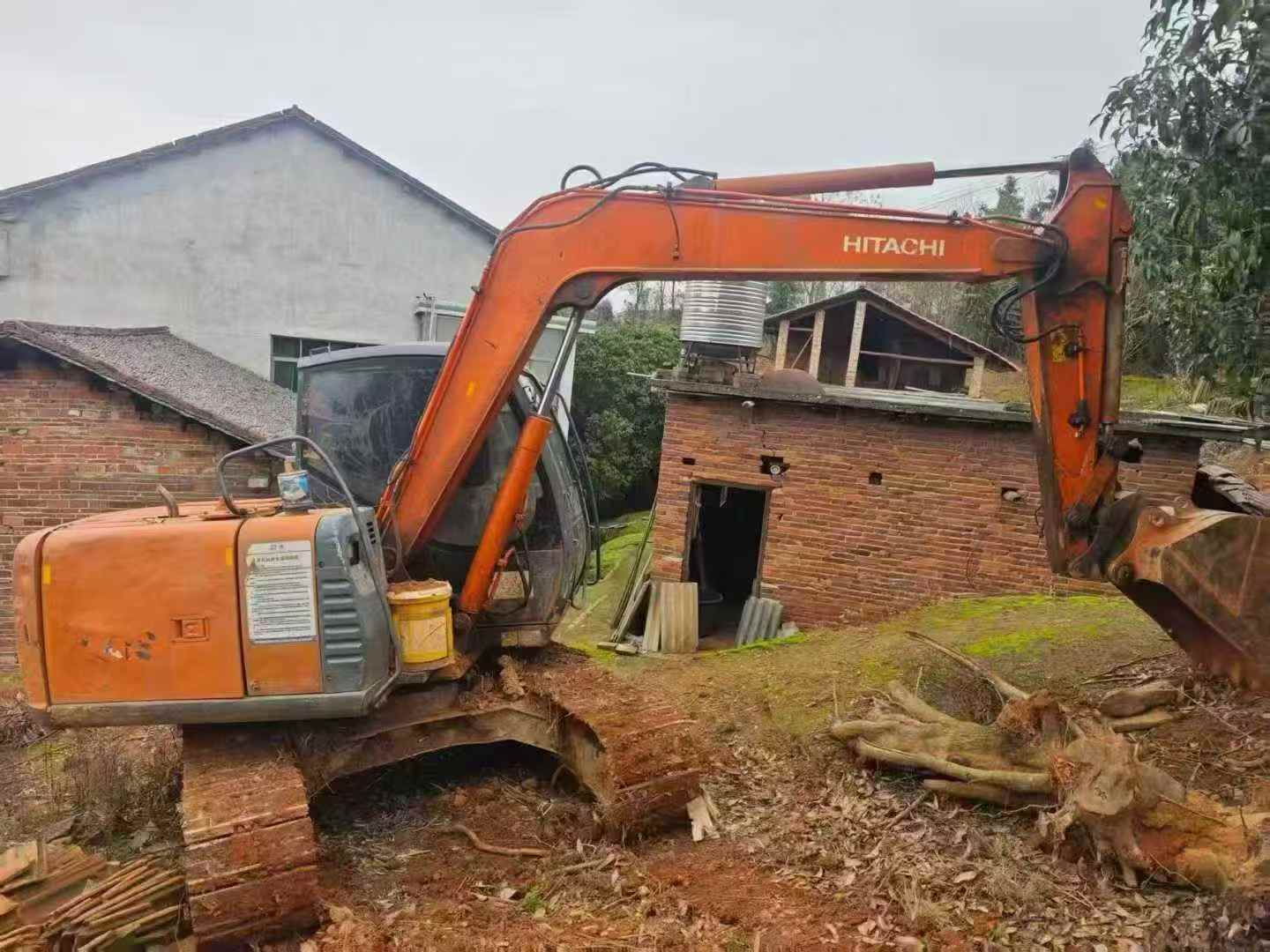

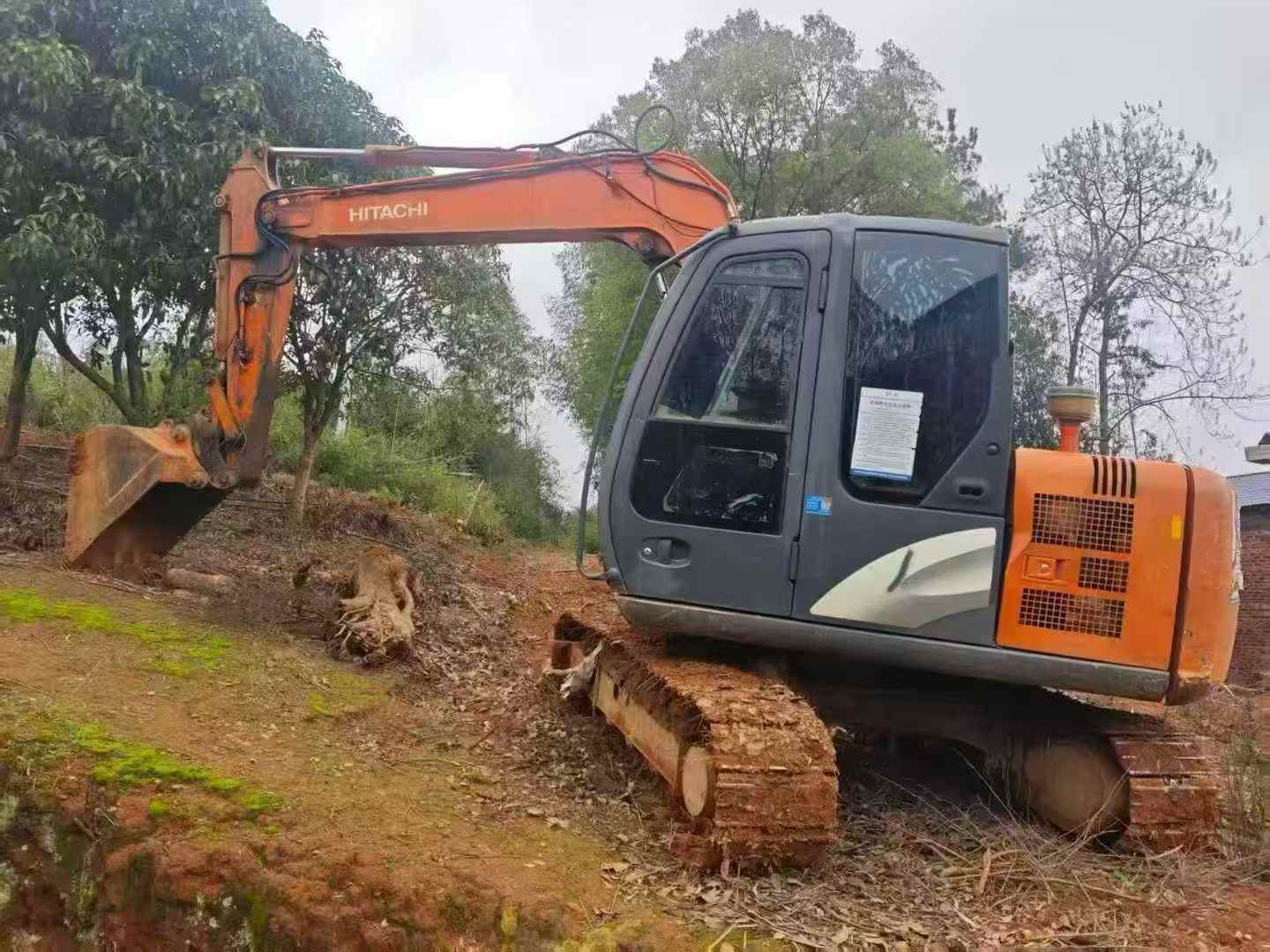

Built for precision work in confined spaces, this 2015 Hitachi ZX70-3 delivers exceptional operator control across demanding job sites. Weighing 6,470 kg with a 0.33 m³ bucket capacity, this 7-ton excavator combines compact dimensions with serious digging power—55 kN bucket force and 4,170 mm maximum depth ensure productive cycles in utility, landscaping, and urban construction applications.

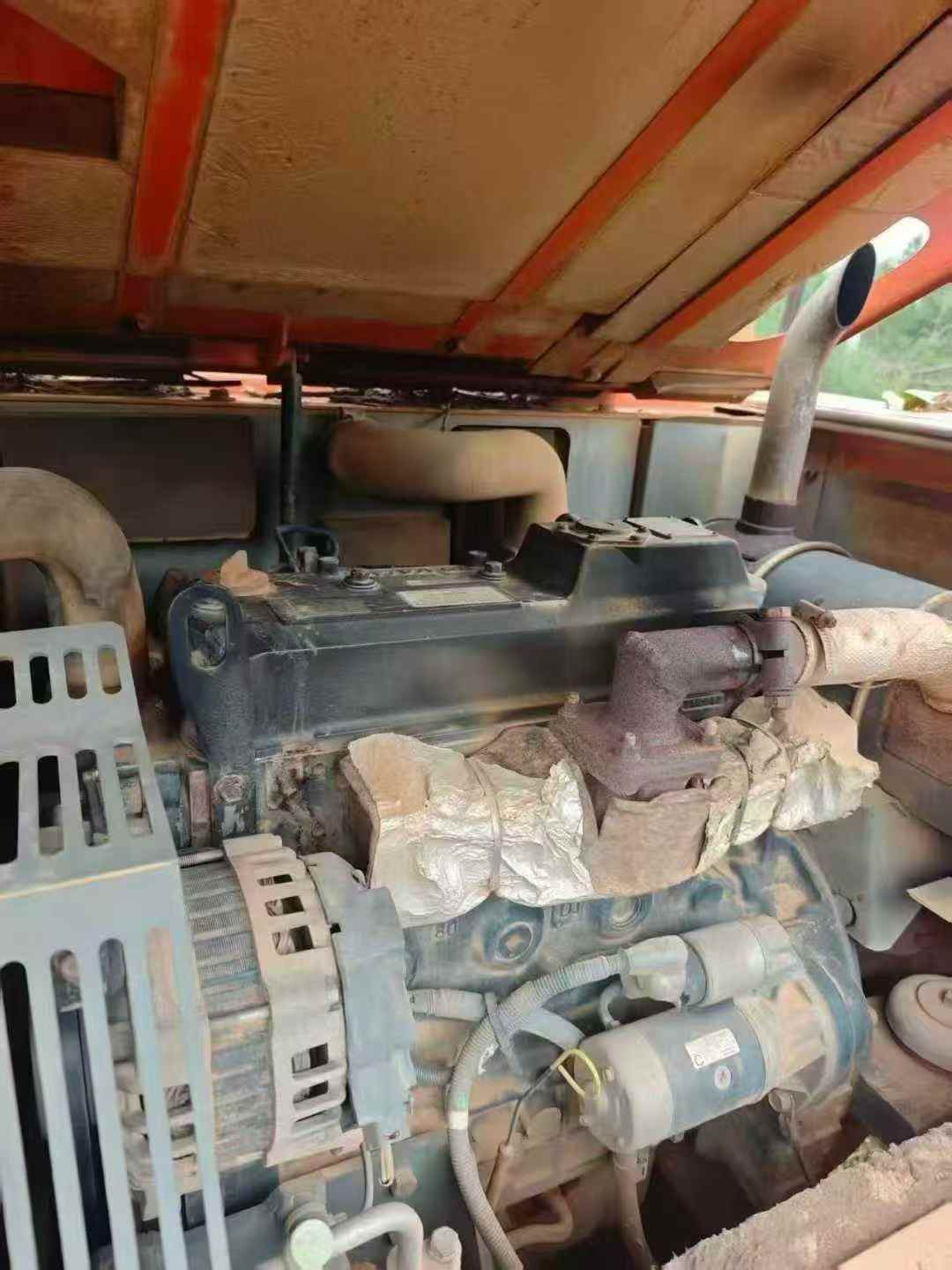

Powered by a reliable Isuzu AU-4LE2X engine (40.5 kW at 2000 rpm), the ZX70-3 features water-cooled efficiency and dual variable axial piston pumps for responsive hydraulic performance. Operators benefit from smooth 10.5 rpm rotation speed, excellent visibility over the 2,600 mm cab height, and confident maneuverability with a tight 1,720 mm front turning radius. Travel speeds of 3.4/5.3 km/h and 70% climbing ability tackle varied terrain with stability.
Key Specifications:
- Maximum digging reach: 6,320 mm
- Transport dimensions: 6,080 × 2,260 × 2,600 mm
- Ground pressure: 30 kPa for minimal surface disturbance
- Hydraulic system: 100 L capacity with 26 MPa working pressure
- Currently located in Guizhou, China
| Specifications | Value |
|---|---|
| No. | 1029796 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6470 |
| Bucket capacity (m³) | 0.33 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1620 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.2 |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.3 |
| Rotary hydraulic motor type | Axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 72.6 * 2 + 61.6 + 22.0 |
| Traveling Hydraulic Circuit (Mpa) | 31.4 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 26 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60 |
| Engine Oil changes (L) | 12.1 |
| Coolant (L) | 10.3 |
| Hydraulic System (L) | 100 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1720 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | 360/300 |
| Dodging plate width × height (mm) | 2200 x 460 |
| Maximum excavation radius of stop surface (mm) | 6170 |
| Maximum effective digging depth (mm) | 3820 |
