Product Description

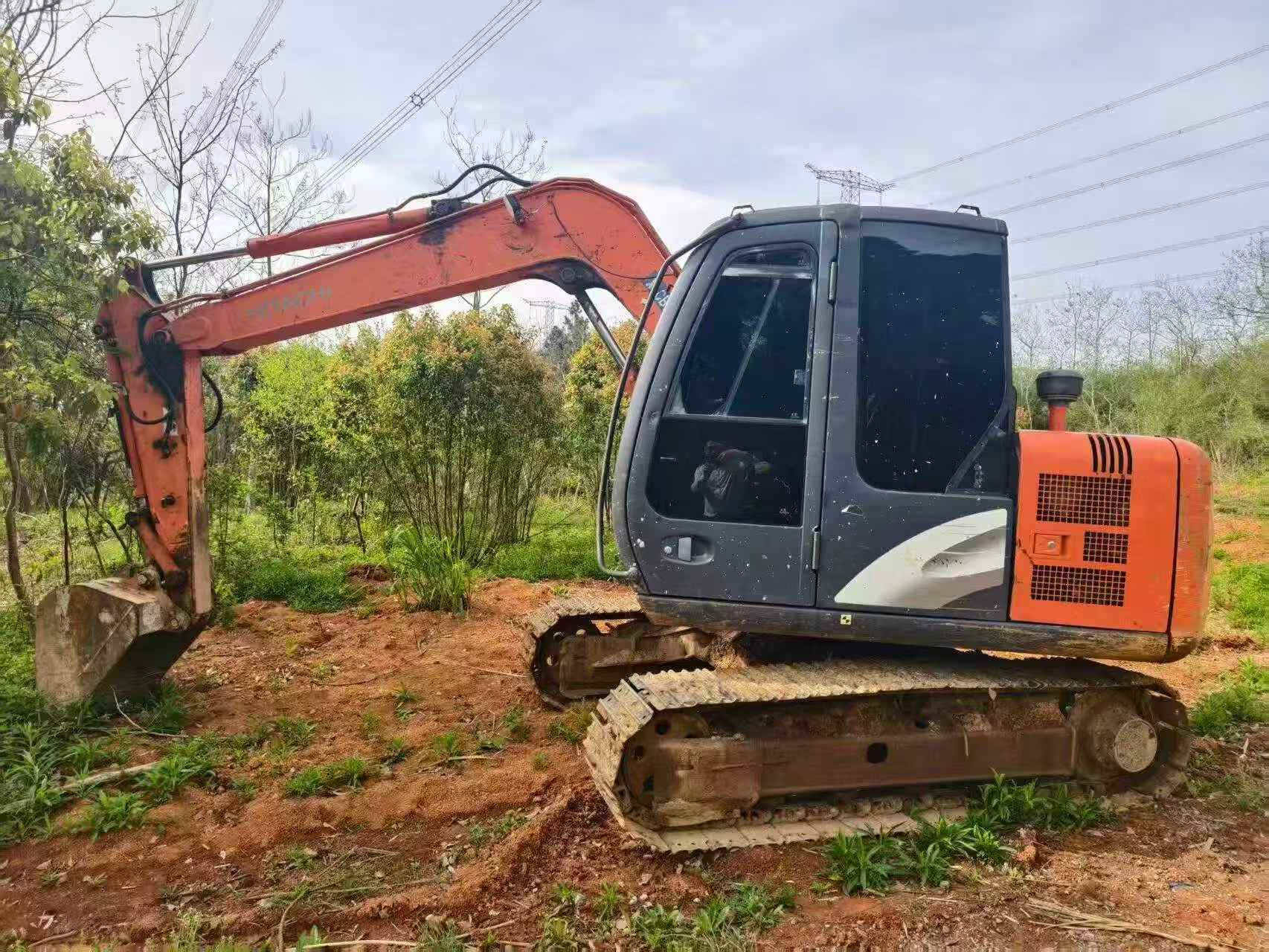

Proven performance meets Japanese engineering in this 2014 Hitachi ZX70-5A midi excavator, a 7-ton workhorse built to deliver consistent results across demanding jobsites. With nearly a decade of service behind it, this machine demonstrates the durability Hitachi is renowned for—a testament to robust construction and reliable design. Powered by a 42.4kW Yanmar 4TNV98 water-cooled engine delivering 236 N.m of maximum torque, it combines efficient fuel consumption with dependable power output for extended operational cycles.
Currently located in Jiangsu, this compact excavator offers impressive digging capabilities with a maximum reach of 6,320mm and digging depth of 4,170mm. The 0.33-0.38m³ bucket capacity handles material efficiently, while 55kN bucket digging force and 38kN arm digging force tackle tough ground conditions with confidence.
- Operating weight: 6,700kg with optimal 31kPa ground pressure
- Compact dimensions: 6,080mm length × 2,260mm width for tight access

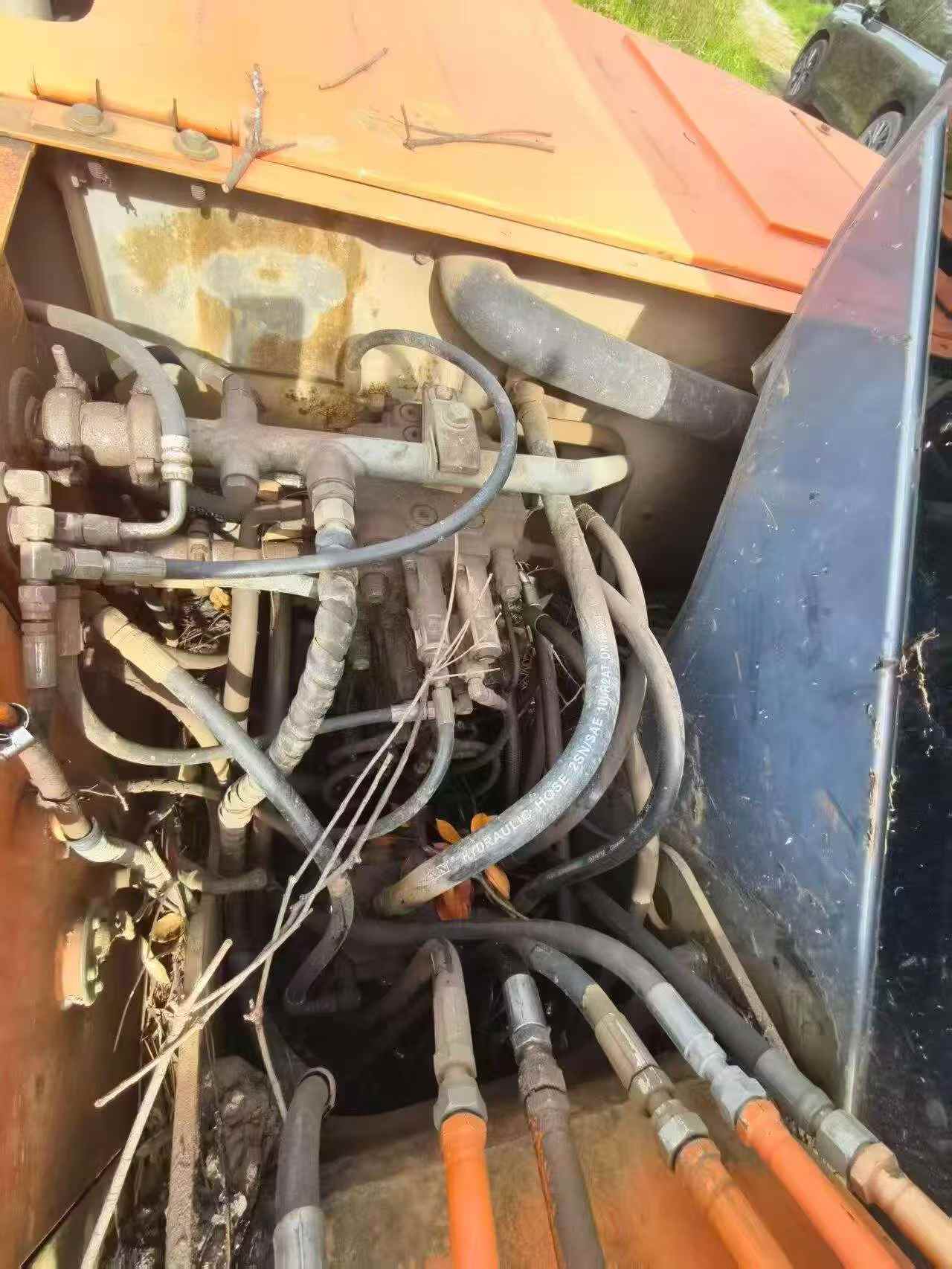

- Advanced hydraulics: Triple variable axial piston pumps (2×63L/min, 1×52.5L/min)
- 70% grading ability and 10.7rpm rotation speed for versatile positioning
- Travel speed: 3.4-5.0km/h with dual variable piston travel
| Specifications | Value |
|---|---|
| No. | 1050540 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6700 |
| Bucket capacity (m³) | 0.33-0.38 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1620 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

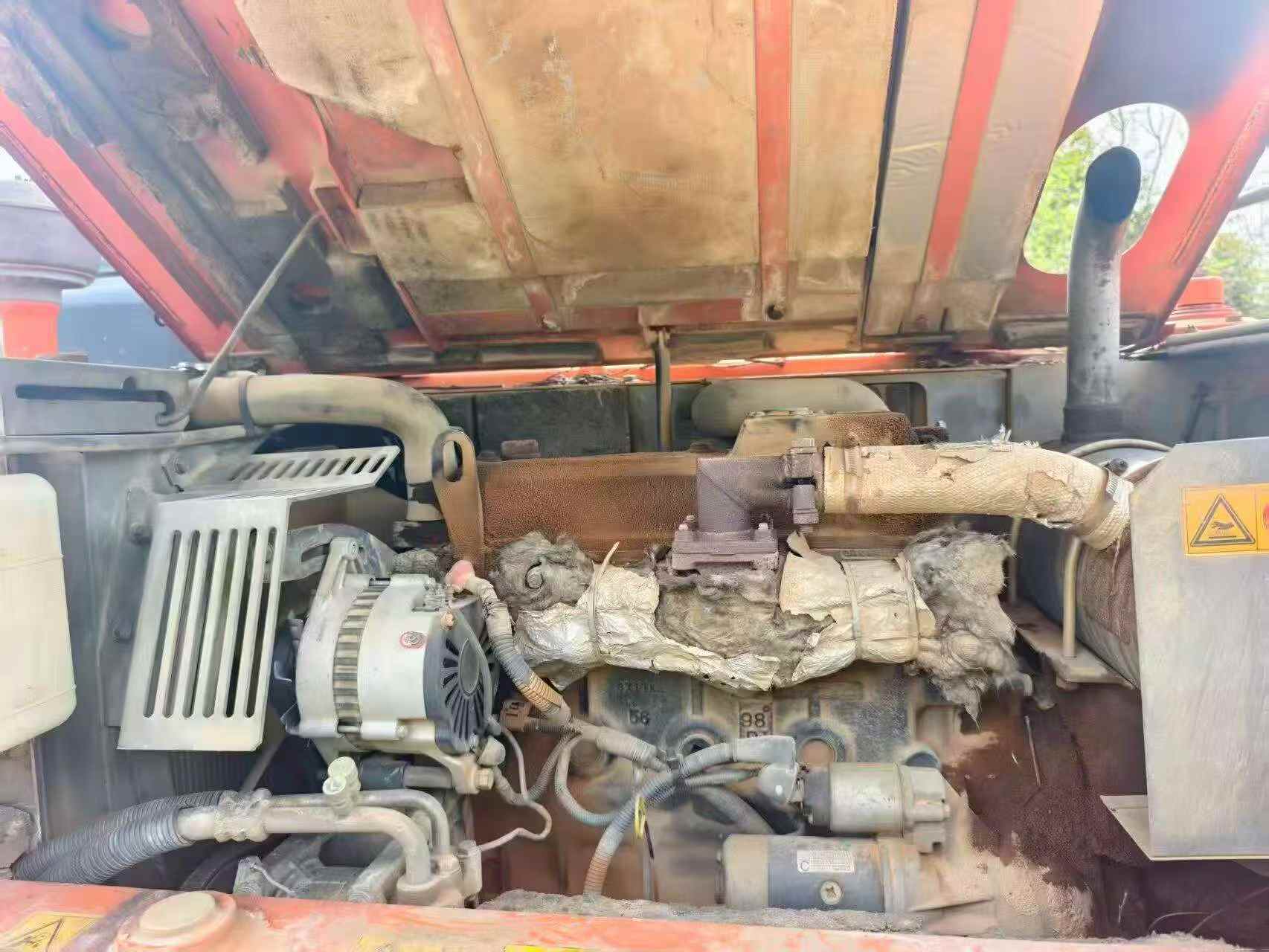

| Engine type | 4TNV98 |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236/1350 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | 4 stroke - Water cooled - direct injection |
| Ground specific pressure (Kpa) | 31 |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 47.8 |
| Travel speed (km/h) | 3.4-5.0 |
| Turning torque (Nm) | 12.9 |
| Rotary hydraulic motor type | 1 axial plunger motor |

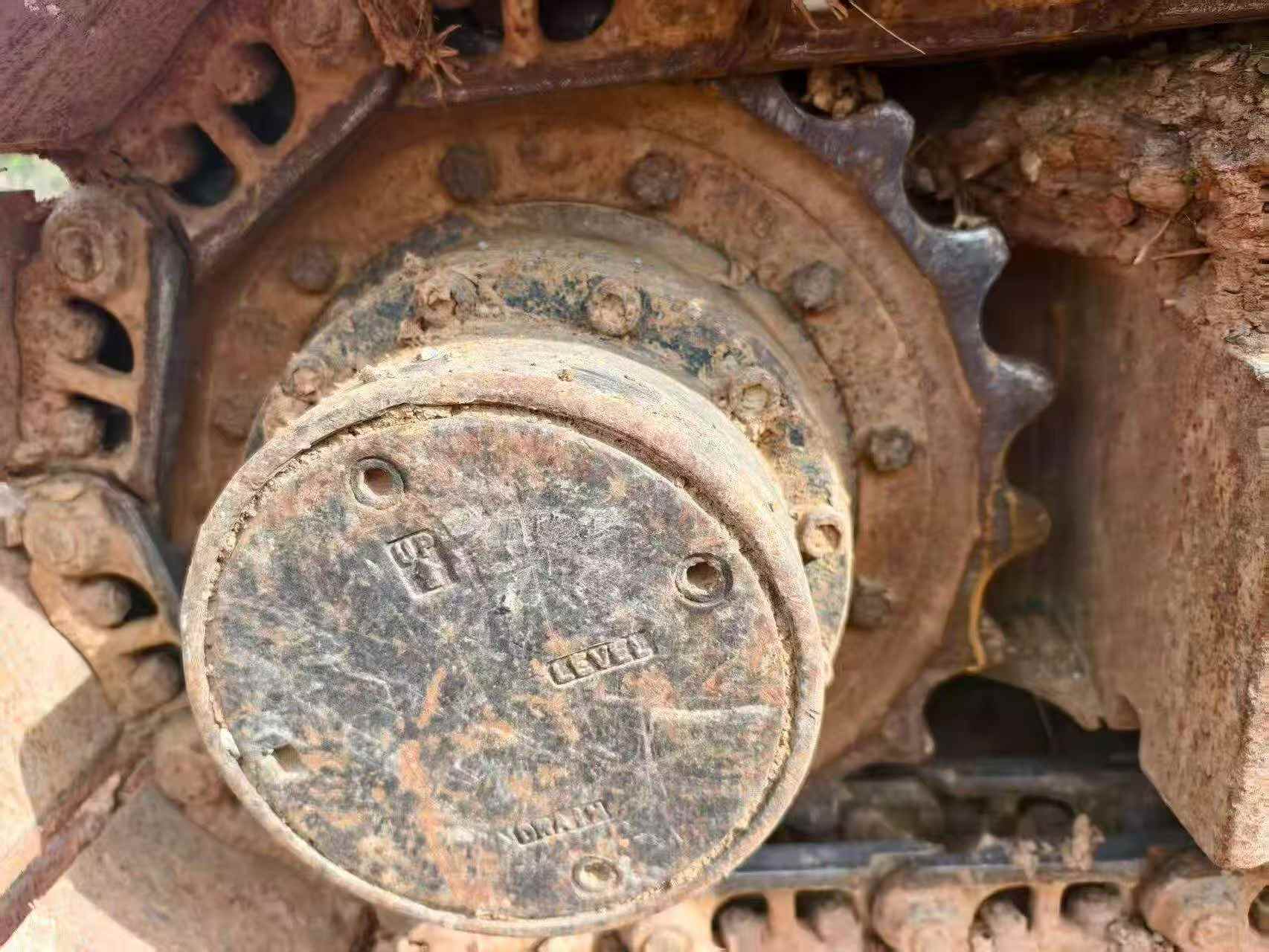

| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 63/1 x 52.5 |
| Traveling Hydraulic Circuit (Mpa) | 31.4 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 26 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 21 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*85*55 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*95*60 |
| Boom cylinders - Number × diameter × stroke (mm) | 1*115*65 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60 |
| Engine Oil changes (L) | 12.3 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 100 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1720 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2260 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | 400/280 |
| Dodging plate width × height (mm) | 2320*435 |
| Maximum excavation radius of stop surface (mm) | 6170 |
