Product Description

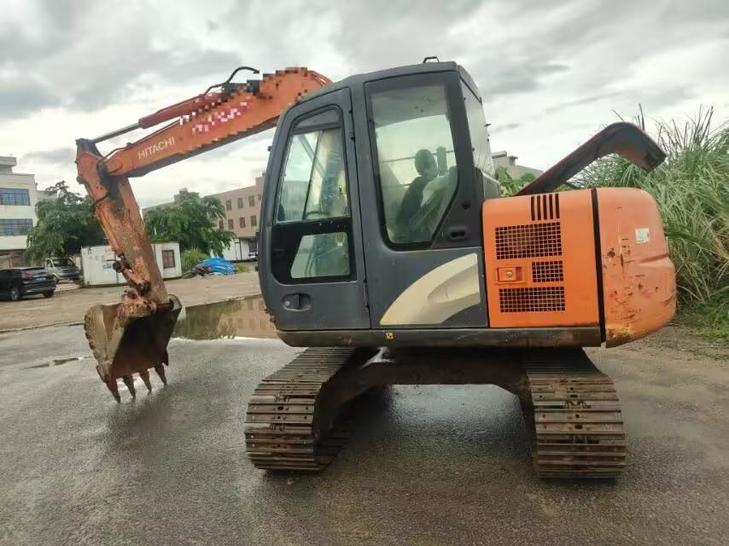

Discover the reliability and performance of the 2016 Hitachi ZX70-5A, available in Guangdong, China. This used excavator is presented in its original paint, a testament to its well-maintained condition. Ideal for a variety of construction and excavation tasks, the ZX70-5A is known for its robust design and efficient operation. The machine has been kept in excellent working order, ensuring it's ready to meet your project demands. According to the owner, this unit is priced at over 80,000, making it a cost-effective choice for businesses looking to enhance their fleet with a dependable, high-quality excavator.
- Year: 2016
- Brand: Hitachi
- Model: ZX70-5A
- Location: Guangdong, China
| Specifications | Value |
|---|---|
| No. | 1121221 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6700 |
| Bucket capacity (m³) | 0.33-0.38 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1620 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | 4TNV98 |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236/1350 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | 4 stroke - Water cooled - direct injection |
| Ground specific pressure (Kpa) | 31 |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 47.8 |
| Travel speed (km/h) | 3.4-5.0 |
| Turning torque (Nm) | 12.9 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 63/1 x 52.5 |
| Traveling Hydraulic Circuit (Mpa) | 31.4 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 26 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 21 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*85*55 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*95*60 |
| Boom cylinders - Number × diameter × stroke (mm) | 1*115*65 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60 |
| Engine Oil changes (L) | 12.3 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 100 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1720 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2260 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | 400/280 |
| Dodging plate width × height (mm) | 2320*435 |
| Maximum excavation radius of stop surface (mm) | 6170 |
