2014 Hitachi ZX70-5G

1/9
Buy Hitachi ZX70-5G Used Excavator / 1

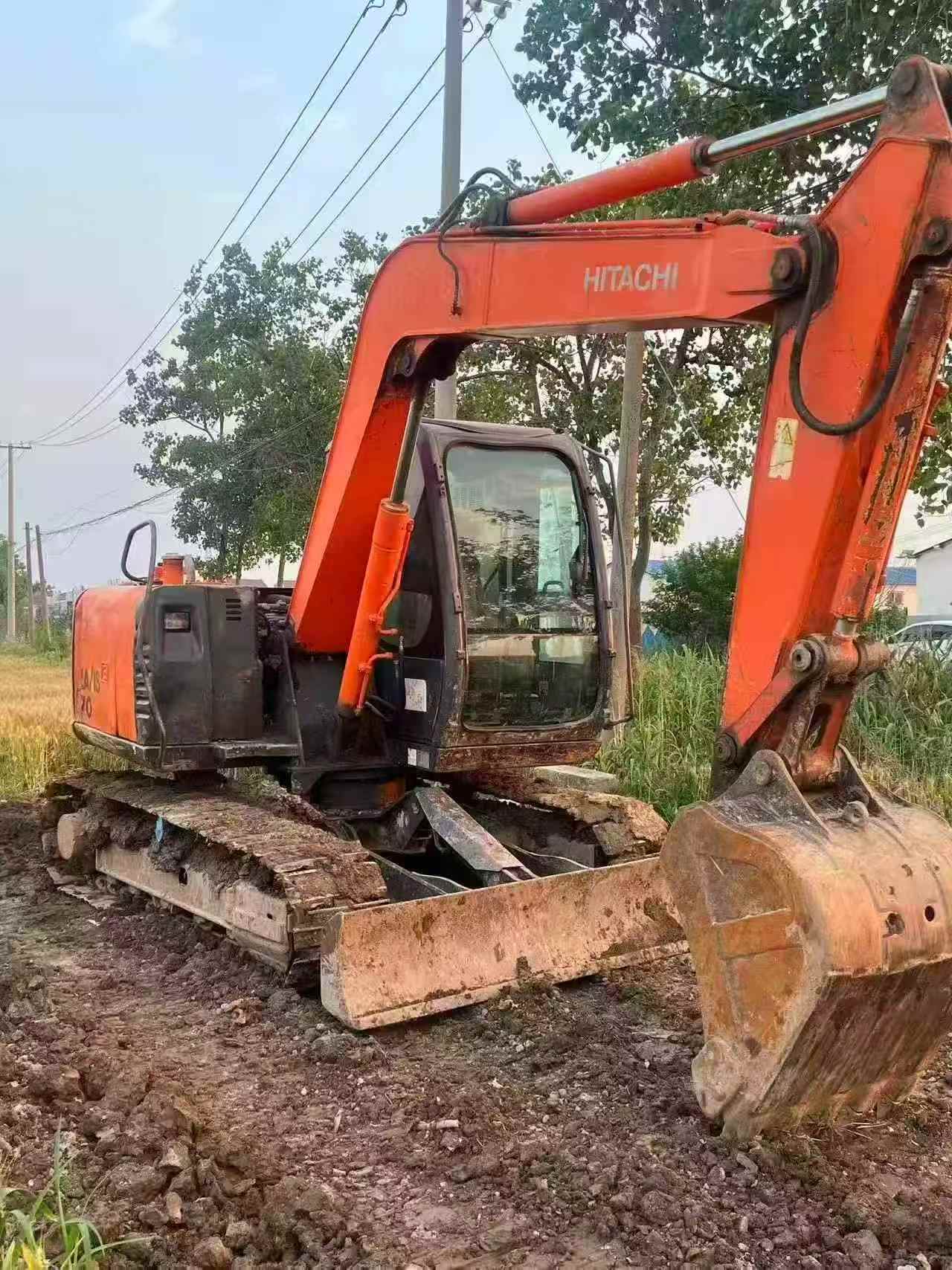

Buy Hitachi ZX70-5G Used Excavator / 2

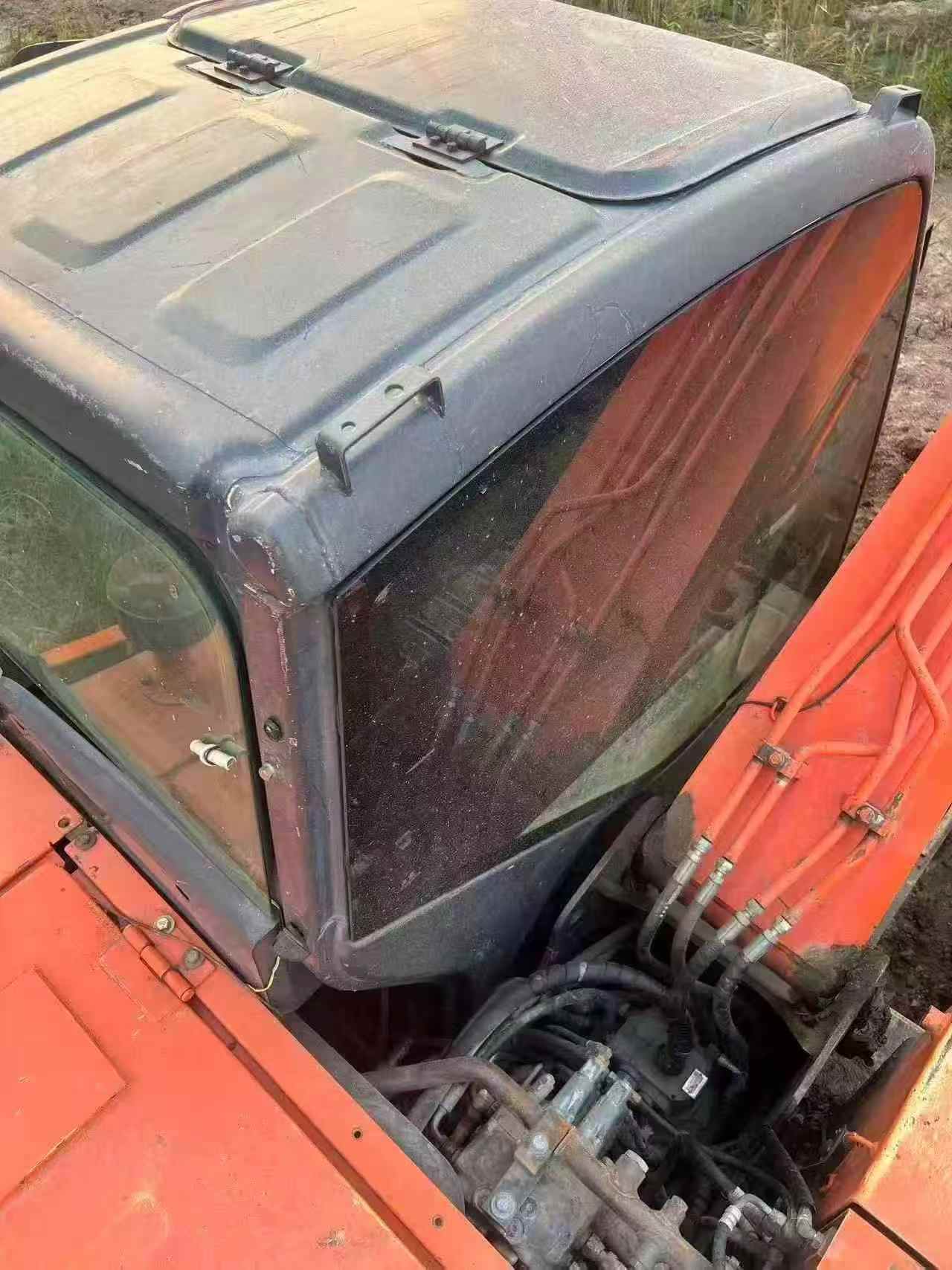

Buy Hitachi ZX70-5G Used Excavator / 3

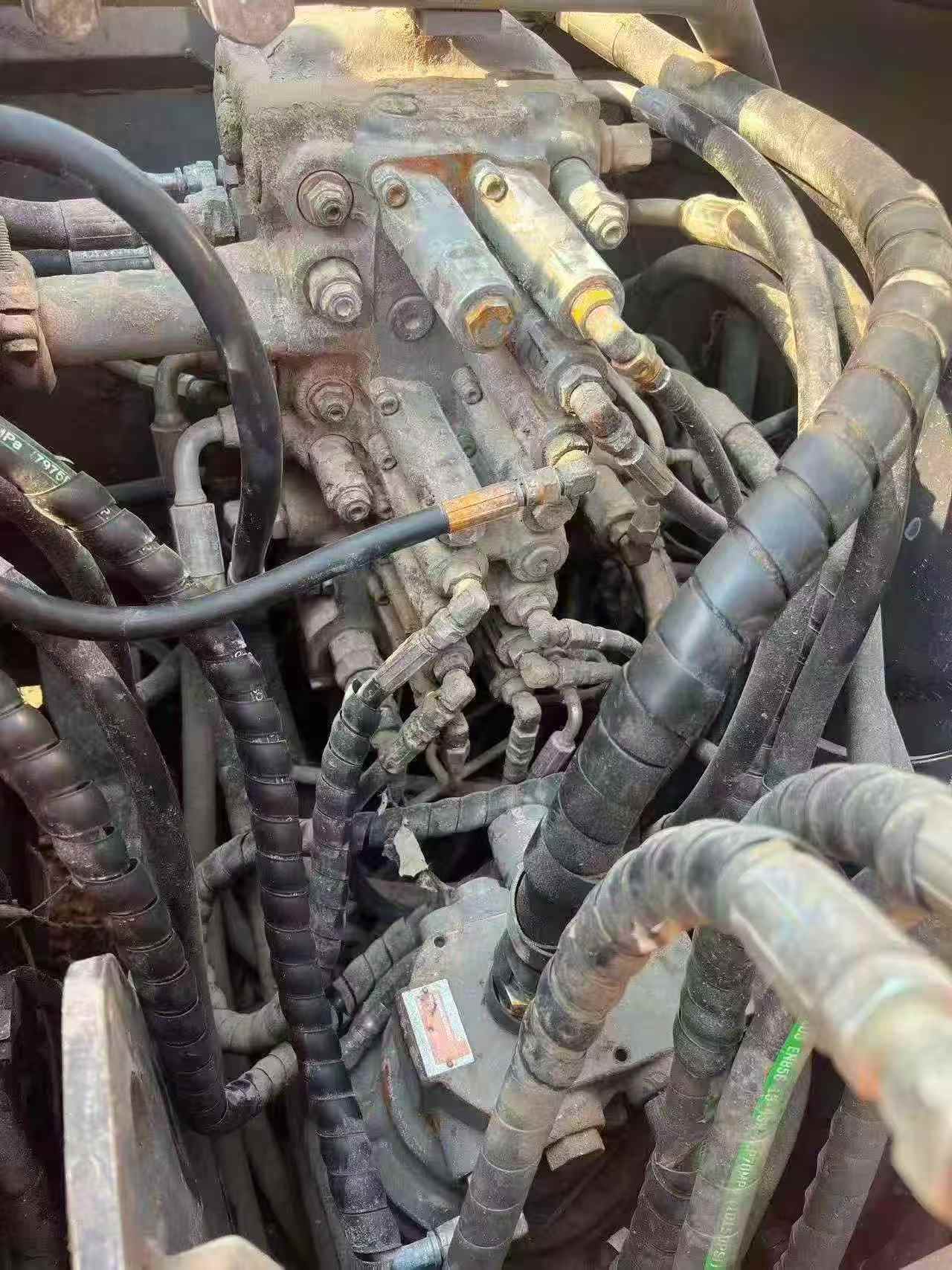

Buy Hitachi ZX70-5G Used Excavator / 4

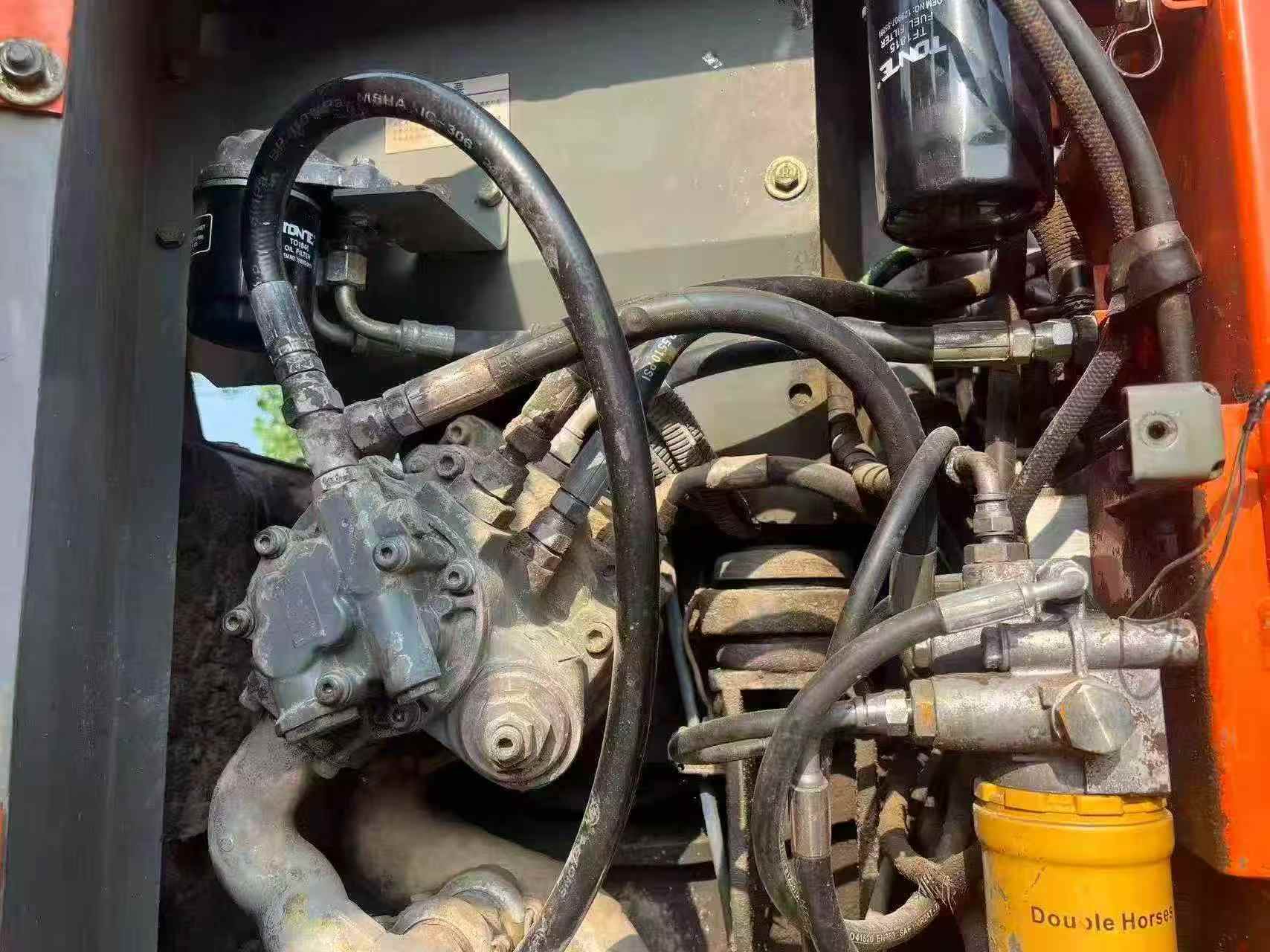

Buy Hitachi ZX70-5G Used Excavator / 5

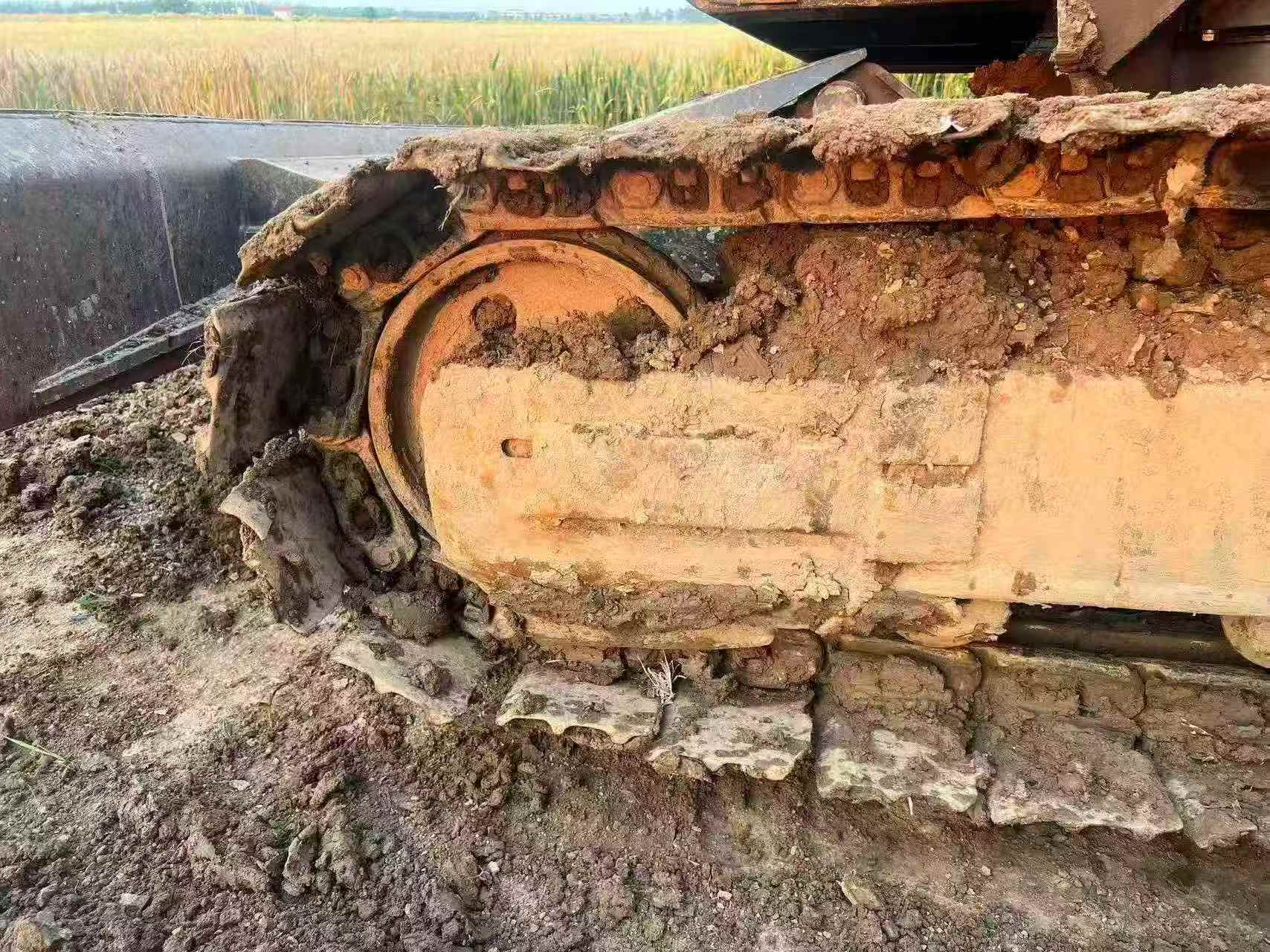

Buy Hitachi ZX70-5G Used Excavator / 6

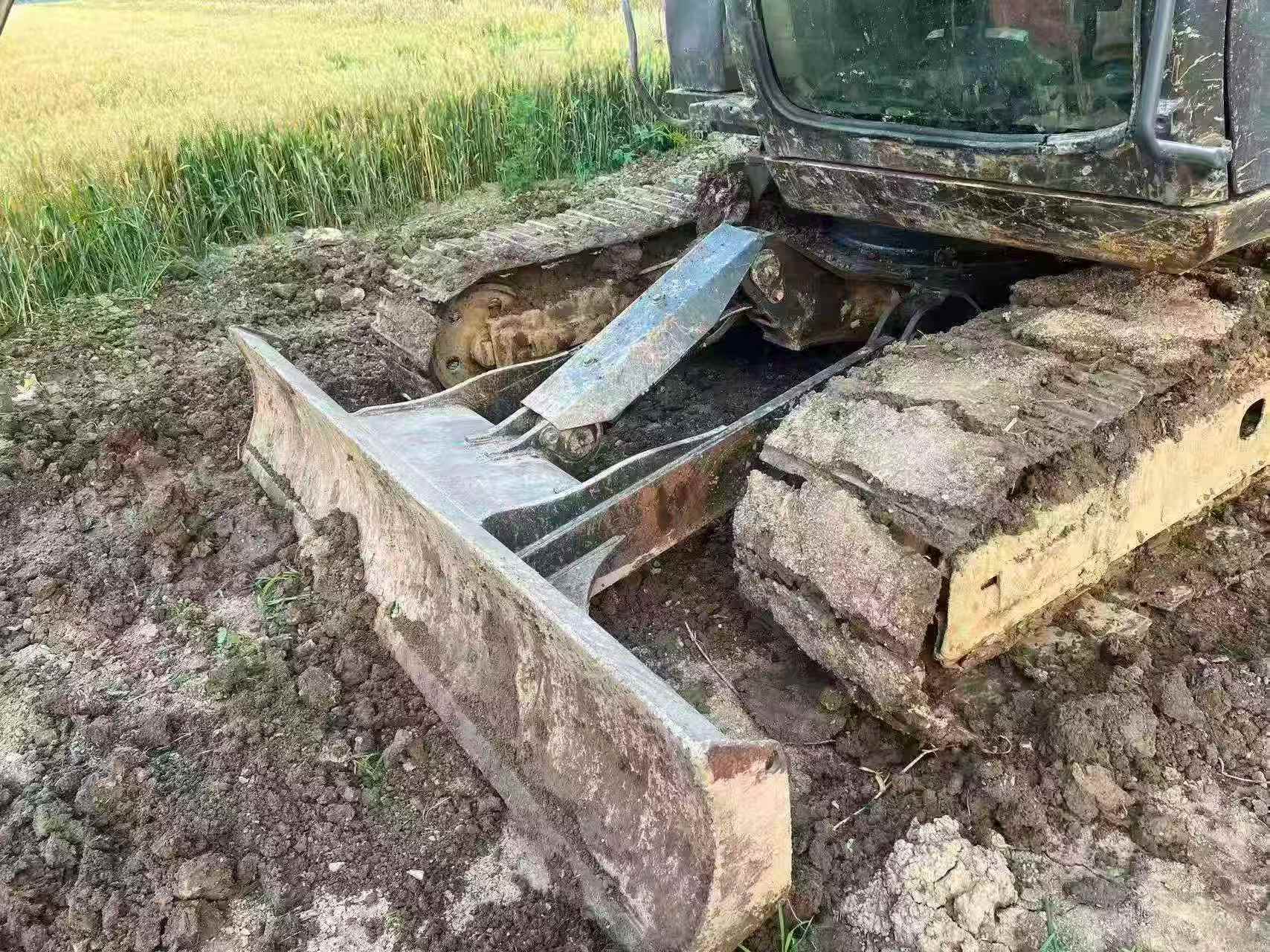

Buy Hitachi ZX70-5G Used Excavator / 7

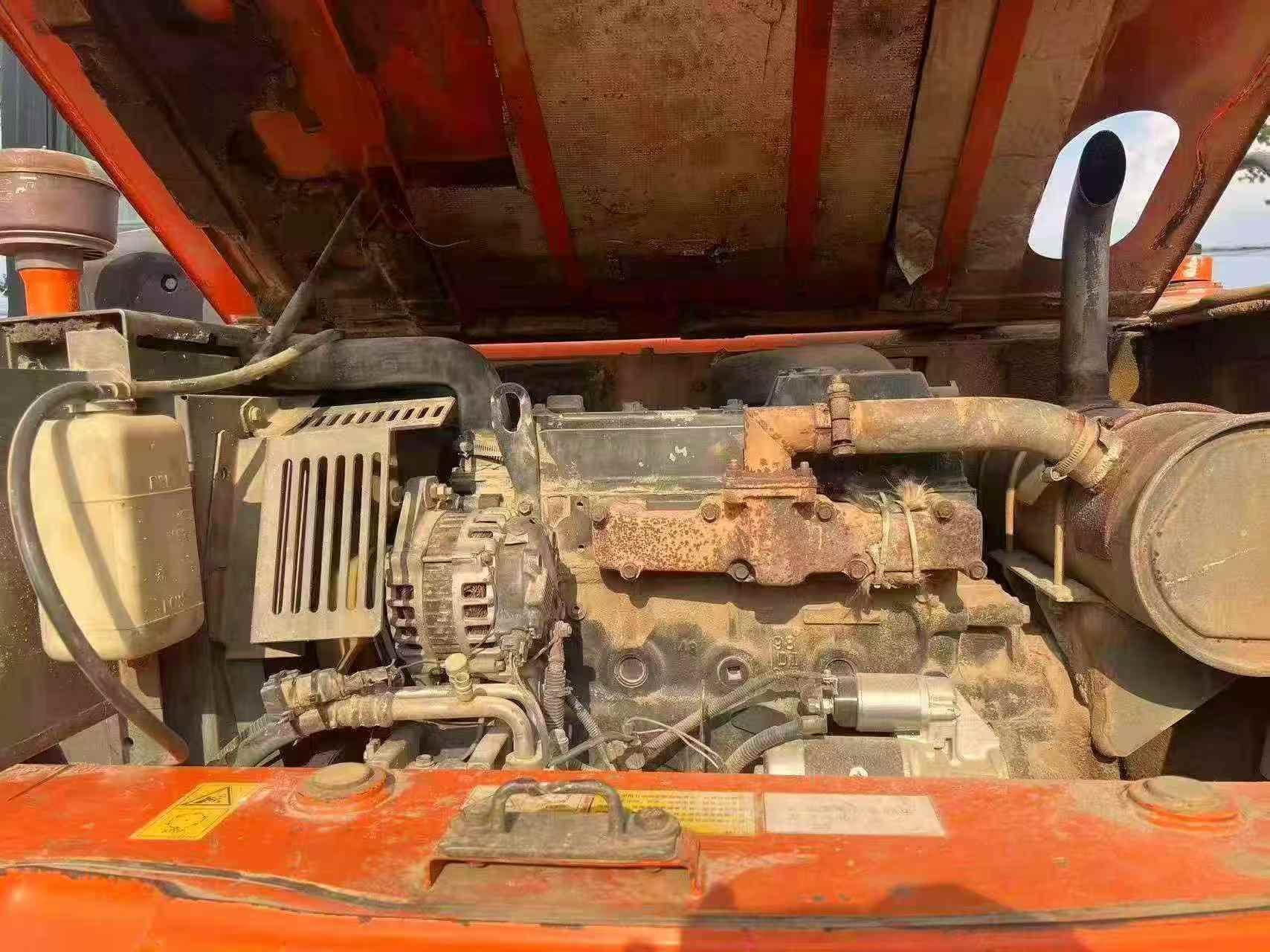

Buy Hitachi ZX70-5G Used Excavator / 8

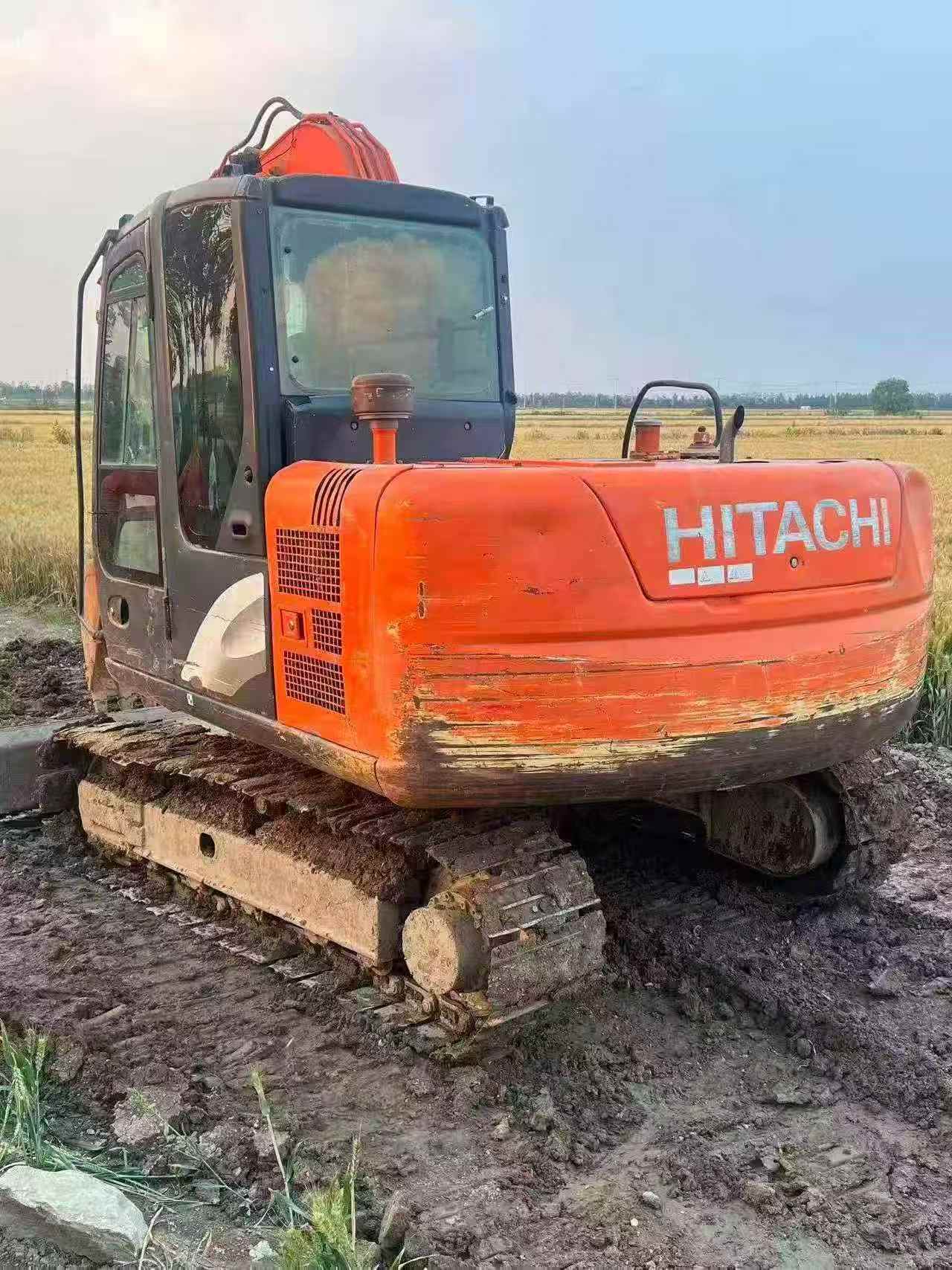

Buy Hitachi ZX70-5G Used Excavator / 9

Product Description

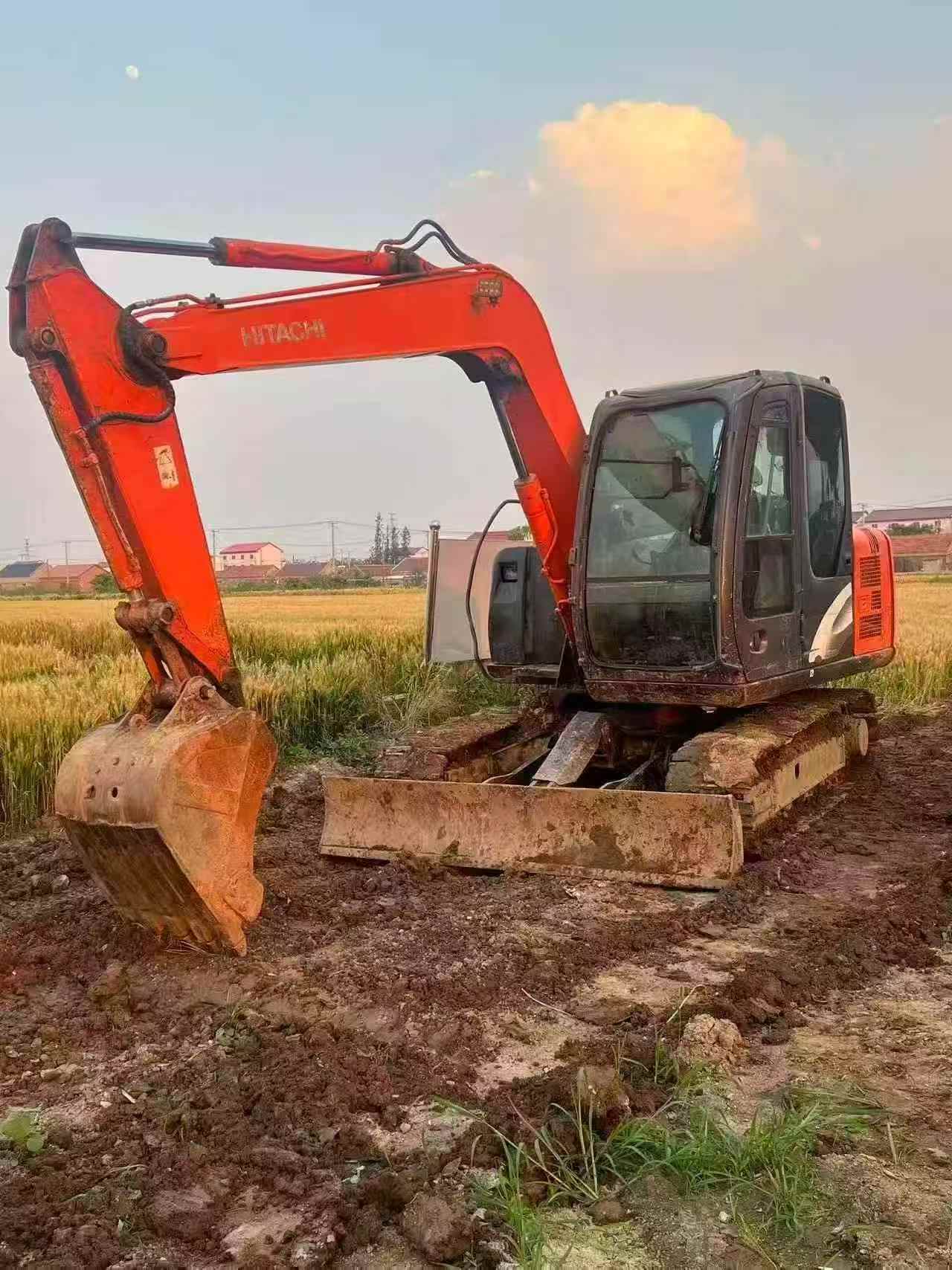

Discover the 2014 Hitachi ZX70-5G, a robust and reliable excavator available for purchase in Jiangsu, China. This machine is equipped with a dozer blade, enhancing its versatility on the job site. Known for its dependable performance, this model has been meticulously maintained and is ready to meet your construction needs. Experience the swift operational speed that has earned it a reputation for efficiency. Inspection and testing are welcomed, ensuring you can verify its capabilities firsthand.

  • Year: 2014
  • Brand: Hitachi
  • Model: ZX70-5G
  • Location: Jiangsu, China
  • Features: Dozer blade, high-speed operation
SpecificationsValue
No.1074161
Tonnage (tons)7
Working weight (kg)6700
Bucket capacity (m³)0.33
Country of originHefei, China
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar Yanmar 4TNV98-AVHBW
Rated power (kw/rpm)42.4/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 mm×110 mm
Number of cylinders (PCS)4
Displacement (L)3.318
Working form4 stroke, water cooled, direct injection
Ground specific pressure (Kpa)31
Rotation speed (rpm)10.7
Climbing ability (%)70% (35 °)
Bucket digging force (kN)55
Rod digging force (kN)40
Maximum tractive force (kN)47.8
Travel speed (km/h)High 5.0/ Low 3.4
Turning torque (Nm)12.9
Rotary hydraulic motor type1 axial plunger motor
Type of walking hydraulic motor2 variable axial piston motors
Maximum flow of main pump (l/min)2 x 63 x 52.5 + 1
Traveling Hydraulic Circuit (Mpa)31.4
Rotary Hydraulic Circuit (Mpa)22.6
Main pump type3 variable axial piston pumps +1 gear pump
Working Hydraulic Circuit (Mpa)26
Pilot Oil Circuit (MPa)3.9
Pilot pump flow (L/min)21
Bucket cylinders - Number × diameter × stroke (mm)1 x 85 x 55
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 95 x 60
Boom cylinders - Number × diameter × stroke (mm)1 x 115 x 65
Fuel Tank (L)135
Hydraulic Tank (L)60
Engine Oil changes (L)12.3
Coolant (L)8
Hydraulic System (L)100
Total transport length (mm)6,080
Total transport width (mm)2,260
Total transport height (mm)2,600
Full cab height (mm)2,600
Counterweight ground clearance (mm)760
Minimum ground clearance (mm)360
Minimum turning radius of front working device (mm)1,720
Back end turning radius (mm)1,750
Onboard width (mm)2,260
Total track length (mm)2,765
Track gauge (mm)1,750
Track plate width (mm)450
Total track width (mm)2,200
Maximum digging radius (mm)6320
Maximum digging depth (mm)4,170
Maximum excavation height (mm)7150
Maximum unloading height (mm)5060
Maximum vertical digging depth (mm)3,730
Bulldozer lift or depth (mm)400 x 280
Dodging plate width × height (mm)2320 x 435
Maximum excavation radius of stop surface (mm)6,170
Maximum effective digging depth (mm)3,800
see more

Overview

No.1074161

Brand Name:

Hitachi

Model Number:

ZX70-5G

Year:

2014

Location:

Jiangsu China
