Product Description

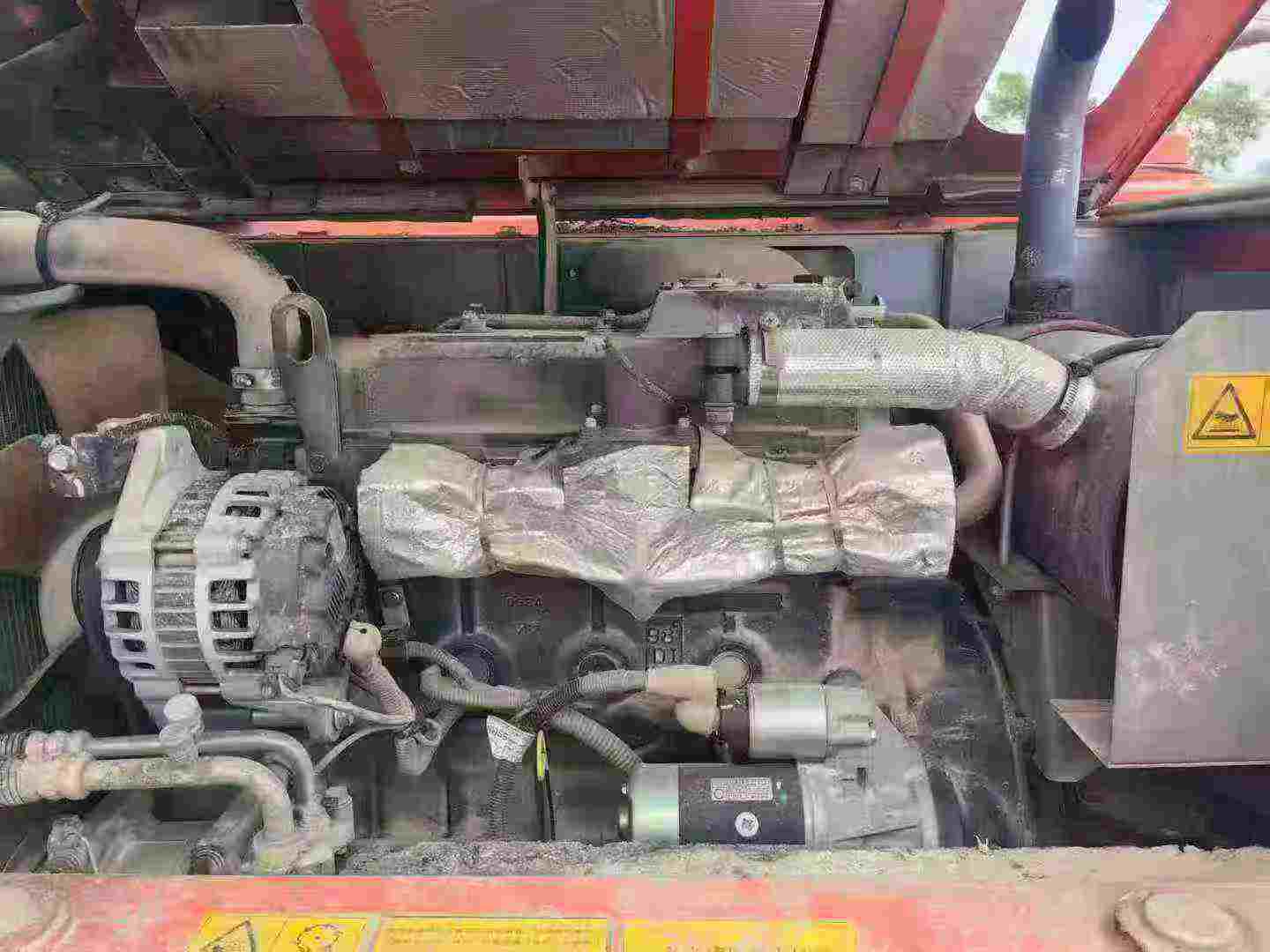

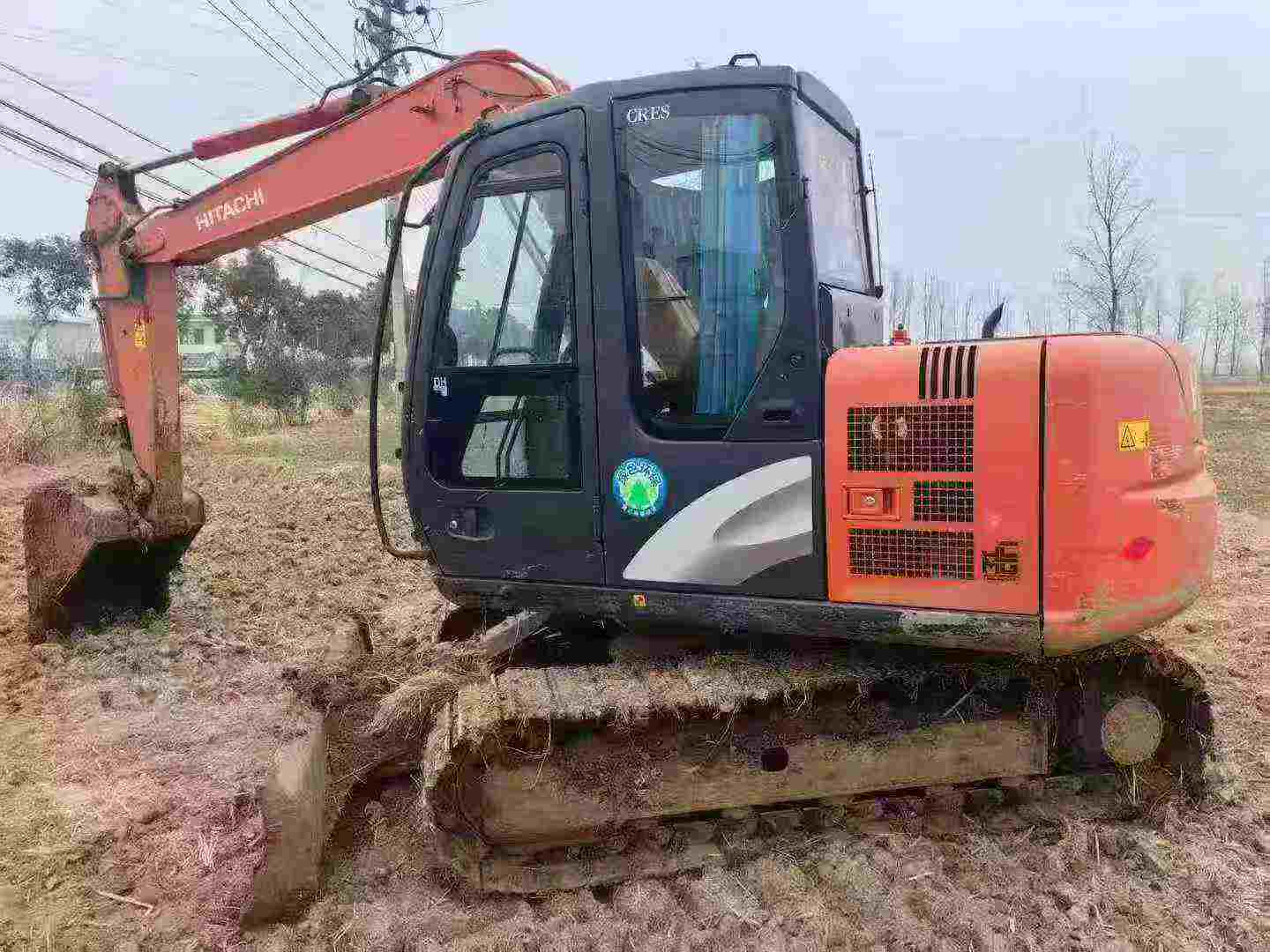

Built for immediate deployment, this 2021 Hitachi ZX75US delivers proven performance across demanding jobsites. Powered by a reliable Isuzu CC-4JG1 engine generating 40.3 kW at 2100 rpm, this 7-ton excavator handles digging, grading, and material handling with consistent efficiency. The 3.1L displacement engine provides the torque needed for continuous operation throughout your workday.
Equipped with a 0.28 m³ standard bucket and alternative 0.13/0.33 m³ options, this machine adapts to varied excavation requirements. Maximum digging depth reaches 4,110 mm, while the 6,260 mm excavation radius covers substantial working areas from a single position. The 2,290 mm track ground length and 30 Kpa ground pressure ensure stability on soft terrain without sacrificing mobility.
- Working weight: 7,100 kg for optimal balance and control
- Compact transport dimensions: 5,870 mm length × 2,320 mm width
- 120L fuel capacity supports extended operation
- 1,210 mm rear turning radius enables work in confined spaces
- Currently located in Shaoxing, Zhejiang
Ready to perform from day one on your construction, utility, or landscaping project.
| Specifications | Value |
|---|---|
| No. | 1006555 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7100 |
| Bucket capacity (m³) | 0.28/0.13/0.33 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu CC-4JG1 |
| Rated power (kw/rpm) | 40.3/2100 |
| Displacement (L) | 3.1 |
| Ground specific pressure (Kpa) | 30 |
| Travel speed (km/h) | 5 |
| Fuel Tank (L) | 120 |
| Engine Oil changes (L) | 12 |
| Coolant (L) | 9.2 |
| Hydraulic System (L) | 90 |
| Total transport length (mm) | 5870 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2690 |
| Full cab height (mm) | 2690 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1210 |
| Track gauge (mm) | 1870 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2290 |
| Maximum digging depth (mm) | 4110 |
| Maximum excavation height (mm) | 7210 |
| Maximum unloading height (mm) | 5210 |
| Maximum vertical digging depth (mm) | 3670 |
| Maximum excavation radius of stop surface (mm) | 6260 |
